Product Name

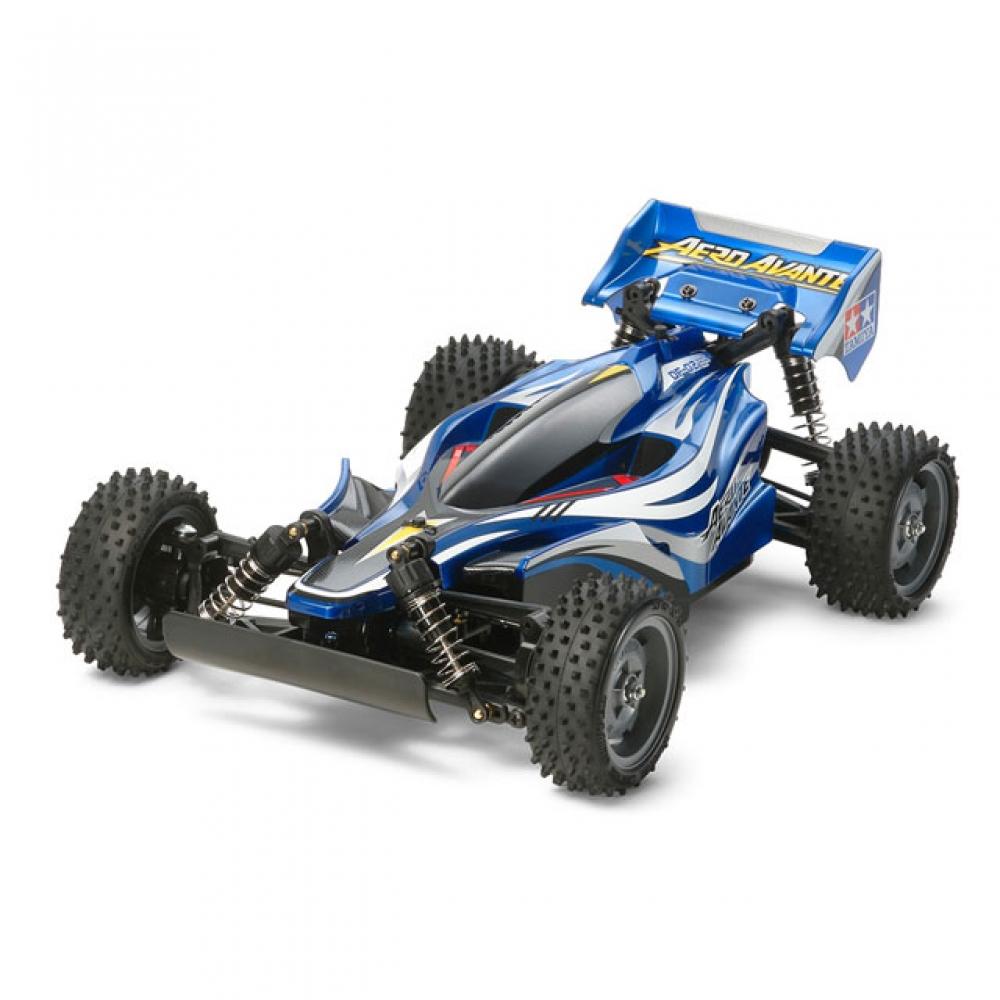

Tamiya 1/10RC Aero Avante (DF-02)
Brand Introduction
Tamiya is a well-known Japanese manufacturer of remote control toys, providing high-quality models and kits.
Product Description
【 Run Off-Road with Aerodynamic Body 】 The "Aero Avante," an initial model in the mini 4WD REV series that pursues aerodynamics, has been presented as an electric radio-controlled 4WD buggy assembly kit. The body, with bold and sharp lines made up of complex curves, has been redesigned for RC cars. Characteristic forms such as a slim nose, vertical canopies, and coverage boards on the nose sides are expressed with high-strength and lightweight polycarbonate. The rear wing adopts a shape reminiscent of the original Avante to enhance the atmosphere. The chassis is the DF-02 with vertical motor and shaft drive 4WD. The silver-colored wheels are equipped with high-grip "Square Spike Tires." The sharp aerodynamic body gracefully runs through off-road courses, showcasing its charm.
【 Shaft Drive 4WD with High Performance, DF-02 Chassis Adoption 】 The DF-02 chassis, featuring a vertical motor and shaft drive 4WD, offers excellent driving stability and high reliability. The frame is a bathtub type that allows a flat-mounted RC mechanism and running battery for a low center of gravity with a wide tread. The suspension is a 4-wheel double wishbone with oil dampers that show excellent shock absorption. It moves responsively even on rough surfaces, paired perfectly with the high-grip square spike tires that pull out high traction. Additionally, the steering tie rod uses turnbuckle shafts to adjust the toe angle. The front and rear gearboxes are equipped with differential gears that promise smooth cornering. This chassis provides basic 4WD buggy with high performance.
Basic Specs
● Length: 390mm, Width: 249mm, Height: 145mm
● Wheelbase: 266mm
● Tread: Front 217mm, Rear 208mm
● Frame: Bathtub type
● Drive Method: Shaft Drive 4WD
● Differential Gear: 3 bevel diffs at front and rear
● Steering: 3-piece tie rod type
● Suspension: 4-wheel double wishbone
● Tire Width/ Diameter: Front 32/85mm, Rear 41/85mm
● Damper: CVA oil damper
● Gear Ratio: 9.58
● Includes 540 type motor
● Speed Controller: ESC type (sold separately)
Usage Instructions
After assembly, you can install your desired battery and transmitter for use. Following initial adjustments, it can be driven on preferred paths.
Caution
Keep out of reach of children. Be cautious while using to avoid injuries. When assembling or disassembling parts, handle gently without applying excessive force.
Size Chart
Measurements
Value
Length
390mm
Width
249mm
Height
145mm
Wheelbase
266mm
Tread (Front)
217mm
Tread (Rear)
208mm
