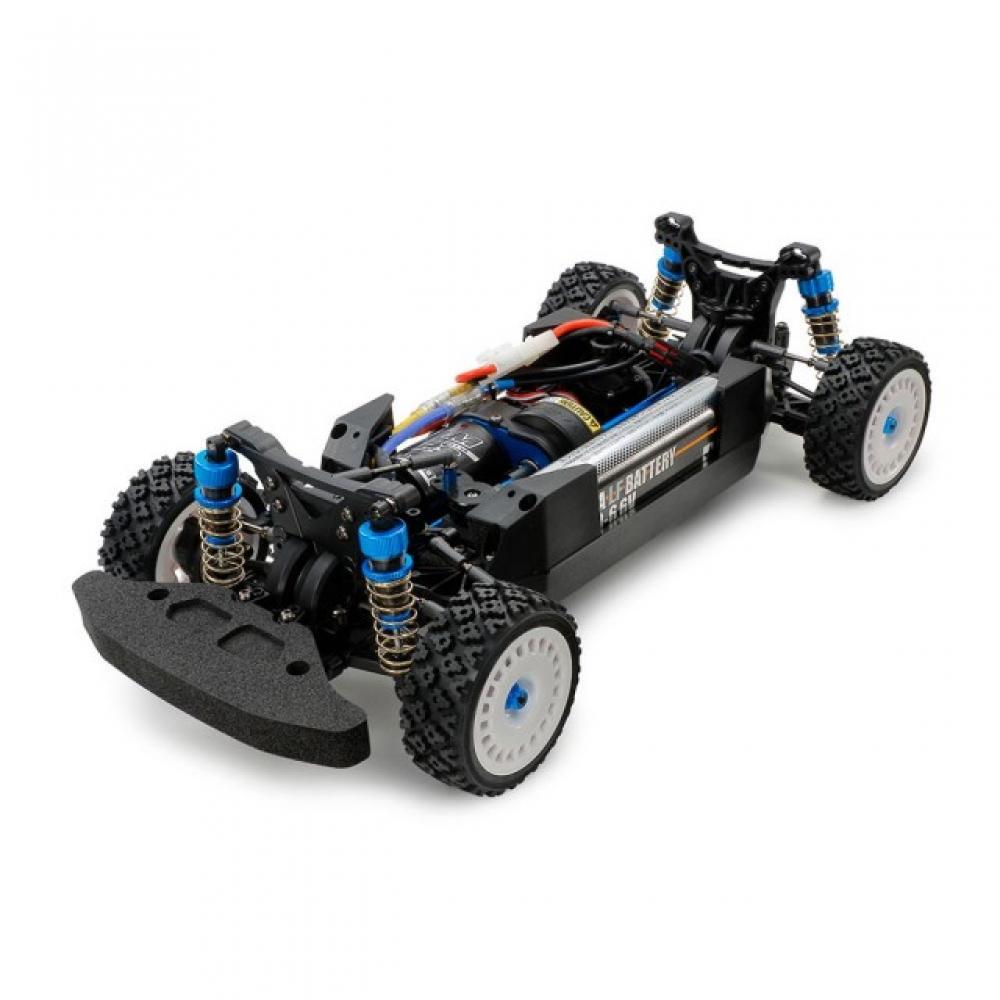

Product Name: Tamiya 1/10 RC Chassis Kit XV-02 Pro
Brand Introduction
Tamiya is a renowned Japanese brand known for producing precision model kits, particularly in the RC car and model kit domain. With exceptional quality and innovative designs, the brand is beloved by many fans worldwide.
Detailed Description

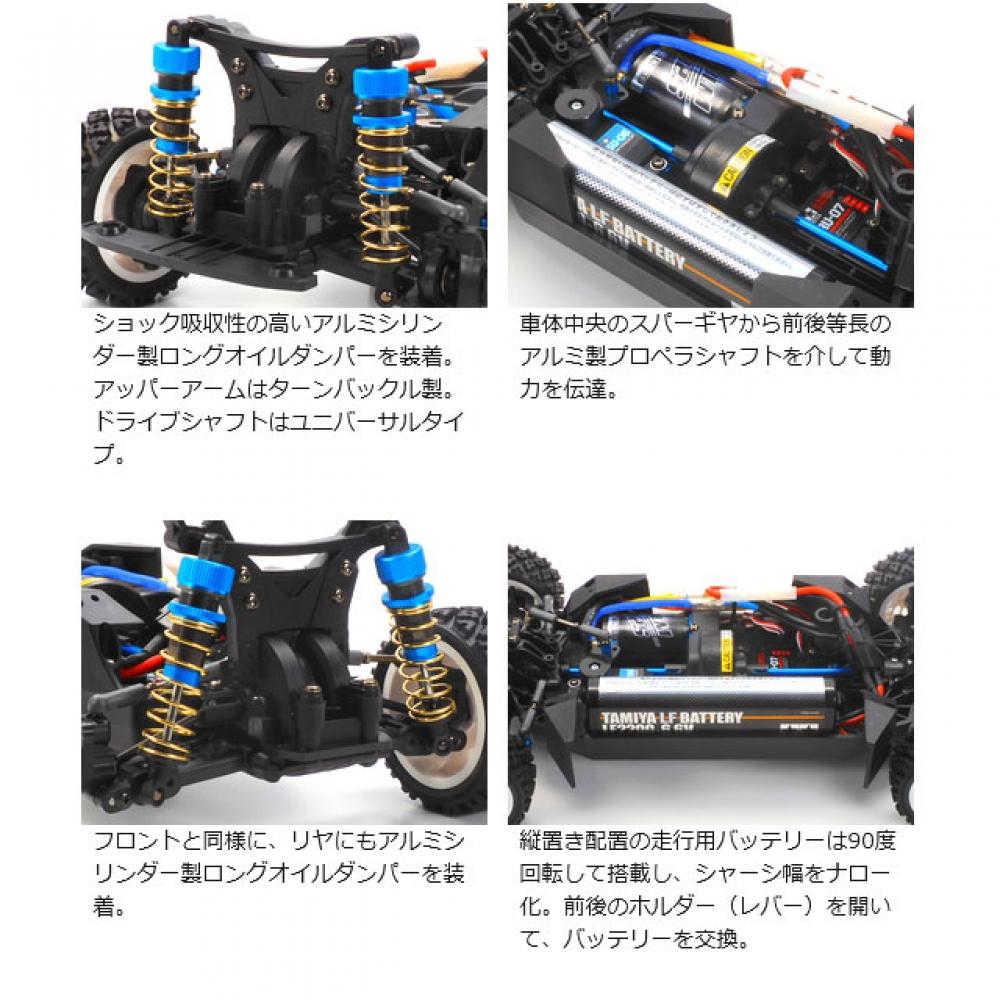

【 A True Rally Field Capable Chassis 】 The motor is installed vertically in the front mid position, transmitting power through the central spur gear to the front and rear equal-length propeller shafts. It not only supports on-road driving but also allows for thrilling rally performance on flat dirt, broadening the true driving field with a shaft drive 4WD chassis. It is equipped with 39T gear diffs at both front and rear, along with one 40T gear included for setting adjustments, allowing changes to the front/rear driving allocation. Additionally, weight is concentrated at the center, and the chassis width is narrowed. The double wishbone 4-wheel independent suspension features long oil dampers made of aluminum.
【 Main Equipped Parts 】
<Drive System>: Full bearing specification, front and rear aluminum propeller shafts, front and rear oil-sealed gear diff (2 x 39T, 1 x 40T), front and rear universal drive shafts

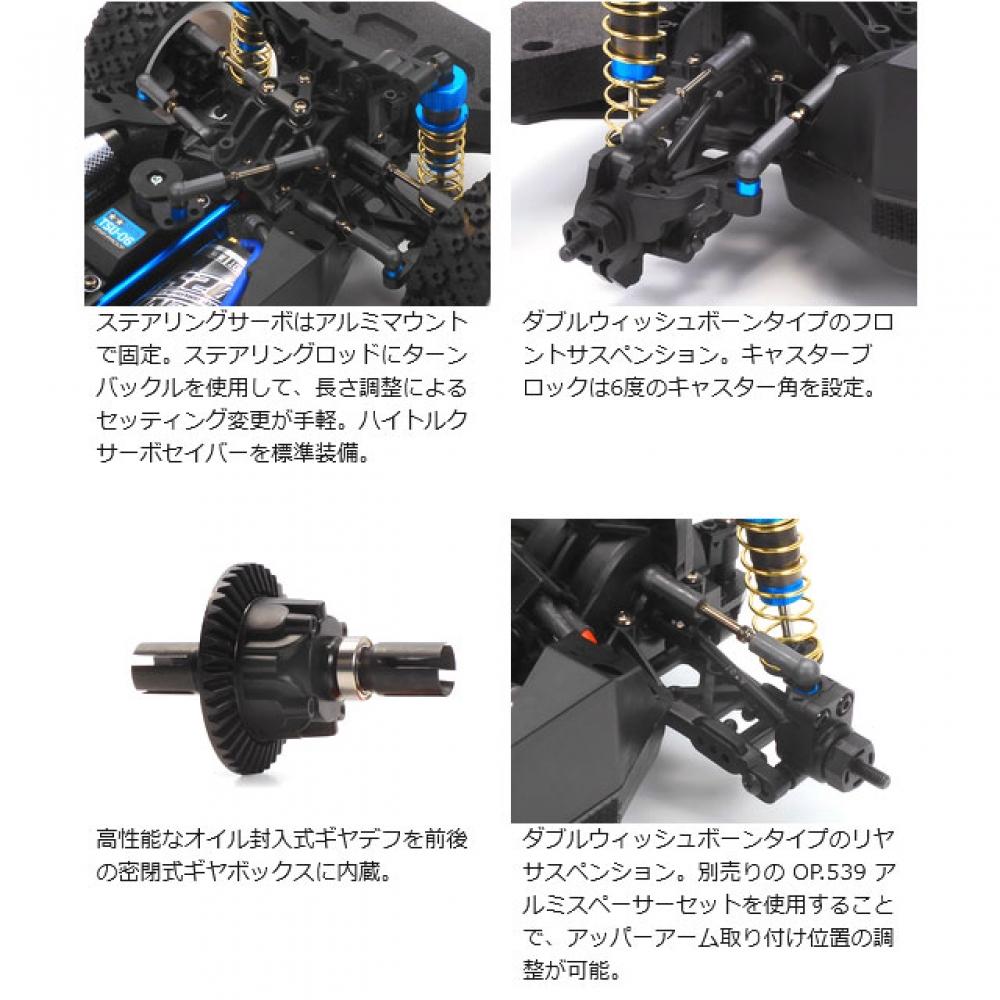

<Suspension>: Front and rear aluminum long dampers (blue cap specification), caster blocks with 6-degree caster angle, turnbuckle upper arms

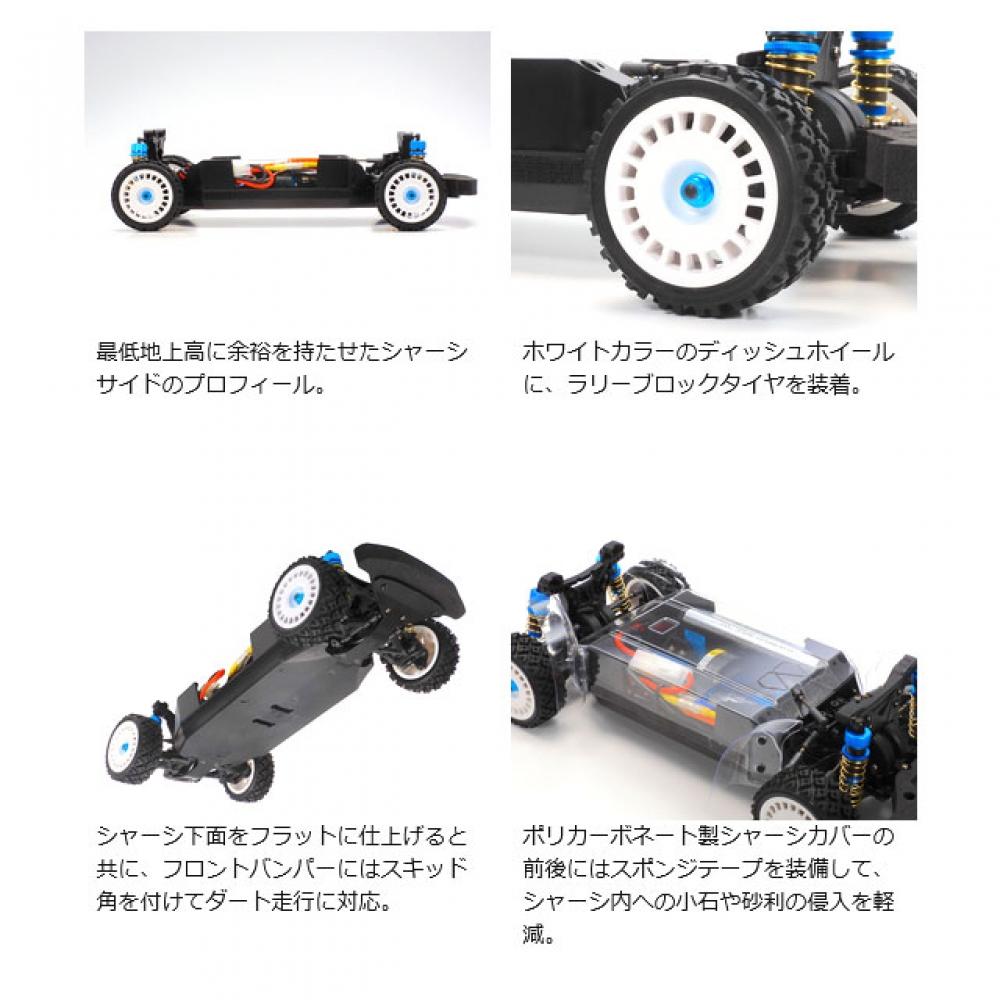

<Chassis Related>: Front urethane bumper with skid angle, polycarbonate chassis cover, aluminum servo mount, high torque servo saver
Basic Specifications
Chassis Length: 368mm (excluding body, etc.)
Chassis Width: 180mm
Wheelbase: 257mm
Frame: Bathtub type
Drive Method: Front midship motor, shaft drive 4WD
Diff Gear: Both front and rear oil-sealed gear diff
Steering: 3-piece tie rod type
Suspension: 4-wheel double wishbone
Dampers: Long oil dampers made of aluminum (blue cap specification)
Gear Ratio: 9.58:1 using the 19T pinion included in the kit (combinitable with optional pinions for a range from 10.71:1 to 6.28:1)
Speed Controller: ESC specification (sold separately)
【 Items to Purchase Separately 】
● Body
● 540-type motor
● RC Mechanism: 2-channel proportional set (transmitter, receiver, ESC, recommended low-profile servo)
● Running battery
● Charger
● Power supply for transmitter. Chassis length=368mm. Body, motor, RC devices, batteries, etc. are not included in this product.
Usage Instructions
Please refer to the manual for assembly instructions, ensuring that all parts are accurately assembled for use. The drive system and suspension set can be adjusted, allowing you to fine-tune for optimal performance based on your driving environment.
Precautions
This product should be stored out of reach of children. It is recommended to inspect all parts and assembly before using to ensure safe operation.
