Product Name

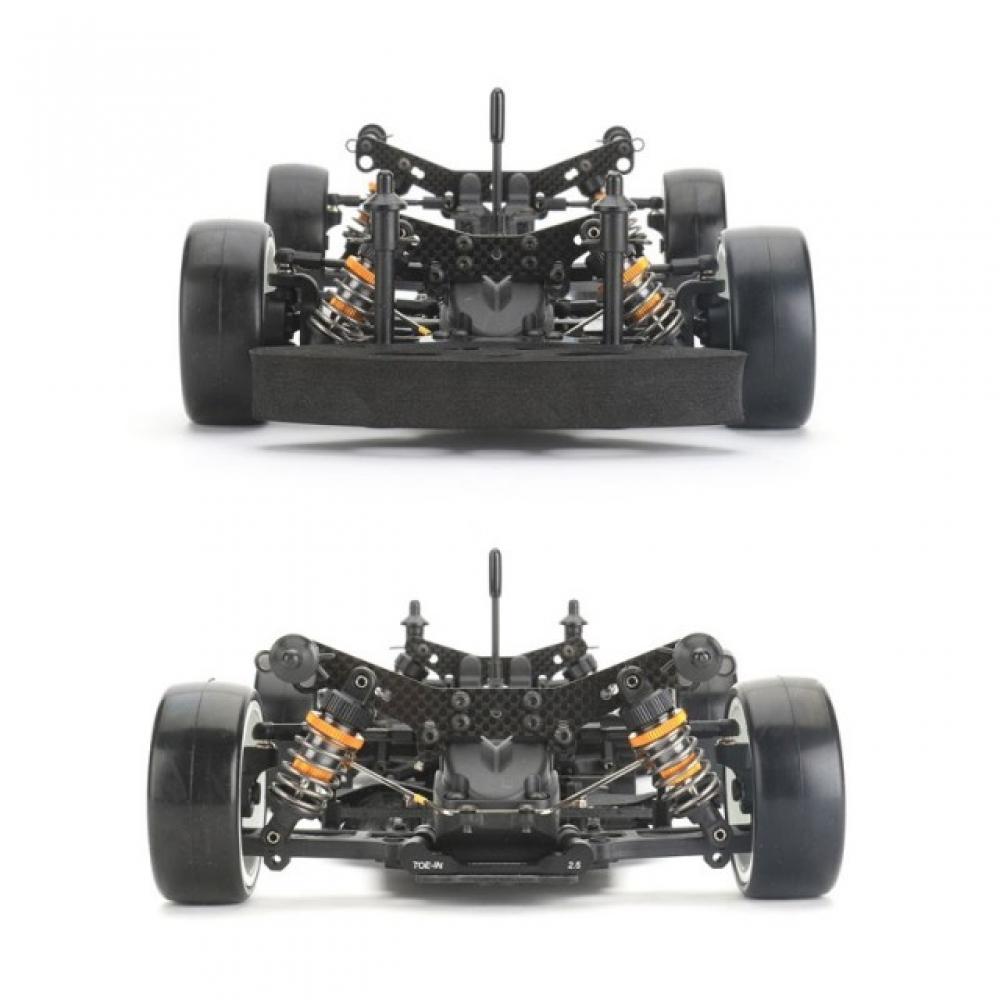

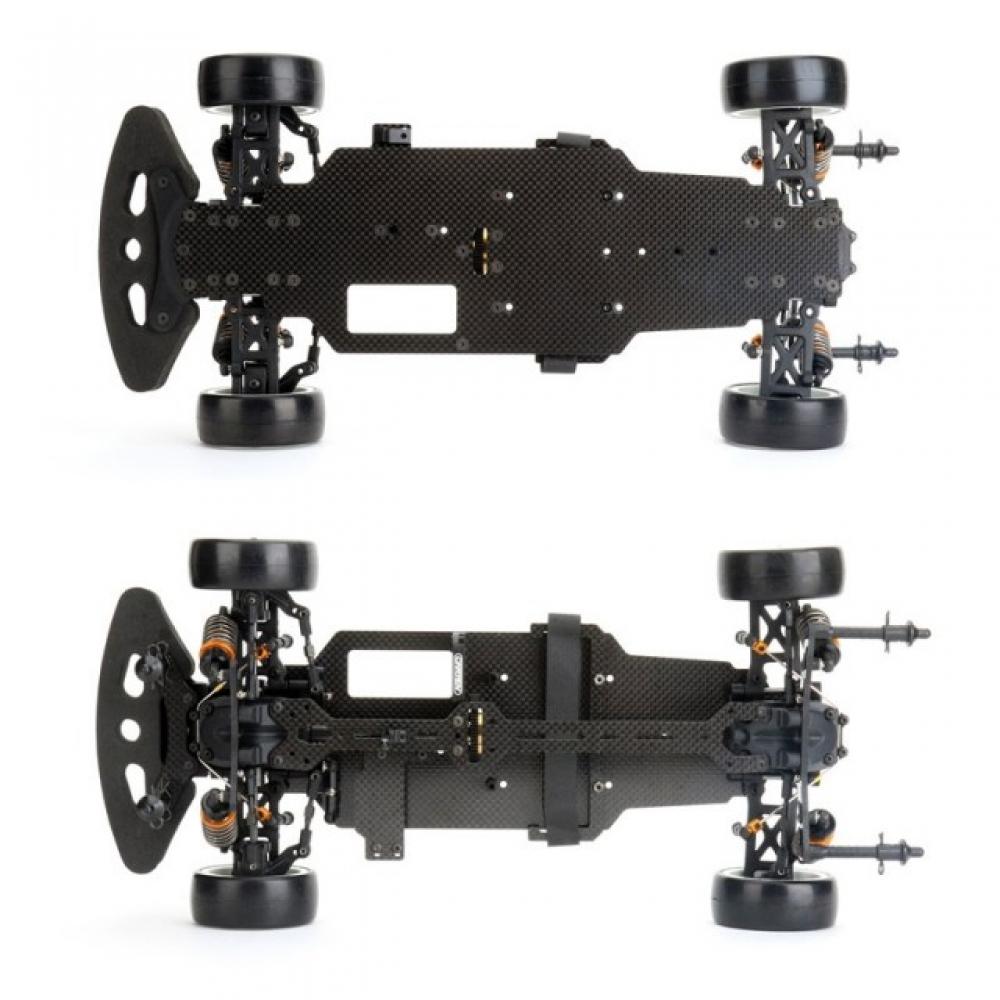

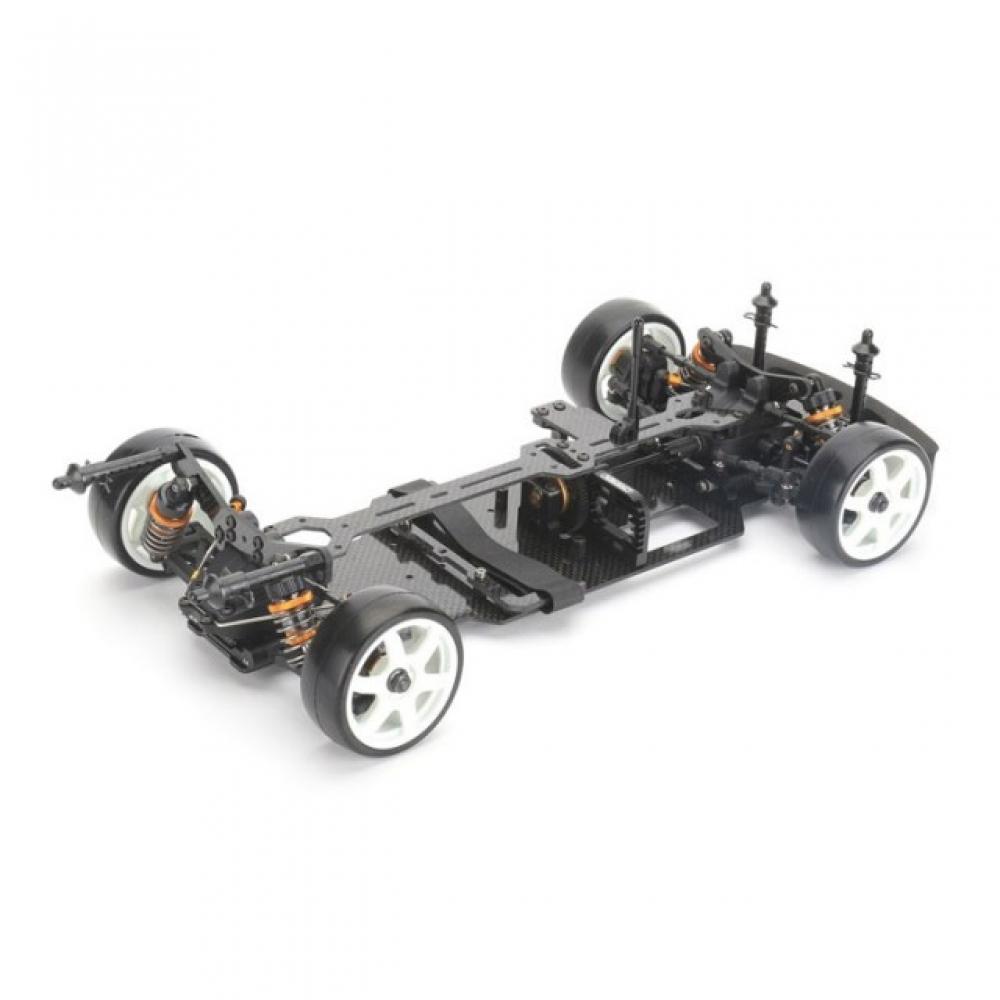

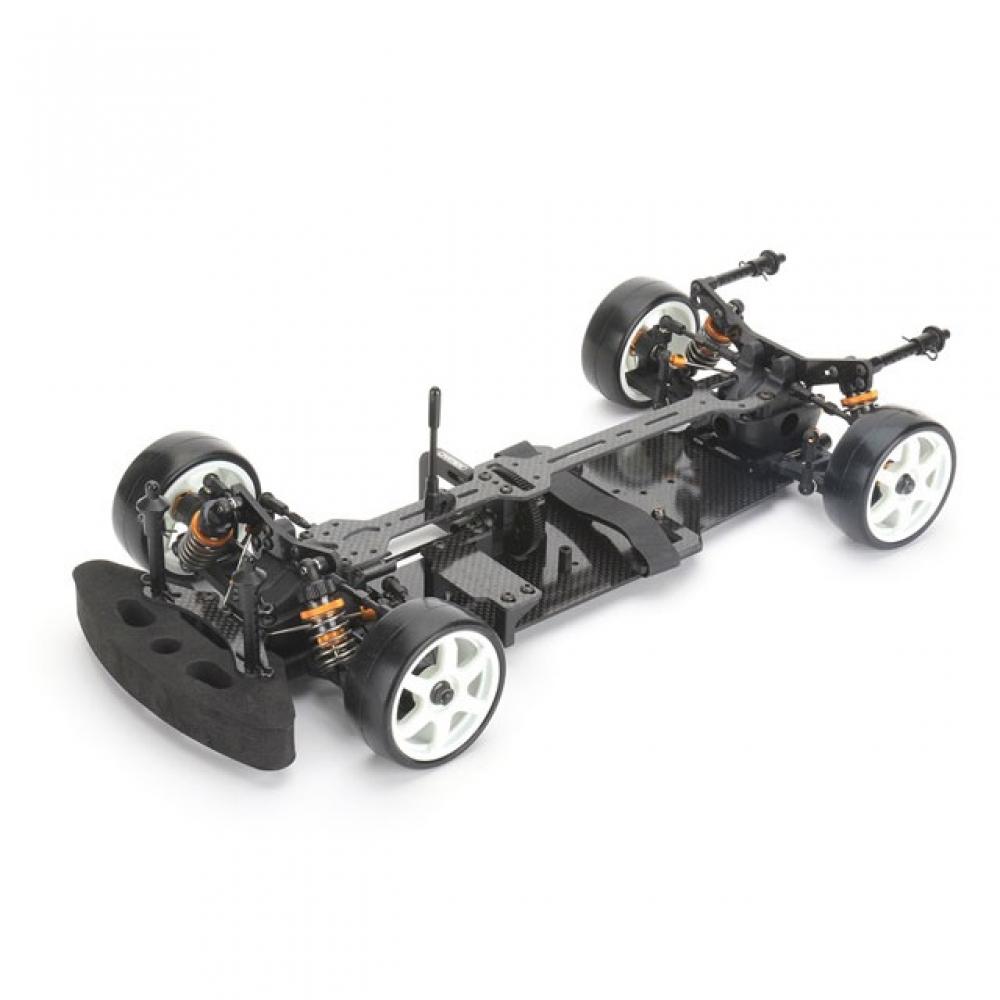

KAWADA CARTEN T410FWD Chassis Kit T4102
Brand Introduction
KAWADA is a renowned Japanese manufacturer of high-quality radio-controlled (RC) models, famous for their precision and high performance. The newly launched CARTEN T410FWD reflects their cutting-edge technology in a 1/10 scale touring car kit.
Product Description
Introducing the 'T410FWD', a new addition to the CARTEN 1/10 scale touring car series that is known for its excellent driving performance with standard kit setup! It features a shaft-driven FWD machine, which provides an exhilarating throttle response unique to shaft drive systems. This kit includes aluminum parts standard that were previously optional in the T410 series, making it an attractive package.
Specifications
1/10 Scale
Overall Width: 188mm
Wheelbase: 255~258mm
Differential Type: Gear Diff
Drive Type: Shaft Drive FWD
Suspension Type: Front and Rear Double Wishbone
Full Ball Bearing Equipped
Motor: 540 Type (sold separately)
Secondary Reduction Ratio: 2.47 (42/17)
Kit Standard Gear Ratio: 4.56:1 (48 pitch 72T spur & 39T pinion gear included)
Usage Instructions
Components Required for Operation:
- 2-channel Propo Set (Transmitter, Receiver, ESC, Servo)
- 540 Size Motor
- Running Battery (1S Size or Short Size Li-Po Max Dimensions: 96×47×26mm)
- Running Body
- Running Tires, wheels, and inner
Cautions
This product is an assembly kit and is not a completed model. Additional parts needed for operation must be purchased separately. It is recommended to check the assembly status of all parts before use for safe operation.
To request a return or exchange, please note that it is mandatory to provide a video of the unpacking of the package.
