Product Introduction
Installation and operation instructions are available on the official video site.
◯ Product Features
・Innovative design for installation on sliding doors, compatible with sliding doors and other devices.
・Automatically locks when the door is closed; auto-lock function included.
・Easy setup with "Home Mode" and "Security Mode" with administrator privileges.
・Manual lock function for use in stores, switchable between auto-lock and manual lock.

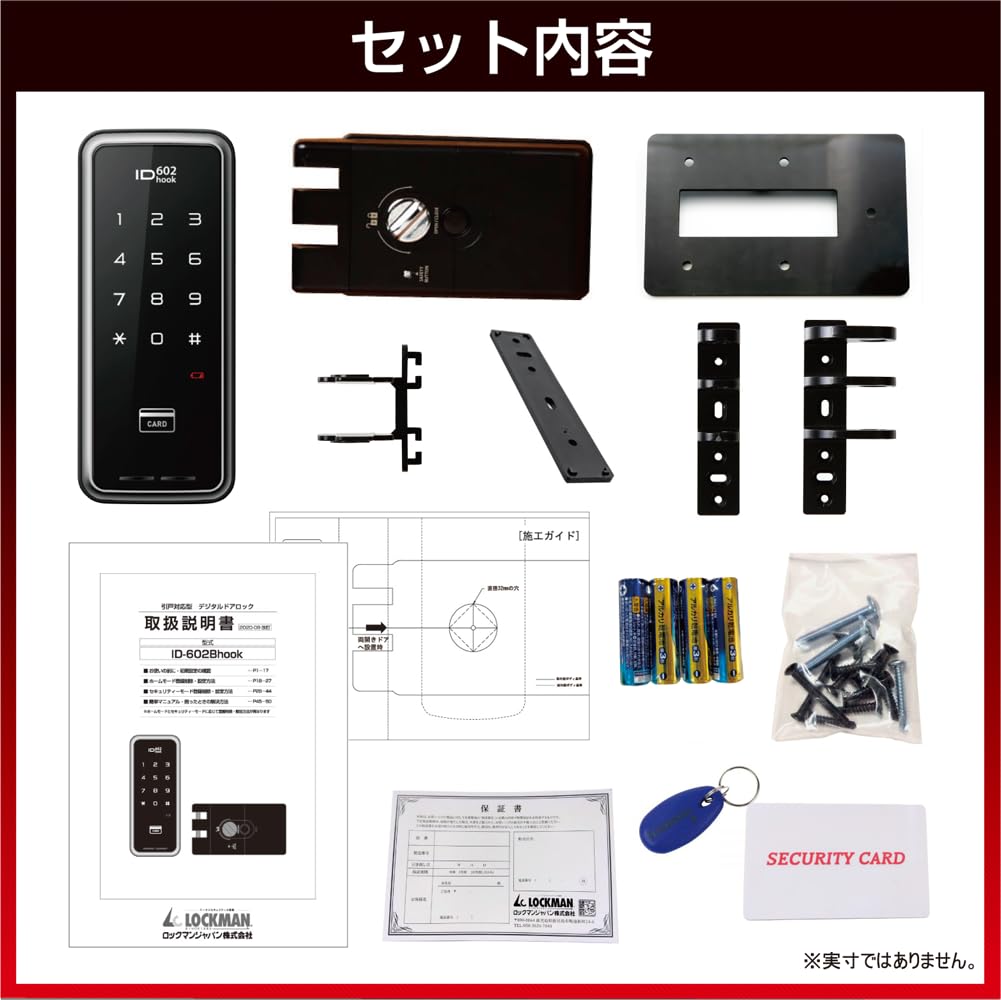

・Standard set of I-type and L-type strikes for door compatibility.

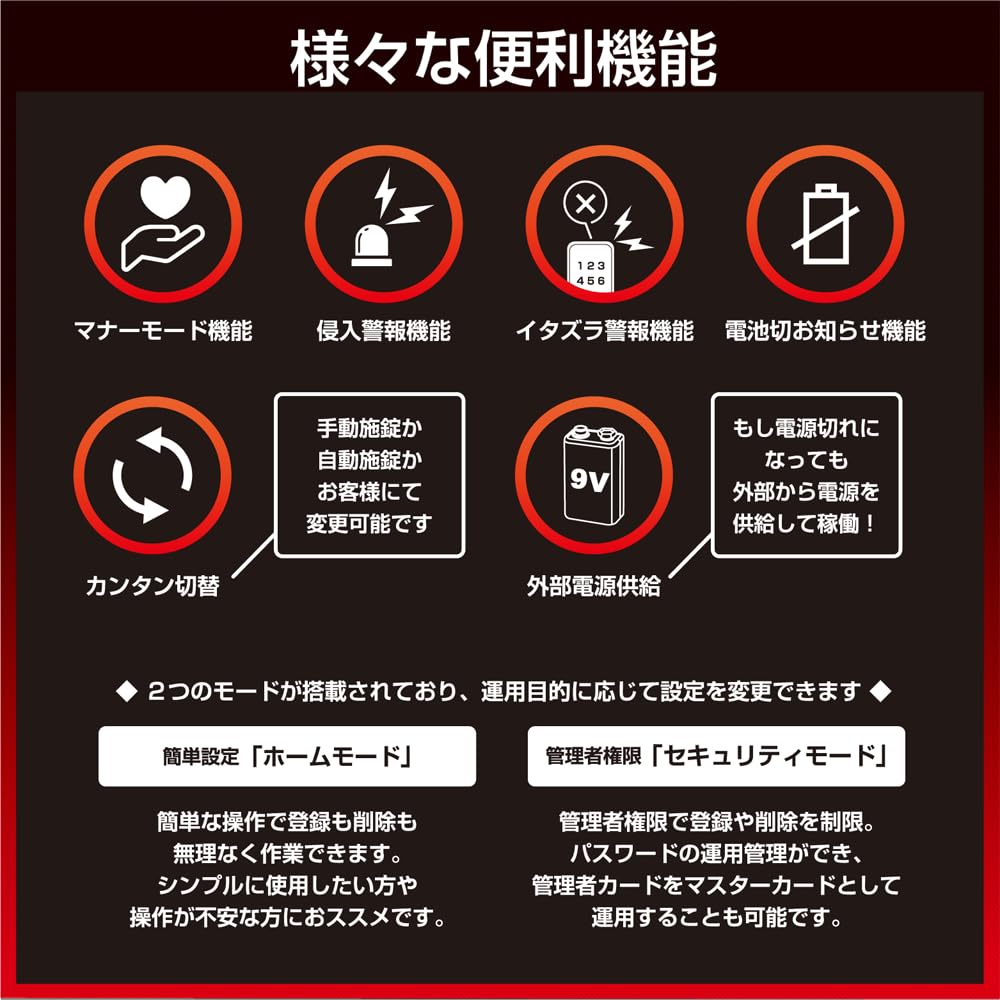

・Various safety and convenience features, including silent mode and low battery notification.
◯ Unlocking Method
[Card] FeliCa/MIFARE compatible
Home Mode: Up to 30 cards / Security Mode: Up to 200 cards
[PIN] 4-12 digits, up to 4 types
*Mifare Ultralight not supported
*Mifare Unique ID (7 bytes) not supported in some cases
*Some Osaifu-Keitai and transportation IC cards are not supported in some products.
Use with dedicated cards.
◯ Installation Requirements
[General Fire Door] Door Thickness (35mm-50mm)
[Installation Location] Indoor Door (Waterproof)
[Backset] 60mm-105mm
*Please refer to the product catalog/specifications for detailed specifications.
Size

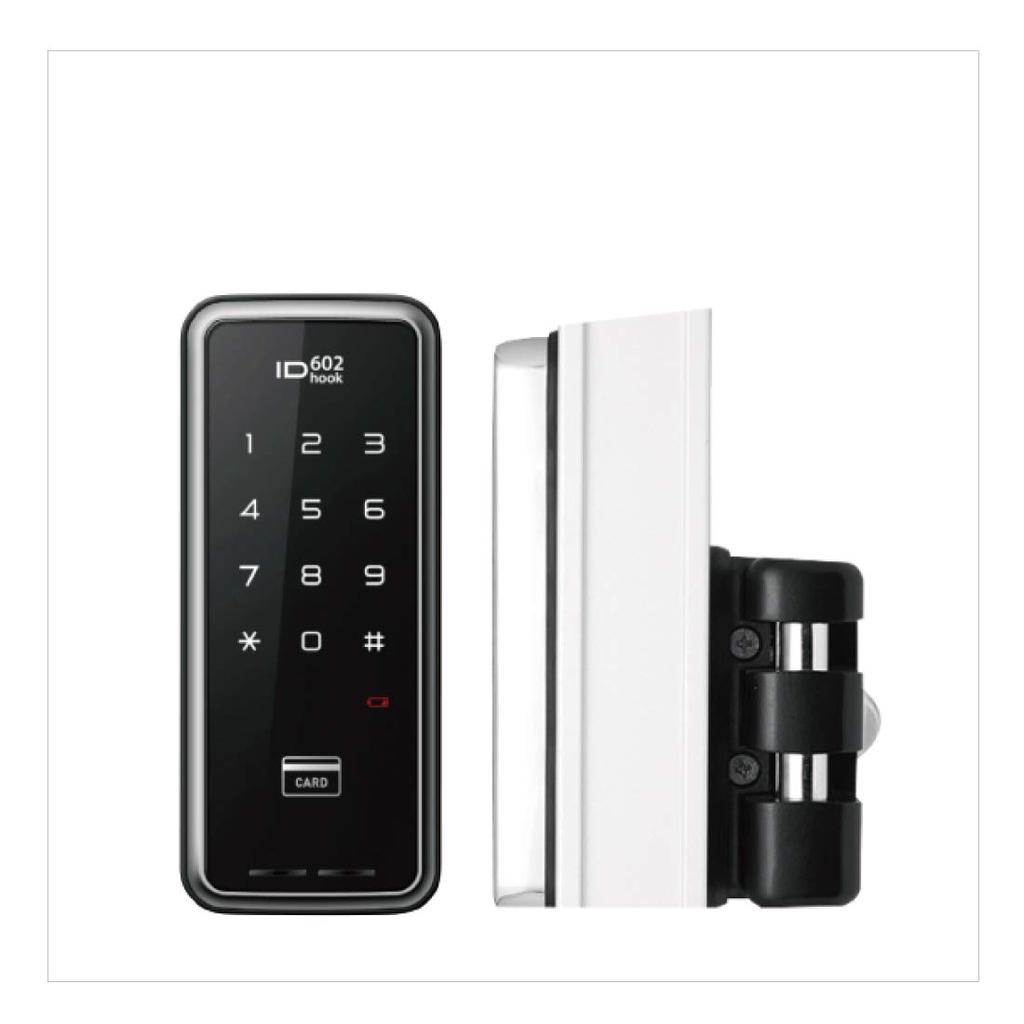

Outdoor Unit: Height 163mm, Width 69mm, Thickness 19mm
Indoor Unit: Height 90mm, Width 163mm, Thickness 49mm
Strike I-Type: Height 118mm, Width 26mm, Thickness 32.7mm
Strike L-Type: Height 118mm, Width 55mm, Thickness 34.5mm

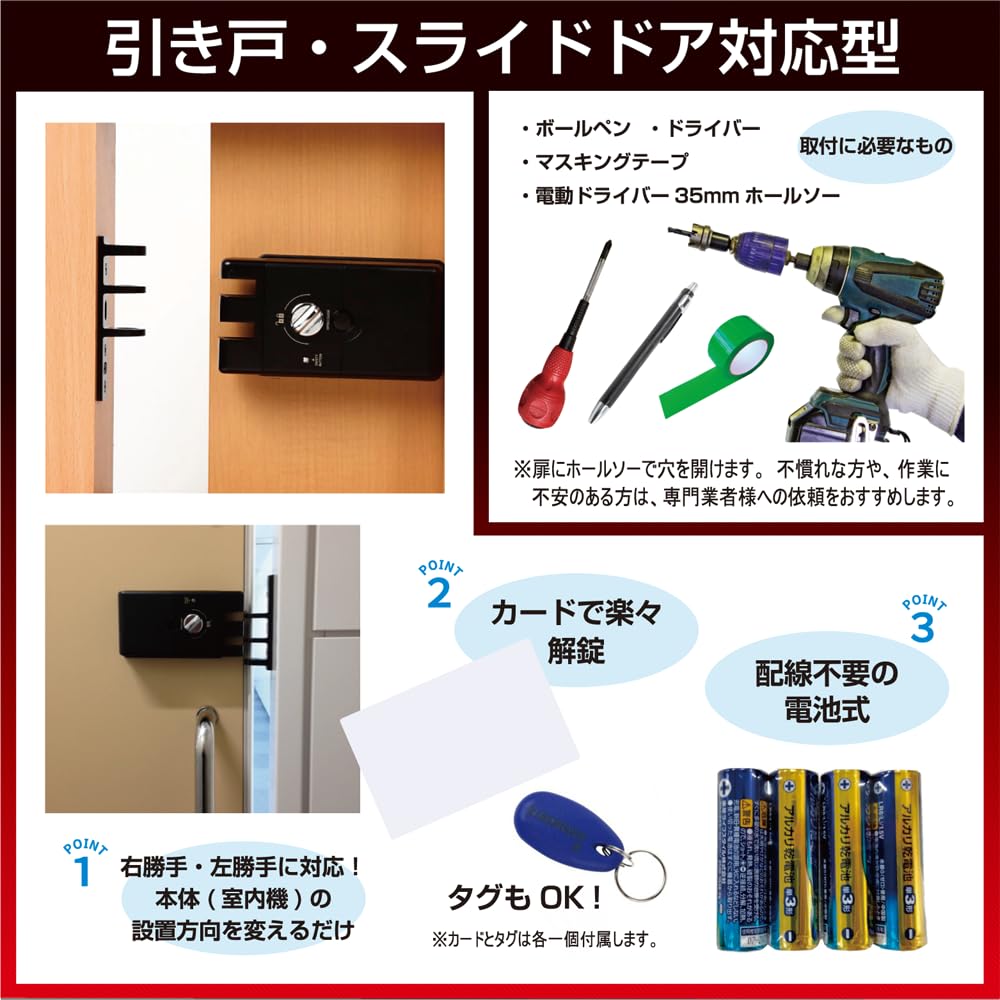

*Drilling holes in the door is required. *Please verify that this product can be installed on your door before purchasing. *Note: The demo stand shown in the product photo is not included.
Safety Warning
*Drilling holes in the door is required. *Please verify that this product can be installed on your door before purchasing.
Equipped with an auto-lock function that automatically locks the door when it's closed.
Compatible with sliding doors, including those with a new, innovative design.
Includes standard I-type and L-type strikes for door configuration.
Easy setup with "Home Mode" and administrator privileges in "Security Mode."
Unlocking method: PIN or card (FeliCa/MIFARE)
