Feature:
1. Basic Functions: accurately measuring AC DC voltage, AC DC current, frequency, resistance, continuity, fire wire test, and V alert test.

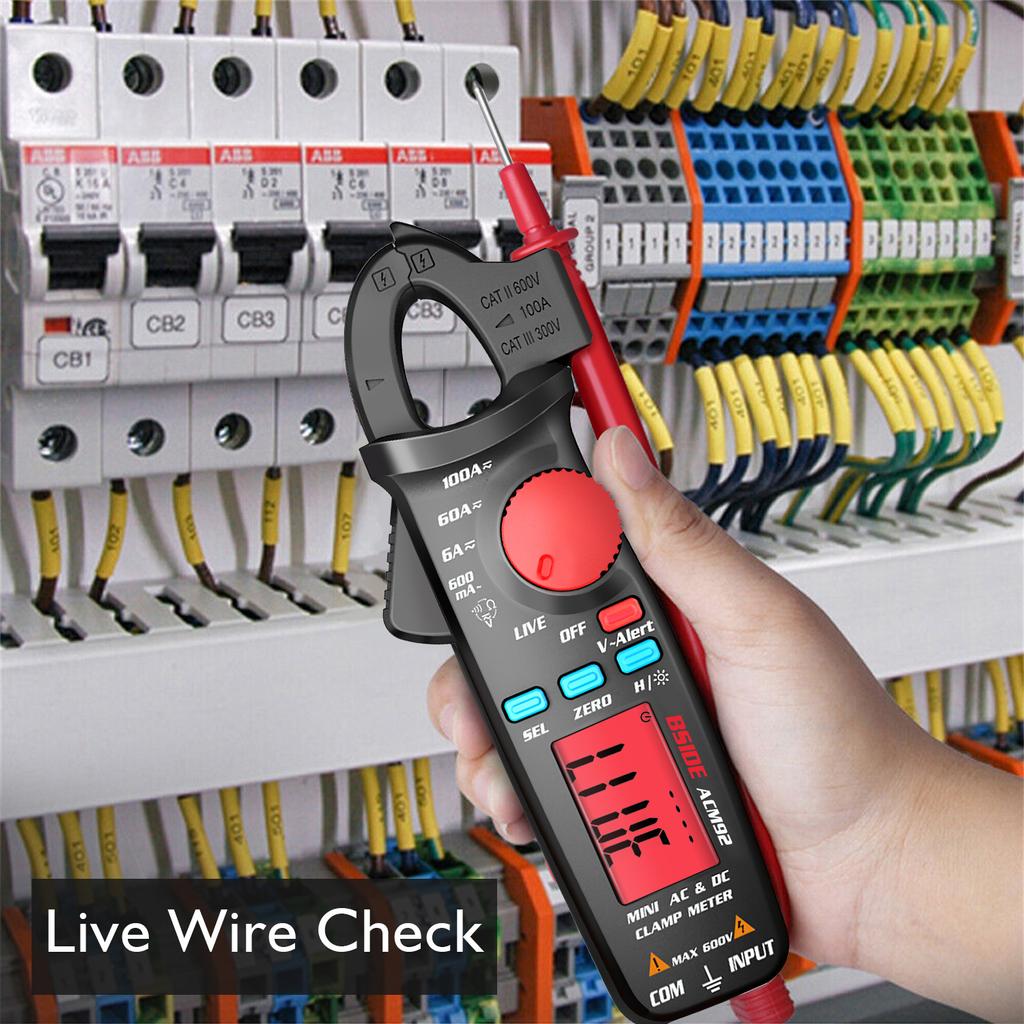

2. Fire Wire Identification: audio and visual dual alarm when test the fire wire.
3. Safety Operation: meets the safety requirements for electronic measuring instruments, over voltage standard is CATIII 300V, CATII 600V, shows \ OL\ on the LCD if over range.

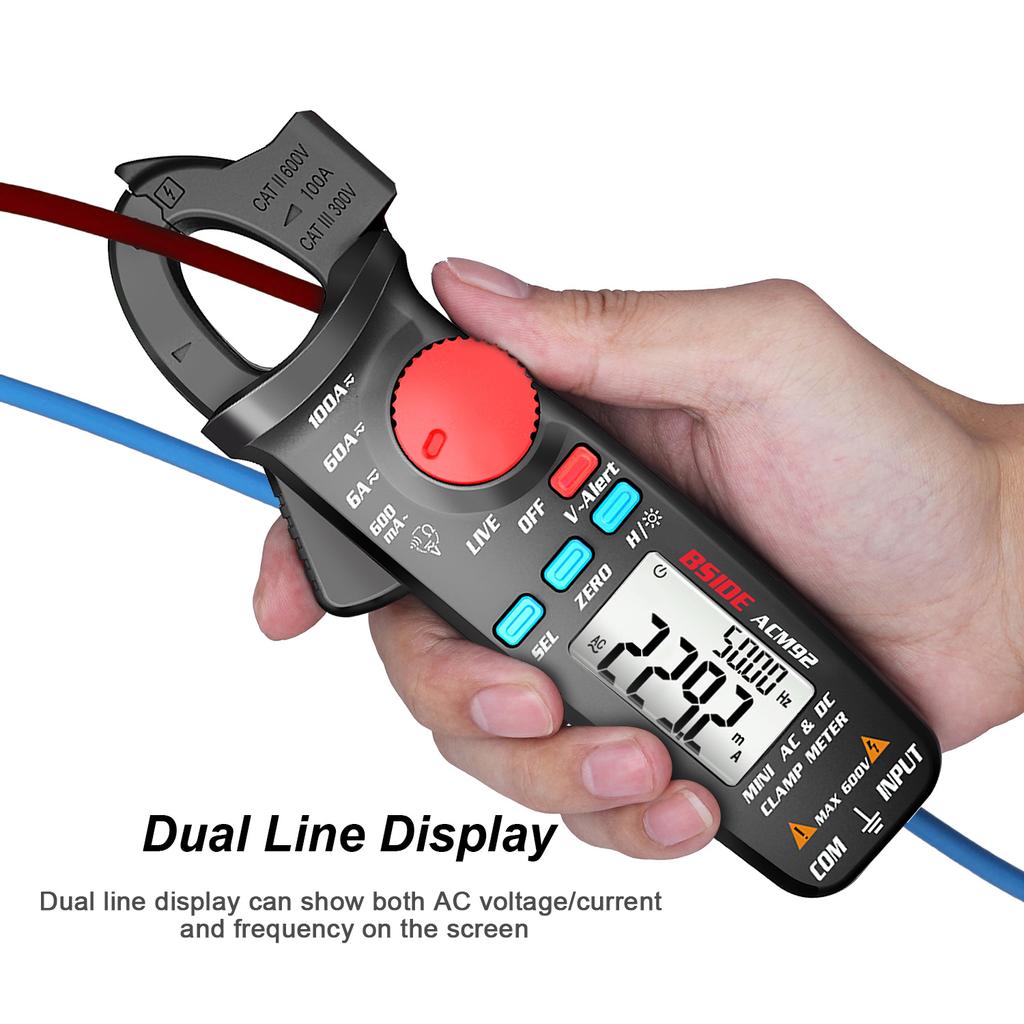

4. Clearly HD LCD Display: 6000 counts maximum display value, data hold and backlight function for easily reading in a dim environment.
5. Low Power Consumption: just powered by 2pcs 1.5V AAA batteries(NOT included), and the meter will automatic shutdown within 20 minutes of no operation.

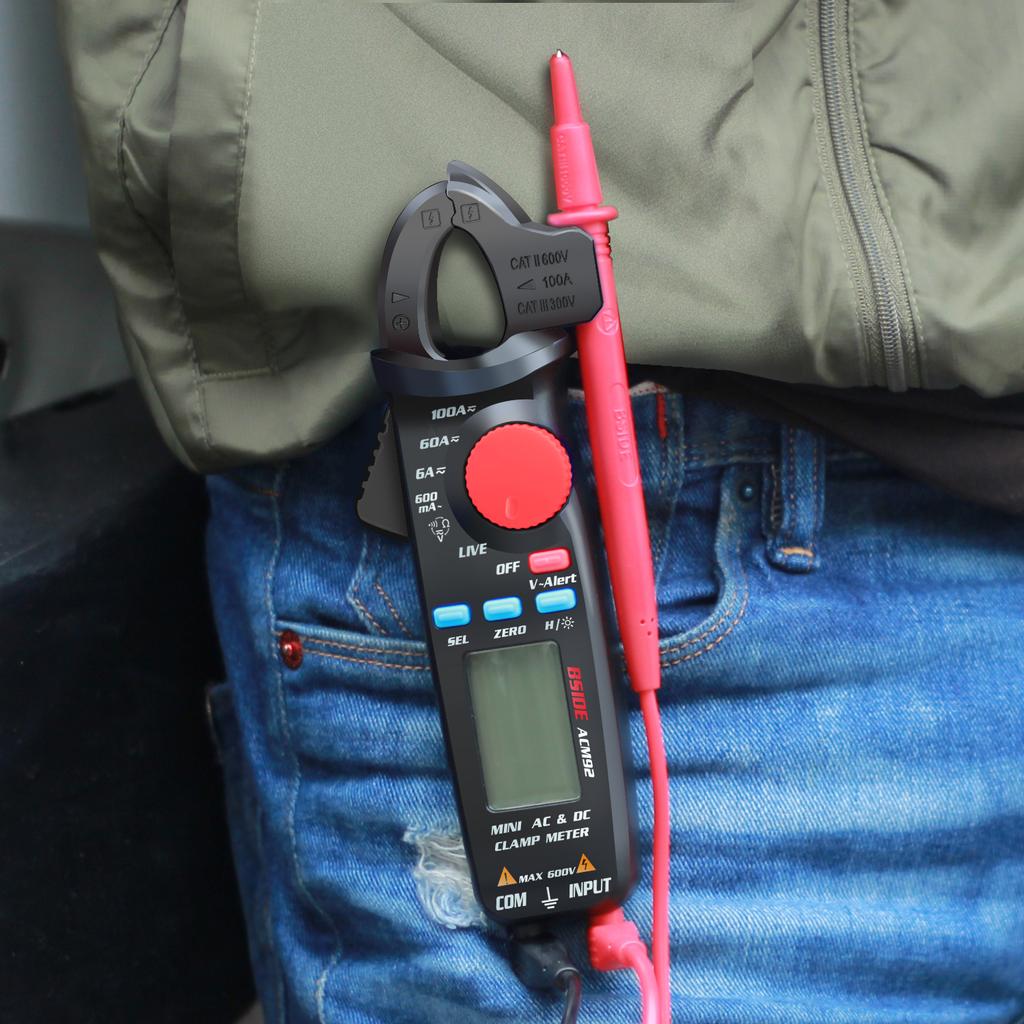

6. Compact and Portable: ergonomic design for easily one handed operation, with clip on the back for conveniently taking it with you.
Specification:
The pocket size digital AC DC clamp meter features of high reliability, high precision, easy to carry, including several functions of the measuring AC DC voltage, AC DC current, frequency, resistance, continuity, fire wire test, and V alert test, etc., and the function is all ready, really an excellent tool for professionals or doing the electrical equipment testing and maintenance in the factories, families, offices.
Features:
Basic Functions: accurately measuring AC DC voltage, AC DC current, frequency, resistance, continuity, fire wire test, and V alert test.
Fire Wire Identification: audio and visual dual alarm when test the fire wire.
Safety Operation: meets the safety requirements for electronic measuring instruments, over voltage standard is CATIII 300V, CATII 600V, shows "OL" on the LCD if over range.
Clearly HD LCD Display: 6000 counts maximum display value, data hold and backlight function for easily reading in a dim environment.
Low Power Consumption: just powered by 2pcs 1.5V AAA batteries(NOT included), and the meter will automatic shutdown within 20 minutes of no operation.
Compact and Portable: ergonomic design for easily one handed operation, with clip on the back for conveniently taking it with you.
Specifications:
Material: ABS
Safety Level: CAT.III 300V, CAT.II 600V
Max. Display: 6,000 counts LCD display
Working Altitude: 0 2000m
Sampling Time: 3 times second
Jaw Opening: 20mm
DC Current: 6A 60A 100A±(2.5percent +10)

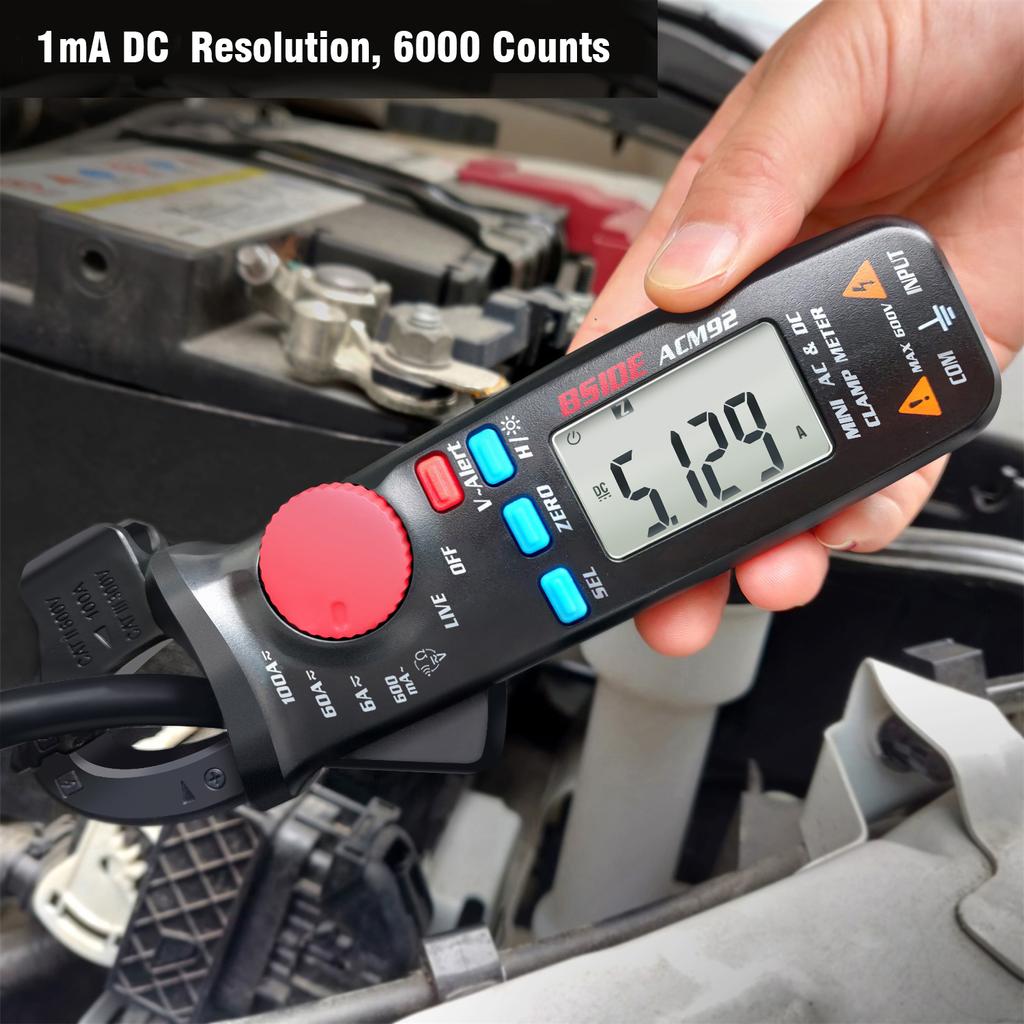

DC Current Resolution: 0.001A 0.01A 0.1A
AC Current: 600mA±(3.0percent +10), 6A 60A 100A±(2.5percent +10)

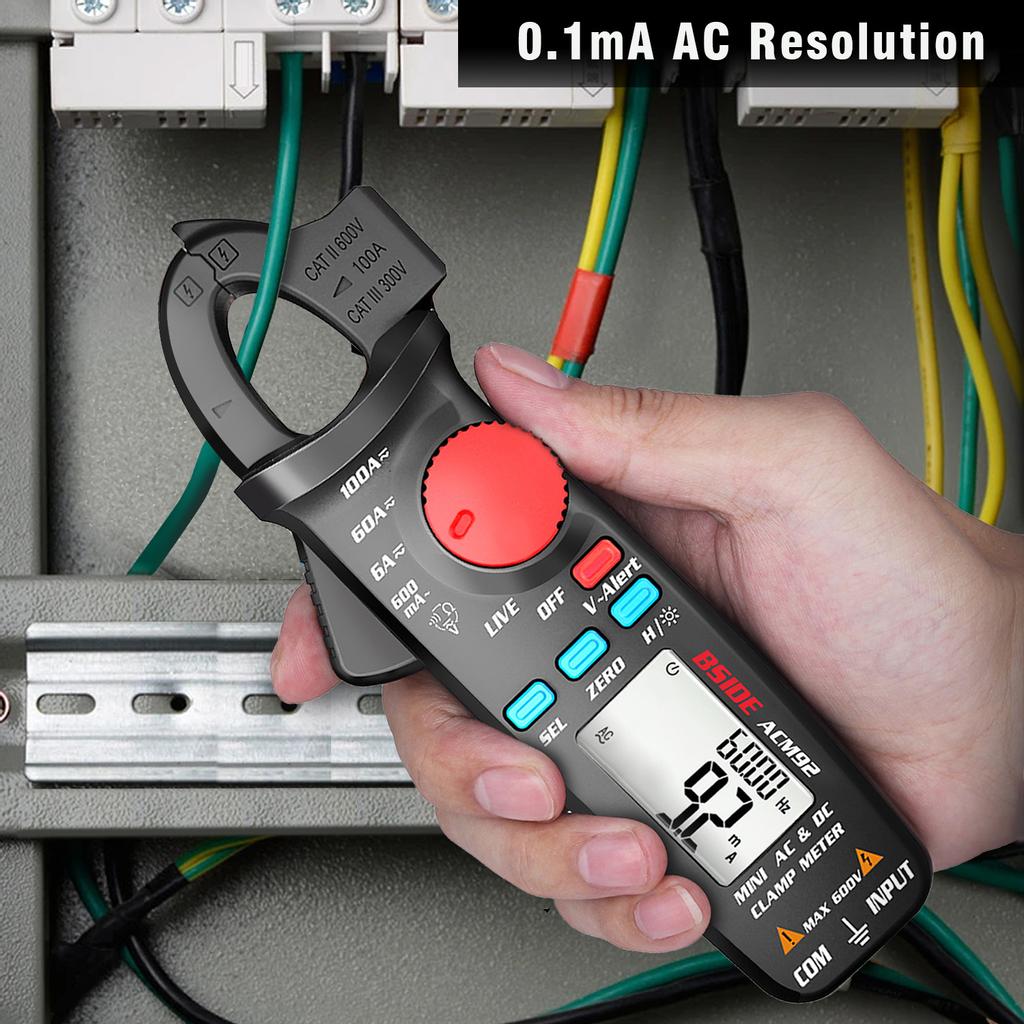

AC Current Resolution: 0.1mA 0.001A 0.01A 0.1A
Frequency: 60Hz 1000Hz±(1.5percent +5)
Frequency Resolution: 0.1Hz 1Hz
Frequency (ACA Mode): 60Hz 1000Hz±(1.0percent +5)
Frequency Resolution (ACA Mode): 0.1Hz 1Hz
DC Voltage: 600V±(1percent +5)
DC Voltage Resolution: 0.1V
AC Voltage: 600V±(1percent +3)
AC Voltage Resolution: 0.1V
Resistance: 600 Ohm ±(1.5percent +5)
Resistance Resolution: 1 Ohm
Working Temperature: 0 40 celsius
Storage Temperature: 10 50 celsius
Relative Humidity: <75percent
Over Range Indication: Display "OL"
Auto off: 20 minutes
Power Supply: 2 * 1.5V AAA battery (NOT included)
Item Size: 179 * 67 * 36mm 7.05 * 2.64 * 1.42in
Item Weight: 137g 4.83oz
Package Weight: 350g 12.35oz
Package Size: 25 * 8.7 * 5.6cm 9.84 * 3.43 * 2.20in

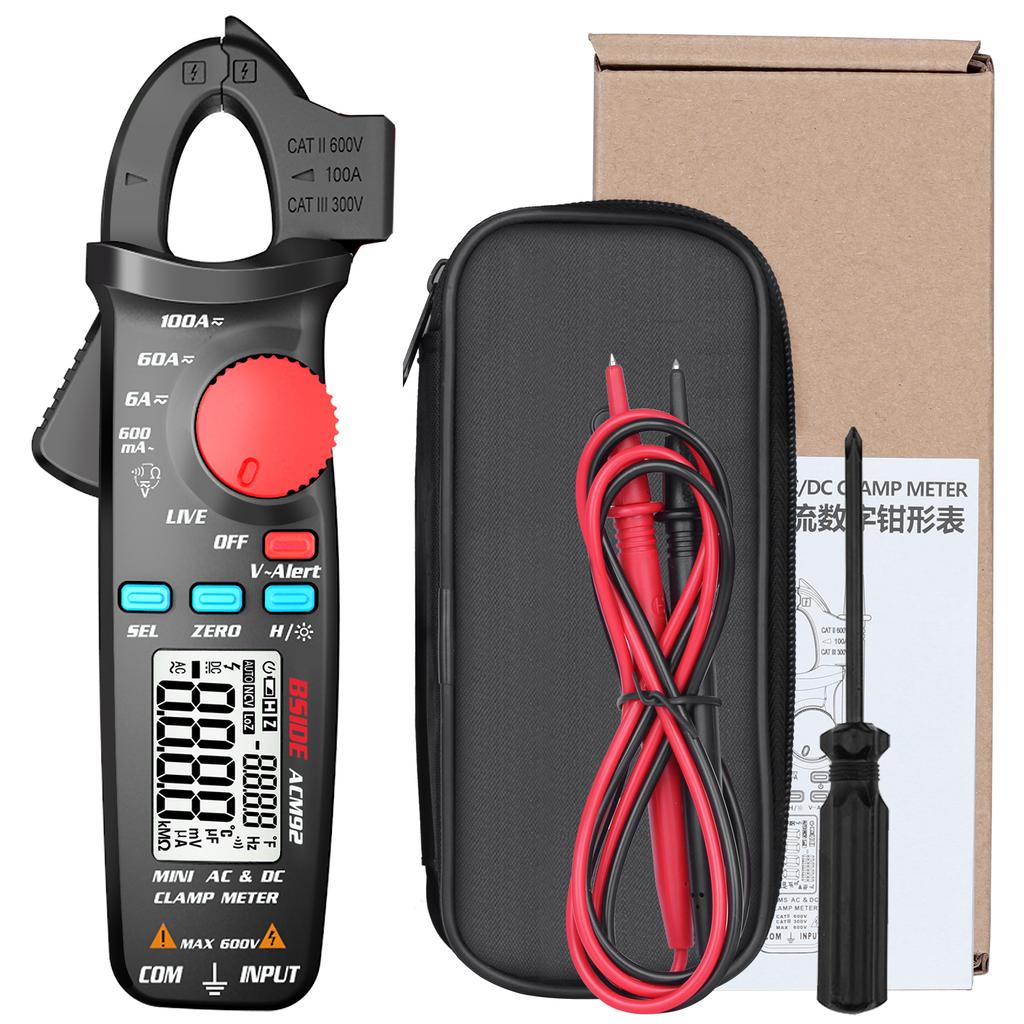

Packing List:
1 * Clamp Meter
1 * Probe
1 * Screwdriver
1 * Storage Pouch
1 * Manual (English)
Package List:
1 * Clamp Meter
1 * Probe
1 * Screwdriver
1 * Storage Pouch
1 * Manual (English)
