Product Description
HiRCgo 2pcs 20kg Digital RC Servo (with U-Shaped Mount Bracket) RDS3218 Dual Shaft Full Metal Gear Steering Servo for Robot Arm
Description
Features:
[High Quality and Performance]: This 20kg servo features a powerful brass gear, high-precision potentiometer, CNC aluminum frame, stable tip, and waterproof rubber-sealed screws. It boasts low noise, excellent heat dissipation, low friction, fast response, excellent anti-jamming properties, and a long lifespan.
[Wide Application]: This 20kg digital RC servo can be widely used in robots, robot arms, mountain bikes, remote-controlled toys, and more. It is also fully compatible with 1/8 and 1/10 scale BAJA RC cars, buggies, and truggys.
[PWM Control]: Controlled by a pulse-width modulation system. It provides precise control with a pulse range of 500μs to 2500μs and an angle range of 0 to 270 degrees. It can rotate 360 degrees when powered off. When using the remote controller (1000-2000μs), the rotation angle is 135 degrees.
High-precision metal gears (hard anodized)
CNC aluminum frame
Waterproof rubber-sealed screws
Dual-shaft RC servo
Specifications:
Model: RDS3218MG
Static Torque (5V): 21.5 kg·cm
Static Torque (6.8V): 25 kg·cm
Deadband: 3 μs
Control Angle: 270° (500-2500 μs) / 135° (Remote Control 1000-2000 μs)
Pulse Width: 500-2500 μs
Speed: 0.20 sec/60° (5V) / 0.17 sec/60° (6.8V)
Operating Voltage: 4.8-6.8 V DC
Weight: 60 g
Motor Type: DC Motor
Gear Type: Copper & Brass
Operating Frequency: 50-330 Hz
CE Certification: Yes
Wire Length: 32 cm
Size: Dimensions: 40 x 20 x 40mm (servo body), 64 x 55.6 x 20mm (with metal bracket)
Includes:

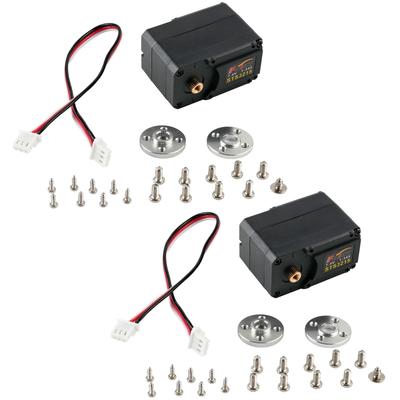

2 x RDS3218 20kg Digital RC Servo
2 x Long U-Shaped Metal Brackets
2 x Short U-Shaped Metal Brackets
4 x Round Metal Discs
2 x Screw Sets
Safety Warning
Not Applicable
[RDS3218 20kg Digital Servo with U-Bracket Set] - Operating Voltage: 4.8-6.8V; Static Torque: 21.5kg·cm (5V) / 25kg·cm (6.8V); Speed: 0.20 sec/60° (5V) / 0.17 sec/60° (6.8V)
[High Quality and Performance] - This 20kg servo features high-strength brass gears, a high-precision potentiometer, a CNC aluminum frame, a stabilizing tip, and waterproof rubber-sealed screws. It features low noise, excellent heat dissipation, low friction, fast response, strong anti-jamming properties, and a long lifespan.
[Ideal for Industrial and Robot Arms] - This waterproof RDS3218MG 20KG digital RC servo (with U-mount bracket) is ideal for industrial equipment and robot arm drives.
[Rotation Angle] - With PWM (500-2500μs), the maximum rotation angle is 270°. With remote control (1000-2000μs), the rotation angle is 135°.
[Package Contents] - Two RDS3218 20KG digital RC servos; two long U-shaped metal brackets; two short U-shaped metal brackets; four round metal discs; and two screw sets.
