5,Automatically cancel protection after protection conditions return to normal, without the need for charger activation, making it more convenient to use.

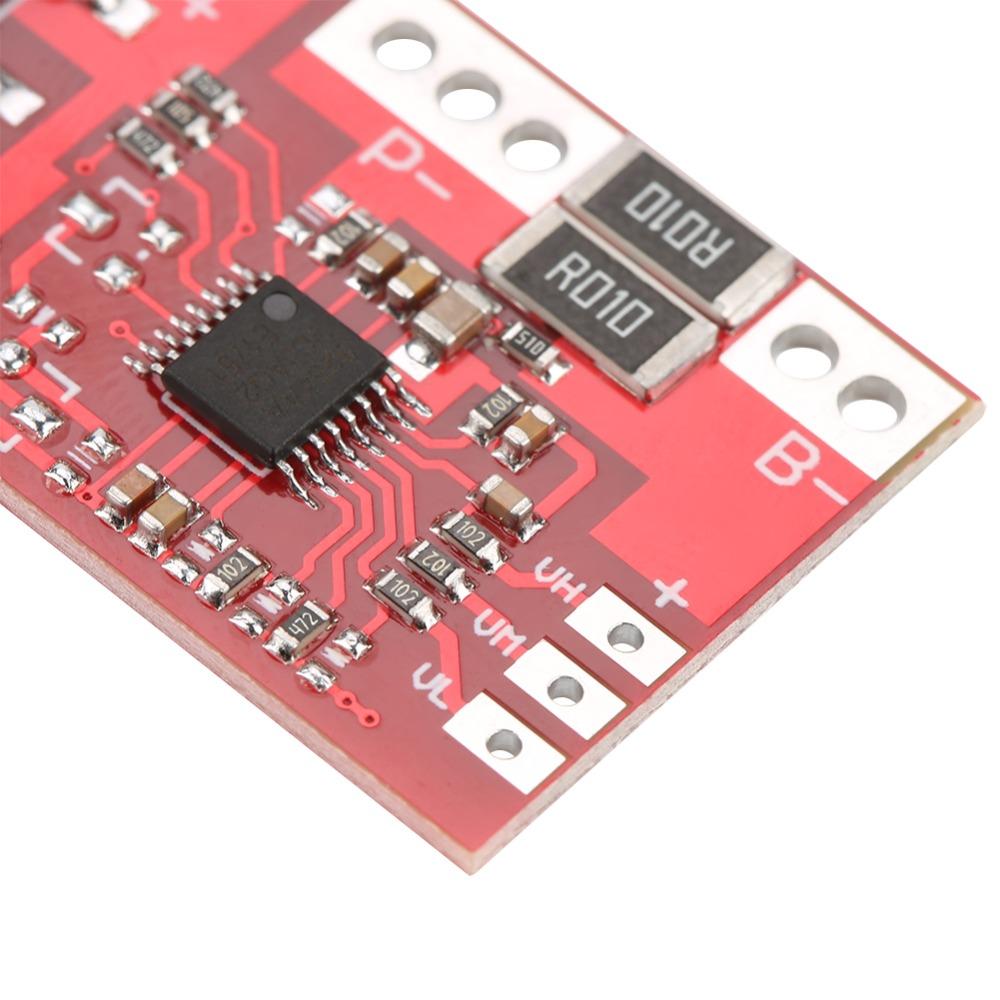

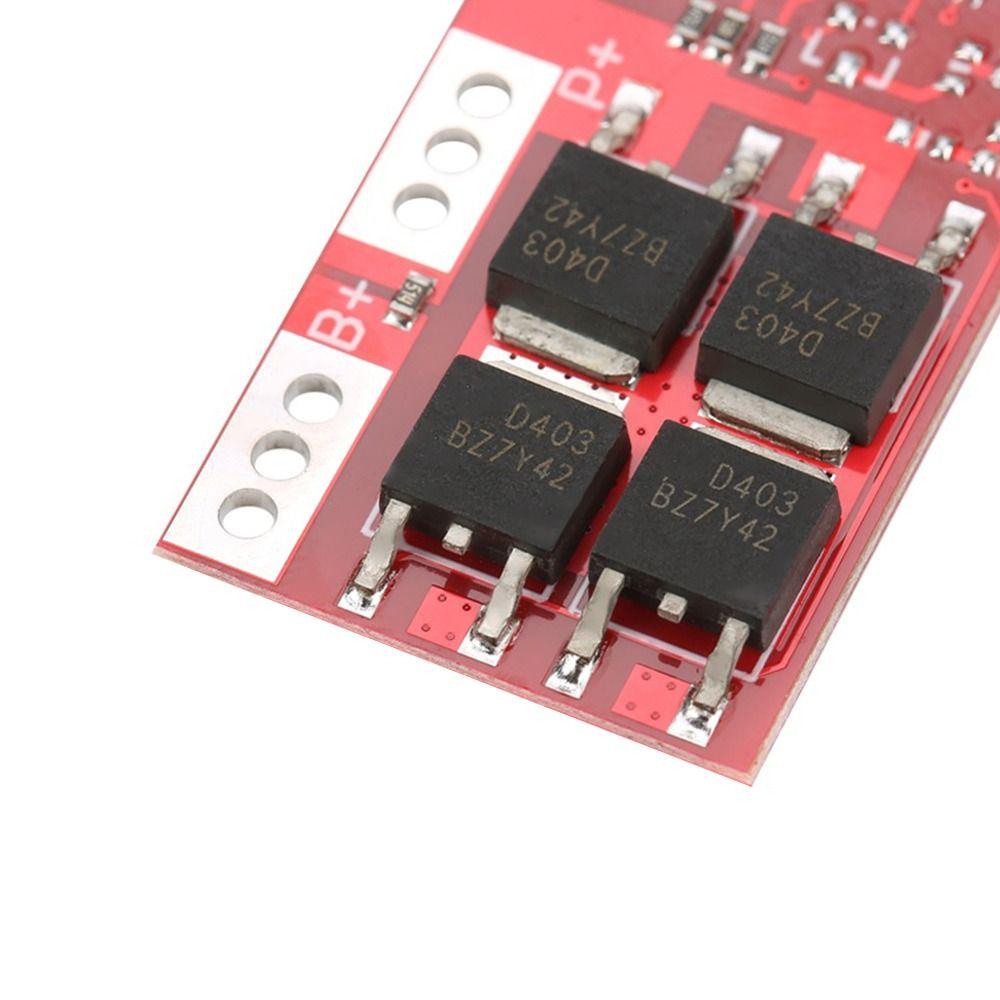

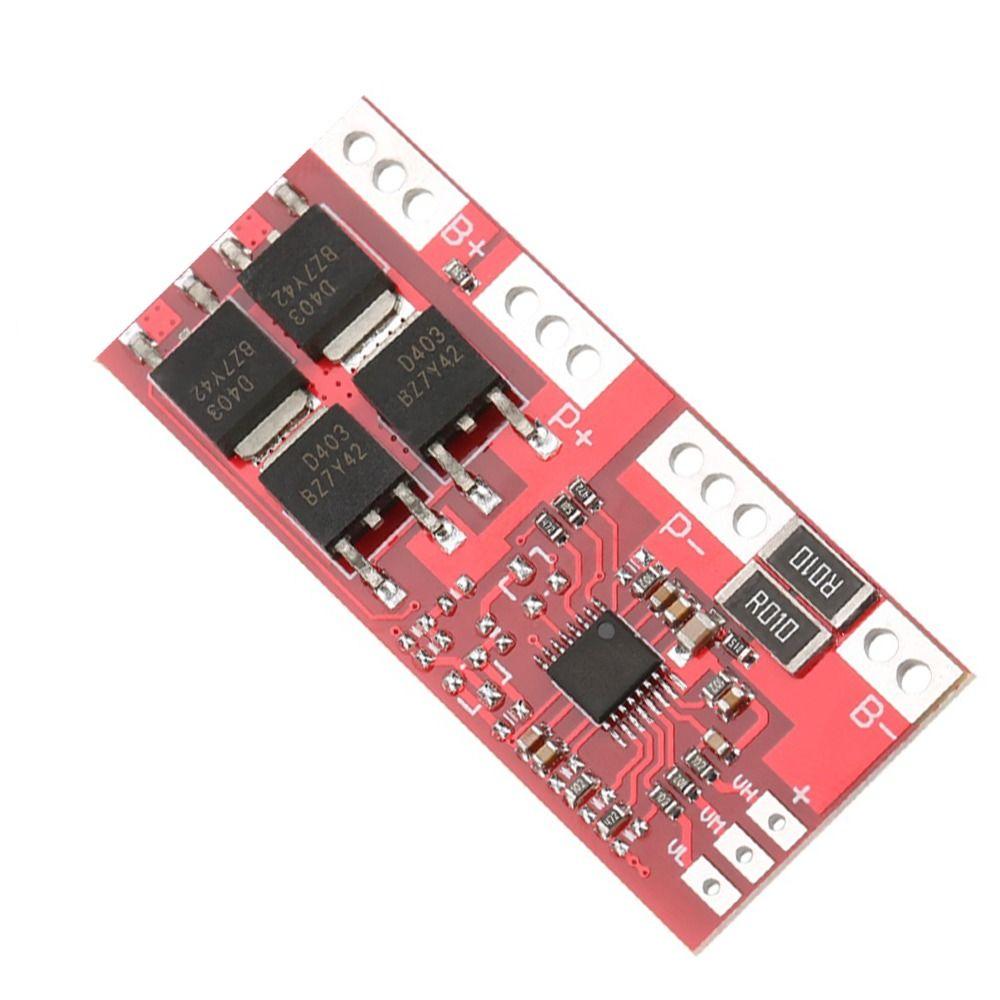

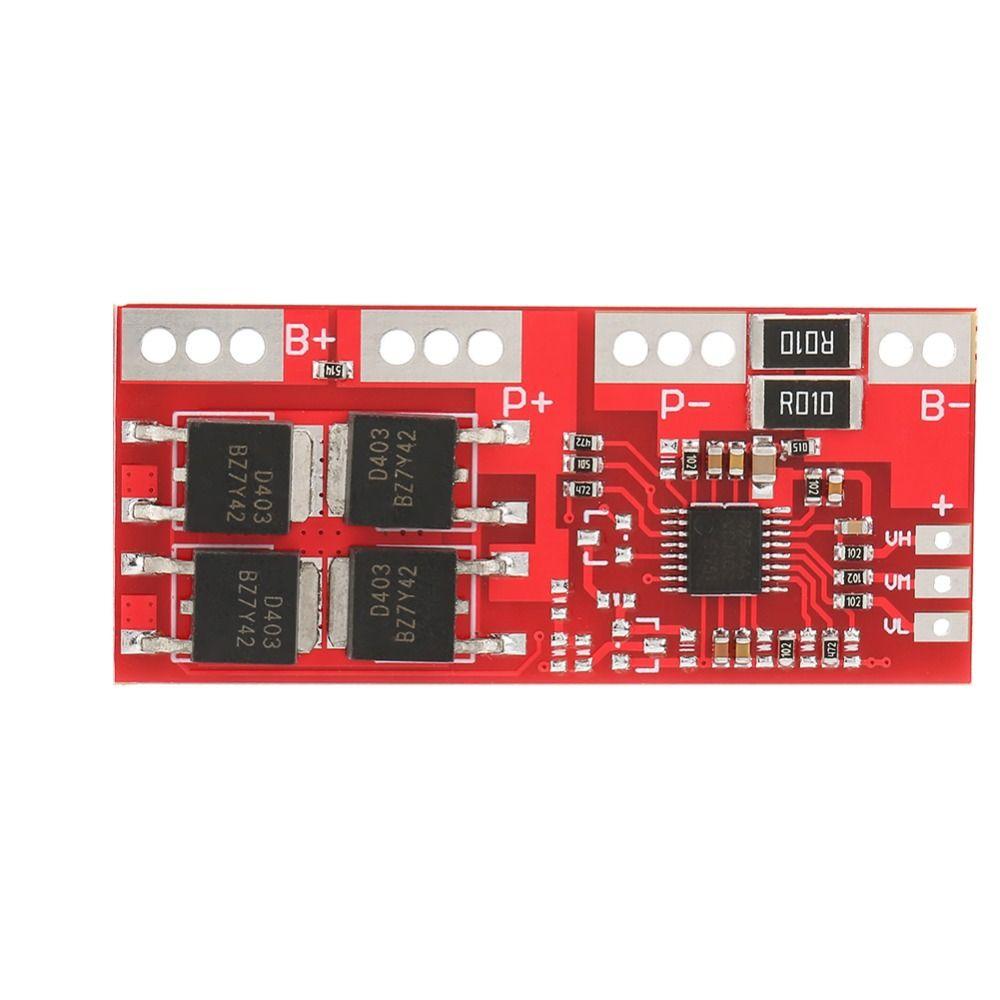

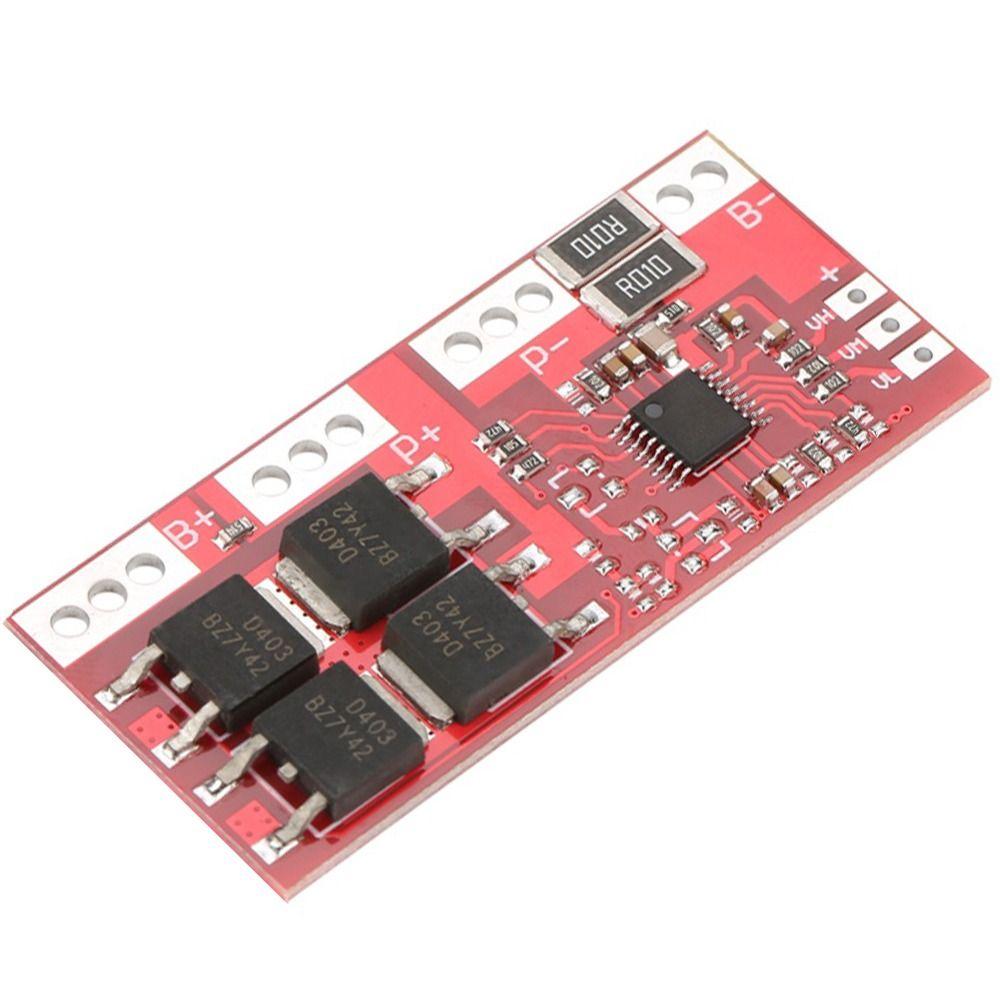

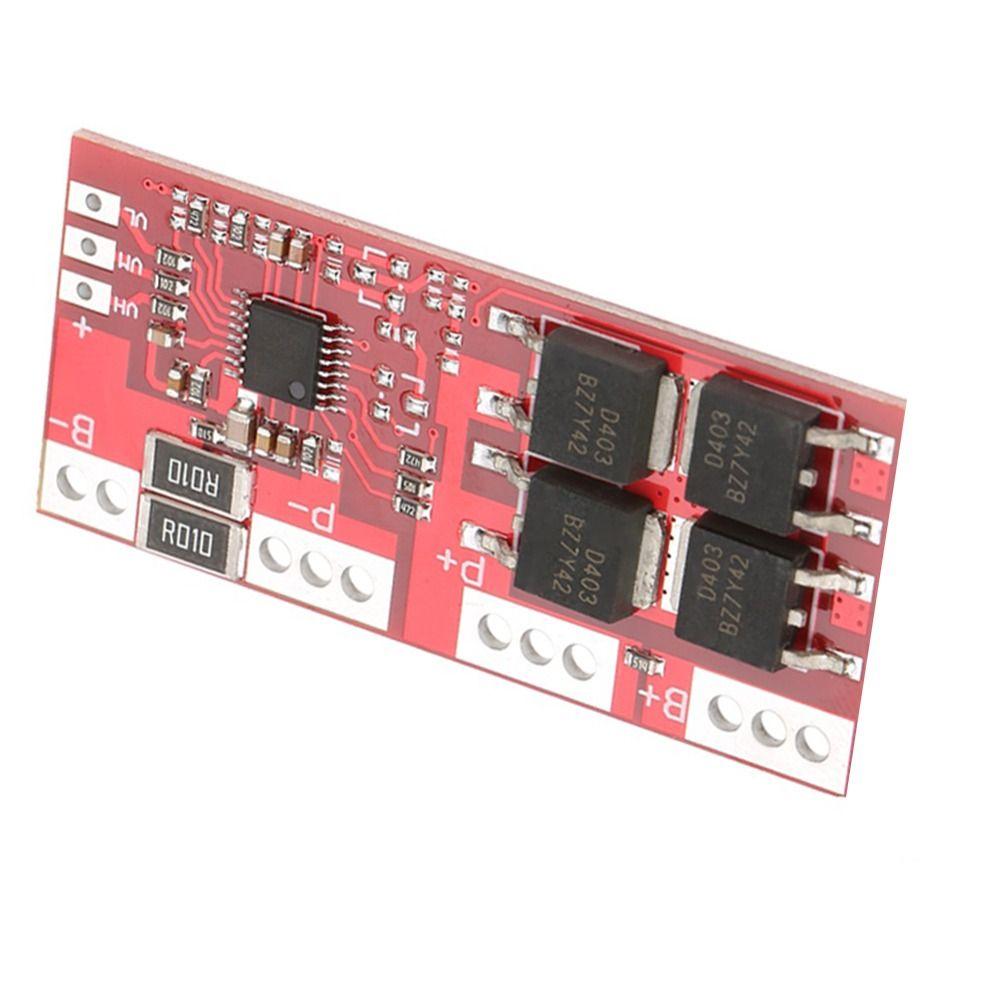

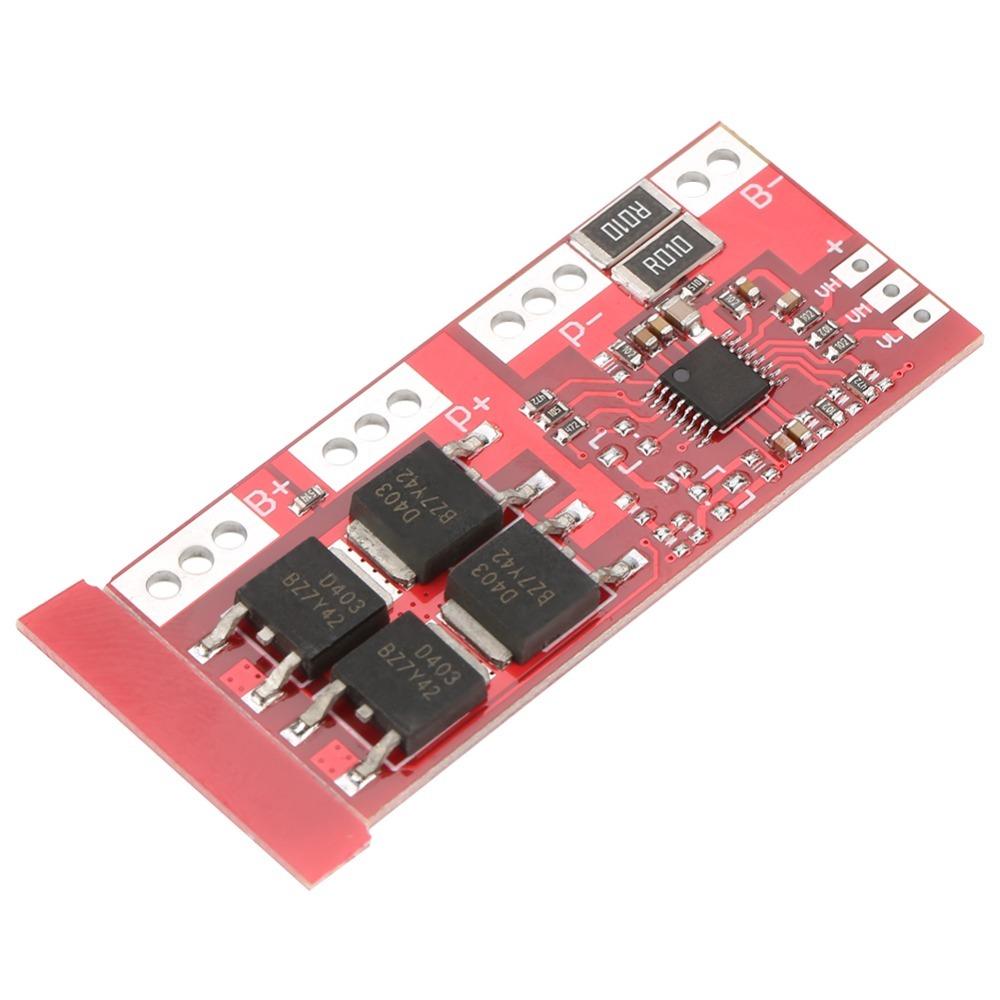

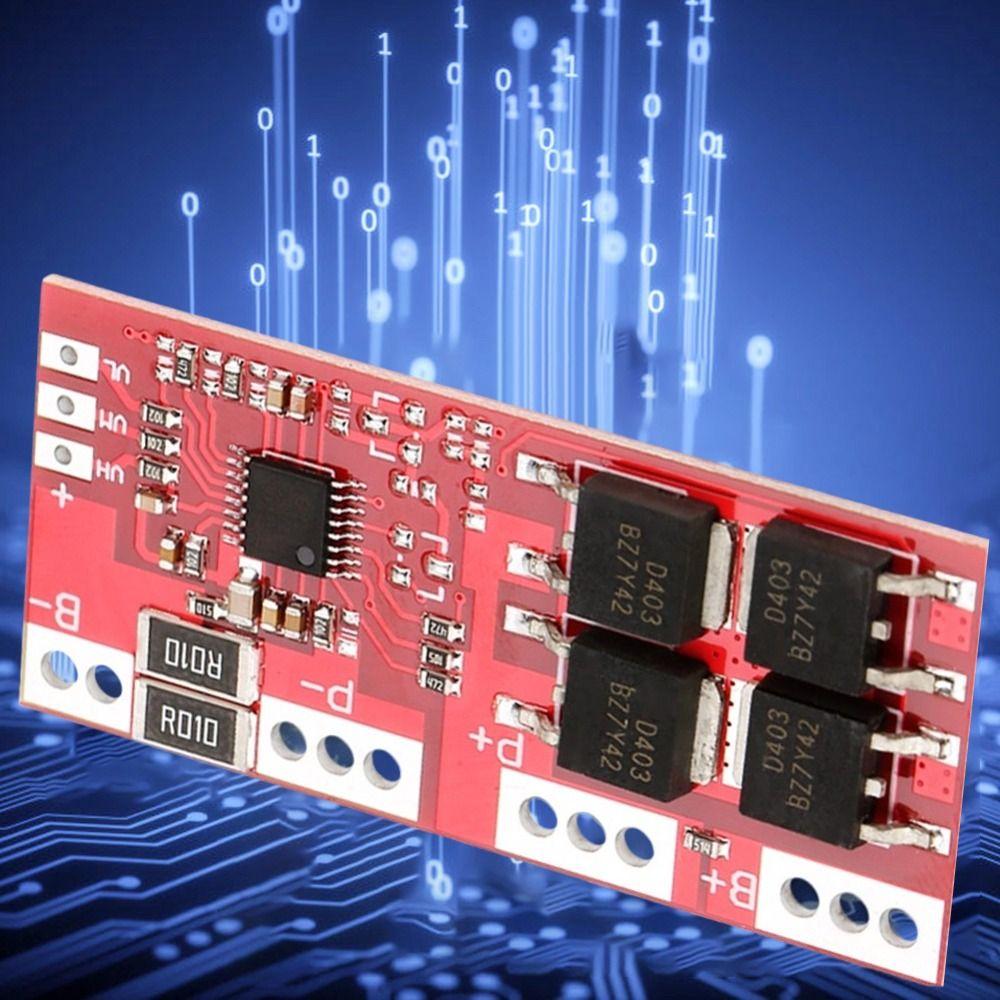

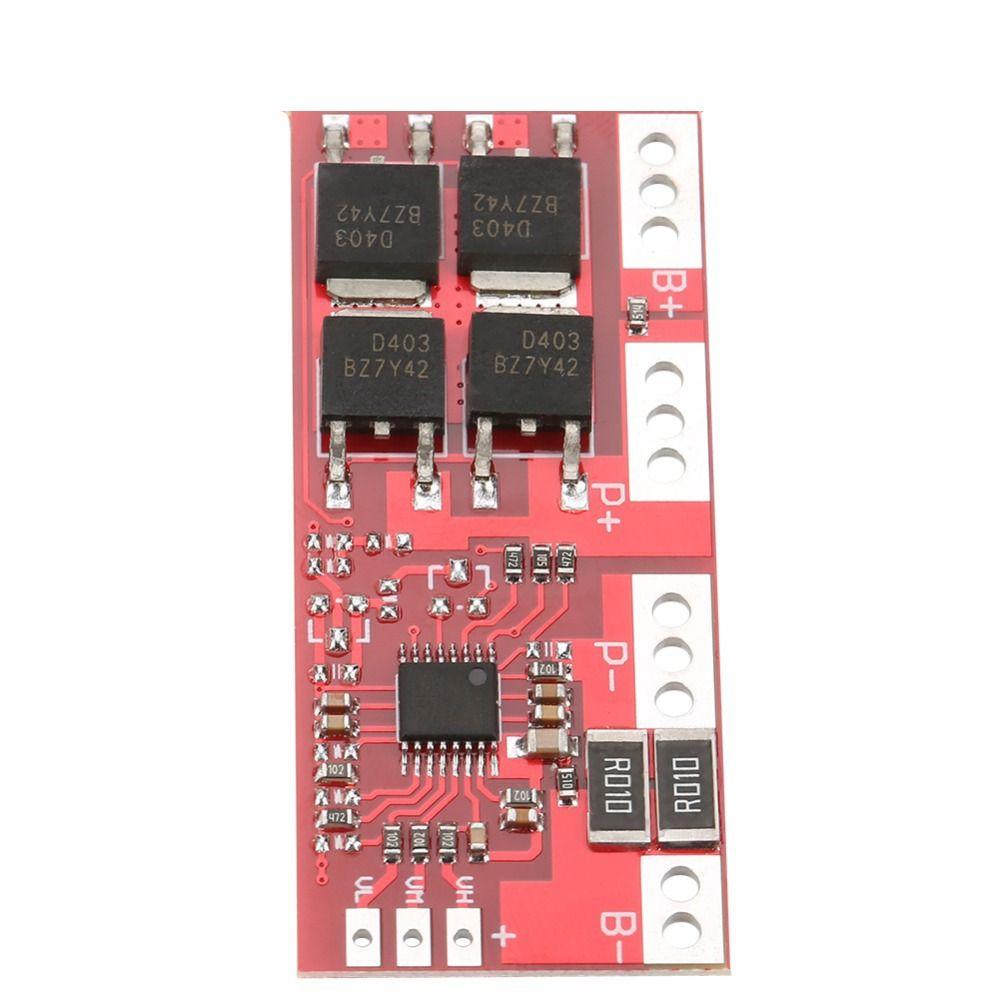

1,Four series of lithium battery protection board,designed for lithium battery pack of 14.4V, 14.8V and 16.8V, avoid damage during charging or discharge and then prolong the service time of battery pack
3,Multiple protective functions including overcharge protection, overdischarge protection, overcurrent and short circuit protection
4,Support automatic activation function, easy to use
2,Working Current: 15A; Maximum instantaneous current: 30A;Overcharge release voltage: 4.15±0.05V; Overdischarge release voltage: 3.00±0.1V
Description:
The protection board can apply to dynamic application with high instantaneous current, and avoid mistakenly triggering protection in inverter application, which is quiet convenient.
Specifications:
Overcharge Test Voltage: 4.25±0.025V
Overcharge Relieve Voltage: 4.15±0.05V
Over Discharge Test Voltage: 2.50±0.08V
Over Discharge Relieve Voltage: 3.00±0.1V
Over Current: 20~30A
Running Current: 15A(passive heat dissipation 10A, with heat sink 15A, high instantaneous current 30A)
Termination Conditions: Elimination of protection condition automatic recovery, without activation(optional charger activation)
Function: Overcharge protection, over discharge protection, short circuit protection, over-current protection.
Working Temperature: -40 to +85 degrees(ambient temperature too high, please strengthen cooling)

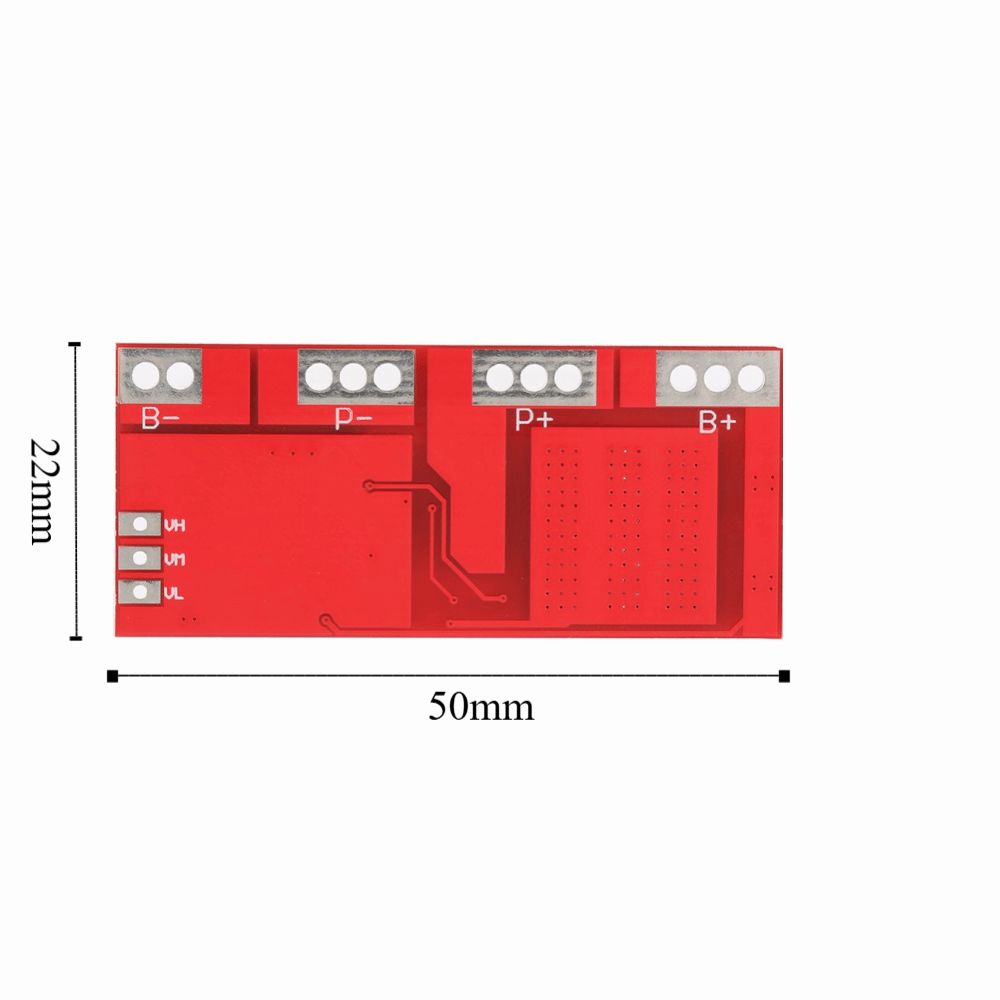

Module Size: 50 * 22 * 4mm(1.97 * 0.87 * 0.16in)
Module Color: Red
Installation Method: Welding
Weight: 6g(approx.)
Package Includes:
1 xProtection Board
