4K@60Hz HDMI Supports HDMI eARC/ARC + Toslink SPDIF optical + 3.5mm stereo audio output (includes optical cable) HDMI Audio Extractor 2.0b Audio Extraction Converter 4K@60Hz HDMI to HDMI + Toslink SPDIF Optical + 3.5mm Audio Output HDMI Audio Converter/Embedder Supports 1080P 3D Compatible with HDCP2.2 Digital PCM DTS 5.1 Suitable for Fire Stick, Xbox, and Laptops Includes an optical cable
4K@60Hz HDMI Supports HDMI eARC/ARC + Toslink SPDIF optical + 3.5mm stereo audio output (includes optical cable)HDMI Audio Extractor 2.0b Audio Extraction Converter 4K@60Hz HDMI to HDMI + Toslink SPDIF Optical + 3.5mm Audio Output HDMI Audio Converter/Embedder Supports 1080P 3D Compatible with HDCP2.2 Digital PCM DTS 5.1 Suitable for Fire Stick, Xbox, and Laptops Includes an optical cable

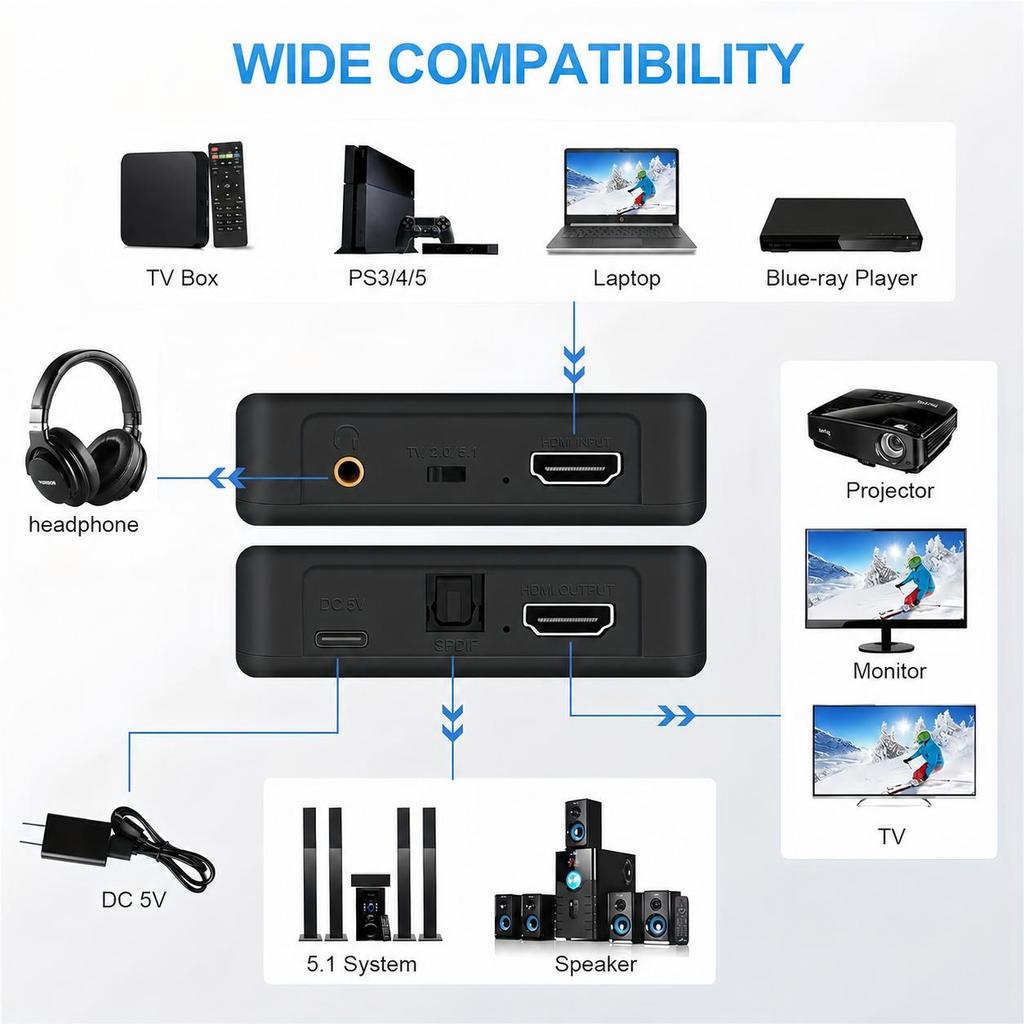

Product Description:HDMI Audio Extractor with ARC Support: The HDMI audio extractor isolates the digital audio signal from the HDMI source and transmits it to an external audio system such as an amplifier, soundbar, or speakers. Its key feature is the ability to output audio independently without needing to turn on an HD TV or monitor. Both the optical (Toslink) SPDIF port and the 3.5mm jack support ARC (Audio Return Channel). Note: To use the ARC feature, connect the HDMI input port to the ARC/eARC port on your TV.4K@60Hz High-Resolution Picture Quality: Supports resolutions up to 4K@60Hz (3840x2160), delivering stunningly clear picture quality. This HDMI audio splitter adapter supports HDR 10, HDCP 2.2, and RGB 4:4:4 color formats, with a maximum bandwidth of 18 Gbps. It ensures clear and flawless ultra-high-definition video transmission, delivering an immersive viewing experience for your home entertainment system.3 Audio Modes to Choose From: This converter offers three customizable audio output modes: TV, 2.0CH, and 5.1CH.3.5mm Jack: Supports 2-channel PCM stereo LPCM audio.Optical SPDIF: Supports 2-channel PCM, 5.1-channel Dolby Digital, Dolby TrueHD, DTS-HD Master Audio, and DTS.HDMI ARC: Supports Audio Return Channel (ARC) functionality when connected to a compatible TV.Wide Compatibility: This splitter is designed to be flexible and versatile, seamlessly integrating with most HDMI signal sources and display devices.Inputs: Blu-ray/DVD players, Amazon Fire TV, Roku, PS3/PS4/PS5, Xbox Series X/S, Nintendo Switch, desktop computers, and laptops.Outputs: Full HD TVs, monitors, projectors, and VR headsets.Audio Outputs: Speakers, AV receivers, soundbars, and other audio systems.Package Contents: You will receive: 1 HDMI audio splitter, 1 HDMI cable, 1 optical cable, 1 USB power cable, and 1 user manual. This device is carefully designed to ensure synchronized separation of audio and video, providing reliable, high-fidelity signal transmission.
Specifications:Material: ABSModel: V8CSupported: 4K x 2K@60Hz, 3D HDCP 1.4HDMI Resolution: 4K2K/3D/1080p/1080720p/576p/576/480p/480iSupported Video Color Formats: 24-bit/Deep Color 30-bitSupported Audio Formats: DTS-HD/Dolby TrueHD/LPCM 7.1/DTS/Dolby-AC3/DSDMaximum Bandwidth: 400 MHzMaximum Baud Rate: 10.8 CbpsInput/Output TMDS Signal: 0.5–1.5 volts peak-to-peak (TTL)Input/Output DDC Signal: 5 volts p-p (TTL)Maximum Operating Current: 350 mAPower Adapter Specifications Input: AC (50 Hz, 60 Hz): 100 V–240 V;Output: DC 5 VOperating Temperature Range: 15 to +55 °COperating Humidity Range: 5 to 90% RH (non-condensing)Product Dimensions: 7.2 x 5.5 x 2 cmPackage Dimensions: 13 x 9.4 x 3.5 cmWeight: 100 g
Packing List:1 x Main Unit1 x Power Cable1 x Fiber-Optic Cable1 x Manual
Effortless Soundbar Connection: Extract audio from your 4K video source and send it directly to your soundbar or speaker system via the Toslink optical audio output, even when your TV is turned off.
Game Changer for Console Audio: Route high-fidelity DTS 5.1 or PCM stereo sound from your compatible with Xbox Series X/S to your favorite home theater system without introducing any lag at 4K@60Hz.
No More TV for Music: Use this HDMI audio extractor’s ARC function to stream music from your compatible with Fire Stick to your amplifier, allowing you to enjoy a room-filling audio experience without powering on the display.
Audiophile-Grade Home Theater Hub: This HDMI ARC audio converter decodes Dolby TrueHD and DTS-HD Master Audio, preserving 18Gbps high-bandwidth video pass-through for an uncompromised cinematic experience.
Streamlined Laptop to Legacy Speakers: Connect your laptop's HDMI output to this audio converter for laptop, then split the signal to a 4K monitor and simultaneously feed a high-fidelity stereo signal to your cherished analog 3.5mm speakers.
