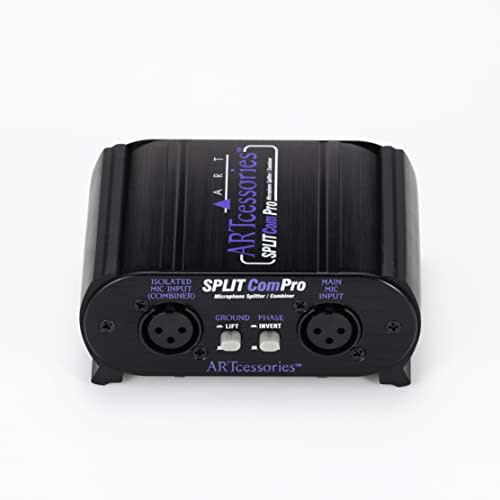

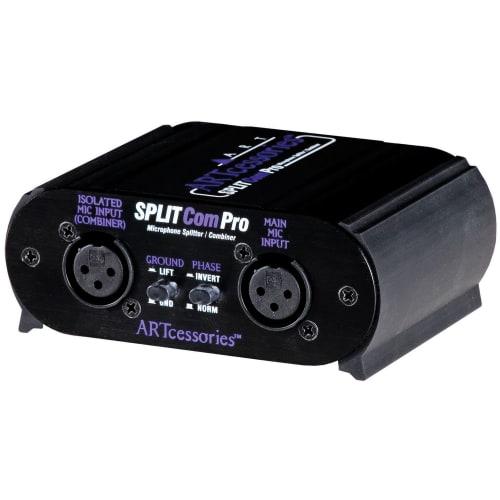

ART SplitCom Pro Microphone Splitter (Officially Imported in Japan)

Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.

1. KEY FEATURES: - A small and easy-to-use mic splitter and mic combiner. - As a splitter, the signal from one microphone is split into two. - As a combiner, two microphones are combined and output from one output. - Phase reversal switch. - This is a regular domestically imported product. Comes with a warranty that is valid for one year from the date of purchase. Even after the free warranty period has expired, you can still receive support from an authorized dealer.

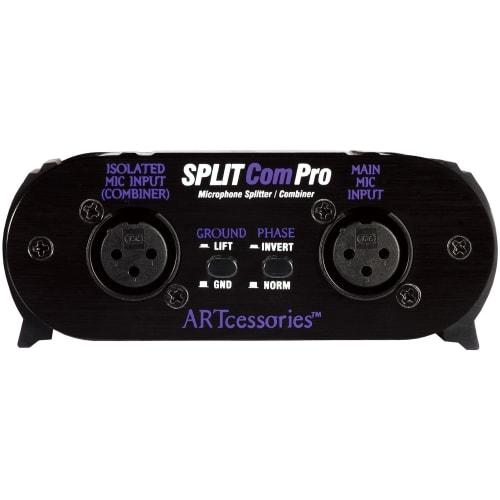

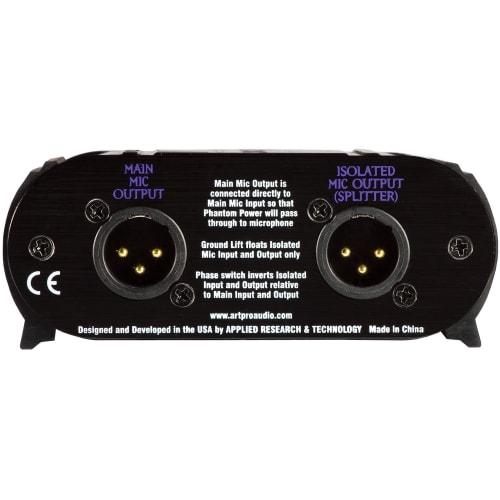

2. PRODUCT DESCRIPTION: SplitComPro can be used both as a splitter and as a combiner for combining balanced, low-impedance microphone signals. As a splitter As a splitter, it is equipped with an isolation out in addition to a direct out, allowing you to split the signal from one microphone into two, sending the main out to the FOH console, and the isolation out to a monitor or recorder. The main output passes phantom power from a mixer, etc., so you can use a condenser microphone. Isolate out blocks phantom power. As a combiner A combiner combines two microphones and outputs them from one output. Equipped with a Phase switch, the polarity of the isolation microphone input can be reversed. You can save channels when the mixer does not have enough channels. Phantom power passes from MAIN to MAIN and ISOLATED to ISOLATED, but is blocked in the signal path between MAIN and ISOLAETD, allowing only the audio signal to flow. [Features] Low distortion and wide frequency response Can be used as a splitter or combiner Equipped with a phase inversion switch Galvanic isolation that blocks phantom power between channels Equipped with a ground switch [Specifications] Frequency Response: 20Hz to 150K Hz, +/-0.2dB @ 0 dBu Total Harmonic Distortion: Less than 0.0007% from 20 Hz to 20K Hz at 0 dBu input Phase Response: Less than 10 degrees at 20 to 150K Hz (ref.1K Hz) Typical Driving Source Impedance: 150 Ohms Typical Output Load Impedance: 1K Ohms Dimensions: 44.5mm x 107mm x 89mm Weight: 0.3kg

3. PRODUCT DIMENSIONS & WEIGHT: - Weight: 0.39 kg - Dimensions: 17.1 x 12.7 x 7.2 cm

4. SPECIFICATIONS: - Brand: ART - Model Number: ACSCP - Manufacturer: ART
