The MK-100 has been developed to control electric underfloor or water heating or water/gas boiler system. These units are designed for use in commercial, industrial, civil and domestic properties.
Model Definition
MK100-GB-HW : For Electric Heating, 16A (3 meters sensor probe is included)

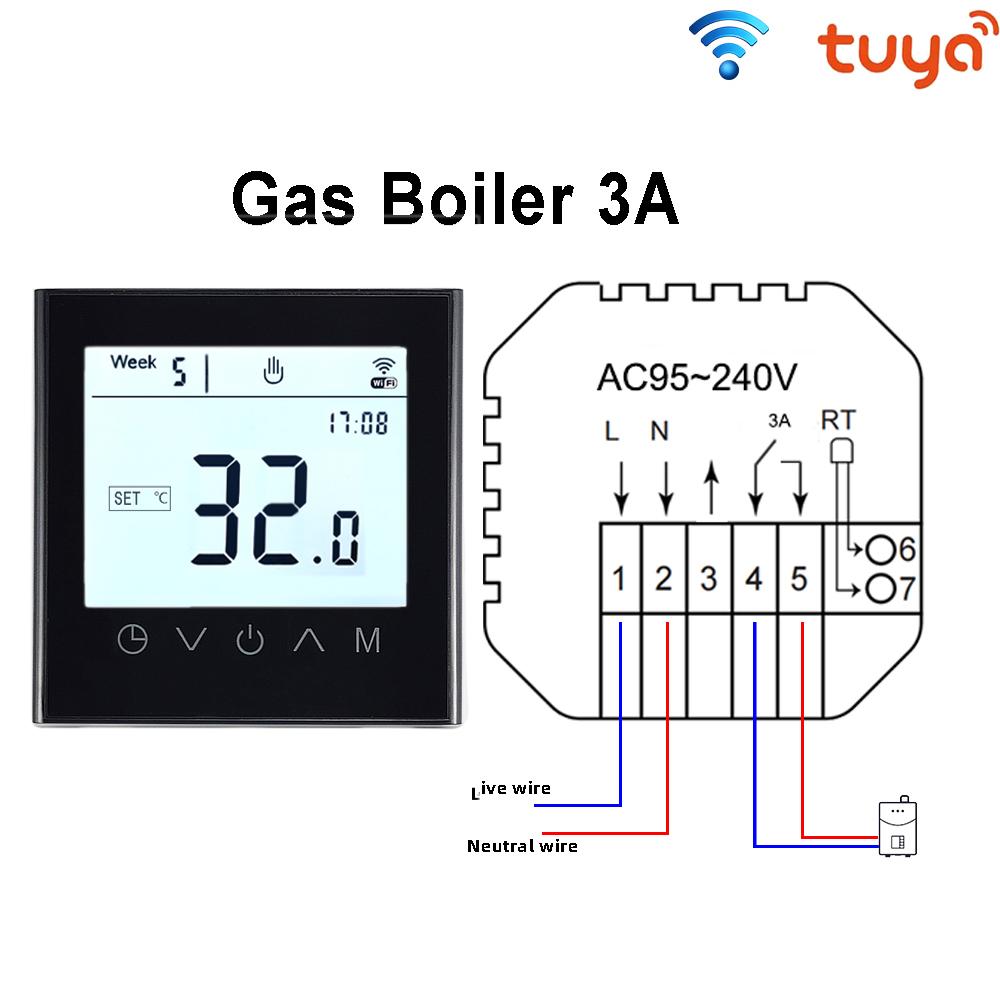

MK100-GC-HW: For Gas Boiler or actuator, 3A (3 meters sensor probe is not included)
MK100-GA-HW: For actuator or electromagnetic valve, 3A (3 meters sensor probe is not included)
( All the models come with internal air sensor. But the external floor sensor is optional, only 16A electric heating type contains the external floor sensor.)
Functions:
【Wifi】The wifi thermostat can be controlled by Mobile APP wherever you are.(APP: Tuya Smart or Smart Life)
【Most languages support 】APP support most of Popular languages.
【Memory Function】. Memory Function Memorize all your settings after sudden power-off. When power is on again, you do not need to reset it.
【Weekly Programmable】 Programmable Function Support 5+2, 6+1 and 7days Weekly Programmable, six periods programmable controlling temperature setting.
【Beautiful Appearance】Elegant Tempered Glass frame, big feather touch control panel.
【12/24 hour system 】12/24 hour system is switchable.
【Children Lock】Children lock to avoid misoperation.
【Voice control】Support to be voice control by Alexa, Google Home etc..
Specifications
- Power Supply: 95 ~ 240VAC, 50 ~60Hz
- Set Temp. Range: 5-60℃ (max 95℃)
- Limite Temp. Range: 60℃ (factory setting 35℃)
- Accuracy: ±0.5℃
- Sensor: NTC
- Power Consumption: < 1.5W
- Timing Error:<1％
- Shell material: PC+ABS (flame retardant)
- Ambient Temp.: 0-45℃, 5-95％RH(Non-condensing)
- Storage Temp: -5-55℃
- Installation Hole distance: 60mm
- Dimension: 86x86x40mm
Package Includes:
1 x thermostat
2 x mounting screws
1 x English instruction
1 x 3 meters sensor probe( only for 16A electric Heating )
