Radio Response Bandwidth : 87.5-108.5mhz
Out Power : 3W
Material Type : ABS
Item Weight : 0.045kgkg
Item Size : 75 * 50 MM
Model Name : Bluetooth Mp3 decoder module FM Radio Receiver Kit For Car stereo
Resolution : -
OSD Language : English
Voltage : 12V
Placement : In-Dash
Display Size : none
Origin : Mainland China
Certification : none
Special Features : Radio Tuner
support 1 : Bluetooth Handsfree with MIC
support 2 : USB Disk Playing
support 3 : 3.5mm AUX LINE IN Playing
support 4 : Up to 32G TF card Music Playing
support 5 : FM Radio Decoder Board Wireless Audio Receiver
support 6 : Colorful Digital Display
support 7 : Bluetooth 5.0 Handsfree Kit
support 8 : Audio Recording
support 9 : DIY Car Audio modification Kit
support 10 : Wireless MP3 Decoder Board Stereo Speaker Updating

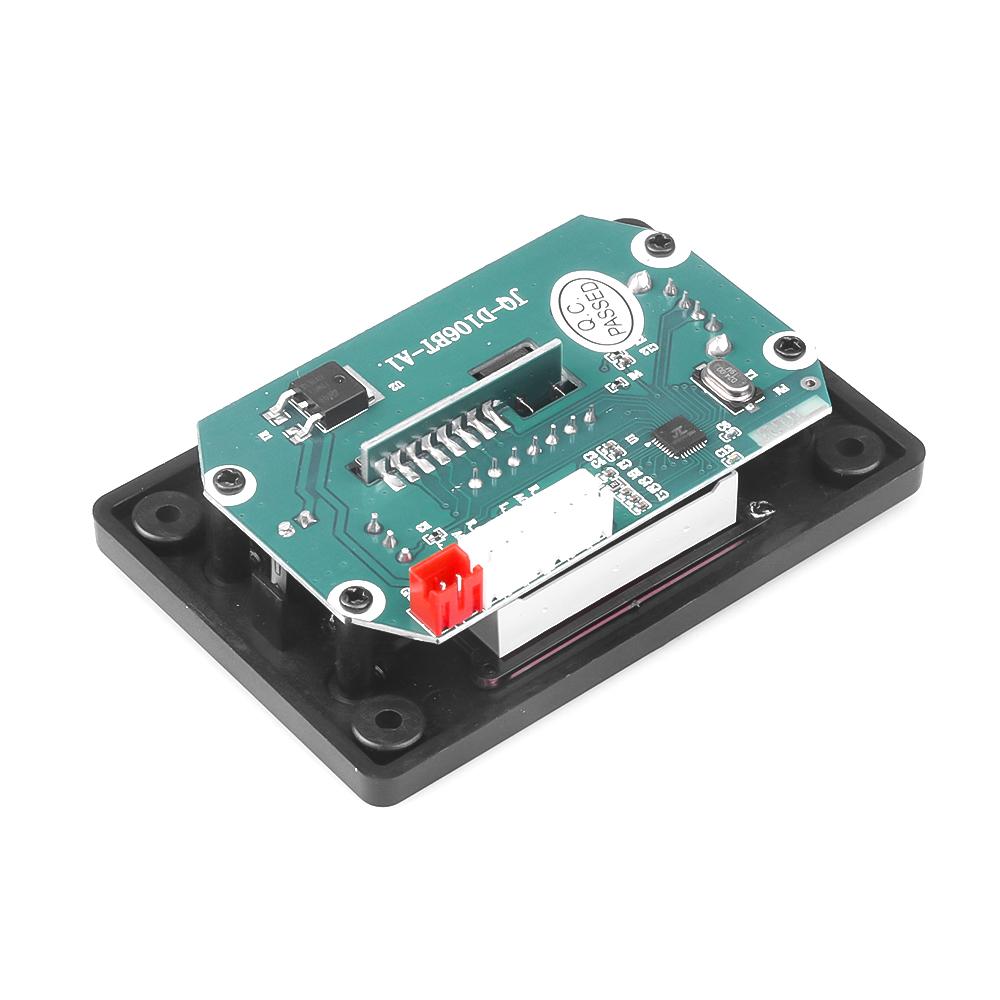

JQ-D106BT Bluetooth version 5.0, with call and recording function

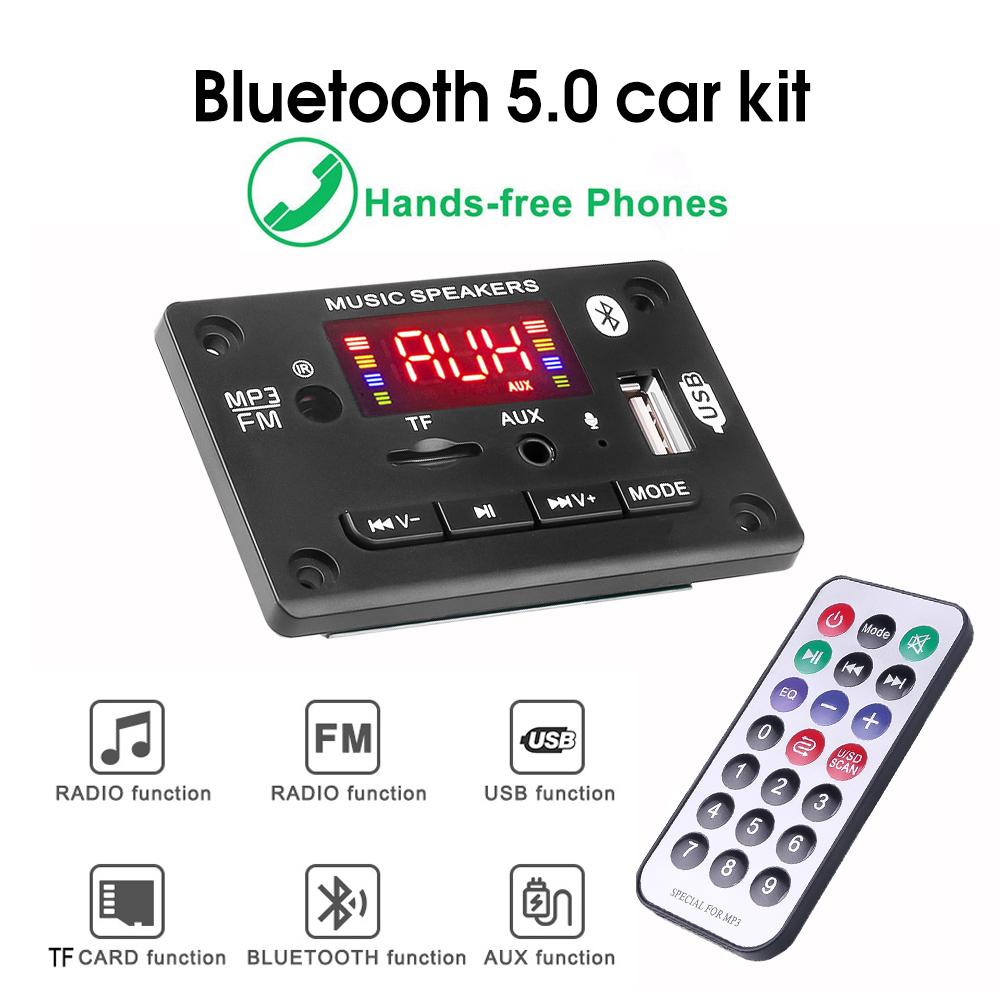

1. Infrared receiver module
2. TF card slot: connect TF memory card (maximum support 32GB);
3. LED: digital color screen display, display red;
4.AUX interface: audio input interface
5. MIC: Support call and recording function;
6. USB interface: connect to U disk (maximum support 32GB);
7. PREV/VOL-: Short press is to select the previous song; long press is to decrease the volume
8. PLAY/PAUSE: Short press is to switch between pause and play; long press is to radio FM automatic station;
9. NEXT/VOL+: Short press is to select the next song; long press is to increase the volume;
10. MODE: Switch between USB / TF / FM / AUX / BLUETOOTH;
Main control IC: AC6926
Bluetooth IC: AC6926 Bluetooth version is 5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format,
Radio FM frequency: 87.5-107.5 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 5V or 12V (optional)
About the structure: Panel size: 75 * 50 MM, the panel is surrounded by screw holes, the depth of the panel is 18MM
2. Description of recording function
1. Long press the MODE button to start recording, and long press the MODE button again to cancel the recording function;
2. Press the MODE button again to play the recording file;
3. When recording, you need to connect a storage device, such as U disk or TF card;
