Manufacture Country: China
Item Type : Code Readers & Scan Tools
Parts List:
1x V18 1x Disc 1x Connection Cable 1x USB Cable
OR
2x V18 2x Disc 2x Connection Cable 2x USB Cable
Highlight description:
[MPPS V18 ECU List] This module adds support for advanced functions of Marelli ECU. MPPS covers a range of controllers including M3.8, M5.9, ME7xx, MED9, MED17, EDC15/16/17, Delph i, Siemens, Marelli, Delco, Sagem, Trionic, etc.
[Main Function] This ECU programming tool can automatically detect ECU and processor type and read/write all memory Eeprom, Irom, Xrom (if possible). It has TPROT ECU OBD flash repair function (currently only supports VAG). It has TPROT/DS check function, used to test whether TPROT is activated without opening the ECU. It brackets below TP12 and supports Siemens (currently only applicable to ECU without password protection).
[Good Performance] In some cases, MPPS can recover ECUs that other tools can't even communicate with. It supports the unlocking of VAG Simos PCR and for Simos 8, MEDC17 supports checksum correction. When the ECU allows this function, full/partial read and write can be selected.
[Widely Uses] Write "change only" function for faster programming (when supported by ECU). Automatic detection of K-Line/CAN, and options for bypassing and forcing the preferred communication method. Boot mode support for ECUs with C167 and ST10 processors.
[Support Language] It supports Afrikaans, Albany, Malay, Czech, Welsh, Danish, German, Esti, English, Spanish, Filipino, Finnish, Canadian Lycian, French, German, Indonesian, Italian, Croatian, Kiswahili, Latvian, Liechtenstein, Magal, Marti, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovenian, Slovenian, Serb, Finnish, Swedish, Turkish.
Detailed description:
Product Name: V18 ECU Programming Tool
Voltage: 12V
Material: Plastic

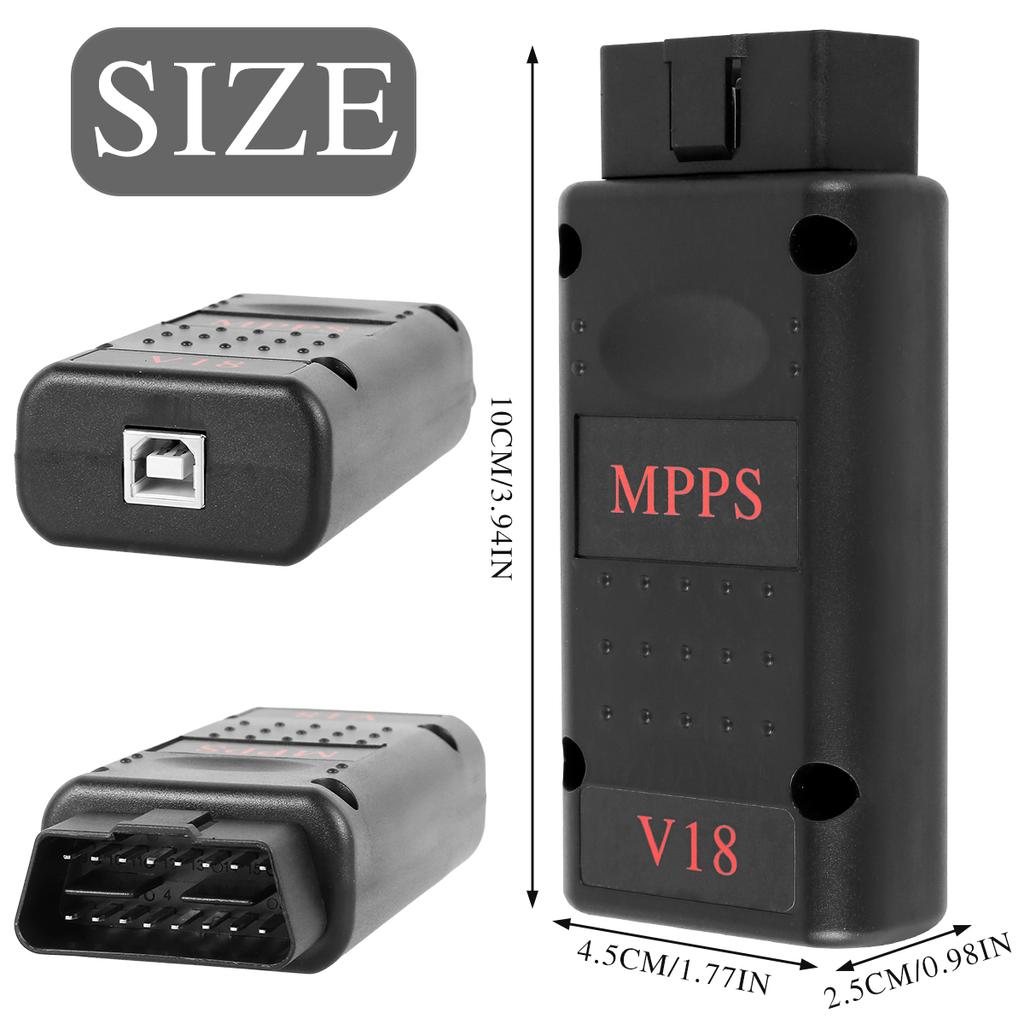

Size: 10x4.5x2.5 cm
Color: Black
MPPS V18 features:
Read/Write Micro, Flash and EEprom without using a BDM programmer.
Compatible with Fiat 6F3 - Full Read/Write Micro, Flash and EEprom via K-line and CAN; compatible with Fiat 6JF - full read/write Micro and EEprom via K-line; compatible with Fiat 8DF - full read/write Micro and EEprom via K-line; compatible with Fiat 8F2 - Full read/write Micro and EEprom via K-wire and CAN; 8F3 - Full read/write Micro and EEprom via K-wire and CAN; 8GM - Fully read/write Micro and EEprom via CAN; 8GS - Fully read/write Micro and EEprom via CAN; 5SF3 - Full read/write flash and EEprom via CAN; 5SF3 - Full read/write EEprom via K-Line; 5F8 - Full read/write flash and EEprom via K-wire and CAN; 5SF9 - Full read/write flash and EEprom via CAN; full read/write Micro on ME7.9.10-CAN; full read/write Micro on ME7.6.3-CAN; compatible with Opel 6O2 - full read/write Micro, Flash and EEprom via K line and CAN; compatible with Opel 6O3 - Full read/write Micro, Flash and EEprom via K-line and CAN; 6JO - full read/write Micro and EEprom via K-line.
Notes:
1. Please install on Win7 32bit/64bit.
2. Please install the driver and then open the software, otherwise the software cannot be opened.
3. Please make sure use the driver in the CD.
