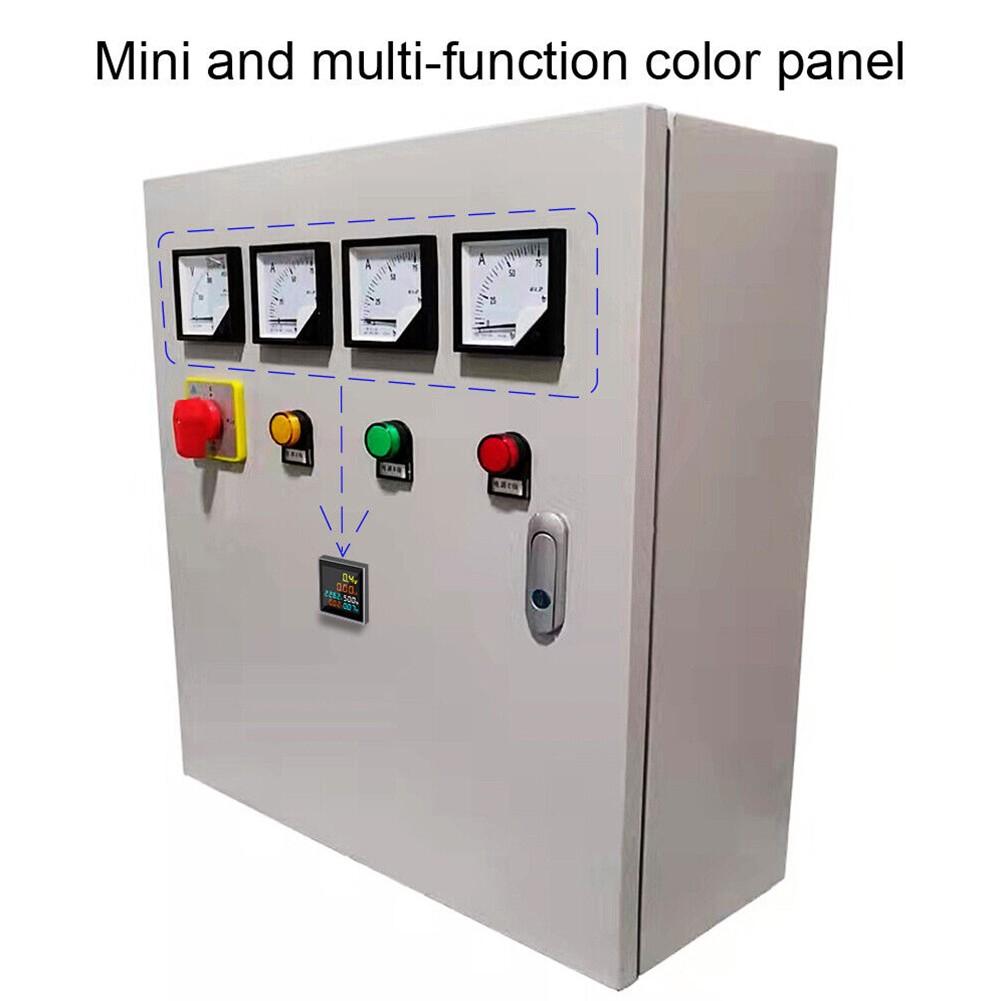

LCD AC Voltmeter Ammeter Wattmeter Power Energy Frequency Meter Current Montior

Features: Brand new high quality Made of high-quality materials for durability Digital Voltmeter Ammeter AC 50-300v 100A Wattmeter Power Energy Frequency Meter LCD Voltage Monitor Current Factor Volt Amp Herz D48-2058 multi-function digital display meter can measure AC voltage, AC current coefficient, active power, electric energy and power frequency. The metering part adopts color high-definition LCD screen Product parameters: Model: D48-2058 Accuracy rate: 1% ± 2 characters Range: AC Voltage: AC 50.0-300.0V AC current: AC 0.0-99.99A (accuracy 1suuruunen measurement signal is lower than 100A, when the measurement signal is higher than 100A, the meter displays 100.0A) Power frequency: 45.00-65.00Hz Power Actor: 0.00- 1.00PF Active power: 0-30000W (active power is displayed between 0-9999.9w with an accuracy of 0.1W, Otherwise the accuracy is 1W) Electric energy: 0-99999kwh (The display accuracy is 0.01kwh when the electric energy is between 0-999.99kwh, 0.1kwh when the electric energy is between 10000.0-9999.9kwh, and 0.01kwh when the electric energy is between 100000-99999 kwh.) Speed: 2 times per second Dimensions: 49x47x52mm Hole: Diameter Ф22mm Auto save: When the power meter is powered off, the current energy value is automatically saved. The meter will read this value the next time it is powered on and continue to add to the saved value number. How to apply: 1. According to the wiring diagram, connect the two wires of the current transformer plug to the transformer input terminal on the instrument. Pass the current return conductor through the bracket in the middle of the current transformer. 2. Connect the voltage measurement to the voltage input of the meter. Then power on to measure the voltage and start reading the measurement results. 3. The electric energy reset button is in the lower right corner of the meter. Press and hold the needle for 4 seconds to clear the electric energy. Package Included: 1 * AC Voltmeter Ammeter Power Meter 1 * CT 1 * English manual Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
