Features:

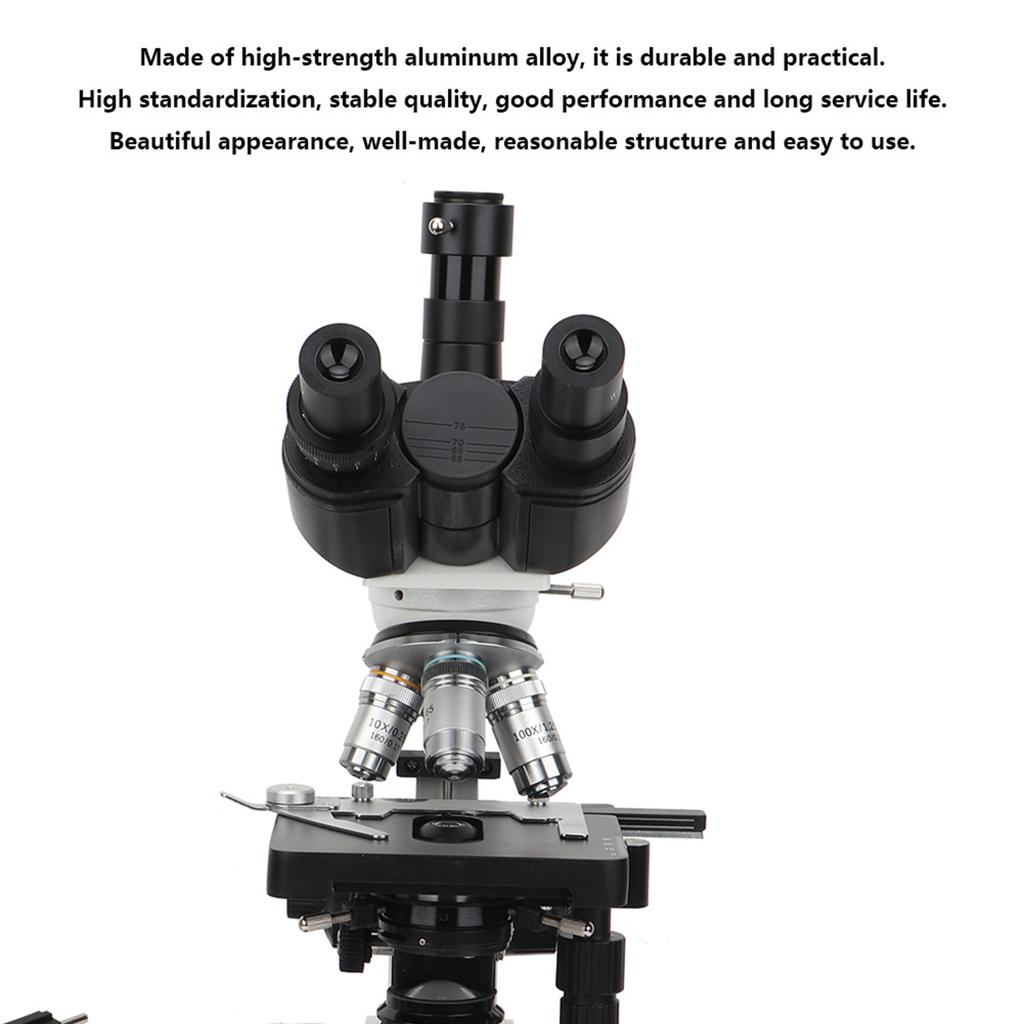

Made of high strength aluminum alloy, it is durable and practical.
With 2pcs 10x wide field of view eyepiece, the binocular head has a 53 to 77mm inter twist adjustment, a fixed 30 degree vertical tilt to reduce eye and neck fatigue, and 360 degree rotation. Provides a more comprehensive view and enables sharing.

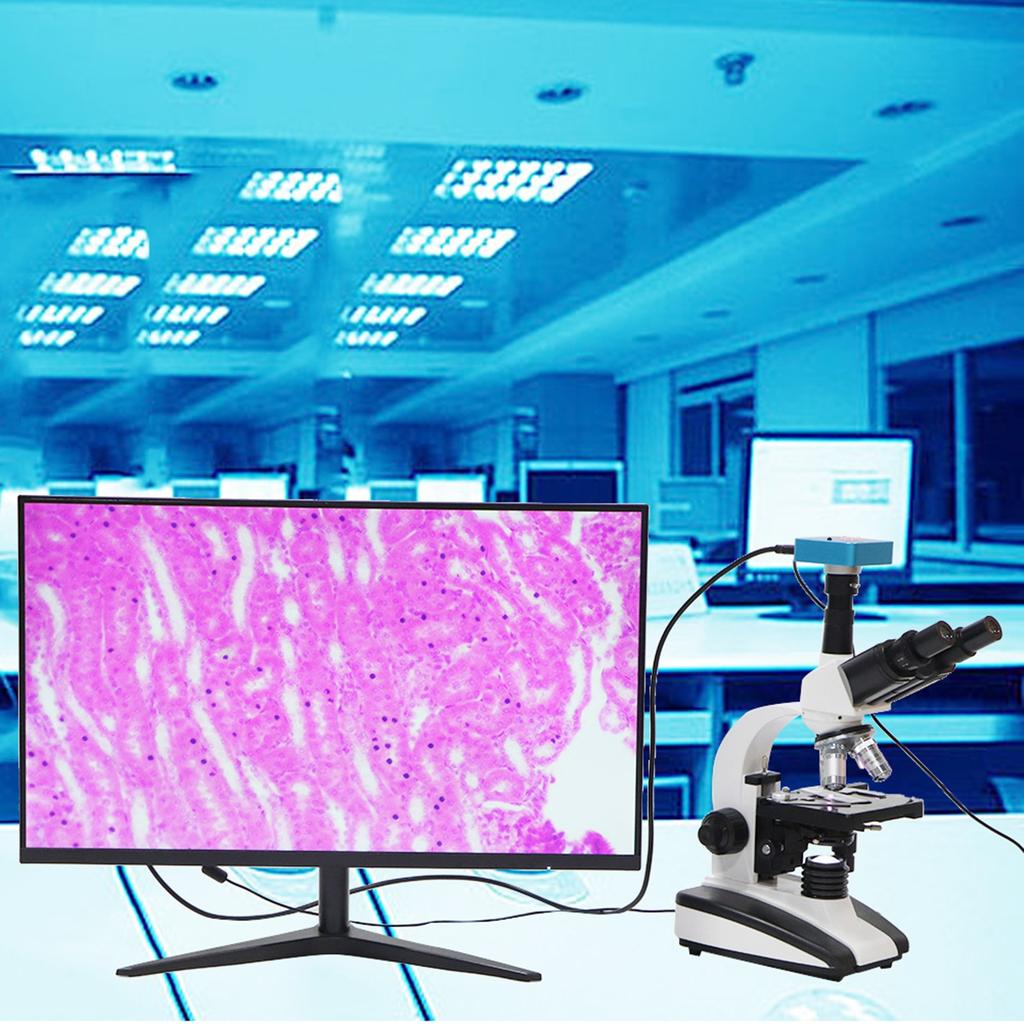

The top eyepiece interface of the trinocular microscope is a standard c interface that links a digital camera, an electronic eyepiece, and a HDMI display on the link to liberate both eyes for viewing, live, recording, and capturing magnified specimen images.
The 1.25 NA Abbe concentrator adjusts the 1.25 NA Abbe condenser button to control the distance of light from the stage and has an iris diaphragm to optimize the amount of light that illuminates the sample.
A two layer mechanical platform, 1 mm segmentation, locks the slider in place, providing precise sliding along the X and Y axes to record coordinates, allowing the observer to return to a specific position on the slide.
Forward objective lens converter with four DIN achromatic objectives, with an objective lens of 4x 10x 40x 100x.
Independent coarse and fine adjustment knobs provide fast focus.
The cast steel body coated with enamel is durable and prevents stains and corrosion.
Specifications:
Condition: 100percent Brand New
Material: Aluminum Alloy
Plug: EU Plug, US Plug (Optional)
Objective lens: 4x 10x 40x 100x
Eyepiece: 2Pcs wf10x
Mechanical tube length: 160mm
Capacitor: Rotating disc (can be rotated, users should not disassemble at will)
Filter diameter: 32mm
Thick fine focus range: 20mm
Cover thickness: 0.17mm
Lighting: 6V 20W
Voltage: 100 240V, 50 60 Hz
Workbench size: approx. 135 * 120mm 5.3*4.7in (With paired clips)
Main components:

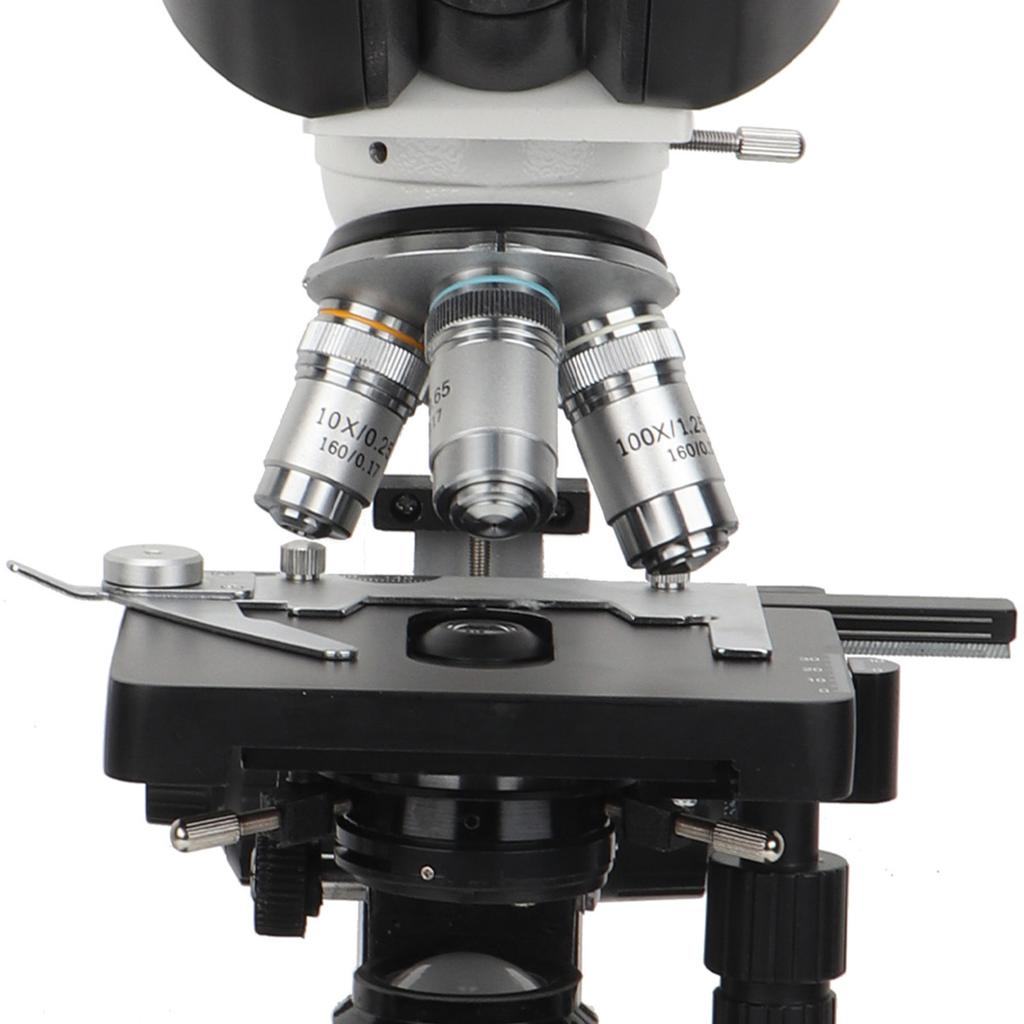

Target lens and nose:
The microscope objective is engraved with various labels: magnification, mechanical tube length cover thickness. Such as: target 40X: 40 0.65; 160 0.17 means that the magnification is 40 times; mechanical tube length is 160mm; cover thickness is 0.17mm.
Smooth rotation is ensured by the triple rotation objective lens converter.
Stage: The low position coaxial knob can be easily operated.
Capacitor: Rotating the disc, it can be rotated, and the user should not disassemble it at will.
Focus adjustment:
The coarse fine focus range is 20 mm. It is located at the bottom of the left and right sides. Rotating the rough handwheel, the working phase is rapidly reduced or increased. With regard to the miniature handwheel, it can make the stage move up and down fine. There is an index on the miniature handwheel. Each grid is 0.002 mm.
Instructions:
Unpacking and installation:
The microscope package is foam and carton; the main unit is packed in plastic bags, the target is on a transparent plastic box, and the eyepiece is in a plastic bag. Care should be taken when installing.
Adjustment of the microscope:
1. Insert the eyepiece into the eyepiece tube and screw the objective lens into the objective lens transducer at different magnifications from low to high. Then place the sample on the stage, secure it to the position with a tablet, and move to the center of the stage.
2. Turn on the power switch and slowly adjust the brightness from dark to light. After working, you must first adjust the brightness to a darker level before turning it off.
3. First observe the sample from a lower magnification objective, move the sample to the center of the field of view, and then rotate the objective lens at a higher magnification. You can use the fine focus knob to get a clear image. When using a 100X (soil) objective; you should fill the cedarwood oil (without air bubbles) between the front of the objective and the surface of the sample. Immediately after work, wipe with a small amount of wood.
4. In order to obtain a bright and clear image, the illumination must be adjusted. When choosing a different objective, adjust the aperture of the condenser and the different brightness.
5. When the lamp needs to be replaced, turn off the power switch and replace it after the lamp has cooled down. Note: The contacts must be fixed and the center of the filament adjusted.
Package list:
1* Biological Microscope (Base&Eyepiece Lens)
1* Instruction Manual
1* Dust Cover
1* Pair of Eyepiece Wf10x
1* Optical Filter
1 * Standard C Interface Adapter
Note:
1. Carefully open the package to avoid damage to the lens or accessories.
2. Proper operation, put the dust cover on the microscope after work.
3. In addition to being replaceable, do not rashly disassemble the instrument to avoid damaging the correct position.
4. Place the instrument in a dry, cool place away from contamination and corrosion.
5. If a malfunction occurs, take the instrument to a special repair shop.
6. When the objective lens and eyepiece are not used for a long time, put them in a dry box and place the dust cover on the microscope.
.
