Feature:
1. 11 Selectable Pressure Units bar, mbar, kPa, kgf cm², mmHg, cmH2O, Ozf in², psi, inHg, inH2O, ftH2O.
2. Wide Range \u0026 High Accuracy Measures + 10 kPa at resolution of + 0.3percent FSO (20 celsius ) in full scale. Large LCD display with backlight, clear to read even under the dim light.
3. Useful Features It is available to review Maximum, Minimum, Average values under record mode. Press the data hold button for easy data review. Built in USB port allows connection with PC. Automatically power off in 1 minutes if there is no further operation to save the battery life. Low battery indicator reminds you to recharge the unit in time.
4. Zeroing \u0026 Calibration Pressure difference will automatically zeroing after turning off, and if there is any error between the device and your standard, you can calibrate it according to the user manual by yourself.
5. Wide Application Widely applied in measuring the pressure of fans, resistance, wind velocity, oven pressure, differential pressure of filter, and monitoring the gas content in the air in process of combustion.
Specification:
Features:
11 Selectable Pressure Units bar, mbar, kPa, kgf cm², mmHg, cmH2O, Ozf in², psi, inHg, inH2O, ftH2O.
Wide Range & High Accuracy Measures ±10 kPa at resolution of ±0.3percent FSO (20 celsius ) in full scale. Large LCD display with backlight, clear to read even under the dim light.
Useful Features It is available to review Maximum, Minimum, Average values under record mode. Press the data hold button for easy data review. Built in USB port allows connection with PC. Automatically power off in 1 minutes if there is no further operation to save the battery life. Low battery indicator reminds you to recharge the unit in time.
Zeroing & Calibration Pressure difference will automatically zeroing after turning off, and if there is any error between the device and your standard, you can calibrate it according to the user manual by yourself.
Wide Application Widely applied in measuring the pressure of fans, resistance, wind velocity, oven pressure, differential pressure of filter, and monitoring the gas content in the air in process of combustion.
Parameters:
range
resolution
maximum pressure
bar
0.1
0.001
0.5
mbar
100
0.1
500
kPa
10
0.01
50
kgf cm²
0.101
0.001
0.509
mmHg
75
0.1
375
cmH2O
101.9
0.1
509.5
Ozf in²
23.2
0.01
116
Note:
*Battery not included.
Specifications:
Material: ABS
Color: Black and Yellow
Measuring Range: ±10 kPa
Resolution: ±0.3percent FSO (20 celsius )
Repeatability: ±0.2percent (max. ±0.5 FSO)
Linearity Hysteresis: ±0.29 FSO
Response Time: Typical 0.5 seconds
Low Battery Indicator: yes
Up Overload Indication: Err1
Down Overload Indication: Err2
USB Connection: yes

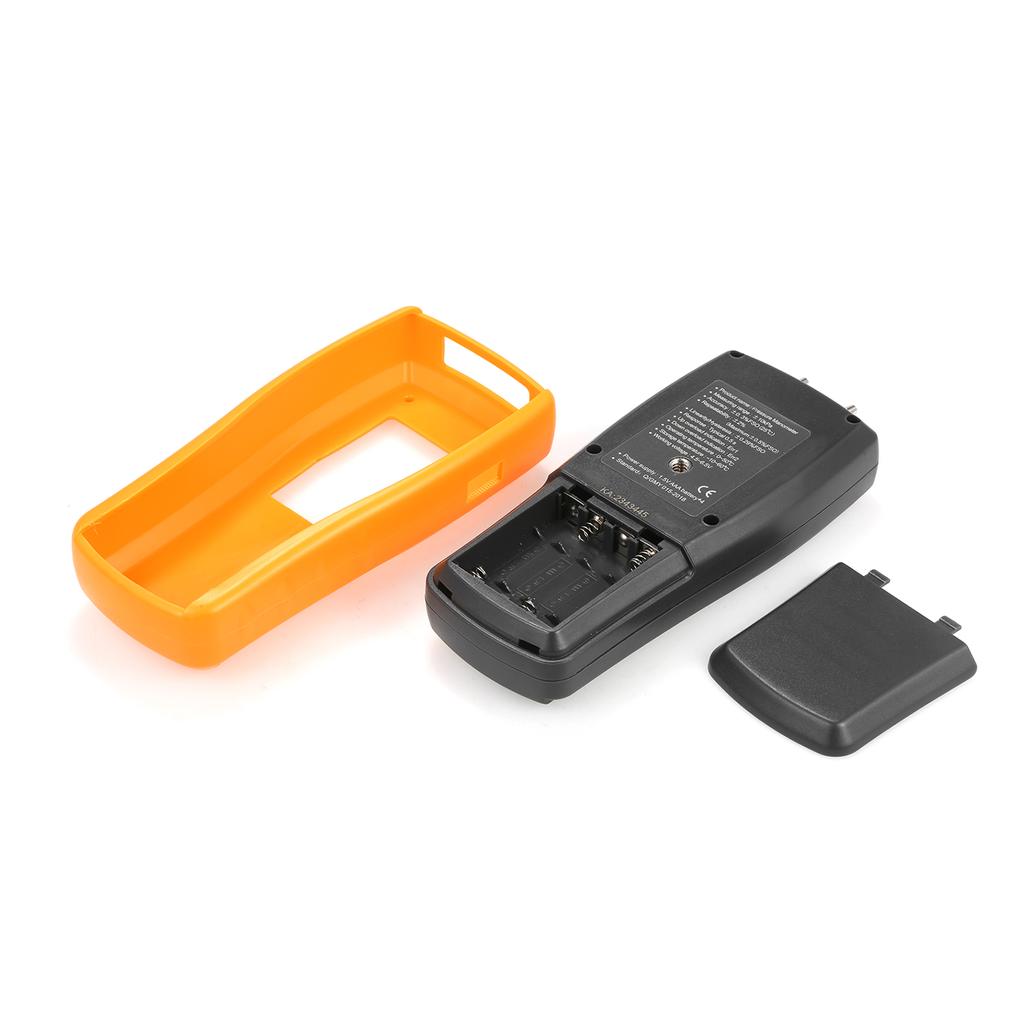

Battery: 1.5V, AAA battery, 4pcs(not included)
Item Size: 17*7.5*3.5cm 6.69*2.95*1.37in
Item Weight: 237g 8.35oz
Package Size: 23.5*18.7*4.5cm 9.25*7.36*1.77in
Package Weight: 416g 14.67oz
Packing List:
1 * Pressure Manometer
4 * Hose
1 * Disk
1 * USB Cable
1 * User Manual(English)
Package List:
1 * Pressure Manometer
4 * Hose
1 * Disk
1 * USB Cable
1 * User Manual(English)
