Feature:
1. Fast response (3m s), no speeding fault occurred.
2. Can be used in vertical, horizontal or any position with the mounting hardware.
3. Can set \ zero\ anywhere within operating range for determining relative distances.
4. Easy to read LCD Display with inch, decimal, fractional and metric readings.

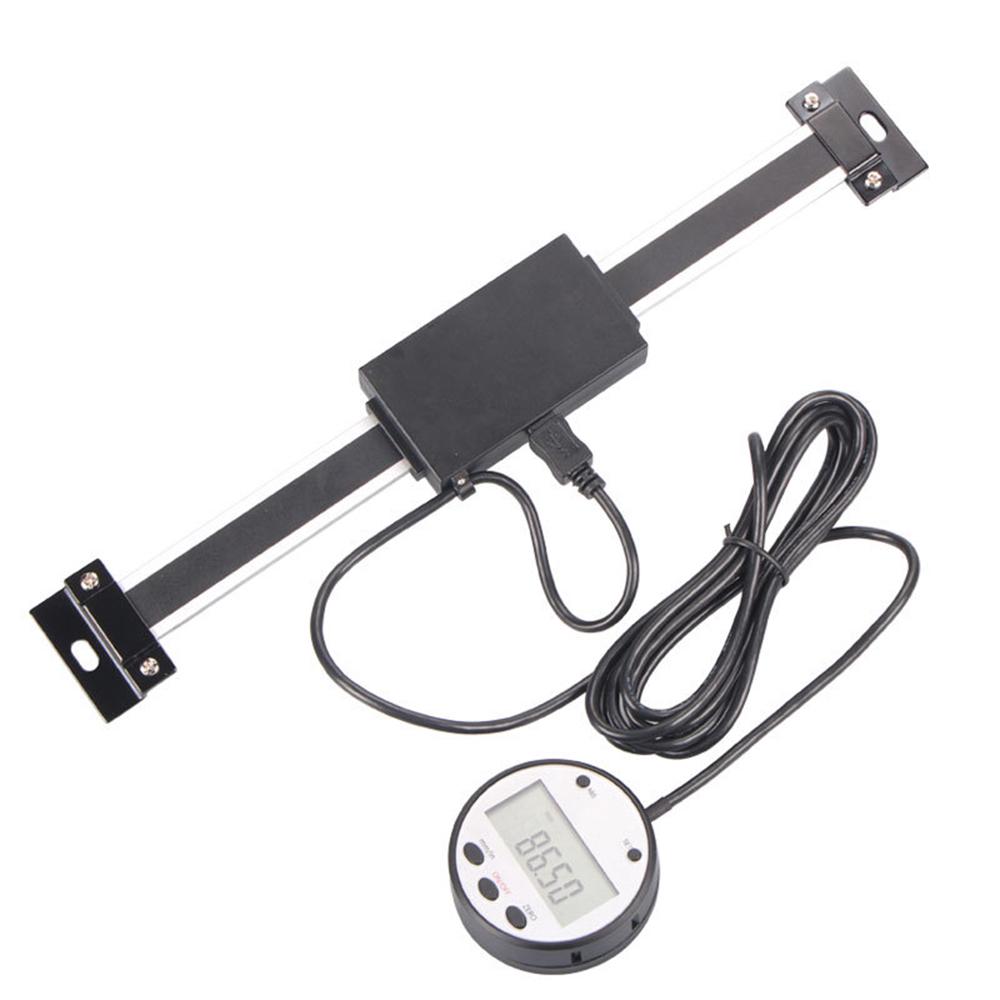

5. Magnetic remote display with 50\ cord for easy installation and access.
6. Remote reading display, easy to read and operation.
7. Suitable for lathes, milling machines, router tables, planer, table saw fence and other machine tools.
Specification:
It is used to be equipped together with various industry lathes and upgrade old lathe, which can be used in vertical, horizontal or any position with the mounting hardware. Suitable for lathes, milling machines, router tables, planer, table saw fence and other machine tools.
Features:
Fast response (3m s), no speeding fault occurred.
Can be used in vertical, horizontal or any position with the mounting hardware.
Can set "zero" anywhere within operating range for determining relative distances.
Easy to read LCD Display with inch, decimal, fractional and metric readings.

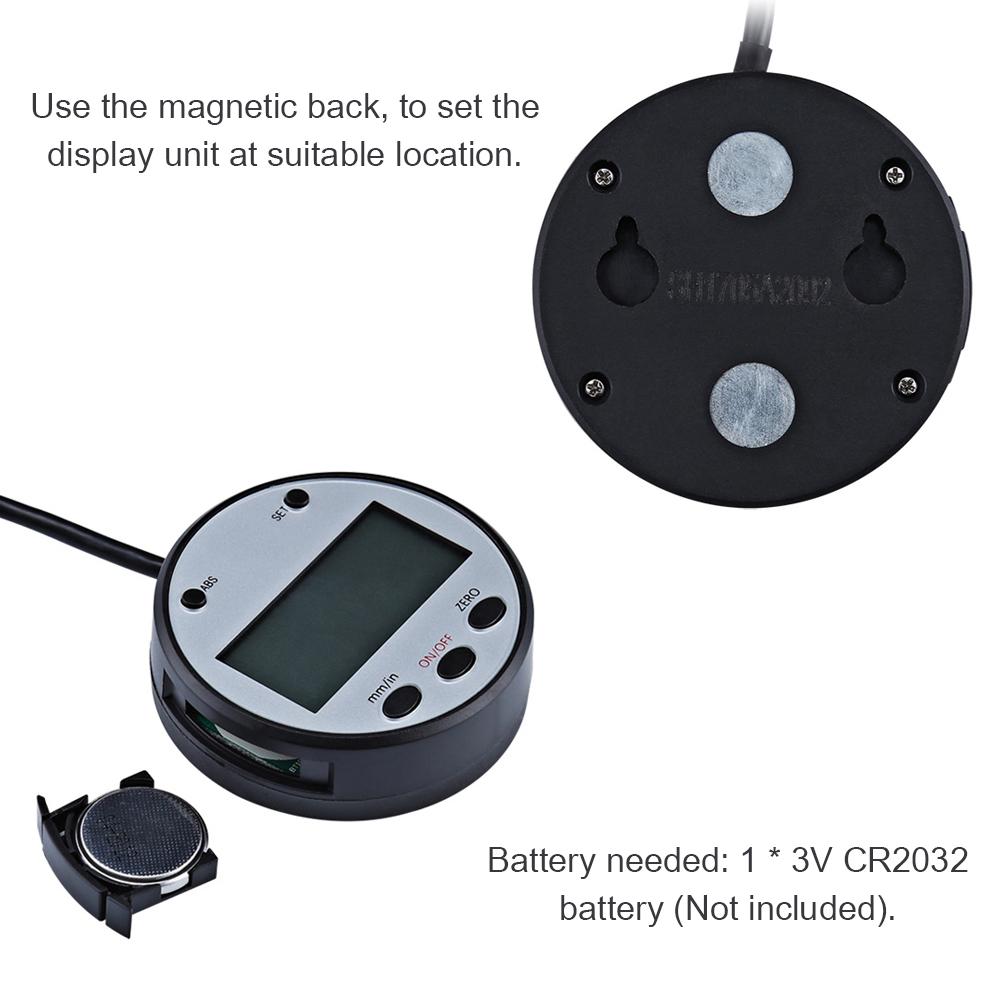

Magnetic remote display with 50" cord for easy installation and access.
Remote reading display, easy to read and operation.
Suitable for lathes, milling machines, router tables, planer, table saw fence and other machine tools.
Specifications:
Material: Aluminum Alloy
Battery: CR2032(3V)
Model No.: 5403 150 5403 200 5403 300 (optional)

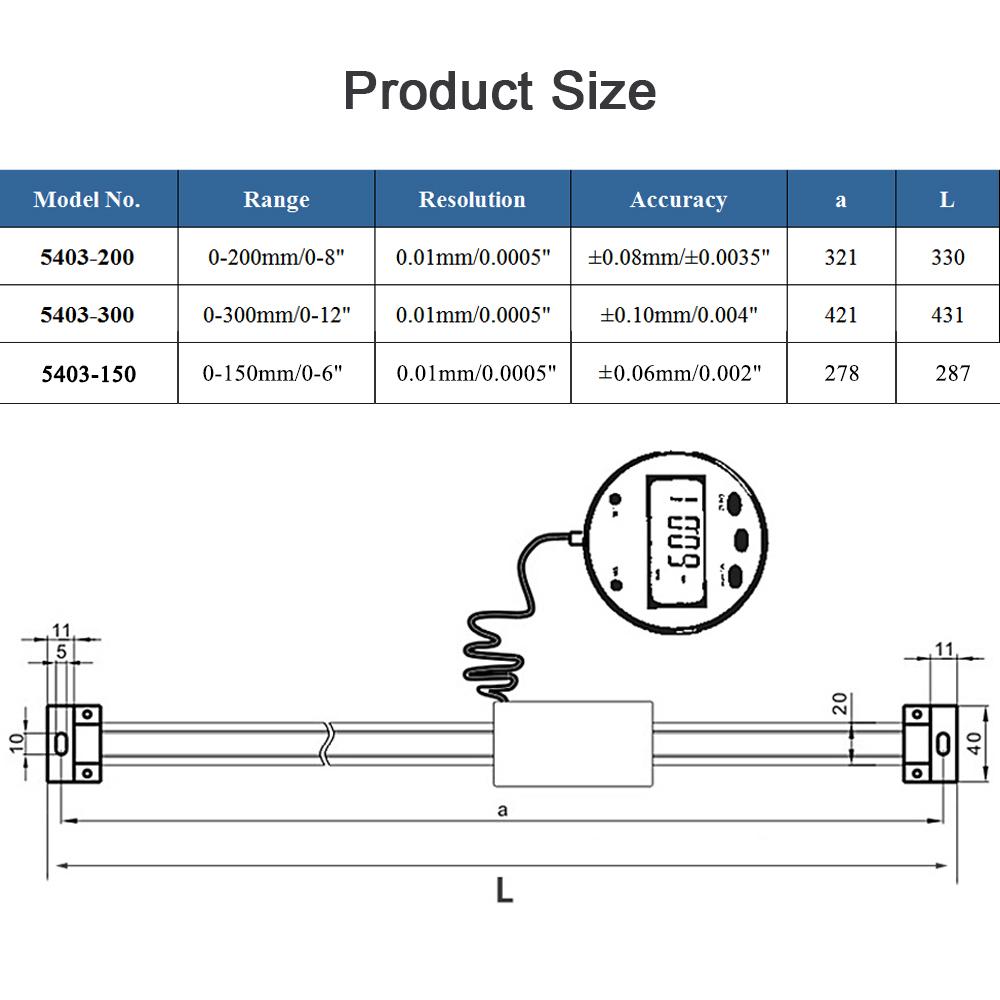

Detail info:
5403 150:
Measuring range : 0 150mm
Resolution: 0.01mm
Accuracy: 0.06mm
A: 278mm
L: 287mm
5403 200:
Measuring range : 0 200mm
Resolution: 0.01mm
Accuracy: 0.08mm
A: 321mm
L: 330mm
5403 300:
Measuring range : 0 300mm
Resolution: 0.01mm
Accuracy: 0.1mm
A: 421mm
L: 431mm
Operating temperature: 0°C 40°C
Item weight:
5403 150: 305g 10.8oz
5403 200 5403 300: about 400g 14.1oz
Package weight: 450g 15.9oz
Package size:
5403 150: 35.5*6.8*4.2cm 13.98*2.68*1.65in
5403 200 5403 300: 44*12*8cm 17.32*4.72*3.15in

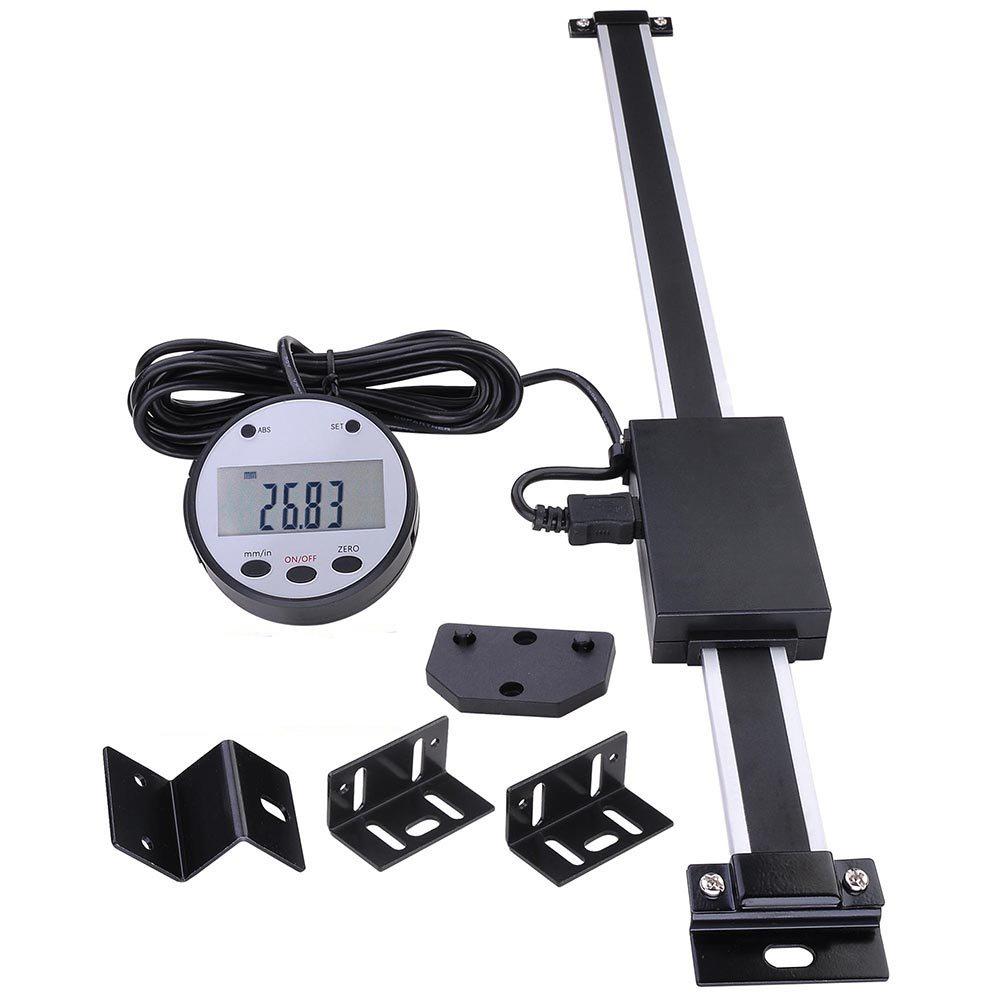

Package includes :
1 * Digital Readout
1 * Full Accessories Set
Package List:
:
1 * Digital Readout
1 * Full Accessories Set
