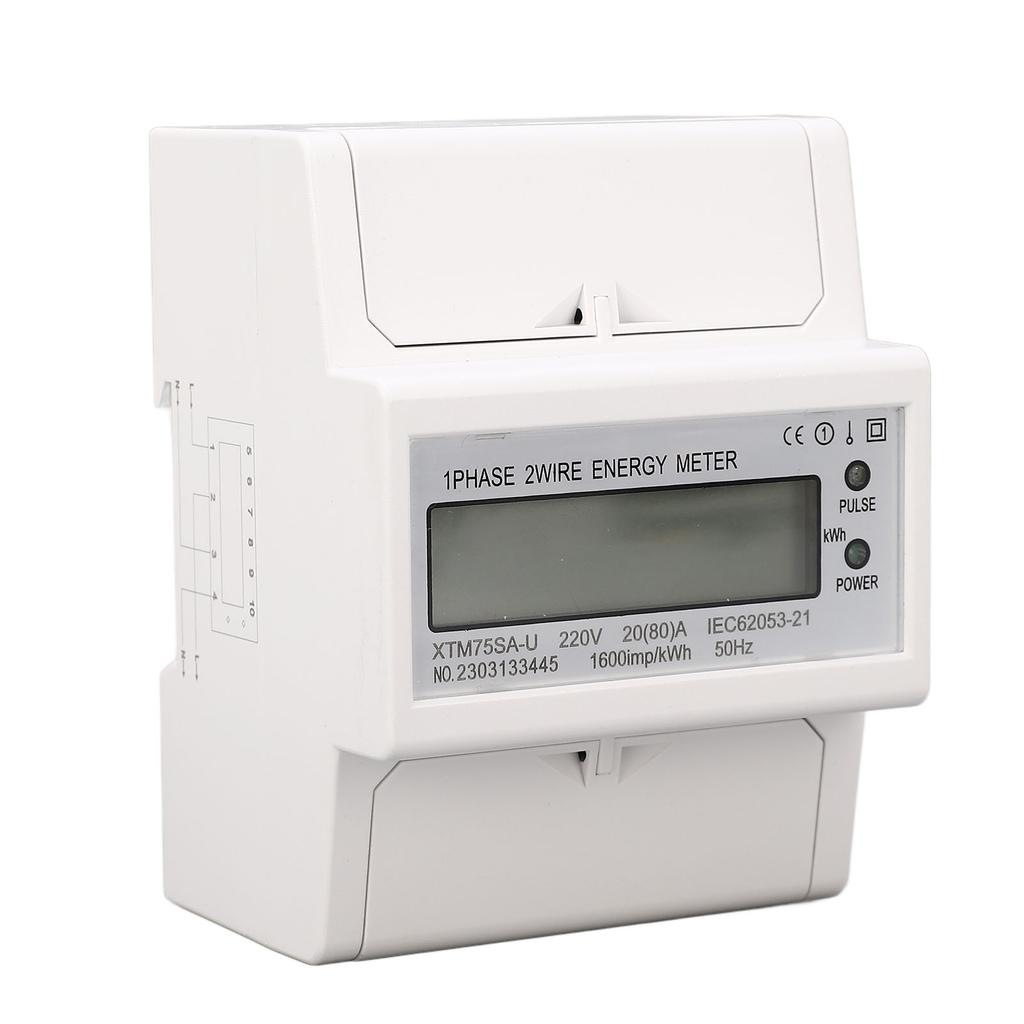

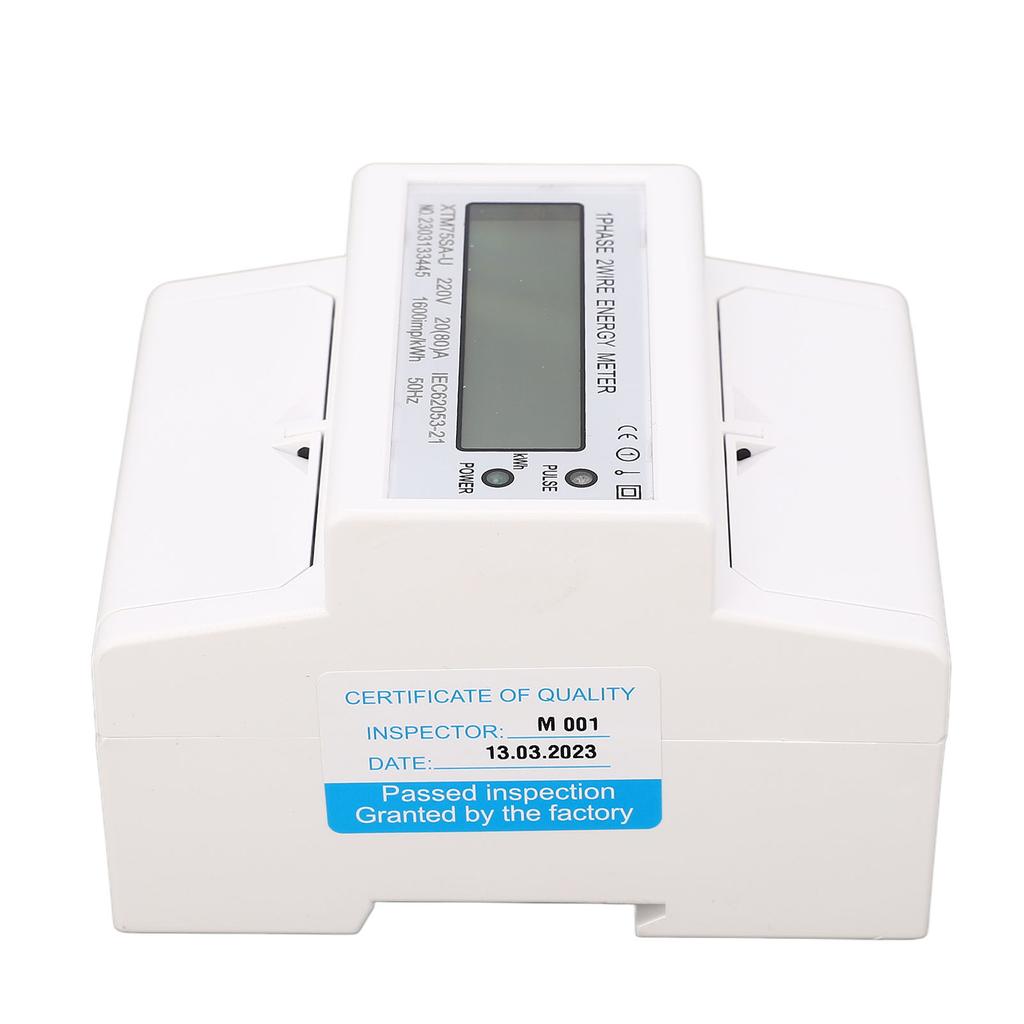

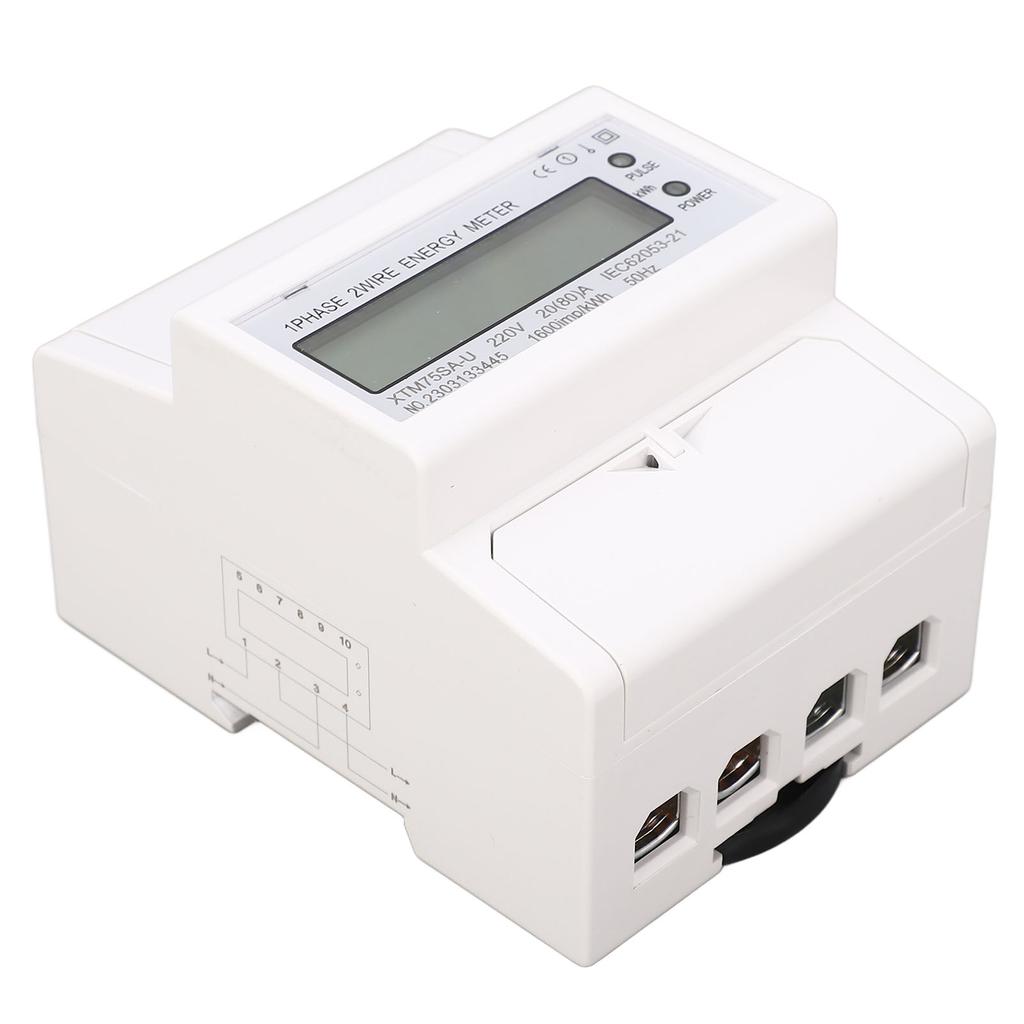

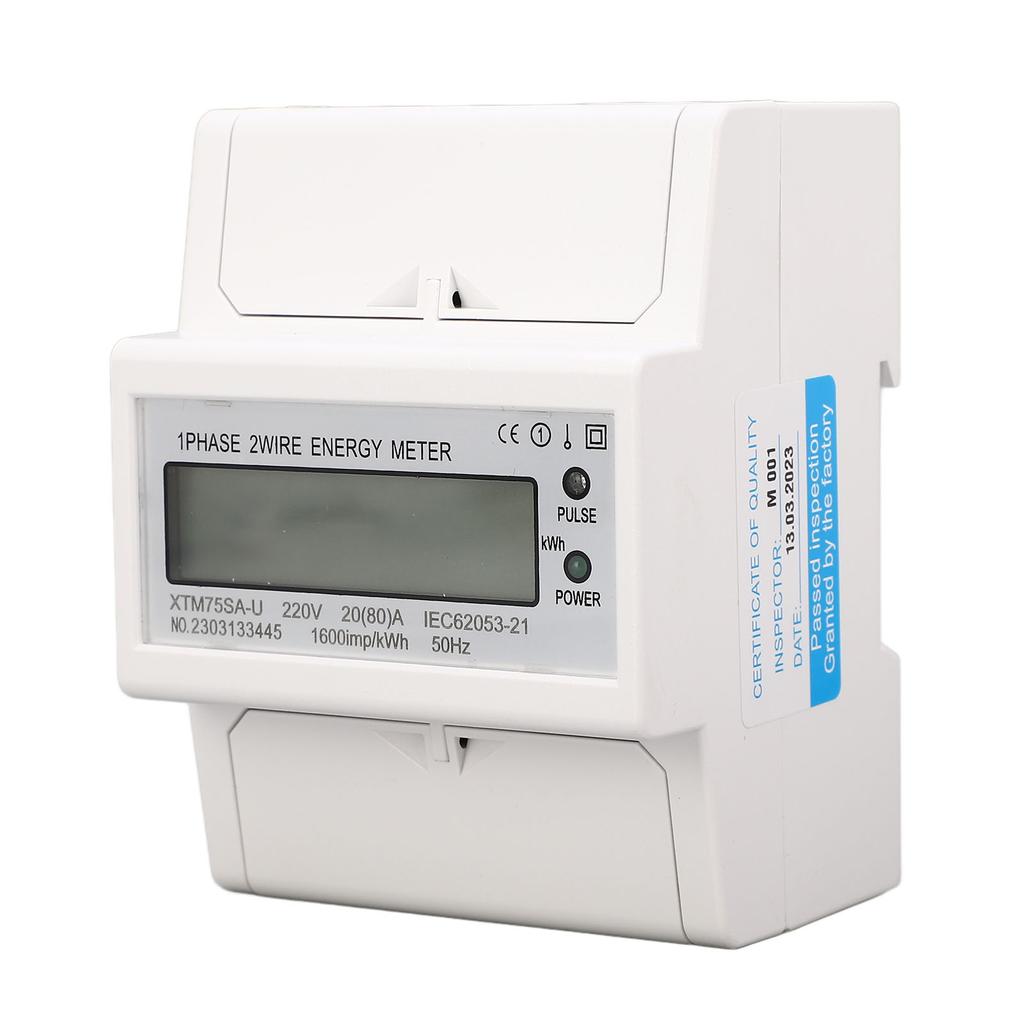

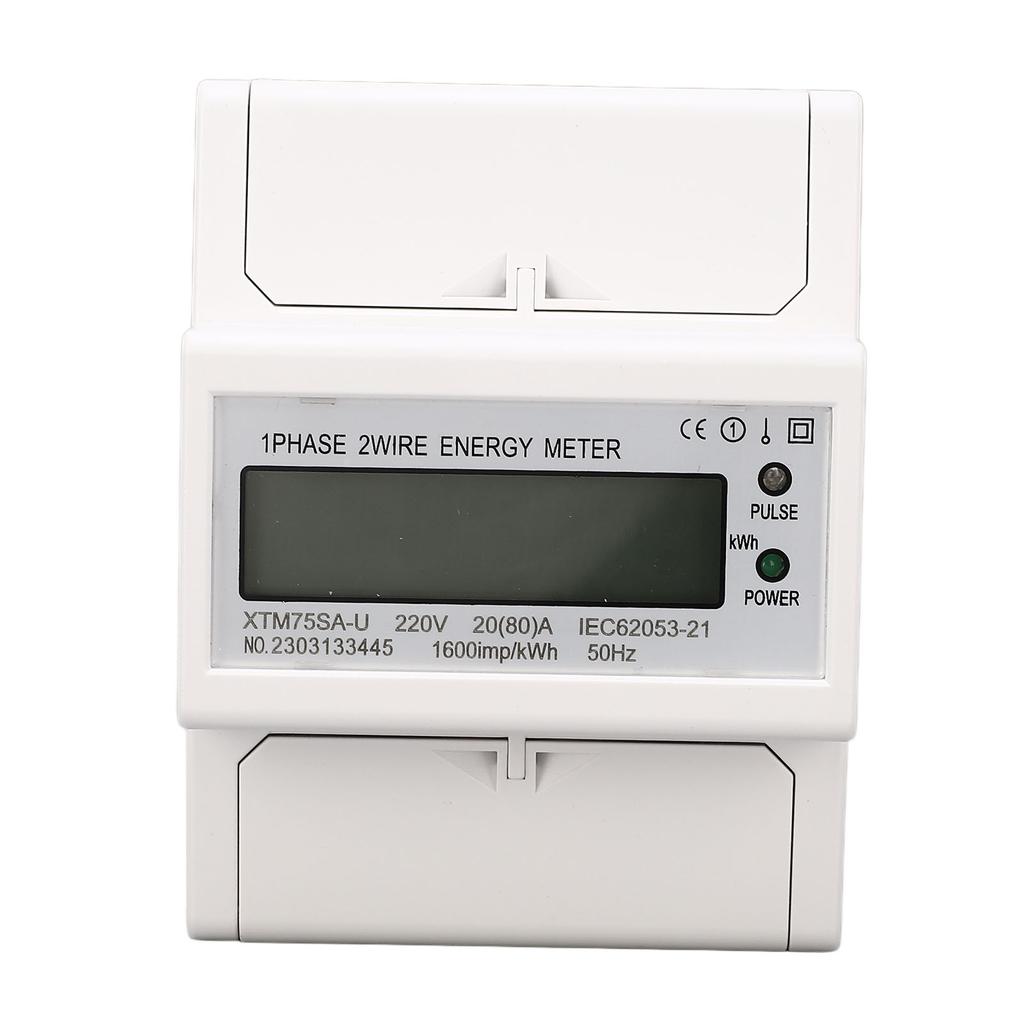

Watt Meter Electricity Usage Monitor Current Voltage Tester 1 Phase 4P LCD Display DIN Rail Mount

Feature: 1. Electricity Meter: The watt meter can be used to test total power, current, voltage, frequency and so on to help you monitor electricity usage. 2. Easy in Operation: Supports easy modification on address, baud rate, constant, validation bit and more, the power meter is very easy to operate. 3. Reliable for Work: Designed to have 400imp and 1600imp pulse constant, the IP65 waterproof energy monitor also has 20 years data storage time. 4. Clear LCD Display: 7 bit LCD screen enables clear digital display with backlight, which will largely simplify the use and improve the efficiency. 5. Simple to Install: Comes with a light weight and a compact size as well, the 4P power meter ensures one way double line connection for DIN rail mount. Specification: Item Type: Watt Meter Model: XTM75SA U Relative Humidity: less than 95percent Environmental Temperature: 35 65 celsius Accuracy: Level 1 Voltage Specification: 220V 50Hz Current Specification: 20 80A Indicate Current Specification: Reference current, maximum current. Insulation Performance: AC voltage 4KV, 1 minute, 1.2 50us Waveform Impulse Voltage: 6KV Data Display: 7 bit LCD display Installation Method: 35mm rail mounted. . Package List: 1 x Watt Meter1 x User Manual
