Feature:
1. Digital Display Function: Electrical parameter measurement function (voltage, current, active power, electrical energy, frequency, power factor), overload alarm function (over power alarm threshold, backlight and power flashing prompt), power alarm threshold preset function (can be set power alarm threshold by yourself), power button reset function, power down data storage function, large LCD screen full display function, backlight function.
2. Independent and Safe: Microinverters can independently control each component in parallel, minimizing safety risks, safe to use.
3. Protection Functions: Over temperature protection, under voltage alarm, under voltage protection, over voltage protection, short circuit protection, overload protection functions.
4. Miniaturization: High frequency, micro, high frequency processing, miniaturization, smaller and lighter, micro inverters can be mounted directly behind the module or on a bracket for easy maintenance.
5. Function: The micro inverter can realize the maximum power point tracking to maximize the overall output power, the built in high accuracy instrument can see the working status of each component.
6. How to Work: They electrically isolate the solar panels from each other, so a small amount of shading, breakage or obstruction on any one panel, or even an entire panel failure, doesn t reduce the output of the entire array too much, each microinverter obtains optimal power by performing maximum power point tracking (MPPT) on its connected solar panels.
7. Output Power: 700W, operating temperature range: ‑40 degrees C to +60 degrees C, waterproof rating: IP65, power transmission method: reverse transmission, load priority, rated frequency range: 47‑52.5Hz, input voltage: 22‑50V, plug specification: (with waterproof connector), maximum DC short circuit current: 30A, maximum input working current: 30A.
Specification:
Item Type: Intelligent Grid Tie Inverter
Material: Aluminum Alloy
Gross Weight: 2321g 81.9oz
Color: Silver
Peak Output Power: 700W
Rated Output Power: 650W
Rated Output Current: 3.05A
Rated Frequency Range: 47 52.5Hz
Power Factor: > 99percent
Number of Connected Units: 12 (single phase)
Output Efficiency: 92percent
Static MPPT Efficiency: 99.5percent
Power Consumption at Night: < 1W
Total Harmonic Distortion: < 5percent
Output Power: 700W
Ambient Temperature Range: 40 degrees C to +60 degrees C
Waterproof Grade: IP65
Power Transmission Mode: reverse transmission, load priority.

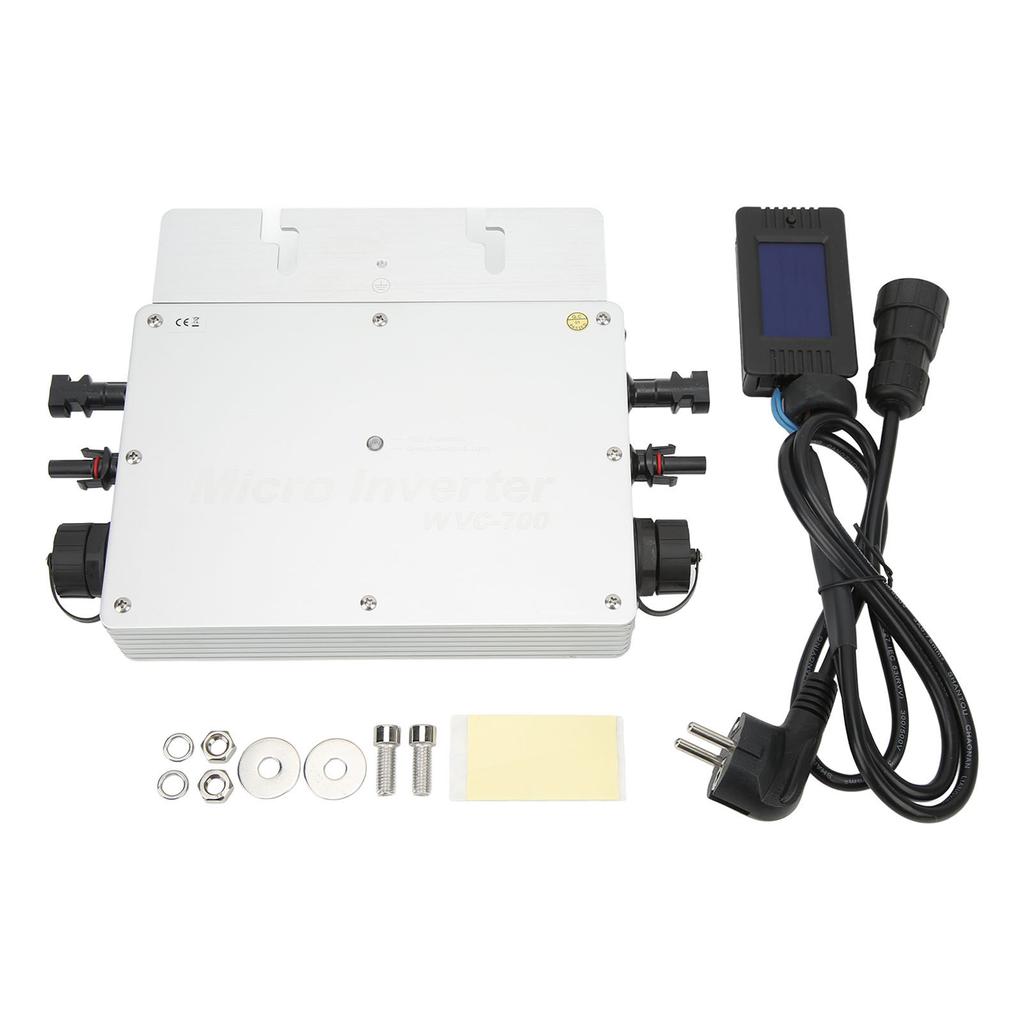

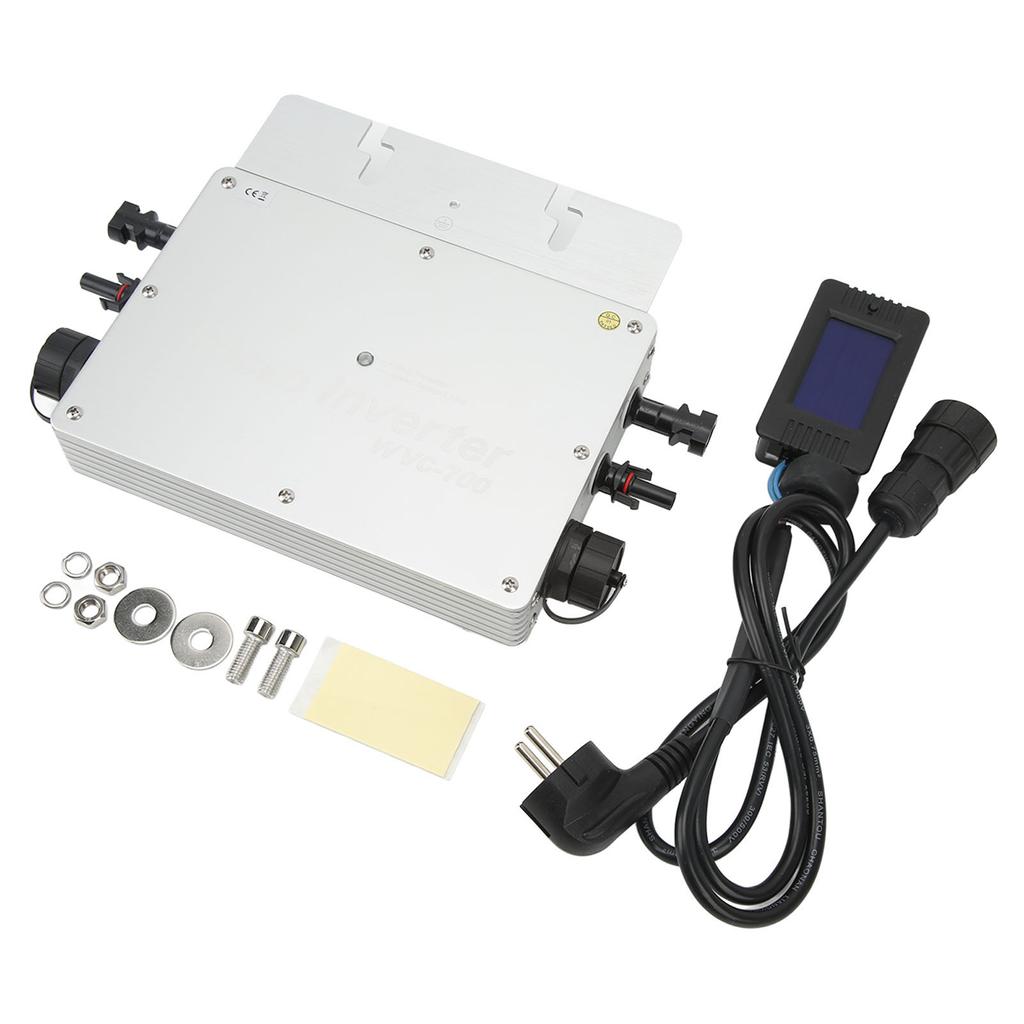

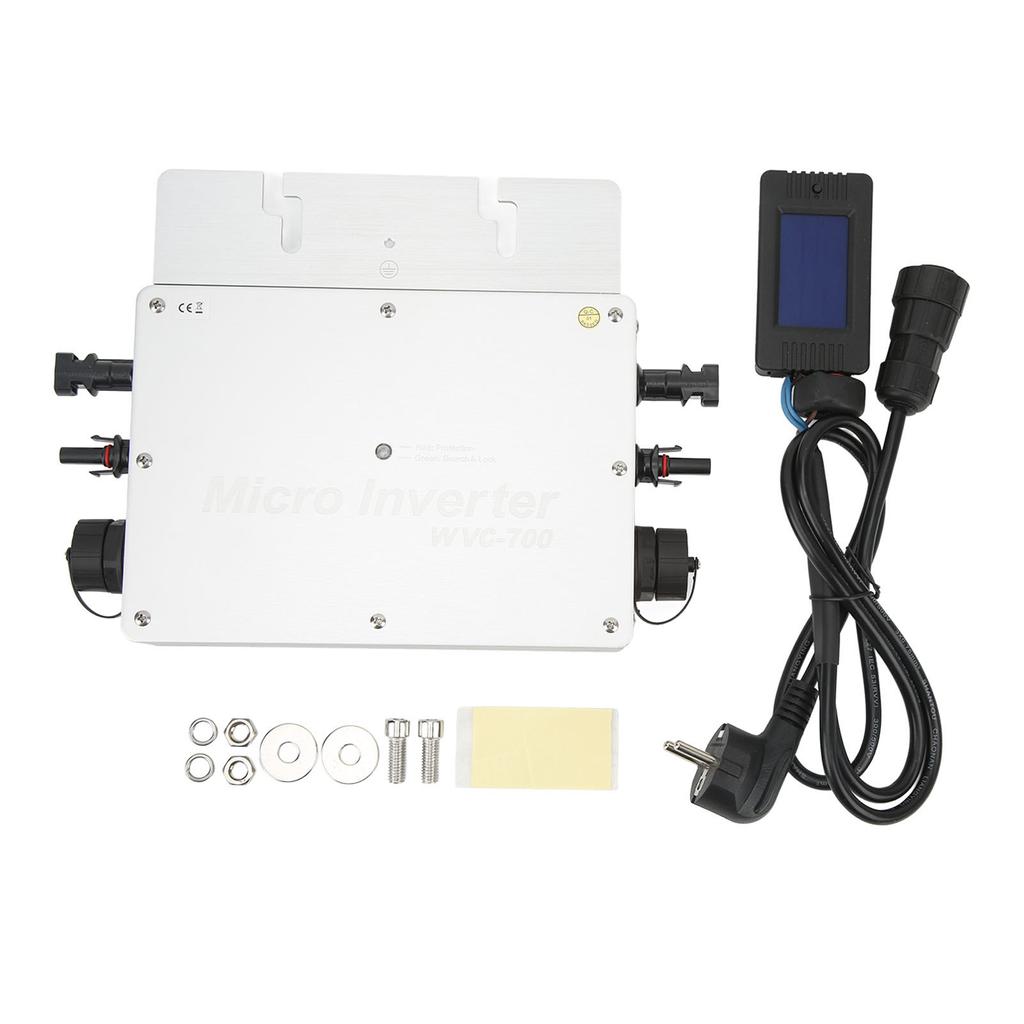

Package List:
1 x Digital Display Manual1 x Product Manual1 x Inverter1 x Connection Cable2 x Fixing Screw2 x Fixing Nut2 x Fixing Gasket2 x Fixing Washer1 x Sticker
Note:
Please install the inverter correctly according to the instructions. Non professionals should not disassemble the inverter. Please install the inverter in a low temperature and well ventilated place to avoid overheating and remove flammable and explosive materials around.
