【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
12 ports in one: Connect to two Thunderbolt 4 ports, a USB-C port with PD support up to 20W, two 4K HDMI ports, four USB-A ports, a 1Gbps Ethernet port, an SD card slot, and a 3.5mm audio jack. In addition to multiple screen output, ultra-high-speed data transfer, and charging, you can easily connect and disconnect cables, organize your desk area, and more with just one device. *This product is compatible with Windows 10-equipped notebook PCs (Intel Evo Platform) equipped with Thunderbolt 4 ports, and MacBooks without M1 chip equipped with macOS 11 (Big Sur) or later. (*Not compatible with Macbook Air / Pro equipped with M1 chip and MacBook with macOS 10.16 or earlier.)
Full-speed charging and data transfer: Equipped with a Thunderbolt 4 port with up to 90W output and a PD-compatible USB-C port with up to 20W output, you can charge your laptop or smartphone at full speed. The Thunderbolt 4 port also has data transfer speeds of up to 40Gbps, allowing you to transfer a 20GB file in just 14 seconds.
High-quality multi-screen output: Output up to 8K (30Hz) with the Thunderbolt 4 port and 4K (60Hz) with the HDMI port, allowing you to enjoy high-quality content on up to three external monitors simultaneously. (*Not compatible with MacBook Air / Pro equipped with M1 chip. On macOS, it will be displayed as mirror mode when connected via HDMI port.)

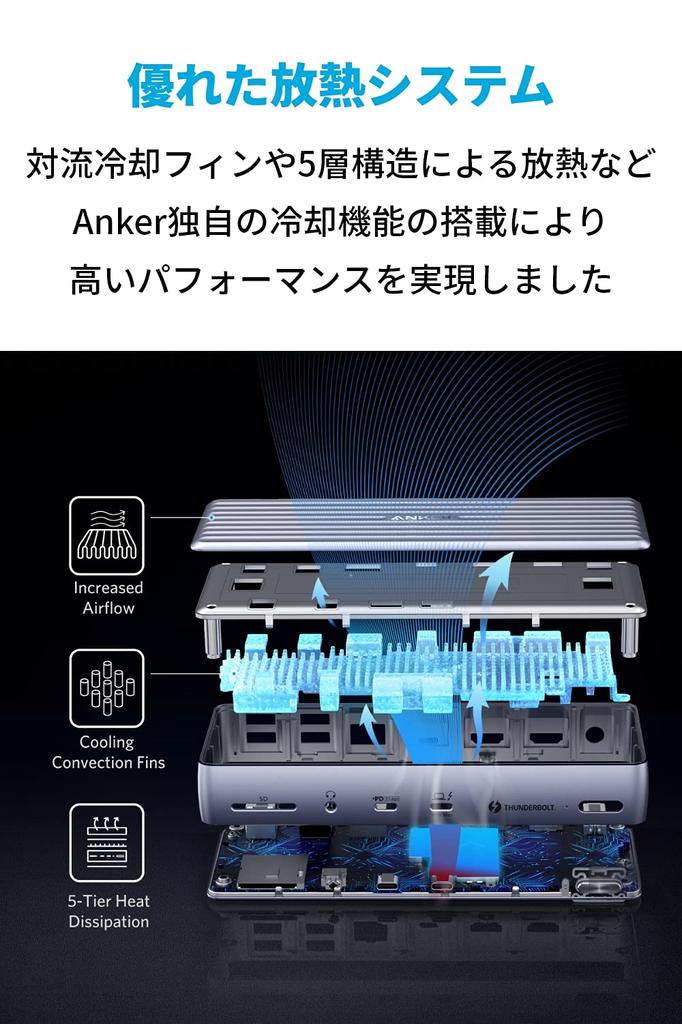

Excellent heat dissipation system: Equipped with many unique cooling features from Anker, such as convection cooling fins, 5-layer structure for heat dissipation, and a surface design that promotes airflow, it achieves high performance.
Package contents: Anker PowerExpand Elite 12-in-1 Thunderbolt 4 Dock (APEX) (docking stand sold separately), AC adapter (120W), power cable (approx. 1.2m), Thunderbolt 4 cable (approx. 0.7m), instruction manual, customer support

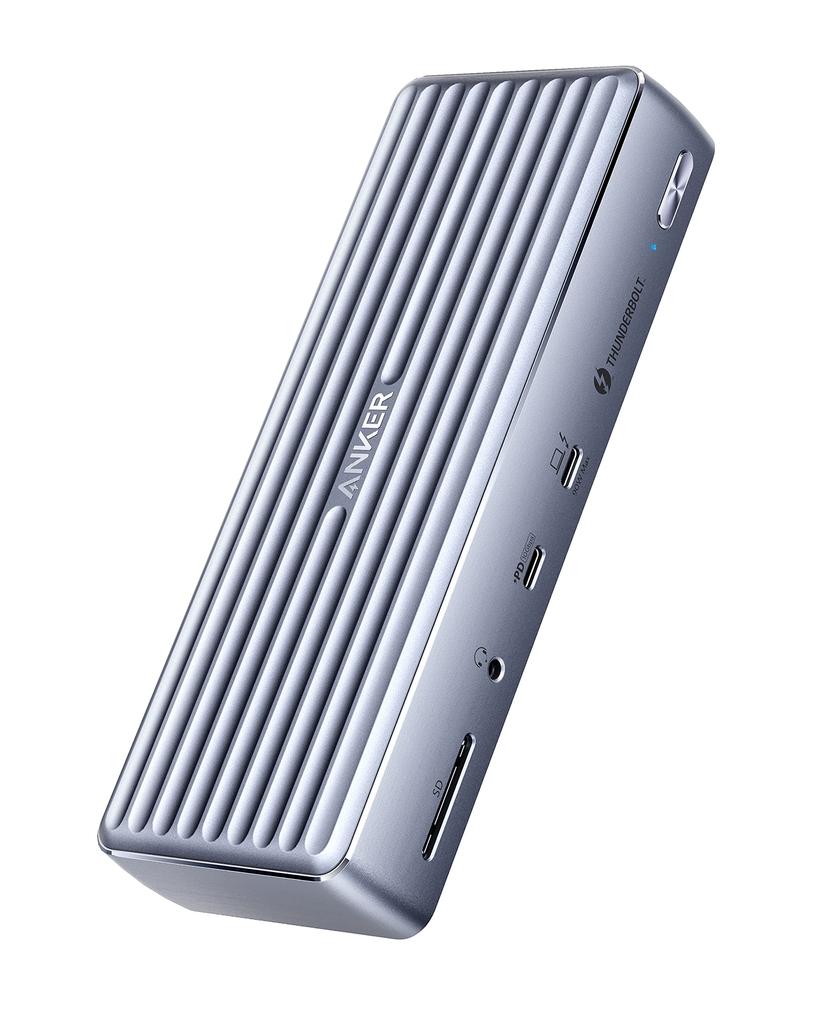

Anker PowerExpand Elite 12-in-1 Thunderbolt 4 Dock (APEX)
A Thunderbolt 4 docking station that handles a wide range of tasks, including full-speed charging for multiple devices, ultra-fast data transfer, and multiple screen output.
Product specifications
Size: approx. 18.6 x 7.3 x 3.3 cm
Weight: approx. 467 g
Compatible models
- Windows 10 laptop with Thunderbolt 4 port (Intel Evo Platform)
- MacBook with macOS 11 (Big Sur) or later OS (*Excluding MacBook with M1)
Incompatible models
-MacBook with M1 or -macOS 10.16 or earlier
-Laptop PC with Linux/Chrome OS
-Windows laptop with Thunderbolt 3
-USB-C Windows notebook PC that does not support Thunderbolt4
Please note
・Docking stand is sold separately.
- Not compatible with MacBook equipped with M1.
Multitask with just one
Connect to two Thunderbolt 4 USB-C ports, a USB-C port with PD support up to 20W, two 4K-compatible HDMI ports, four USB-A ports, a 1Gbps Ethernet port, an SD card slot, and a 3.5mm audio jack for all-in-one access.

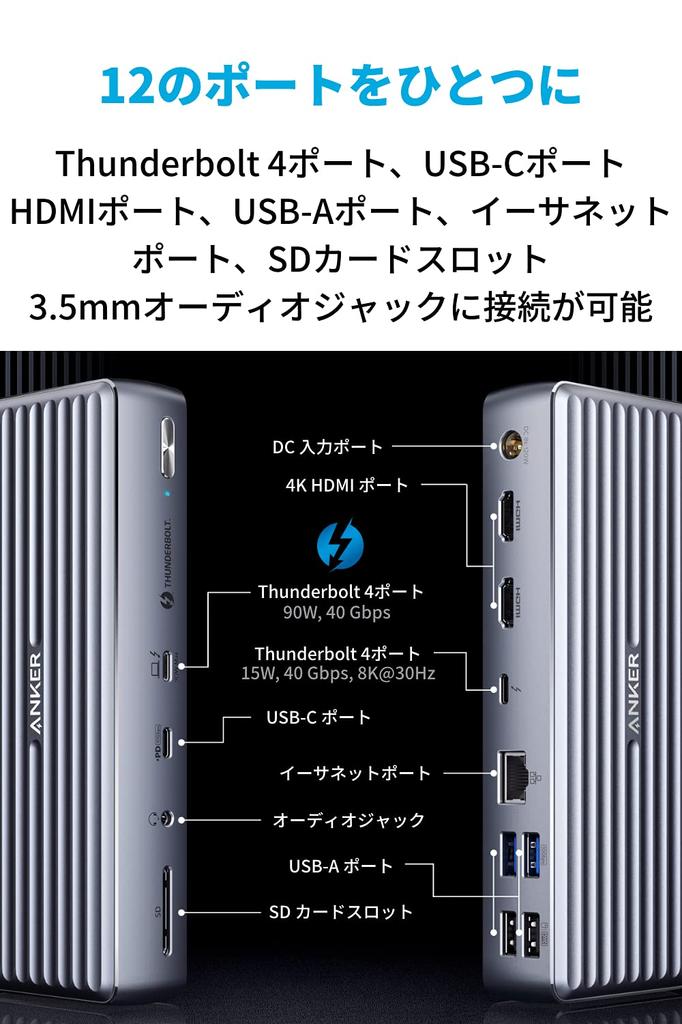

Installed port details
front
・Thunderbolt 4 upstream port (40Gbps, maximum output 90W) *Port for connecting this product to a notebook PC
・PD compatible USB-C 3.1 Gen 2 port (10 Gbps, maximum output 20W, 9V=2.25A) *Video output not supported
・3.5mm audio jack
・SD card slot (SD 4.0 / UHS-Ⅱ compatible)
Back side
・DC input port (20V=6A) (*We recommend using the included AC adapter)
・HDMI 2.0 port (4K (60Hz)) x2
・Thunderbolt 4 downstream port (40Gbps, maximum output 15W, 8K (30Hz))
・1Gbps Ethernet port
・USB-A 3.1 Gen2 port for data transfer (10Gbps, 5V=0.9A) ×2
・USB-A 2.0 port for data transfer (480Mbps, 5V=0.5A) ×2
Equipped with Thunderbolt 4 ports
The built-in Thunderbolt 4 port lets you get the most out of your laptop with ultra-fast data transfer, multiple screen output, and full-speed laptop charging all in one port. Therefore, you can freely use the ports you need for other tasks while connecting to this product. The Thunderbolt 4 port also supports a variety of specifications, including Thunderbolt 3 ports, USB4 ports, Display Port, and PCI Express (PCIe).

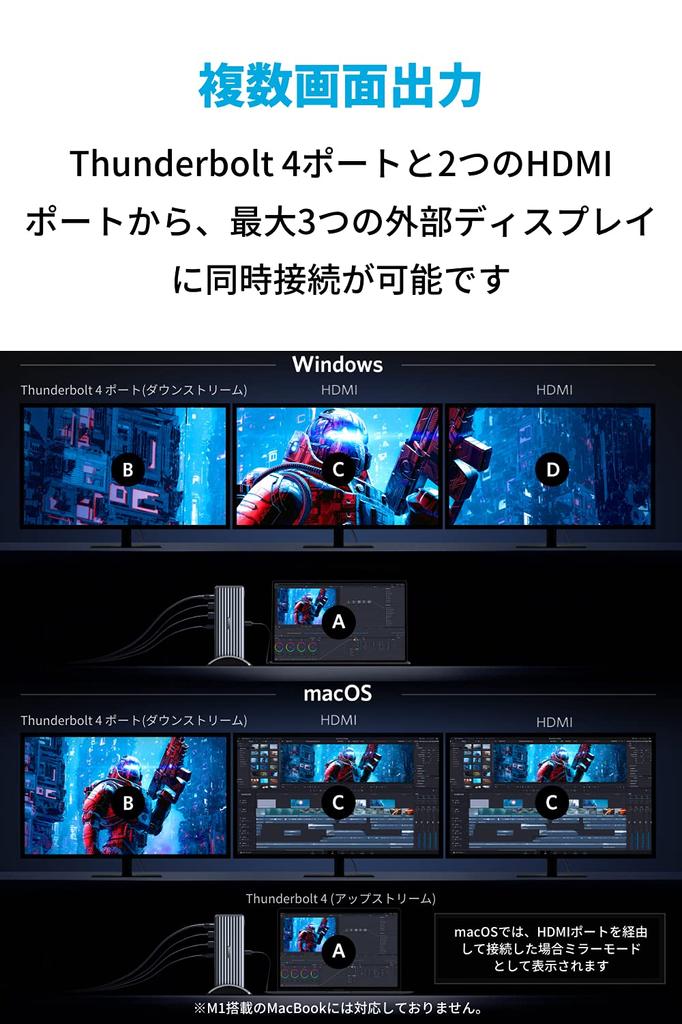

Multiple screen output
Equipped with a Thunderbolt 4 port (downstream) and two HDMI ports, you can connect up to three displays simultaneously and easily multitask without switching between screens. (*Not compatible with MacBook Air / Pro equipped with M1 chip. On macOS, it will be displayed as mirror mode when connected via HDMI port.)
Maximum resolution when connecting multiple monitors
single monitor
・Thunderbolt 4 port (downstream): 8K (7680 x 4320 px (30Hz))
・Via HDMI port: 4K (3840 x 2160 px (60Hz))
dual monitor
・Thunderbolt 4 port (downstream) and via HDMI port: 4K (3840 x 2160 px (60Hz))
triple monitor
・Via HDMI port (Windows): 4K (3840 x 2160 px (30Hz))
・H
