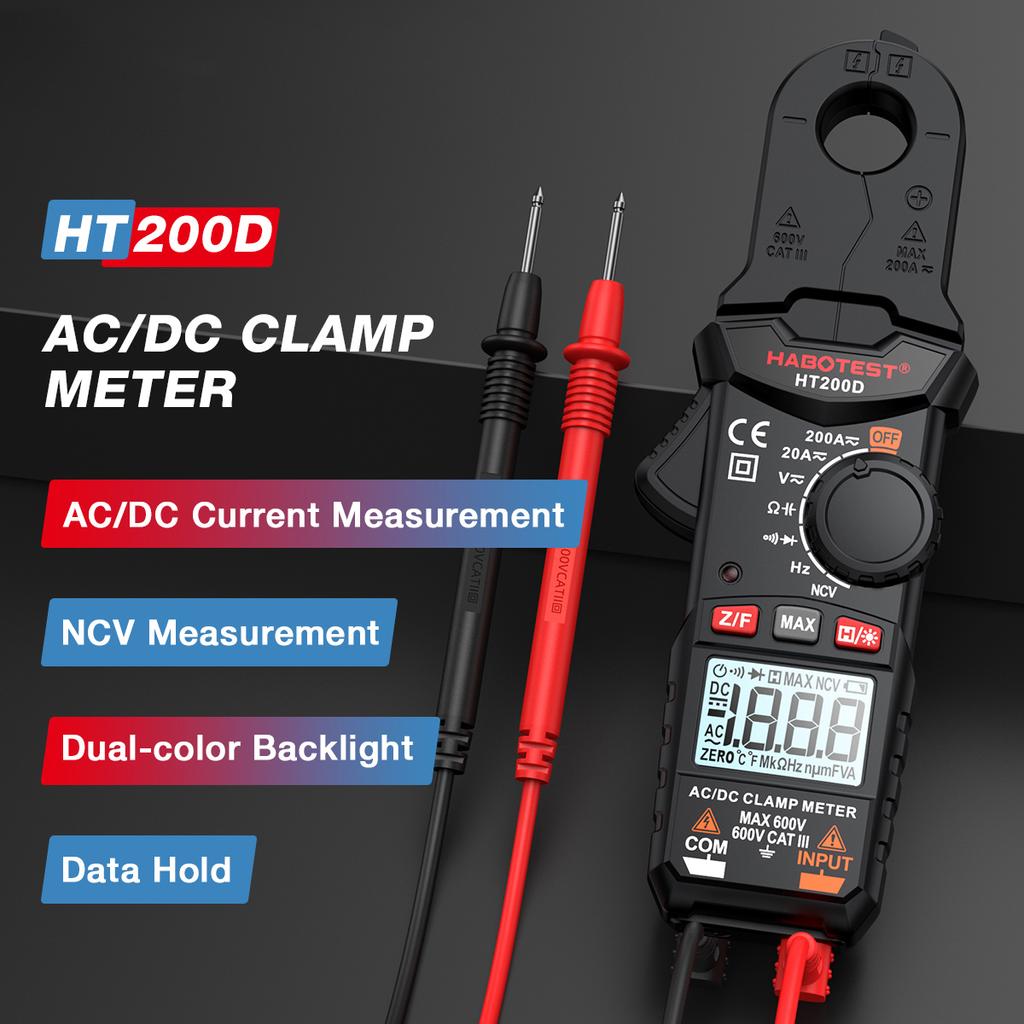

The new generation mini digital clamp meter makes your work easier, more efficient, and safer. It can measure AC/DC voltage, AC/DC current, resistance, capacitance, continuity, diode, frequency, and provides NCV function.
Features:
Automatic range clamp meter: accurately measures AC current up to 200 amps, AC/DC voltage up to 600 volts.
NCV measurement function: detects whether wires, cables, or sockets are live without direct contact with the conductor, improving work efficiency and reducing the risk of electric shock.
Multifunctional: data hold, maximum reading, continuity, diode, capacitance, resistance measurement, and automatic sleep mode.

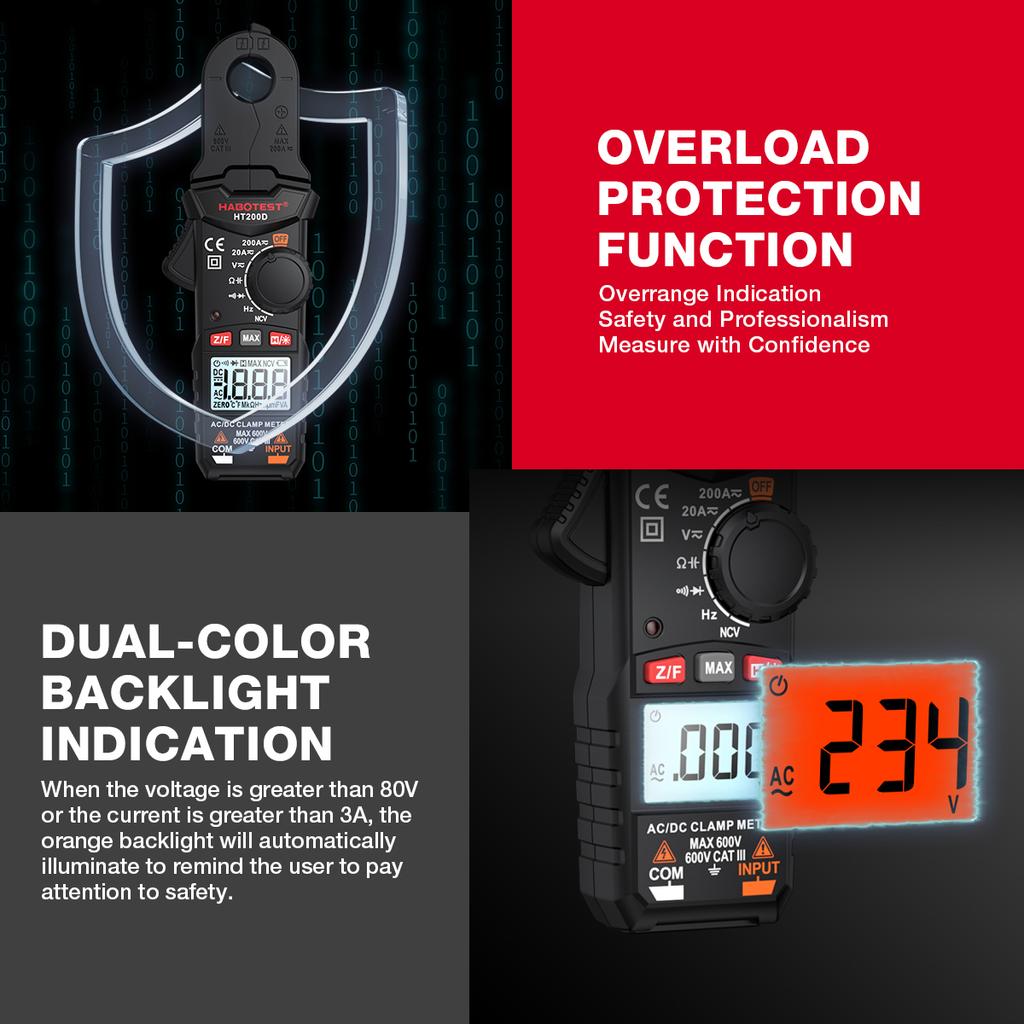

Easy to use and read: Compact and portable. A large dual-color backlit LCD screen allows measurements in dark environments.
Safety and service: Safety standard IEC 61010-1, rated CAT III 600V.
Specifications:

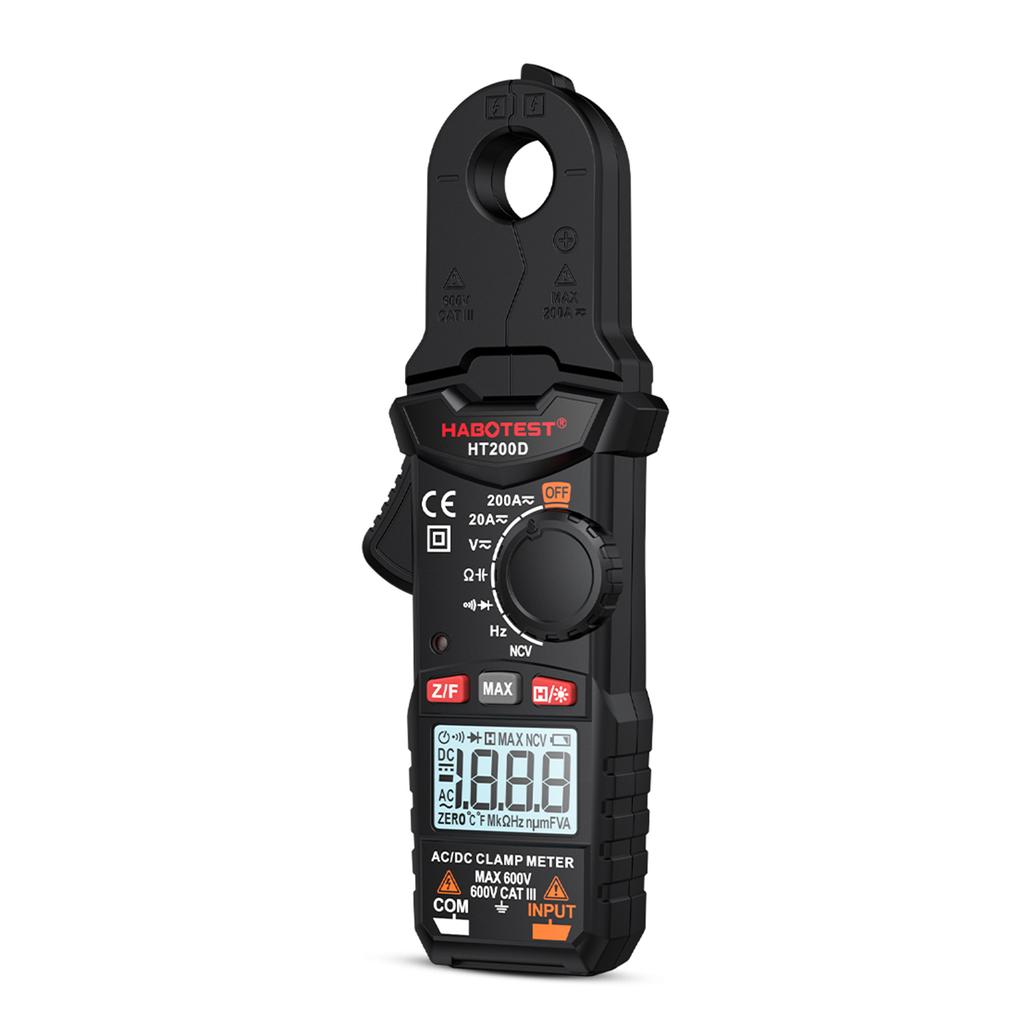

Model: HT200D
Material: ABS
DC Voltage: 200mV/2V/20V/200V/600V, ±(0.5%+5)
AC Voltage: 2V/20V/200V/600V, ±(1.0%+5)
DC Current: 20A/200A, ±(2.5%+5)
AC Current: 20A/200A, ±(2.5%+5)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ, ±(1.0%+5)
Capacitance: 2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF, ±(4.0%+5)
Frequency: 2Hz/20Hz/200Hz/2kHz/20kHz/200kHz/2MHz/20MHz, ±(1.0%+3)
Counts: 2000 counts
Auto/Manual Range: Auto
Continuity: Yes
Diode Test: Yes
Data Hold: Yes
NCV: Yes
Backlight: Yes
DCA ZERO: Yes
Low Battery Indication: Yes
Auto Power Off: Yes
True RMS: Yes
Maximum Measurement: Yes
Beep: Yes

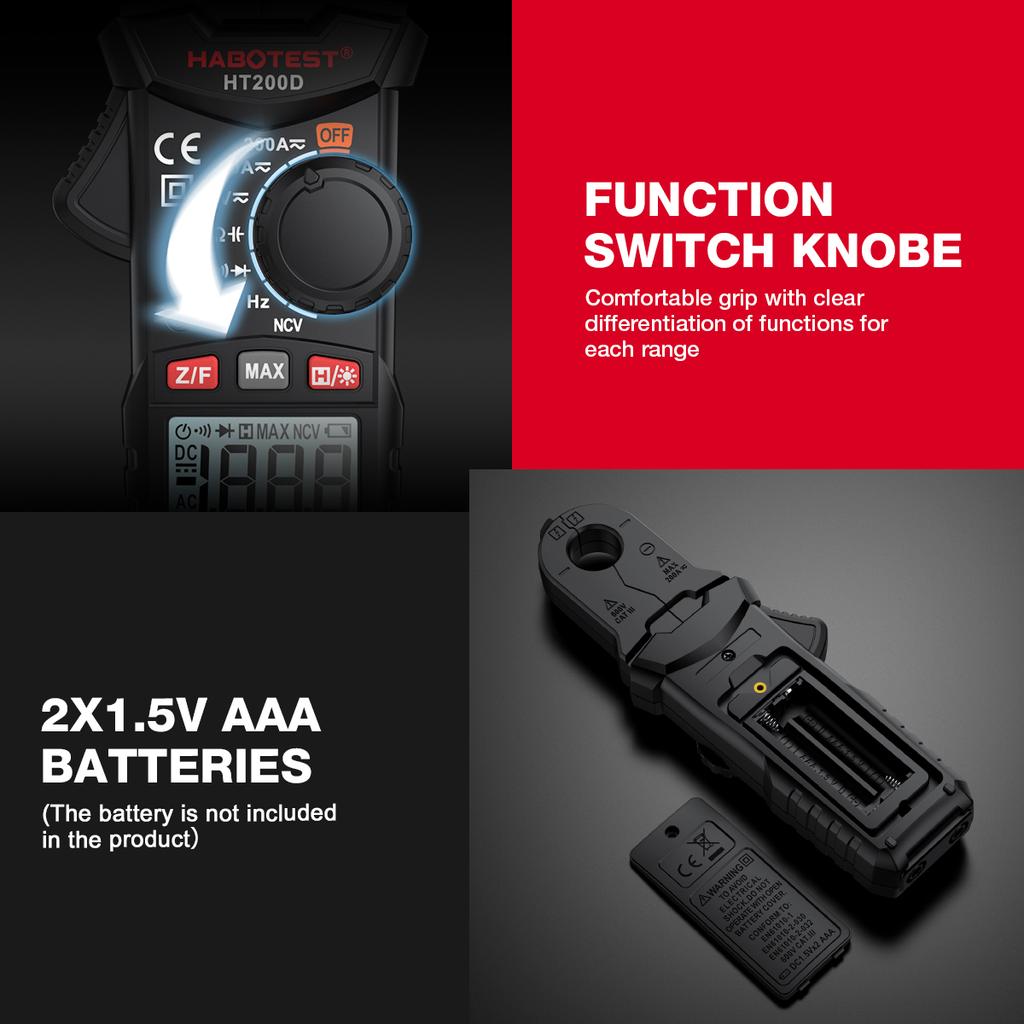

Power: 2 * 1.5V AAA batteries (Not included)
Safety Rating: EN61010-1, -2-030, EN61010-2-030, EN61326-1, CAT III 600V
Item Size: 176 * 61 * 30mm / 6.93 * 2.40 * 1.18in
Item Weight: 117g / 4.12oz
Package Weight: 221g / 7.79oz
Package Size: 19.5 * 10 * 4cm / 7.67 * 3.94 * 1.57in
Package List:
1 * Digital Clamp Meter
2 * Test Leads
1 * User Manual (English)
