Feature:
1. Sound Control: If you"re tired of the inherent highs and lows, why not try the treble and bass control knobs! This will give you the feeling of being in a movie theater.
2. Long Transmission Distance: The module uses Bluetooth version 5.0 for longer transmission distance, up to 33 feet in an open environment.
3. Basic Performance: Stereo dual channel output ensures continuous serial high power operation with THD less than 0.1percent , wide voltage input DC12?24V.
4. 3.5mm Jack: If your playback device does not have Bluetooth, you can also input audio signal through the 3.5mm headphone plug.
5. Safety Protection: This audio amplifier board has overheat protection, circuit protection, overvoltage and undervoltage protection.
Specification:

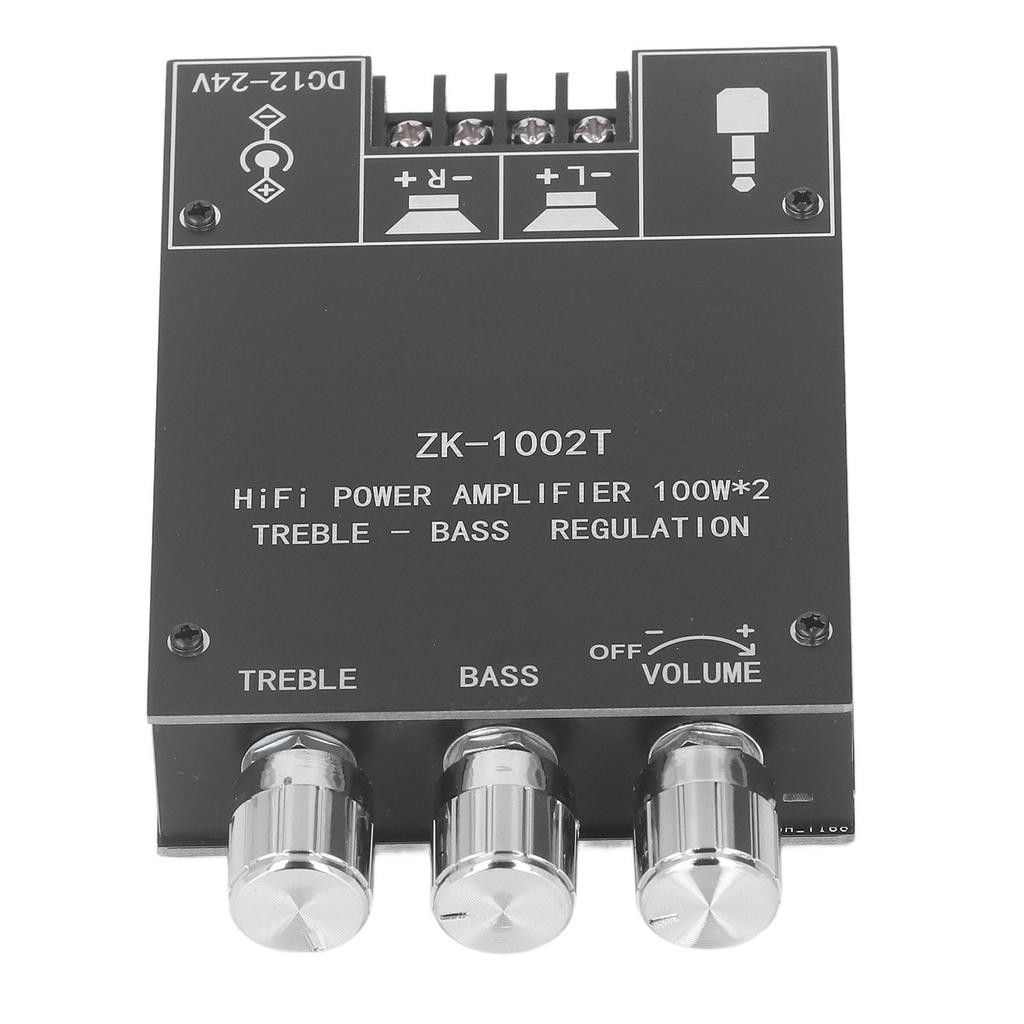

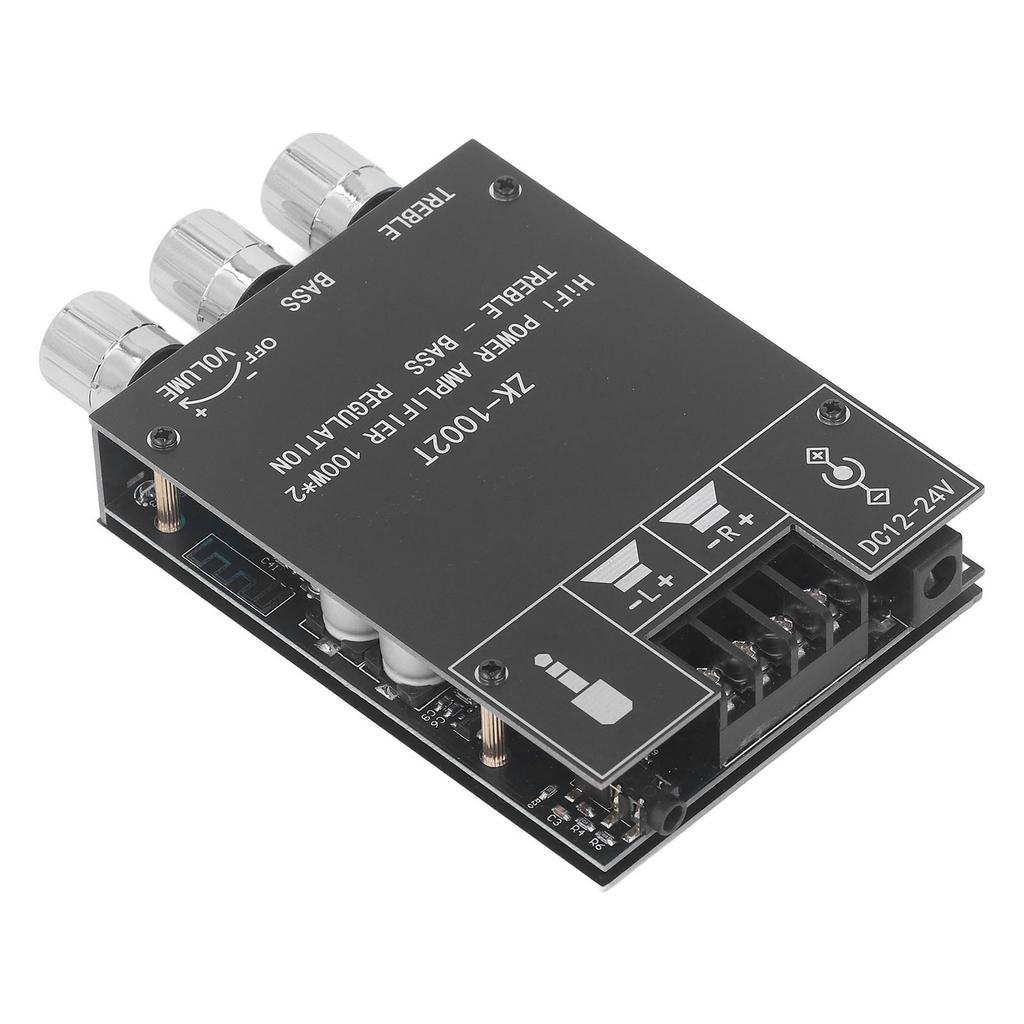

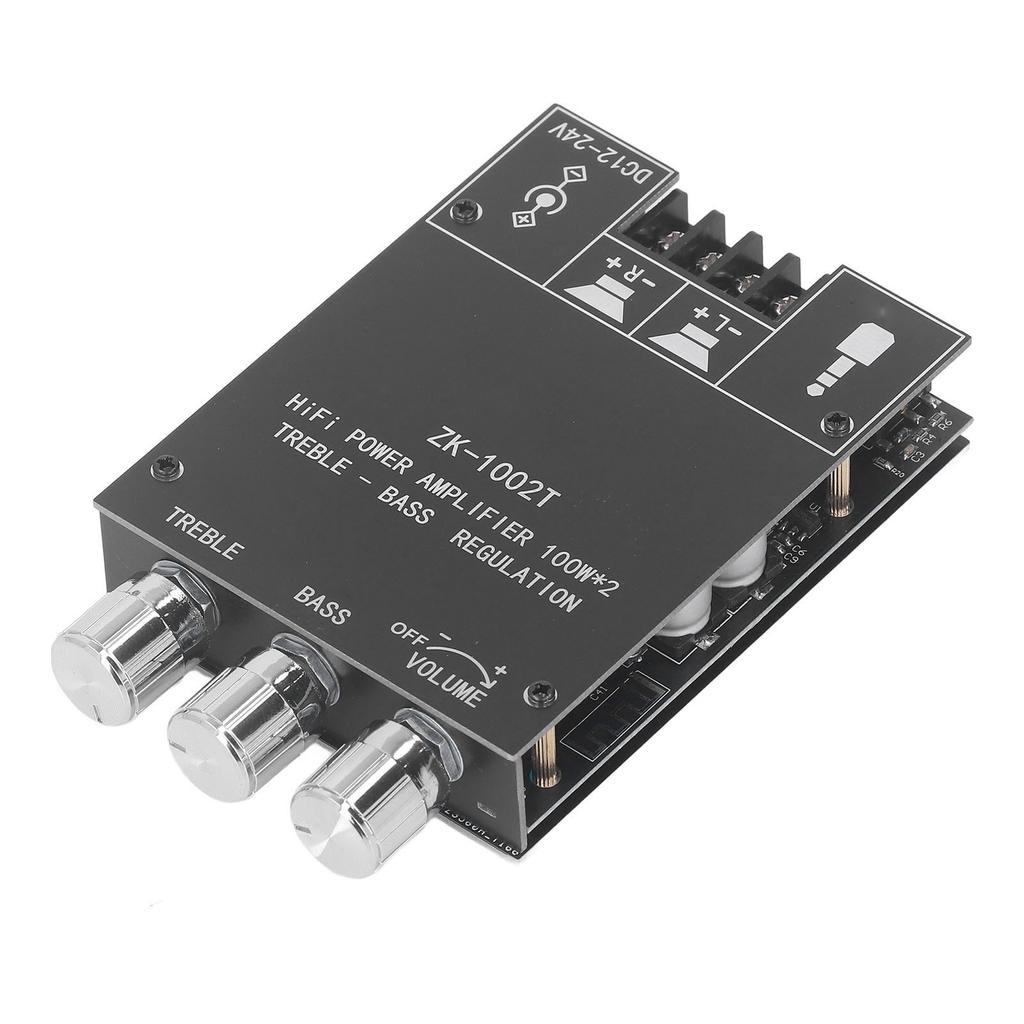

Item Type: Audio Power Amplifier Board
Material: PCB
Bluetooth Version: 5.0 (unobstructed, 10m)
Signal to Noise Ratio: >90dB
Input Mode: AUX and Bluetooth
Number of Channels: Left and right dual channel (stereo)
Power Amplifier Chip: TPA3116D2 (with AM interference suppression function)
Power Supply: DC 1224V, 5A or more (the higher the voltage, the higher the output power)
Applicable Speakers: 20200W, 48 Ohm
Output Power: 2 x 20W at 12V,8 Ohm , 2 x 35W at 12V,4 Ohm , 2 x 35W at 19V,8 Ohm , 2 x 60W at 19V,4 Ohm , 2 x 50W at 24V,8 Ohm , 2 x 100W at 24V,4 Ohm
Protection Mechanism: Overvoltage, undervoltage, overheat, DC detection, short circuit protection.
Package List:
1 x Audio Power Amplifier Board3 x Rotation Knob1 x Screwdriver2 x Protective Shell8 x Screw8 x NutSound Control: If you"re tired of the inherent highs and lows, why not try the treble and bass control knobs! This will give you the feeling of being in a movie theater.
Long Transmission Distance: The module uses Bluetooth version 5.0 for longer transmission distance, up to 33 feet in an open environment.
Basic Performance: Stereo dual channel output ensures continuous serial high power operation with THD less than 0.1percent , wide voltage input DC12?24V.
3.5mm Jack: If your playback device does not have Bluetooth, you can also input audio signal through the 3.5mm headphone plug.
Safety Protection: This audio amplifier board has overheat protection, circuit protection, overvoltage and undervoltage protection.
