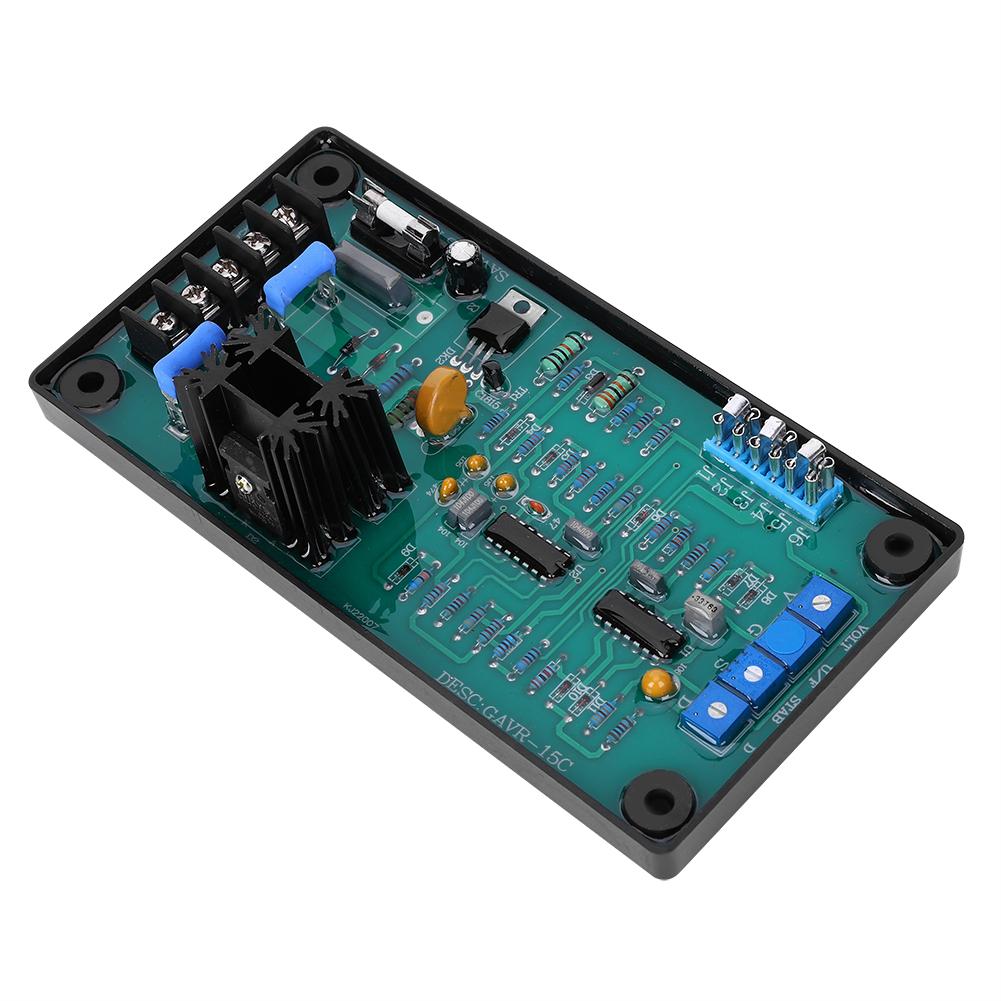

Automatic Voltage Regulator GAVR15C Generator Set Accessories AVR Industrial Supplies

Feature: 1. The AVR is featured with <+0.5percent adjustment, 220 VAC programmable input. 2. With rugged and compact designing and low frequency protection, the product is safe for use. 3. The automatic voltage regulator is characterized by soft start voltage ramp and EMI suppression. 4. There is a builtin highcapacity 15Amp fuse for protection and safety. 5. The product has stable performance and duranble appearance and long service life. Specification: Item Type: Automatic voltage regulatorVoltage Adjustment Rate: <+0.5percent Power Input Voltage: Voltage 160260VAC singlephase twowire Current: Continuous 7A, discontinuous 15A within 10 seconds Resistance: 9 ohms minimum Maximum Output: DC 15A 90V 10 instant (when input AC 207V) Operating Voltage Range: 170~ 265 V The Main Function:Generator voltage regulation Overvoltage protection functionLow speed protection functionAdjustable voltage rangeHigh voltage stability50HZ 60HZ adjustableSize: Approx. 9.5 x 18.3 x 3.4cm 3.7 x 7.2 x 1.3in. Package List: 1 x Automatic Voltage Regulator1 x User ManualThe AVR is featured with <+0.5percent adjustment,

220 VAC programmable input. With rugged and compact designing and low frequency protection, the product is safe for use. The automatic voltage regulator is characterized by soft start voltage ramp and

EMI suppression. There is a builtin highcapacity 15Amp fuse for protection and safety. The product has stable performance and duranble appearance and long service life.
