Quantity : 1
Hign-concerned Chemical : None
Package : SMD
Model Number : DS3231
Dissipation Power : 1
Supply Voltage : 1
Application : Computer
Type : Voltage Regulator
Operating Temperature : ...
Origin : China
Condition : New

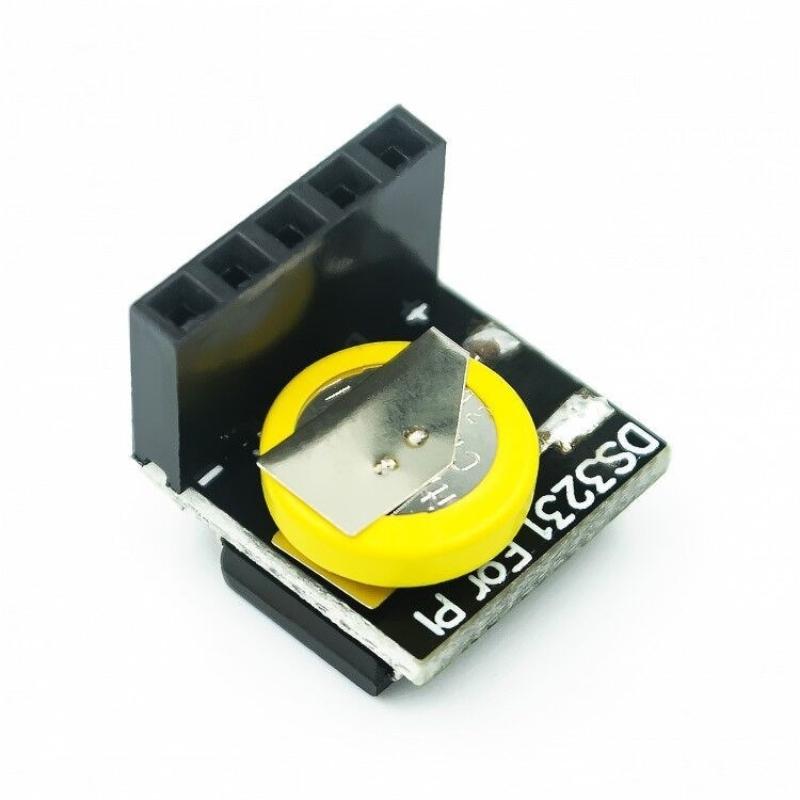

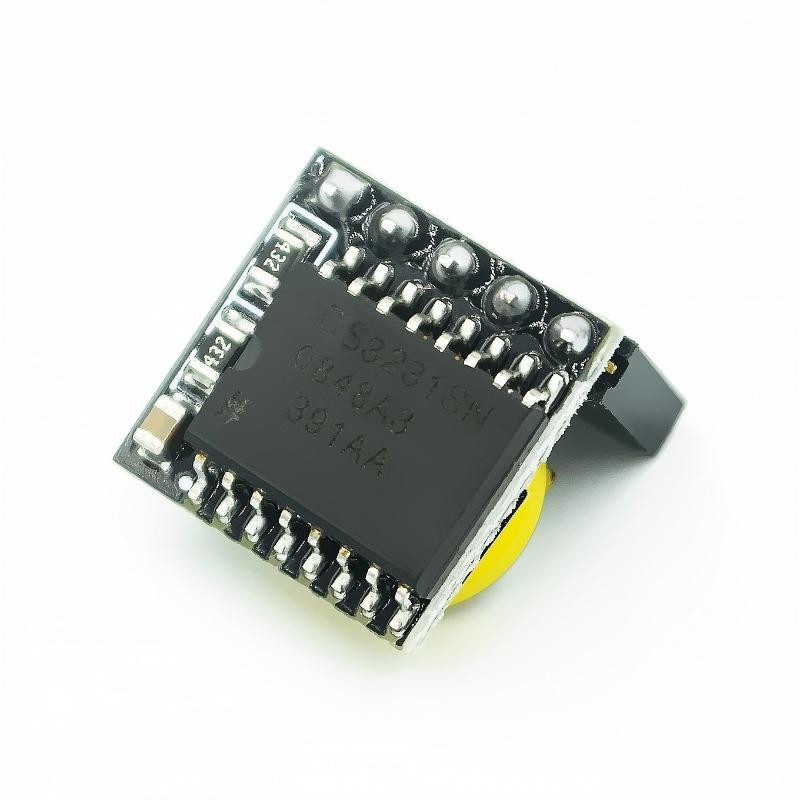

Overview: Raspberry Pi foreign highest precision clock module DS3231. Note that Arduino motherboard can also use this module. The module itself can adapt to 3.3V and 5V systems without level conversion, which is super convenient! two.
Features:
1. Timing accuracy remains at ± 5ppm (± 0.432 seconds/day) within the temperature range of -40 ° C to +85 ° C .
2.Provides battery backup for continuous timing
3. Low power consumption
4. Device packaging and functions are consistent with The DS3231 is compatible with
5. Complete clock and calendar functions include seconds, minutes, hours, day of the week, date, month and year timekeeping, and provides leap year compensation valid until 2100.
6. 2 calendar alarms
7. 1Hz and 32.768kHz outputs
8. Reset output and push-button debounce input
9. High-speed (400kHz) I2C serial bus
10. +2.3V to +5.5V supply voltage
11. Accuracy to ±3°C Digital Temperature Sensor
12. -40°C to +85°C Operating Temperature Range
13. 16-Lead SO (300mil) Package
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
