Feature:
1. This module is a capacitive and selflocking touch switch relay module which is based on touch detecting integrated circuit.
2. In normal condition, the module outputs low output level and are in low consumption mode.
3. When touch the corresponding position, the module output high level and switches to fast mode. When not touched for over 12 seconds, the module returns to low consumption mode.
4. The module can be mounted on the surface nonmetallic materials such as plastic, glass.
5. Widely used in induction cooker, microwave oven, washing machine, refrigerator, electronic scale, electronic watch, toys, etc.
Specification:

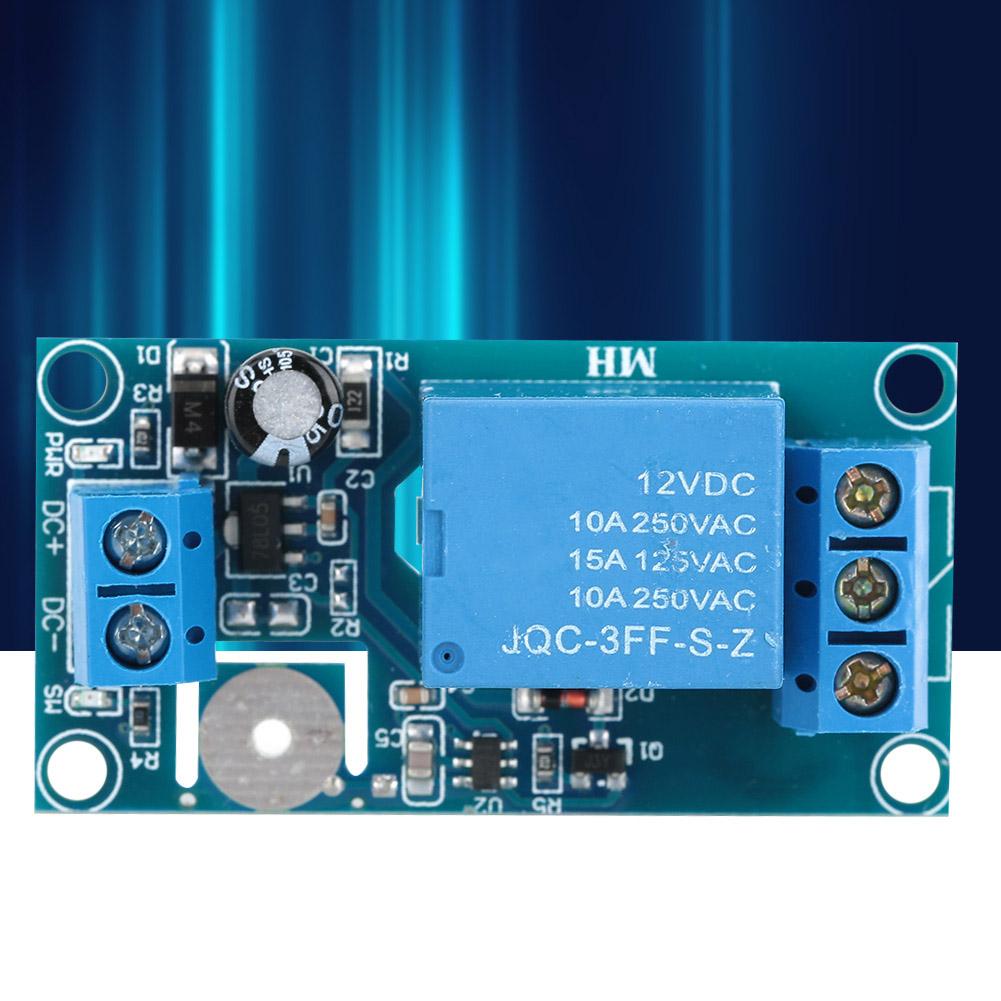

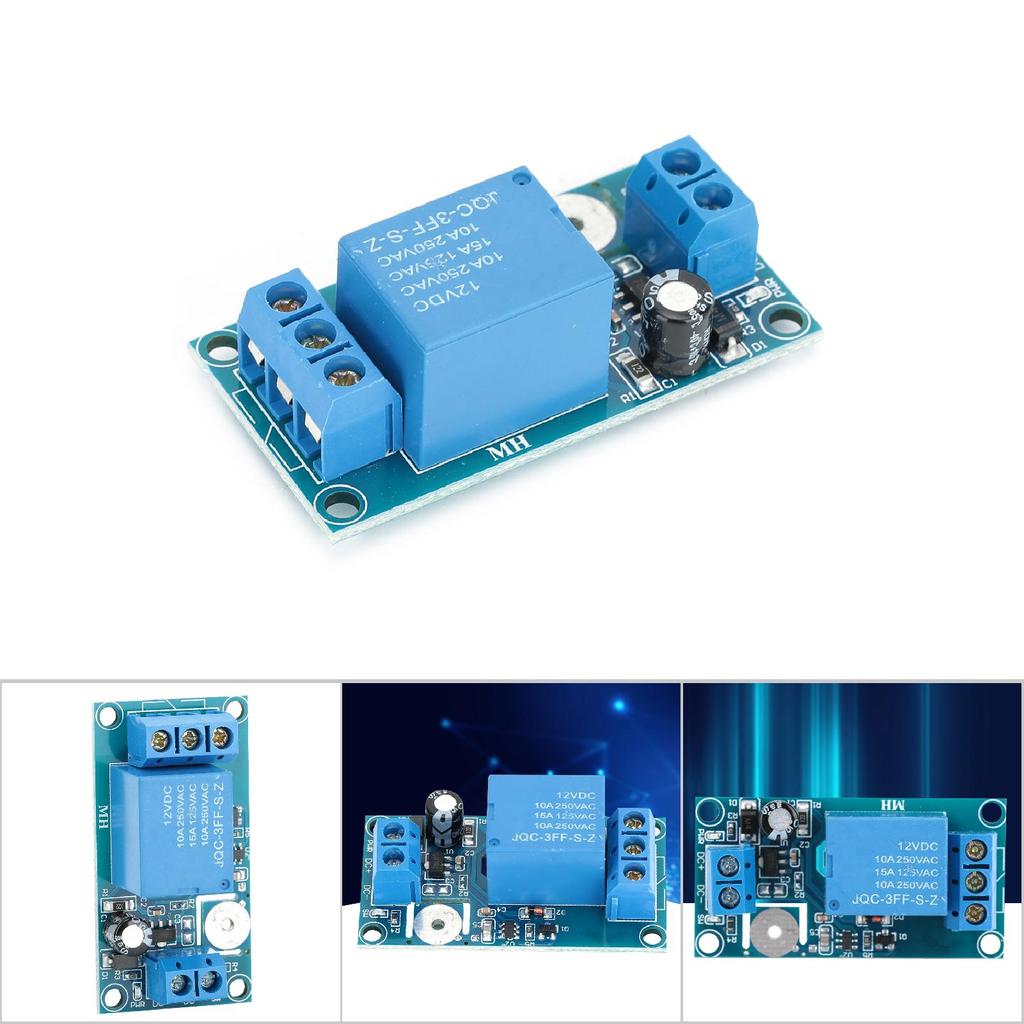

Item Type: 1 Channel Relay Capacitive Self Locking Touch Switch Module
Voltage: 12V
Static Current: 5.7mA
Working Current: 40mA
Relay Contact Capacity: 250V 10A (AC, recommend 1500W below), 30V 30A (DC, recommend 200W below)

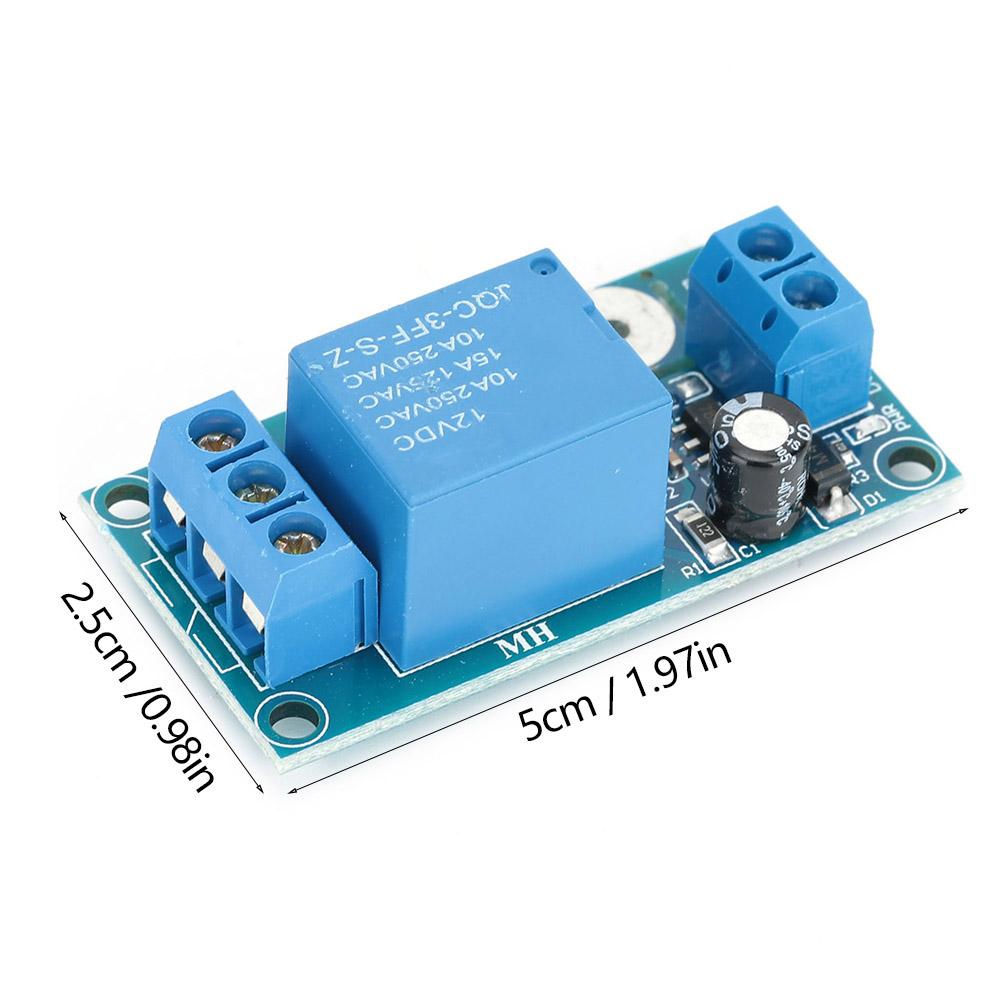

Size: 5x2.5cm 1.97x0.98in

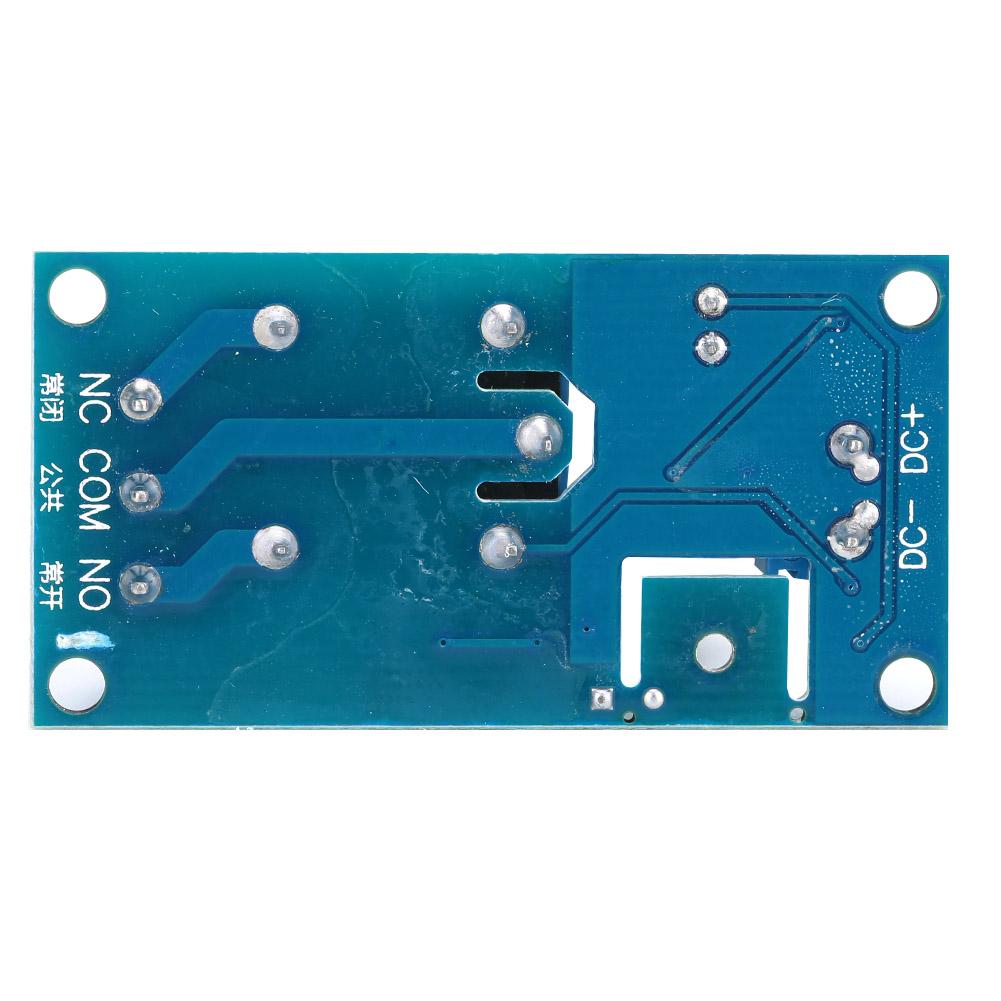

Module Interface:
VCC: Power +
GND: Power
NO: Relay Normally Open Terminal
COM: Relay Common Terminal
NC: Relay Normally Closed Terminal
Package List:
1 x Capacitive Self Locking Touch Switch Relay ModuleThis module is a capacitive and selflocking touch switch relay module which is based on touch detecting integrated circuit.
In normal condition, the module outputs low output level and are in low consumption mode.
When touch the corresponding position, the module output high level and switches to fast mode. When not touched for over 12 seconds, the module returns to low consumption mode.
The module can be mounted on the surface nonmetallic materials such as plastic, glass.
Widely used in induction cooker, microwave oven, washing machine, refrigerator, electronic scale, electronic watch, toys, etc.
