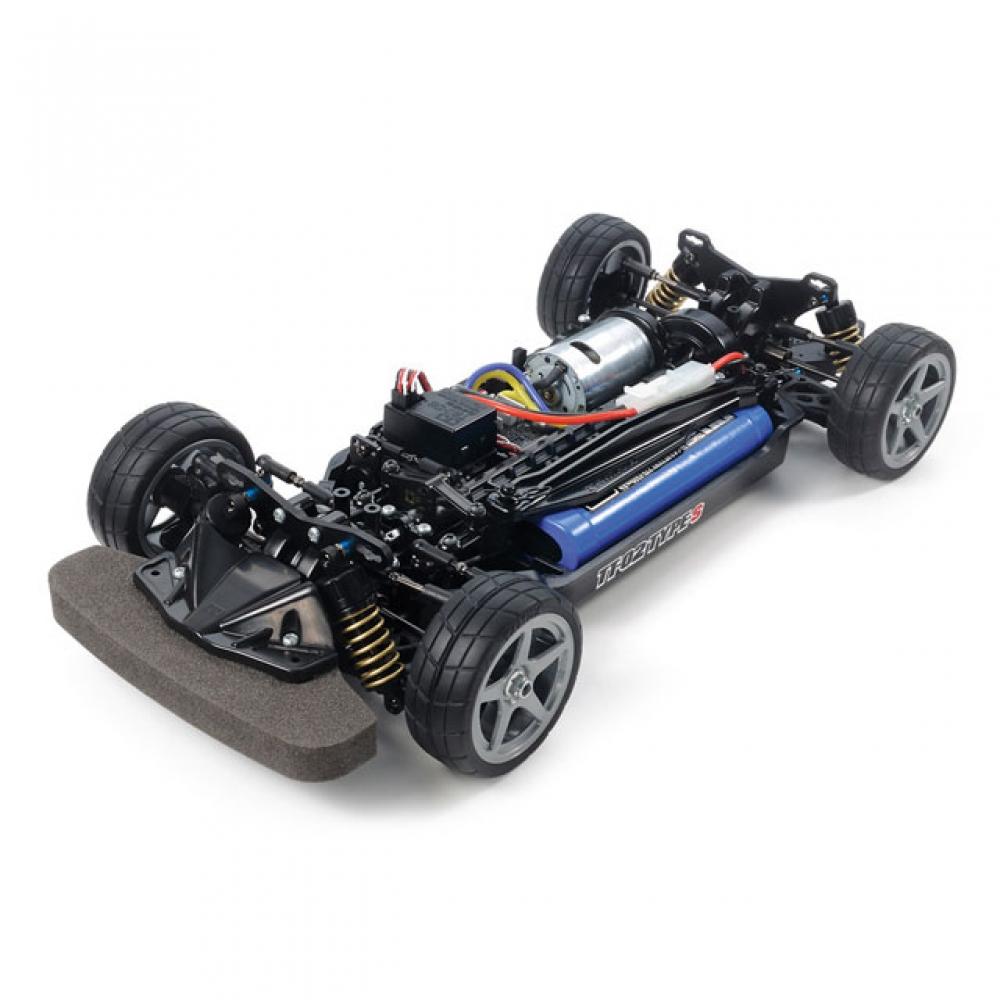

Product Name: Tamiya 1/10 RC TT-02 TYPE-S Chassis Kit
Brand Introduction
Tamiya is a traditional Japanese model making company, renowned for its RC (radio-controlled) cars and vehicle modeling kits. It has a long history and is loved by model enthusiasts worldwide for its high-quality products.
Detailed Description
【An upgraded chassis aimed for beginners who want to step up】. The TT-02 is a basic chassis featuring a shaft drive 4WD with excellent drivability, upgraded for better setup options allowing for more enjoyable racing experiences. The suspension features reversible arms with a robust metal suspension mount, setting the rear toe angle at 3 degrees. It includes a dedicated 3.0mm thick FRP damper stay fitted with CVA oil dampers, optimized for damping angle and rebound stroke to enhance gap handling.
Additionally, the drivetrain is fully bearing-equipped, while cup joints and drive shafts are made entirely of metal, improving power transfer efficiency.
How to Use
Before use, please refer to the assembly manual to assemble all parts. Once assembled, connect the battery and remote control to operate the RC car.
Specifications
● Chassis Length: 385mm
● Chassis Width: 187mm
● Wheelbase: 257mm
● Tire Width/Diameter: 24/64mm (front and rear)
● Drive System: Vertical motor, shaft drive 4WD
● Suspension: 4-wheel double wishbone
● Damper: CVA oil damper
Precautions
To ensure safe use, keep out of reach of children. Please check that all parts are properly attached after assembly before using the product.
To request a return or exchange, please note that it is mandatory to provide a video of the unpacking of the package.
