Product Name
XPRESS XP-90034 AM1S 1/10 Mini Sports 4WD Kit
Brand Introduction
XPRESS is a Japanese RC car manufacturer that values high quality and innovative design.
Detailed Description

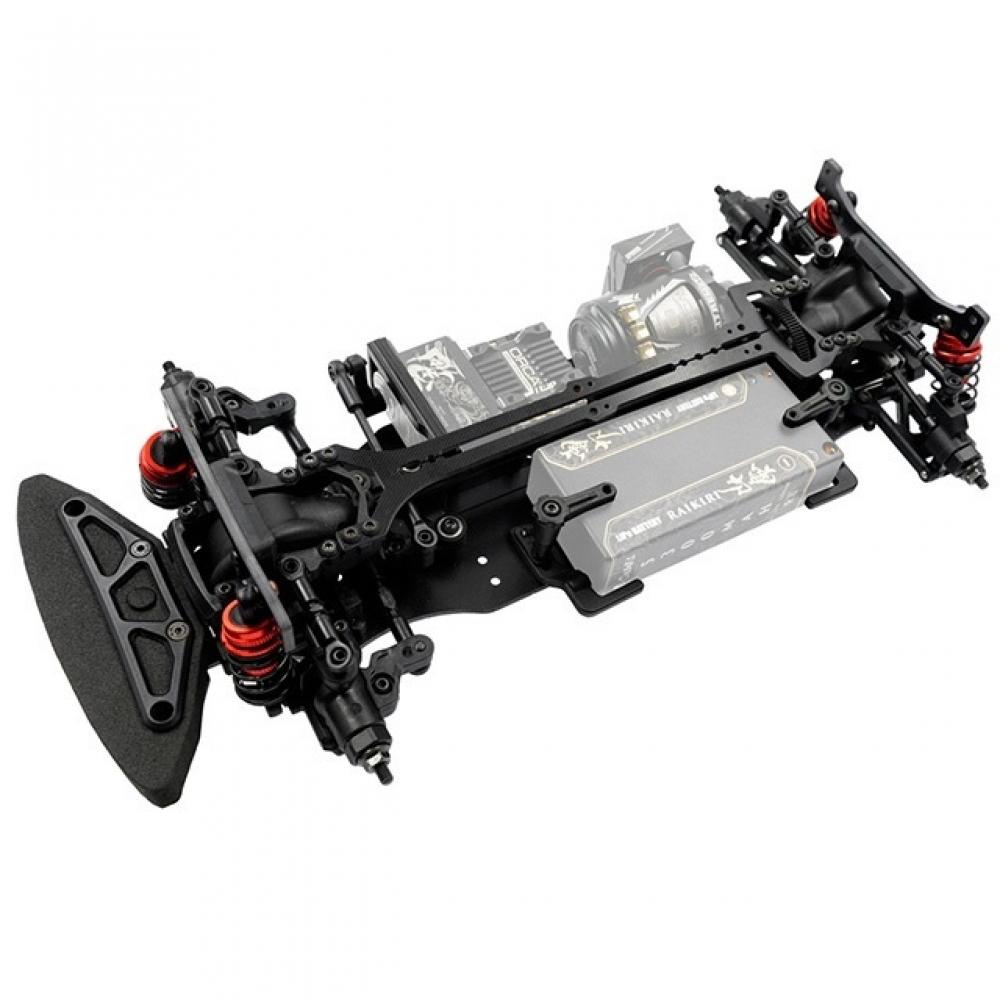

The Arrow AM1S is a light sports model with a shaft drive M chassis. It inherits the design of the Arrow AM1, which changed the M chassis platform based on the Arrow AT1.
Features:
● 2nd reduction ratio: 2.353
● 4WD shaft drive floating gearbox system

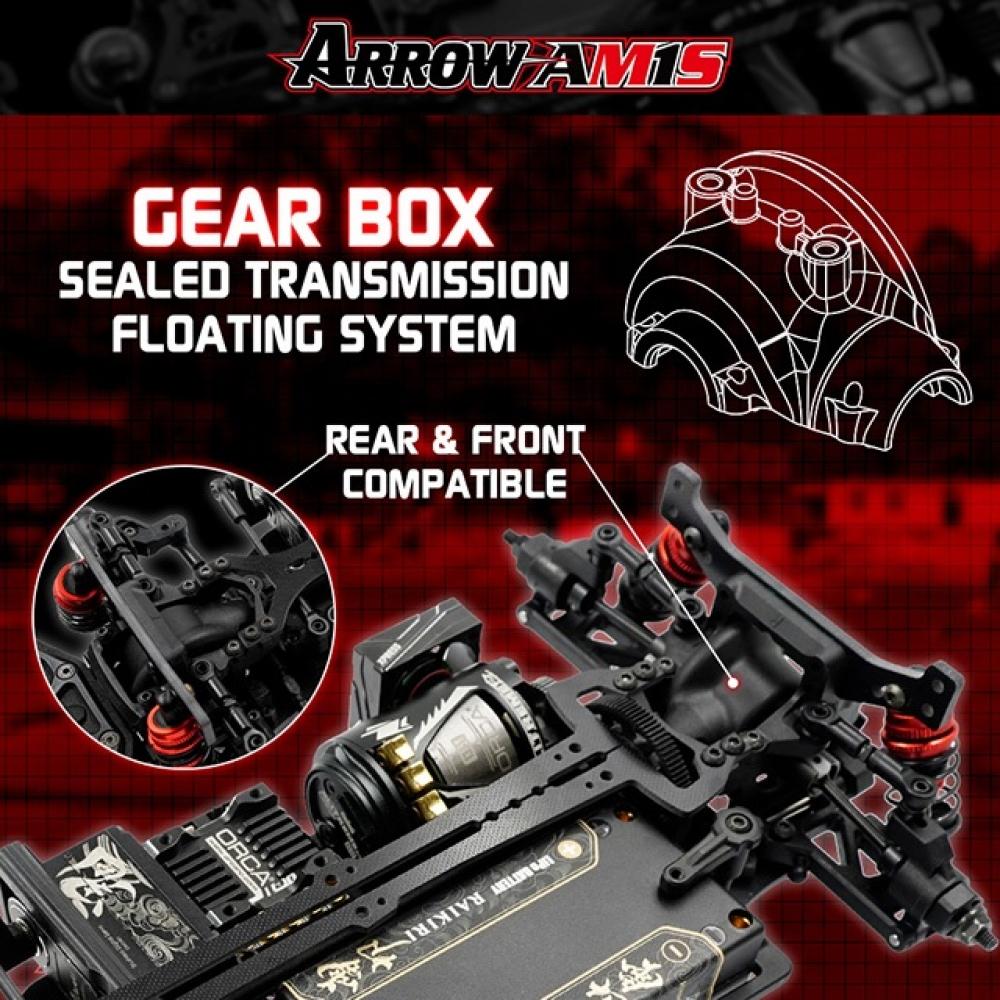

● Sealed transmission gearbox

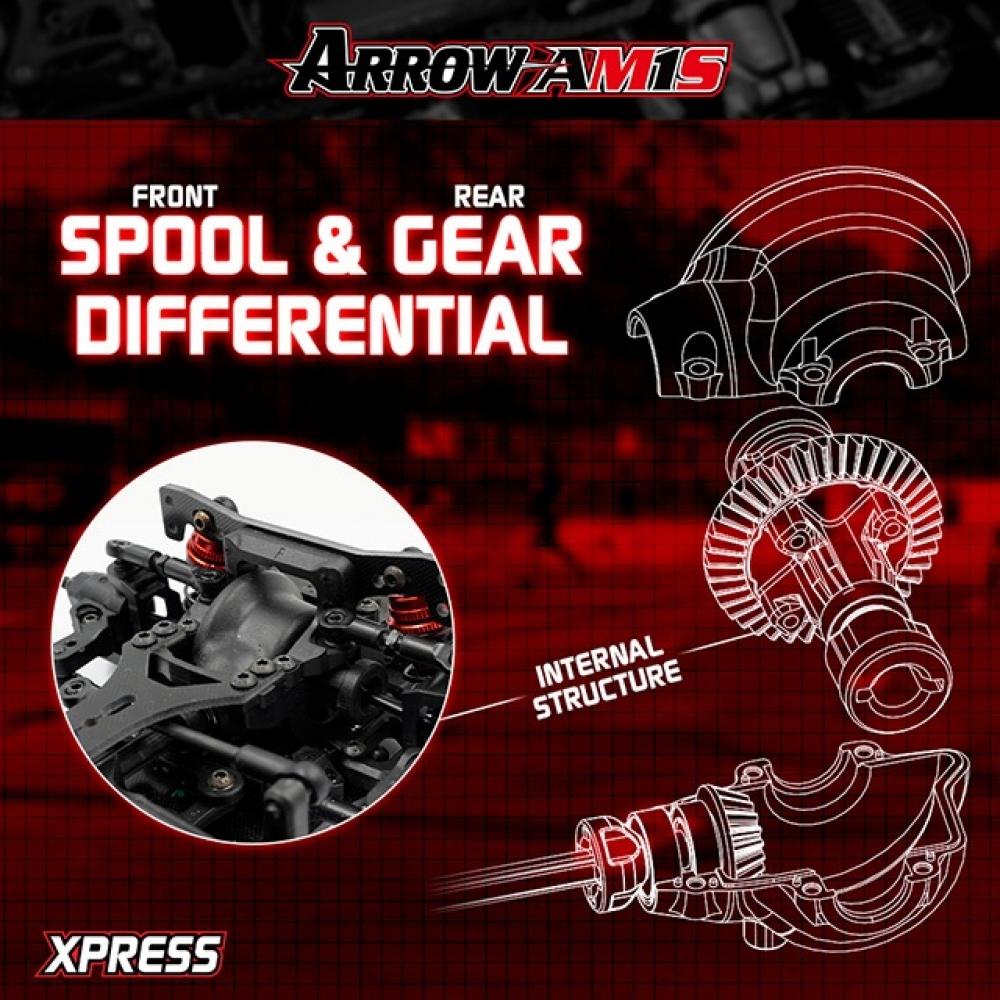

● Front spool & rear gear diff unit

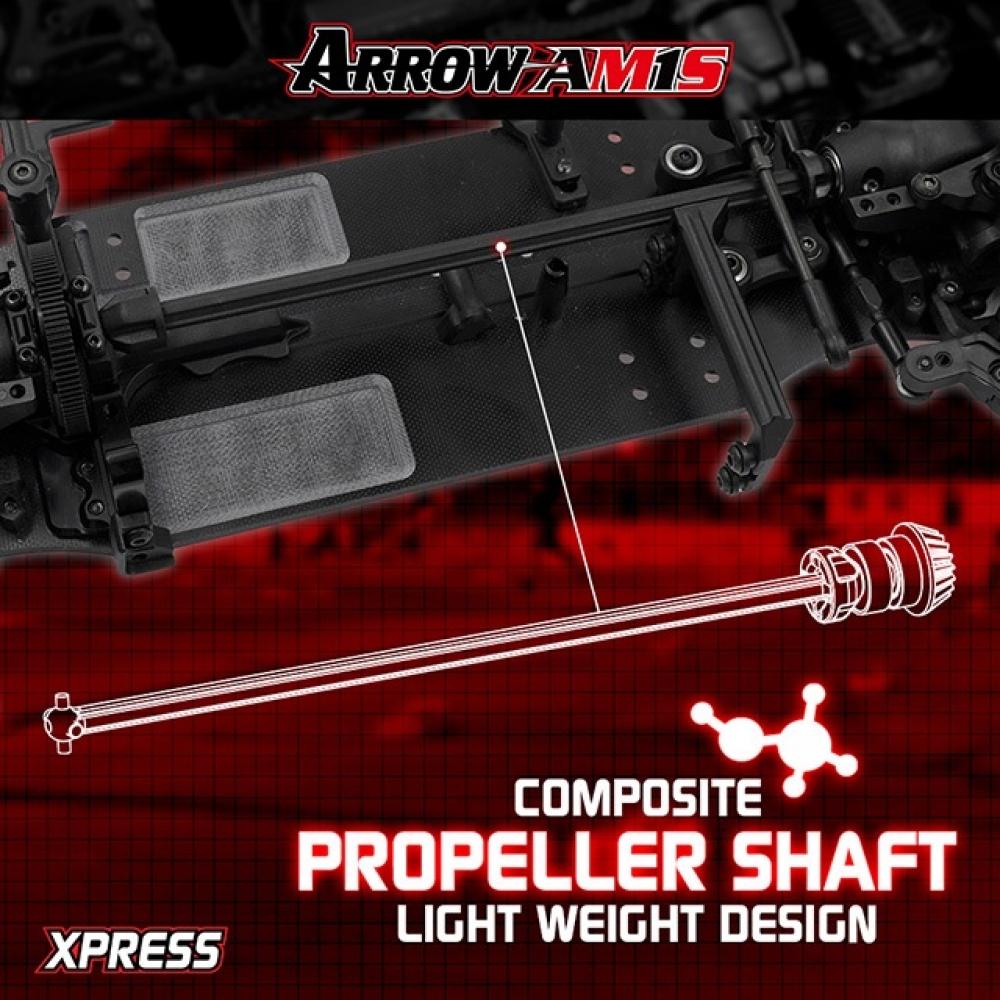

● Lightweight composite propeller shaft
● Low center of gravity roll bar mount
● Low center of gravity front & rear FRP shock towers

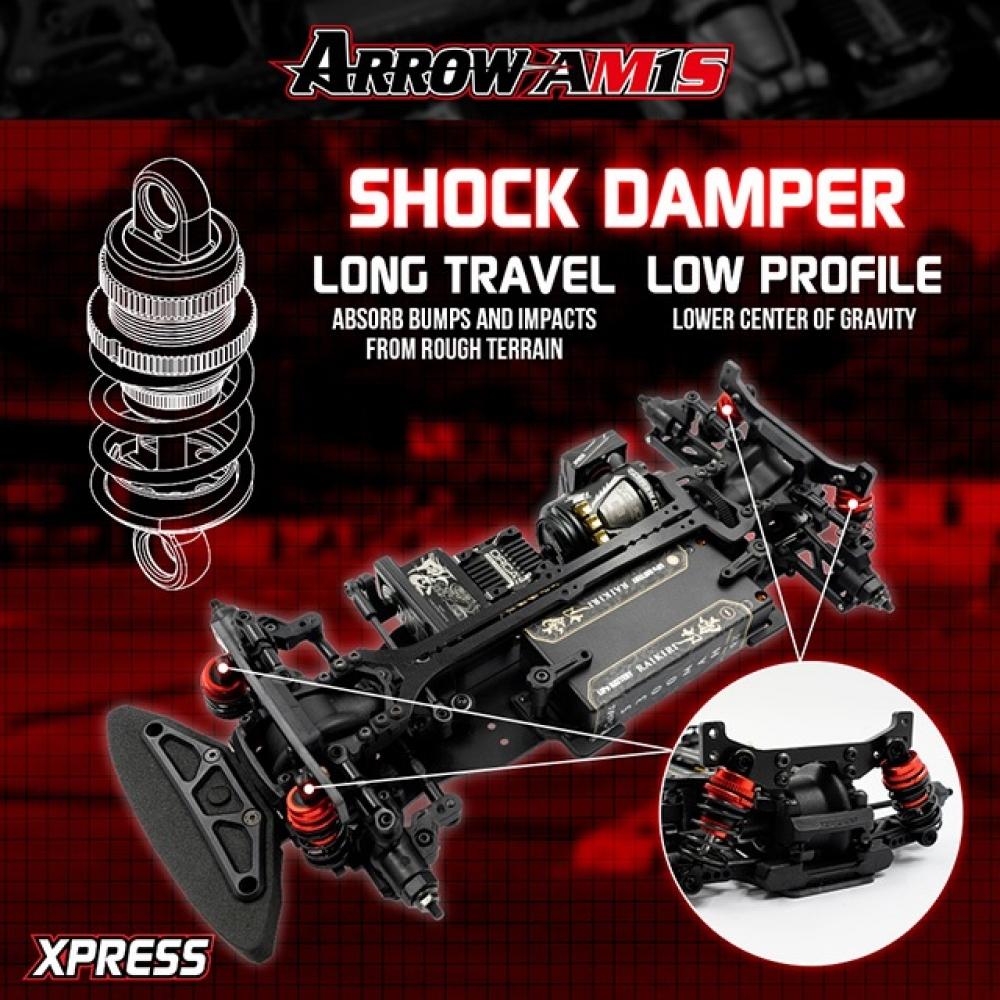

● Slim long travel short shock
● Smooth steering bridge with ball bearings
● Steel universal shafts throughout
● 2.25mm FRP main chassis
● 2.0mm FRP top deck
● Full turn buckle linkage
● Full ball bearing set
● Adjustable battery position
Specifications:
● Type: 1:10 On-road 4WD M chassis
● Length: 315mm
● Wheelbase: 225mm
● Width: F160mm / R160mm (approx)
Usage Instructions
After assembly, install the battery and run in the desired location. Gear ratio adjustment and suspension tuning can optimize performance.
Specifications
Please refer to the detailed description above for specific details.
Precautions
Please wear safety gear when using, and children should use under adult supervision.
To request a return or exchange, please note that it is mandatory to provide a video of the unpacking of the package.
