Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.
1. KEY FEATURES:
- Easy-to-use brake switch supports front and rear.
- 130/180/260/280/380 Brushed Motor for 1/16 1/18 1/24 RC Climber Army Truck Semi-Bigfoot Conversion, RC Boat.
- Operating voltage: 4.8V - 8.4V, current (A): 30A, UBEC output: voltage 5.7V, current 1A.
- Function: forward, reverse, brake.

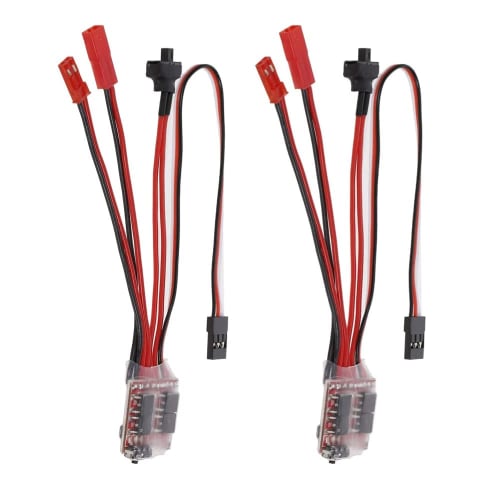

- Quantity: 2 packs.
2. PRODUCT DESCRIPTION:

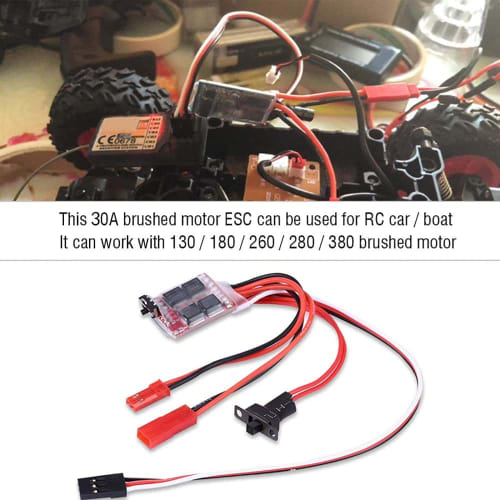

30A Brushed ESC Suitable for 1/16, 1/18, 1/24 RC climber, military truck, semi-bigfoot conversion, RC boat.Due to its light weight, it is also suitable for modifying Mini Z Mosquito cars.Function: Forward, Reverse, Brake Working voltage: 4.8V-8.4V (compatible with 2S lithium) Current (A): 30A Driving frequency: 2kHz Input: Li Po 2S/Ni MH/Ni Cd 4-7 battery Constant current: 20A, 25A <30s pulse 50A <5s UBEC output: Voltage 5.7V, current 1AThis ESC can be combined with 130/180/260/280/380 brush motors.Adjustment: ESC is fixed in the middle range, the new control needs to fine-tune the throttle, so keep the middle range, so that the ESC lamp does not light up, and the control for fine-tuning the throttle is TH TRIM
3. PRODUCT DIMENSIONS & WEIGHT:
- Weight: 0.03 kg
- Dimensions: 12.1 x 8.5 x 1.9 cm
4. SPECIFICATIONS:
