Feature:
1. 4 pole 12 slot hi torque motor design,CNC machined 6061 T6 billet aluminum heatsink can.
2. High RPM ABEC 5 oversized bearings.
3. High purity copper windings maximizes efficiency.
4. Universal fit, fits all 1 8, 1 10 brushless cars,Precision balanced rotor, smoothness for best reliability and maxium RPM.
5. Stator super thin 0.2mm laminations,Removalbe replaceable rotor,Precision engineered for maxium energy coversion.
Specification:
Features:
4 pole 12 slot hi torque motor design,CNC machined 6061 T6 billet aluminum heatsink can.
High purity copper windings maximizes efficiency,High RPM ABEC 5 oversized bearings.
Universal fit, fits all 1 8, 1 10 brushless cars.
Precision balanced rotor, smoothness for best reliability and maxium RPM.
Stator super thin 0.2mm laminations,Removalbe replaceable rotor,Precision engineered for maxium energy coversion.
Specifications:

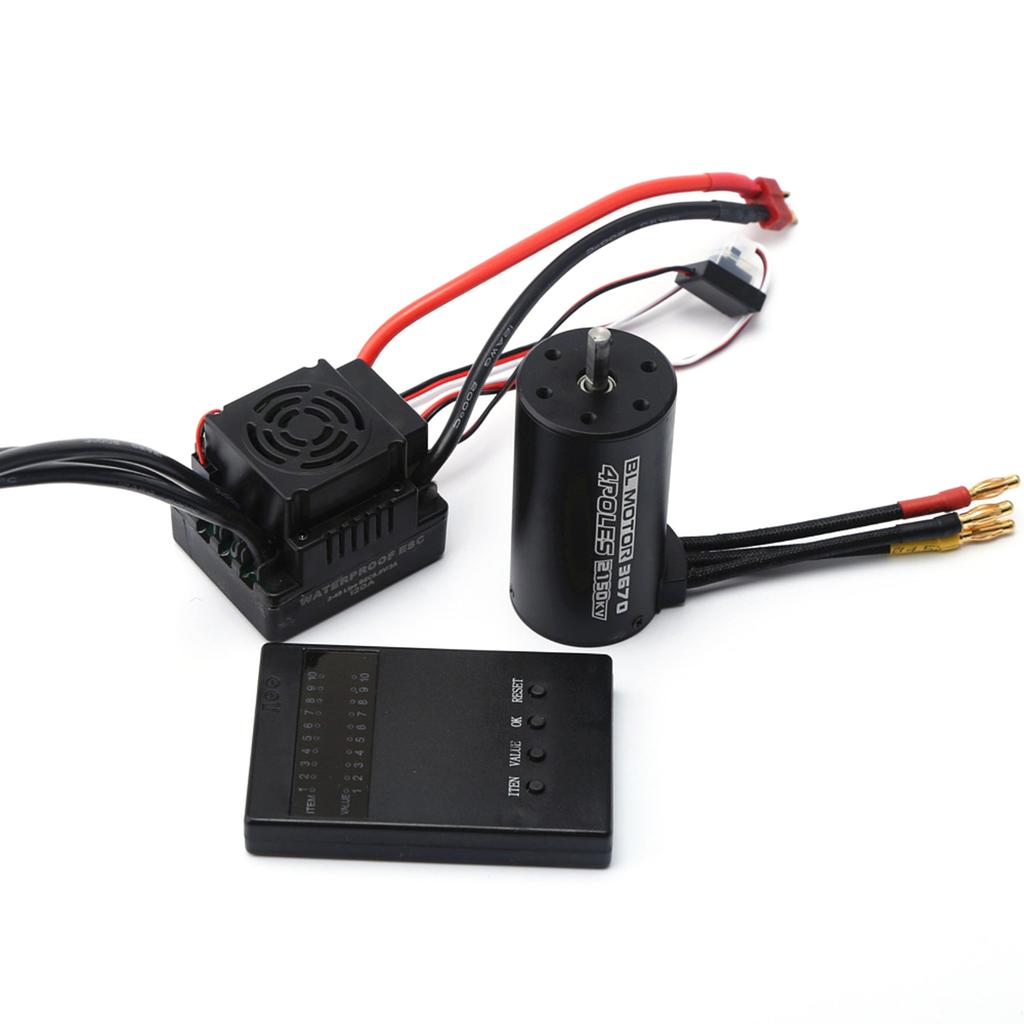

Item No.: 3670 Waterproof Brushless Motor
KV(RPM Volt): 2150KV
RPM: 50000
Watt: 1600W
Max current: 70A
Max voltage: <23V
Ressistance: 0.0121
Diameter: 36mm
Length: 70mm
Shaft length: 17mm
Shaft diameter: 5.00mm
Weight:262g
Connector: 4mm golden banana connector
The 120A brushless ESC is built with the highest quality components to ensure high efficiency operation. It features enhanced throttle response, excellent acceleration, strong breaks and throttle linearity, which is suit for 1 8 Remote Control Car.
Compatible with sensorless brushless motors,Super smooth and accurate throttle linearity,Built in high efficient and high power 5.8V 3A SBEC.
Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity.
Mutiple protection features: low voltage cut off protection for lithium or nickel battery, over heat protection, throttle signal loss protection.
Continous current: 120A
Burst current: 600A 10sec
Power supply: 2 4S LiPo 4 8S NiMh
BEC: 5.8V 3A
Power supply plug: T plug
Motor plug: 4mm banana connector
Suit for: 1 8 Remote Control car
Cooling system: Cooling fan
Programmable: YES
Programming Card for Remote Control Car ESC Brushless Electronic Speed Controller.
Light weight,Easy to use,Portable design.
Programming Card for Remote Control Car ESC Brushless Electronic Speed Controller, which was specially designed for Brushless Electronic Speed Controller selled in our store.
Low voltage cut off: 3.1V Cell 2.8V Cell 3.3V Cell No cut off
Start mode:Medium, soft, strong
Max brake force: 25percent , 50percent , 75percent , 100percent
Max reverse force: 25percent , 50percent , 75percent , 100percent
Neutral range: 6percent , 9percent , 12percent , work state
Package Information:
Package Size: 9*7*5cm
Package Weight: 424g
General Box Package
Packing Listing:
1* Brushless Motor
1* ESC
1* Programming Card
Package List:
ing:
1* Brushless Motor
1* ESC
1* Programming Card
