10Set 5.08mm Pluggable PCB Screw Terminal Block Connector 2/4/6/8P Pluggable Male and Female Connector Screw Terminal

Features: Terminal pitch: 5.08mm/0.2inch pitch PCB terminal connector. Made of Copper and Galvanized, fixed, better shockproof design, ensure long terms closed connection and safety and reliability. Easy to use: no soldering required. Simply open the clamps with a small screwdriver, slide the stranded or solid core wire into it and tighten again. The pluggable design indicates that the terminal block is designed to allow for easy insertion and removal of wires without soldering. Widely used in most electronic devices, such as small electronic watches, calculators, greneral computers, communication electronics equipment.

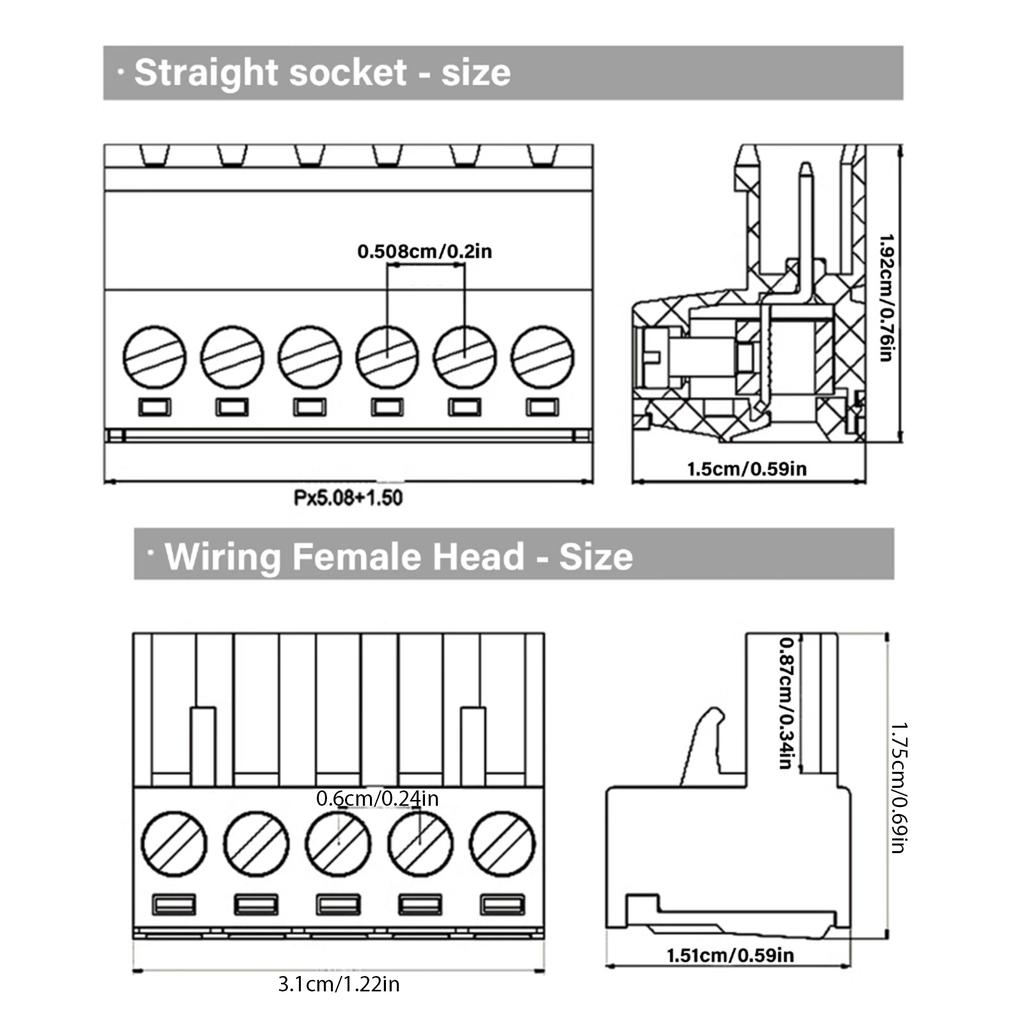

Specifications: Materials: Copper and Galvanized Needle count: 2P/4P/6P/8P Spacing: 5.08mm/0.2inch Voltages: 300V/320V Current: 10A/15A Voltages endurance: AC2500V/1min Wire diameter: 28-12AWG Stripping length: 7-8mm/0.28-0.31inch

Note: Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order. Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Package includes: 10set PCB Mount Screw Terminal Block Connector
