Features:

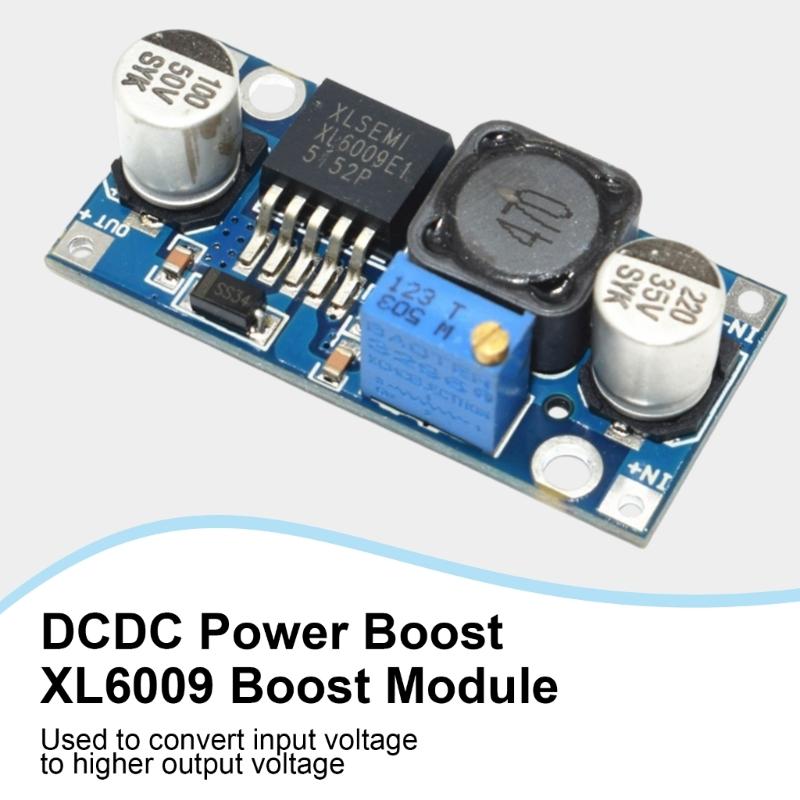

XL6009 Current Adjustable Booster Power Converter Module,
Highly efficiency not-isolated booster module can be used for booster voltage stabilizer power supply, adjustable mobile power supply, booster charger, etc.
Input Voltage: 3V-32V, The optimal operating voltage is 5-32V;
Output Voltage: 5V-35V Continuing Adjust (Step-up module, output voltage is higher than input voltage)
Input Current: 4A (most) Not-Load 18mA (The higher voltage, the greater no-load current.)
The booster power board is equipped with 4A highly-efficiency MOSFET switching tube, with the conversion efficiency up to 94%.Ultra highly switching frequency 400KHz, the filter capacitance with small capacity can achieve very good effect.
Specifications:
Product Name:XL6009 400KHz 4A Switching Current Step-On Power Converter Module

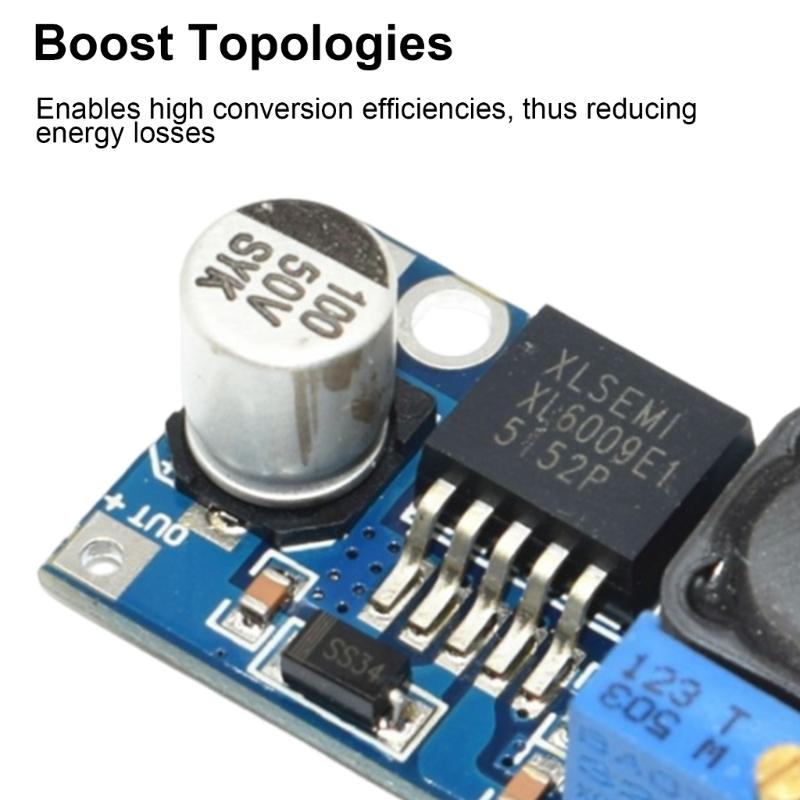

Module Type: Not-isolation Boost (BOOST)
Input Voltage: 3V-32V,
Output Voltage: 5V-35V (Step-up module, output voltage is higher than input voltage)
Input Current: 4A (most) Not-Load 18mA (The higher voltage, the greater no-load current.)
Conversion Efficiency: most 94% (The larger voltage difference, the lower efficiency)
Switching Frequency: 400KHz
Output: 50mV (The higher voltage, the greater current )

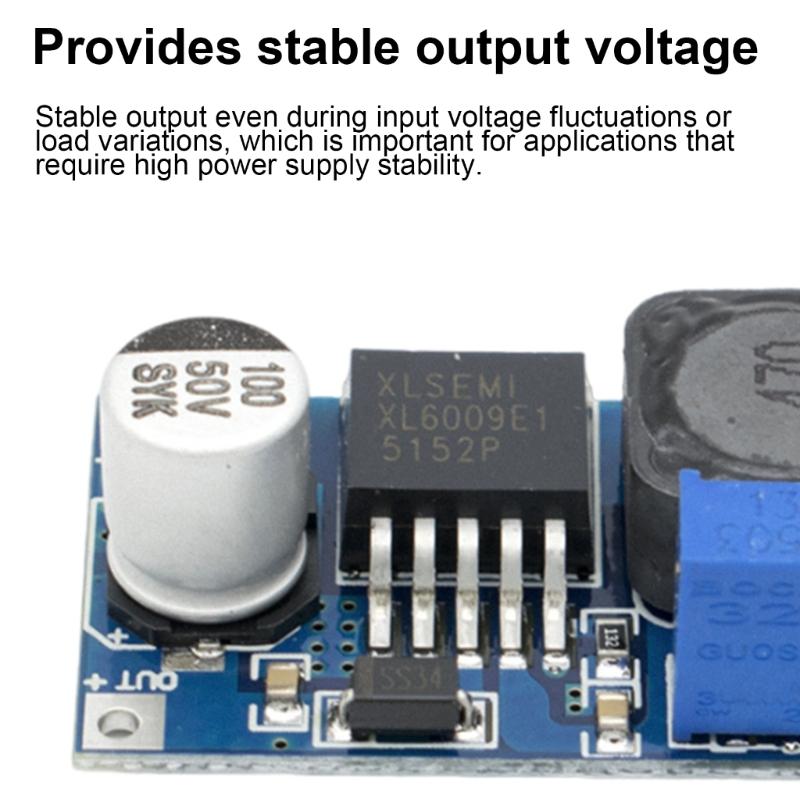

Load Regulation: +/-0.5%
Voltage Regulation: +/-0.5%
Working Temperature: -40 to +85degree Celsius

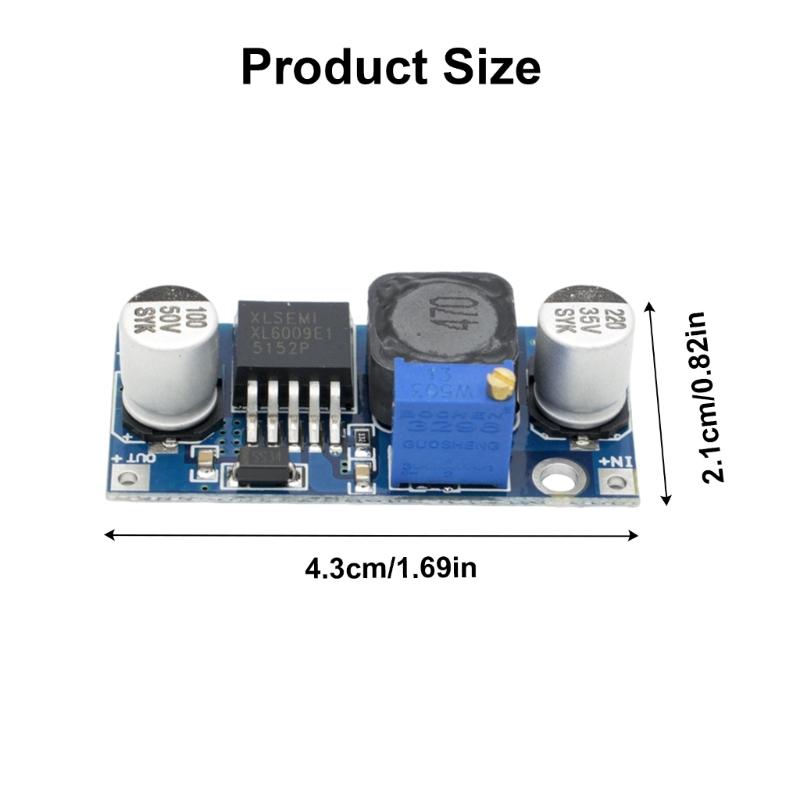

Size: 43x21x14mm(LxWxH)
Option Type:Small Capacity Module,Big Capacity Module,
Package Includes:

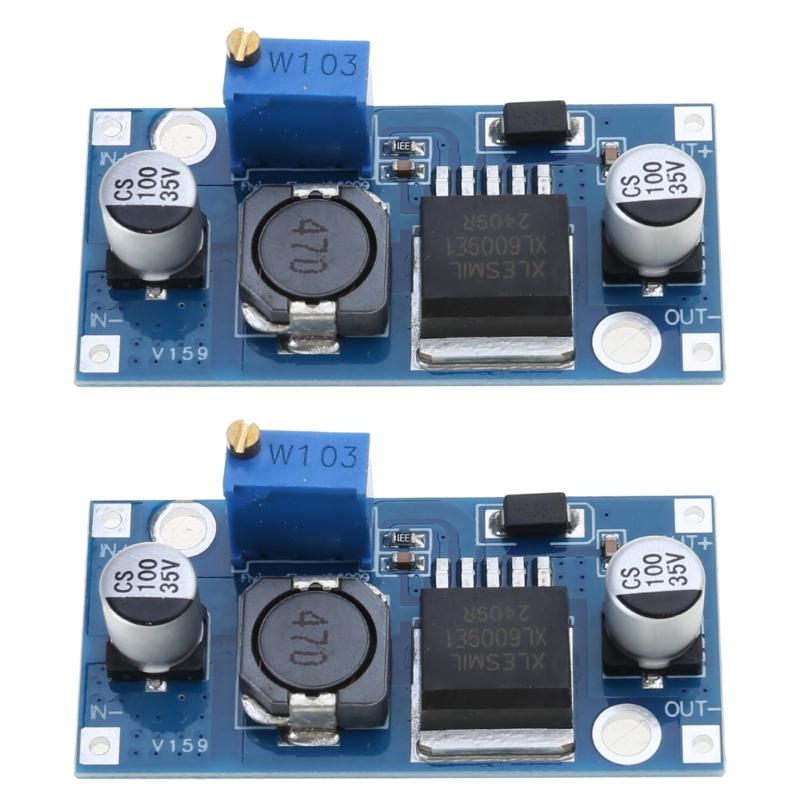

2pcs Xl6009 Booster Power Module
note:
Please allow 1mm errors due to manual measurement.
Due to the differences between different monitors, the picture may not reflect the actual item color.
