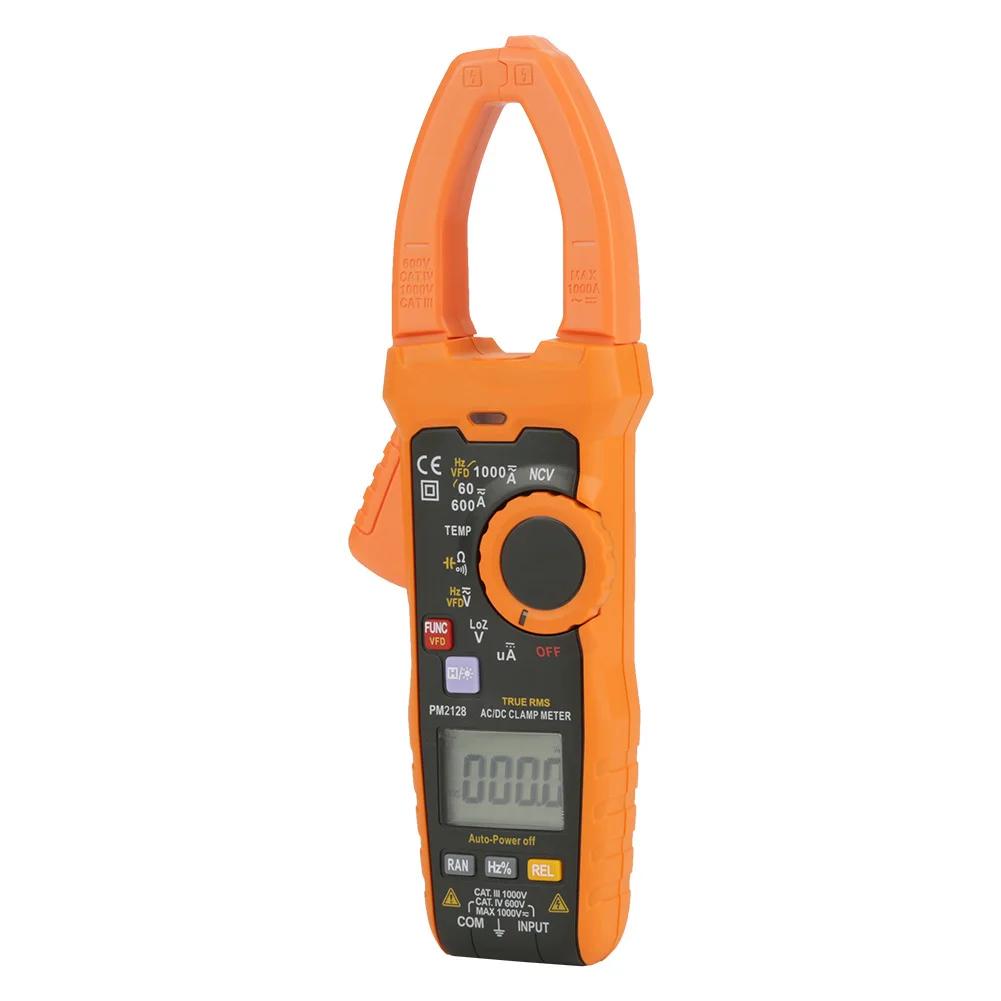

PEAKMETER PM2128 Handheld Digital AC/DC Voltage Current Clamp Meter Resistance Capacitance
Specification:

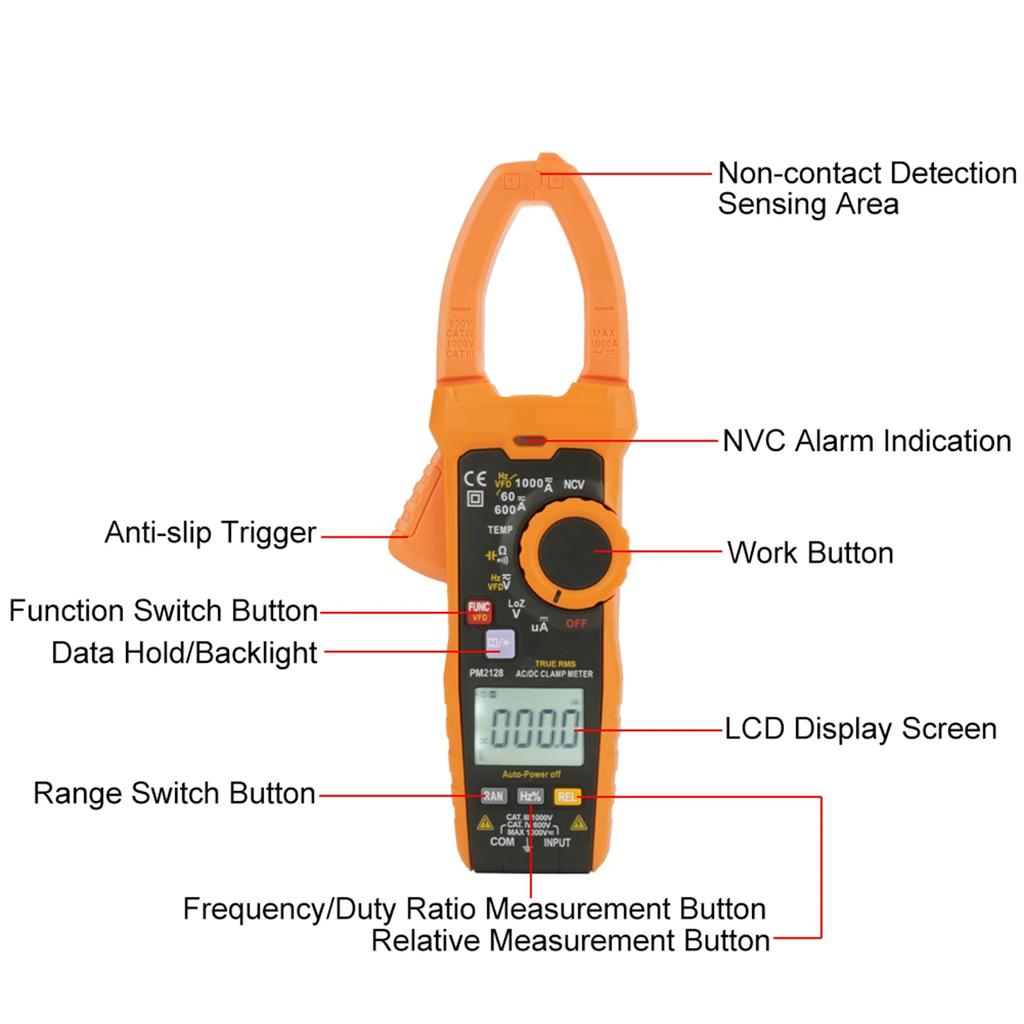

Features:
1. Automatically select measurement function and range.
2. Non-contact voltage detection expands use environment.
3. LCD display screen can show the measurement data accurately in realtime.
4. With backlight display and flashlight, convenient to measure atdarkness.
5. Provides data hold, continuity test, auto power off, analog bar andother functions.
6. Can also measure resistance, capacitance, temperature.
Specification:
Technical Parameters Range Accuracy
DC Voltage 6V/60V600V/1000V±(0.5%+5)
AC Voltage (45~1000Hz) (45~65Hz) 6V/60V600V/1000V±(0.8%+5)
6V/60V600V±(0.8%+5)
DC Current (40~65Hz) 60A/600A/1000A±(2.5%+8)
AC Current 60A/600A/1000A±(3.0%+10)
Resistance 6K/60K/600K/6MΩ/60MΩ±(0.8%+3)
Continuity
Frequency 60Hz/1000Hz ±(1.0%+5)
Temperature -20-1000℃/-4°F-1832℉±(1.0%+2)
Capacitance 60nF-60mF±(4.0%+3)
Low resistance voltage measurementDCV:1000V ACV:1000V ±(1.0%+10) ±(2.0%+20)
AC uA 200uA±(0.8%+3)
Characteristics
DIsplay 6000
Voltage Measuring Frequency 1kHz
Clamp Measuring Frequency 1kHz
Flashlight Yes
Backlight Yes
Date Hold Yes
Non-contact Voltage Detection Yes
Continuity TestYes
Auto Power Off10min
Auto/Manual MeasurementYes
Relative Value MeasurementYes
True RMSYes
DC uA Measurement Yes
Inverter MeasurementYes
Analog BarYes
Lowpass Filtering Yes
Automatic Identification of Current, Voltage and ResistanceYes
General Parameters
Brand PEAKMETER
Model PM2128
Battery 3 x 1.5V AAA Batteries (NOT included)

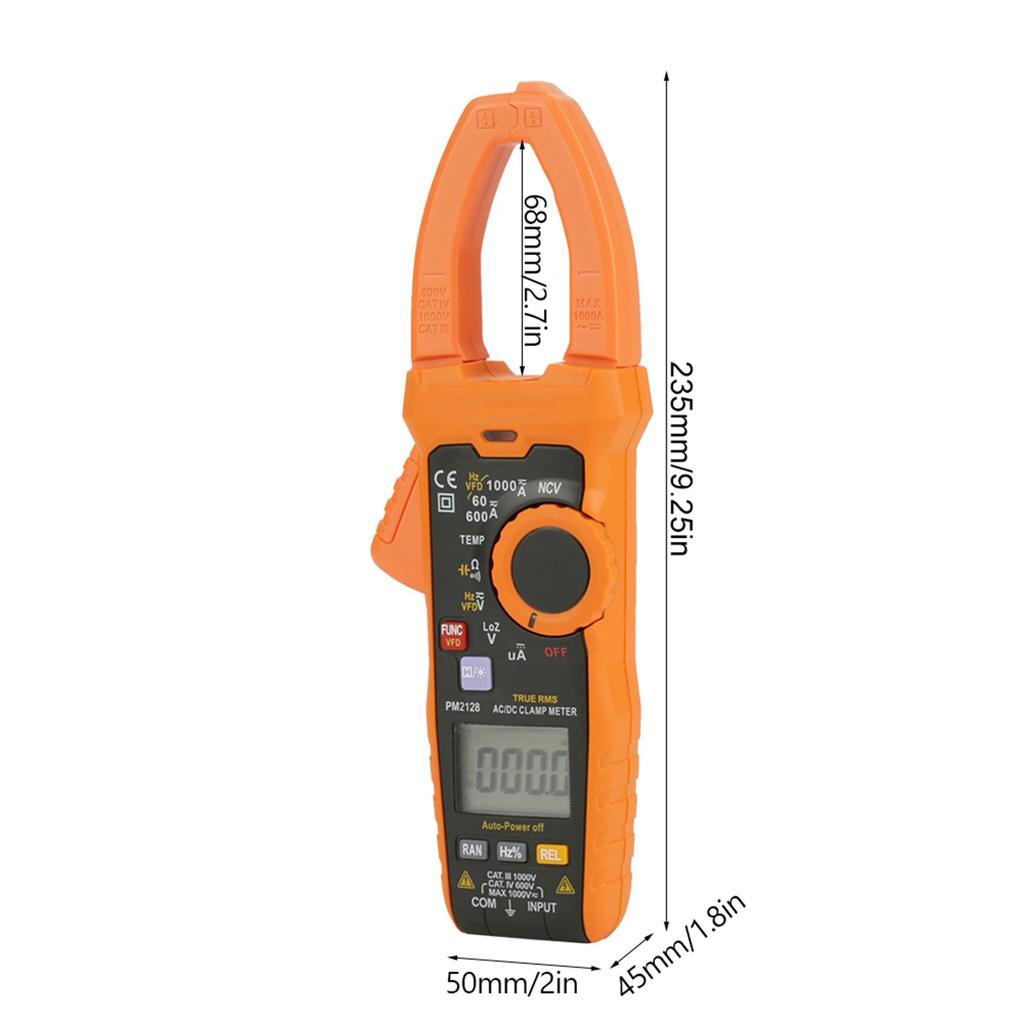

Item Size 235x68x50x45mm/9.25x2.68x1.97x1.77in
Clamp Wodth 35mm/1.38in
Weight Approx. 596g
Safety Rating EN61010-1, EN61010-2--032, EN61326, CAT.III1000V
Package Includes:
1 x Clamp Meter
2 x Test Leads
1 x Thermocouple Probe
1 x Black Bag
Note:
1. Due to the difference between monitors and light effect, thepictures may not reflect the actualcolor of the item. Please take the real one as standard.
2. Please allow slight error due to manual measurement. Thanks foryour understanding.
