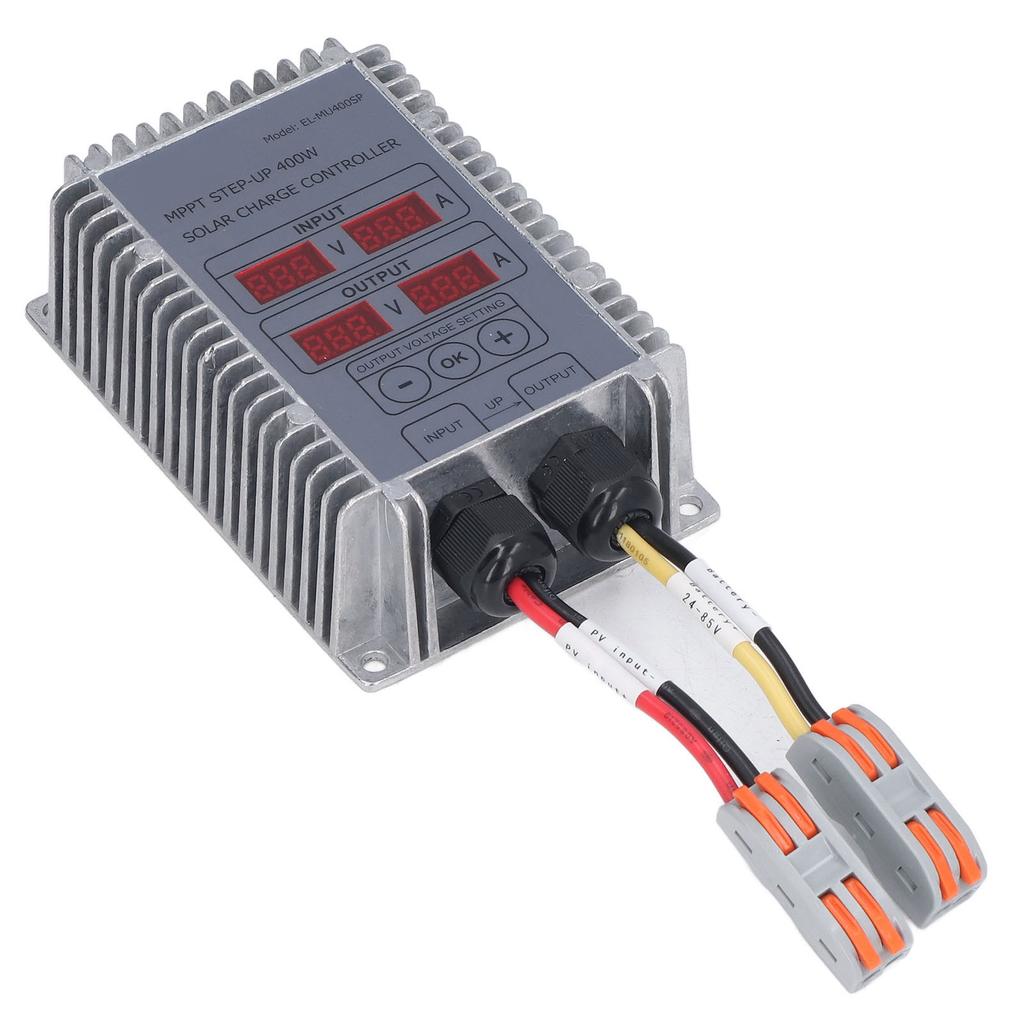

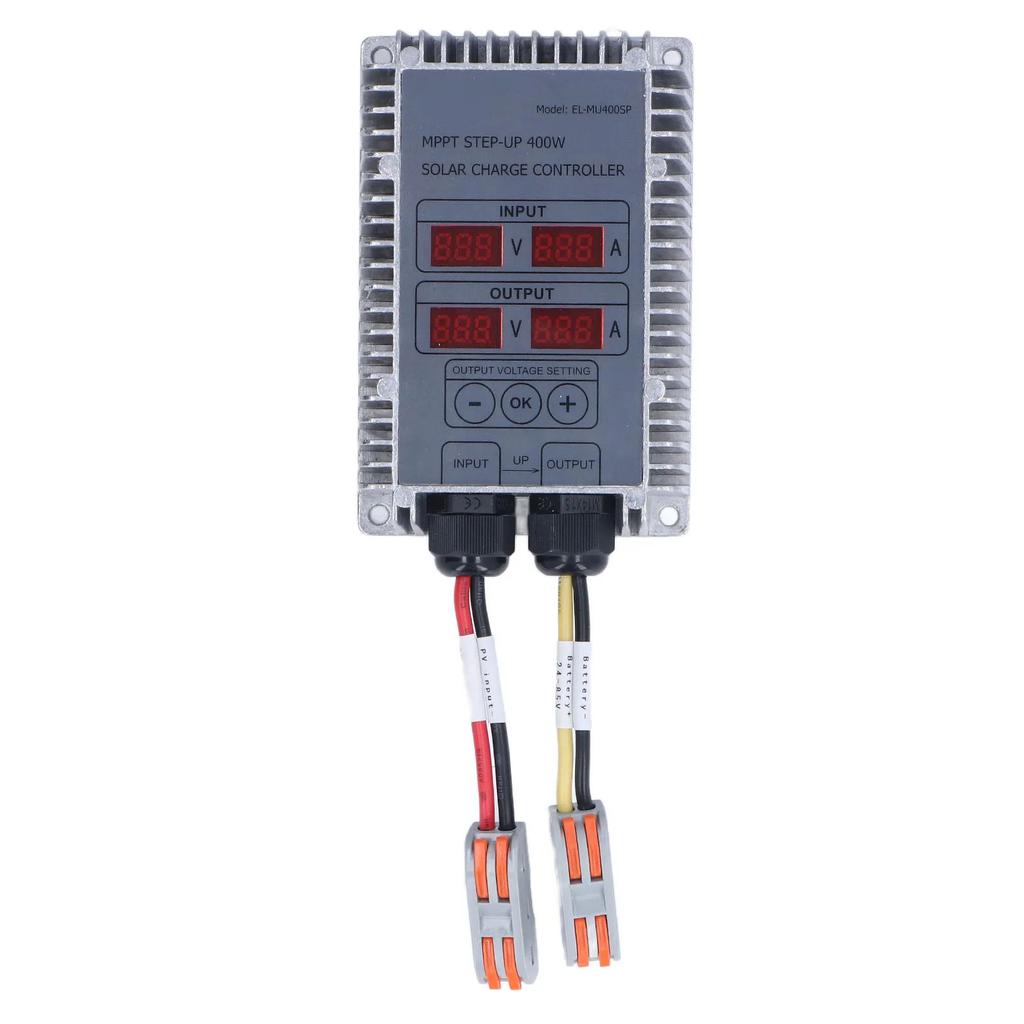

Good luck with your favorite purchasesSolar Battery Charge Controller Boost MPPT Voltage Adjustable Waterproof with Display 24‑85V
Feature:
1. REAL TIME TRACKING FUNCTION: MPPT type is suitable for solar panels of different voltages, with high efficiency MPPT real time tracking
2. HIGH CONVERSION EFFICIENCY: High efficiency synchronous rectifier circuit structure is adopted, which has high conversion efficiency in low power charging environment
3. VOLTAGE ADJUSTABLE AND WATERPROOF: Output voltage is adjustable, support acid and lithium batteries, etc. Waterproof, dustproof, shockproof
4. MULTIPLE PROTECTIONS: Voltage and current LED display, efficiency is more than or equal to 95%, with short circuit protection, over temperature protection, and under voltage protection
5. WIDE RANGE OF USES: Suitable for solar street light controllers, solar chargers, solar electric bicycle, solar electric tricycles, solar toy cars, household solar panels, solar monitoring and other usage scenarios
Specification:
Item Type: Solar Battery Charge Controller
Product Size: Approx. 120 x 80 x 40mm / 4.72 x 3.15 x 1.57in
Efficiency: ≥95%
Noise: Uses: Solar street light controllers, solar chargers, solar electric bicycle, solar electric tricycles, solar toy cars, household solar panels, solar monitoring and other usage scenarios
Weight: 485 g / 17.1 oz(approx.)
Applicable battery All kinds of batteries (charging voltage between 24-85V)
Suitable for photovoltaic panel parameters Open circuit voltage 18V-55V
Maximum power voltage 17V-55V
Charging module PV input power 200W/300W/400W
PV input starting voltage 18V-55V
PV input tracking voltage 17V-55V
Output to battery voltage 24-85V (adjustable)
Output to battery current Maximum 15A
Load loss 0.35W
Voltage regulation 1%
Load regulation 1%
Protection module Battery undervoltage protection Have
Battery terminal short circuit protection Have
Battery non reverse protection None
Overcurrent Protection Have
Temperature protection Have
Protection class IP66
Operating temperature -40℃~+65℃ 1.OVERHEATING PROTECTION
When the internal temperature of the MPPT controller exceeds 100℃, the MPPT controller will reduce the output power. If the internal temperature continues to rise to 110℃, the MPPT controller will automatically turn off the output. When the internal temperature of the MPPT controller is lower than 85℃, the MPPT controller will automatically resume operation.
2.SHORT CIRCUIT PROTECTION
When an unexpected short circuit occurs in the MPPT controller output, the MPPT controller automatically turns off the output and automatically returns to normal after the short circuit removed.
3. INPUT UNDERVOLTAGE PROTECTION
When the input voltage of the MPPT controller is lower than 15V, the MPPT will protectively shut down and automatically resumes operation after the input voltage is normal.
4.OUTPUT ACTIVATE FUNCTION SETTING
When the MPPT controller leaves the factory, the output voltage activate function is on. That is, when the output terminal is suspended, the voltage output closed, and the output voltage shows "0" flashing. When battery access detected, the output automatically activated and the current charging voltage displayed. When the output activation function is not required in some specific applications, the user can press the [OK] key five times to turn off the activation function. At this time, the output voltage column will display "OPE" for 3 seconds, indicating that the operation is successful. In this way, the MPPT controller will output voltage directly after power on. If you need to restart the output activation function, press the [OK] key five times again to turn on the output activation function. At this time, the output voltage column will display "act" for 3 seconds, indicating that the operation is successful. After the output activation function is set, the system will save it automatically, and it will work according to the mode set last time when power on again.
How to Use:
Output Voltage Setting: Users can directly adjust the output charging voltage of the MPPT solar charge controller.The Specific Operation Method Is As Follows: 1. Under normal working status, press any key of [+] or [‑] once, the controller will enter from [Normal working] mode to [Output voltage setting] mode, and the displayed number will change from [Current output voltage value] to [Current set voltage value], and flashes continuously.2. The user can press the [+] or [‑] key to increase or decrease the [output voltage setting value]. Each click of the key changes 0.1V. Press and hold the key for a long time to increase or decrease continuously. The system will automatically limit the set voltage range according to the input voltage, there is no response and no out of range effects.3. After adjusting to the desired [output voltage setting value], press the [OK] key to confirm, and the last [output voltage setting value] will be stored.4. Finally, the memorized [Output voltage setting value] will continue to display for 4 seconds. After 4 seconds, the displayed number will change from [current set voltage value] to [current output voltage value], and at the same time exit [output voltage setting] modeand returns to [Normal Operation] mode.5. Although it enters the [Output Voltage Setting] mode, the converter will automatically exit the [Output Voltage Setting] mode after pressing [+] or [‑] at the end, and there is no need to press the [OK] button within 4 seconds. The adjusted [Output voltage setting value] is invalid and will not be remembered.
Package List:
1 x Solar Battery Charge Controller
1 x User Manual
Note:
Check before installation:1. Check whether the appearance is in good condition before installation2. Check the label on the MPPT controller housing to verify that the performance of the specification MPTT controller matches the device.3. The MPPT controller should be fixed on an iron or metal bracket to avoid the vibration of the machine due to instability.4. The MPPT controller should leave a certain space around the casing for installation.5. The output and input wires should be as short as possible to avoid excessive energy consumption during transmission.6. There is high voltage and high current in the machine, and non‑professionals are not allowed to disassemble it.7. Input and output terminals should be reliable and not loose to avoid heating at the connection point.8. The product is not a smooth, unpolished controller made directly from materials.
