Label:Yes

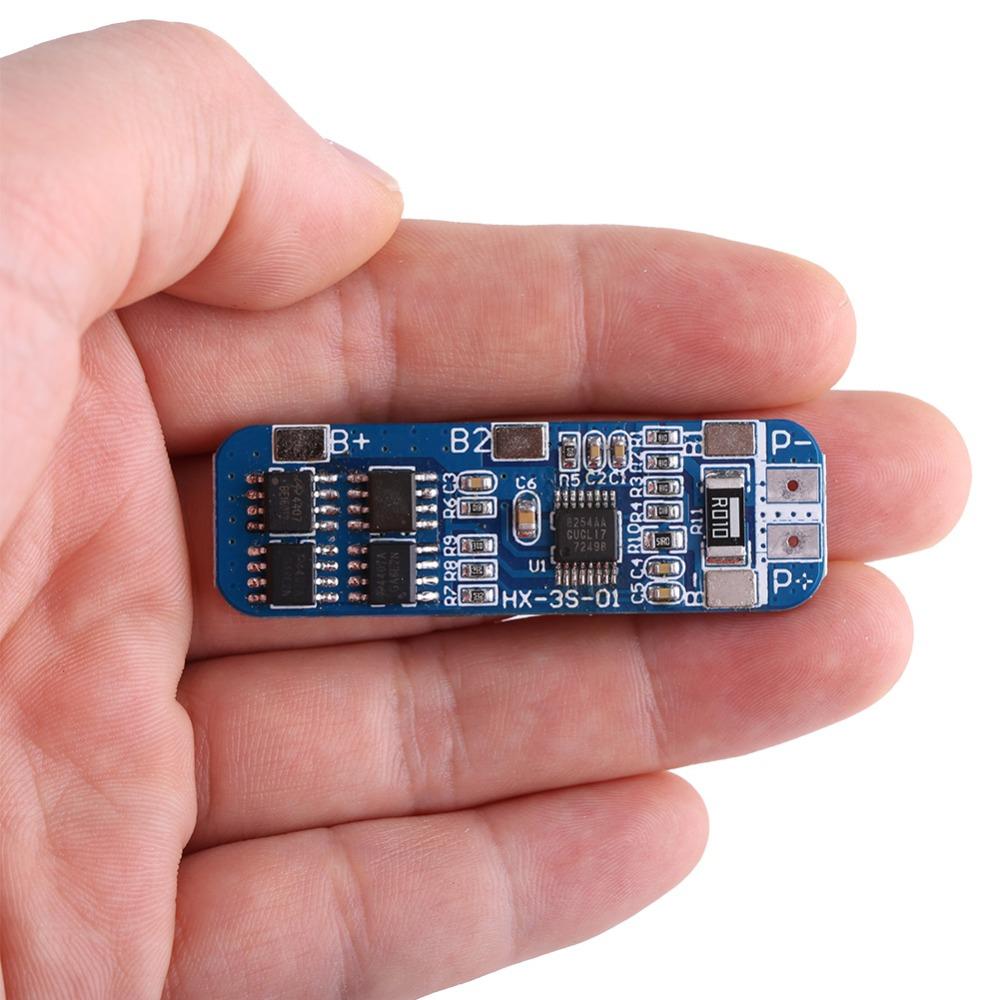

4. Compact & Reliable Design:With compact dimensions of 50mm x 16mm x 3.0mm, this board is suitable for applications where space is limited. It is engineered to enhance the safety and reliability of the battery pack in various use cases.
3. Protection Functions:The board provides essential protection for your battery pack, including safeguards against over-charging, over-discharging, short circuits, and over-current conditions. These protections will automatically reset once the fault is cleared.

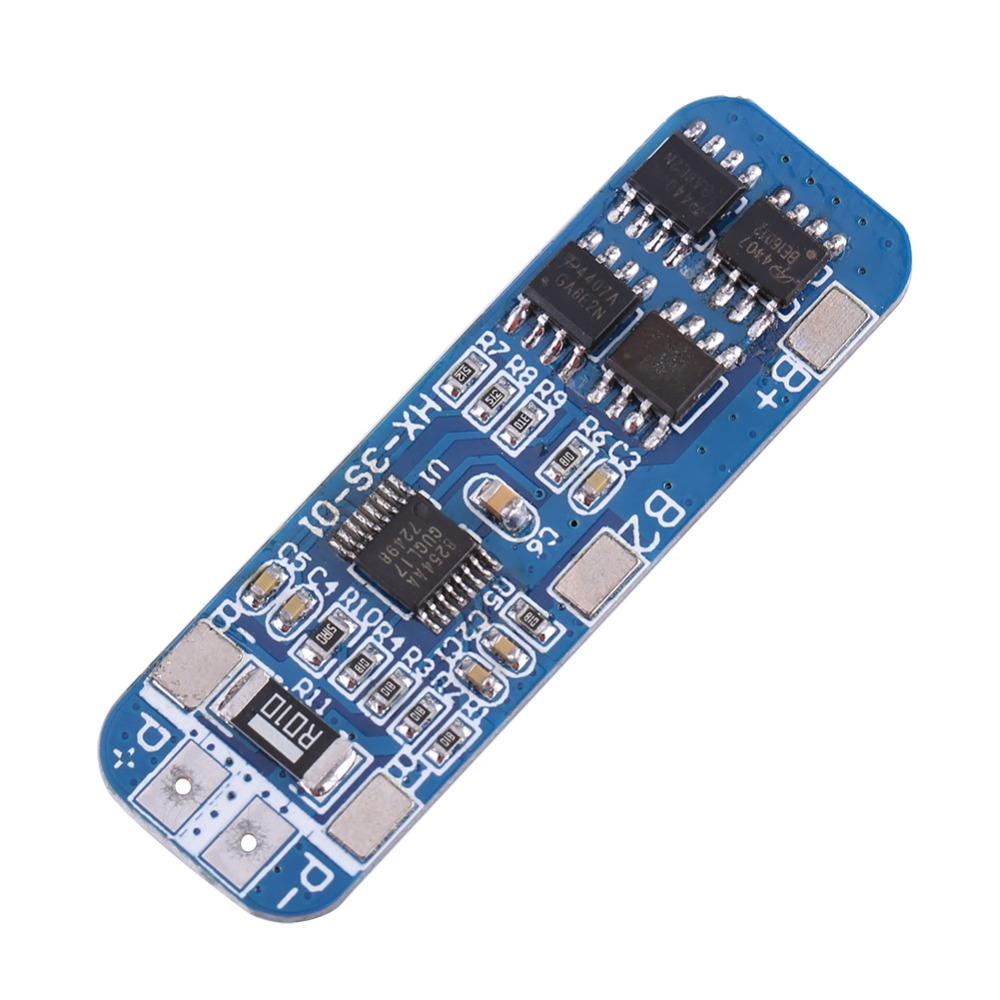

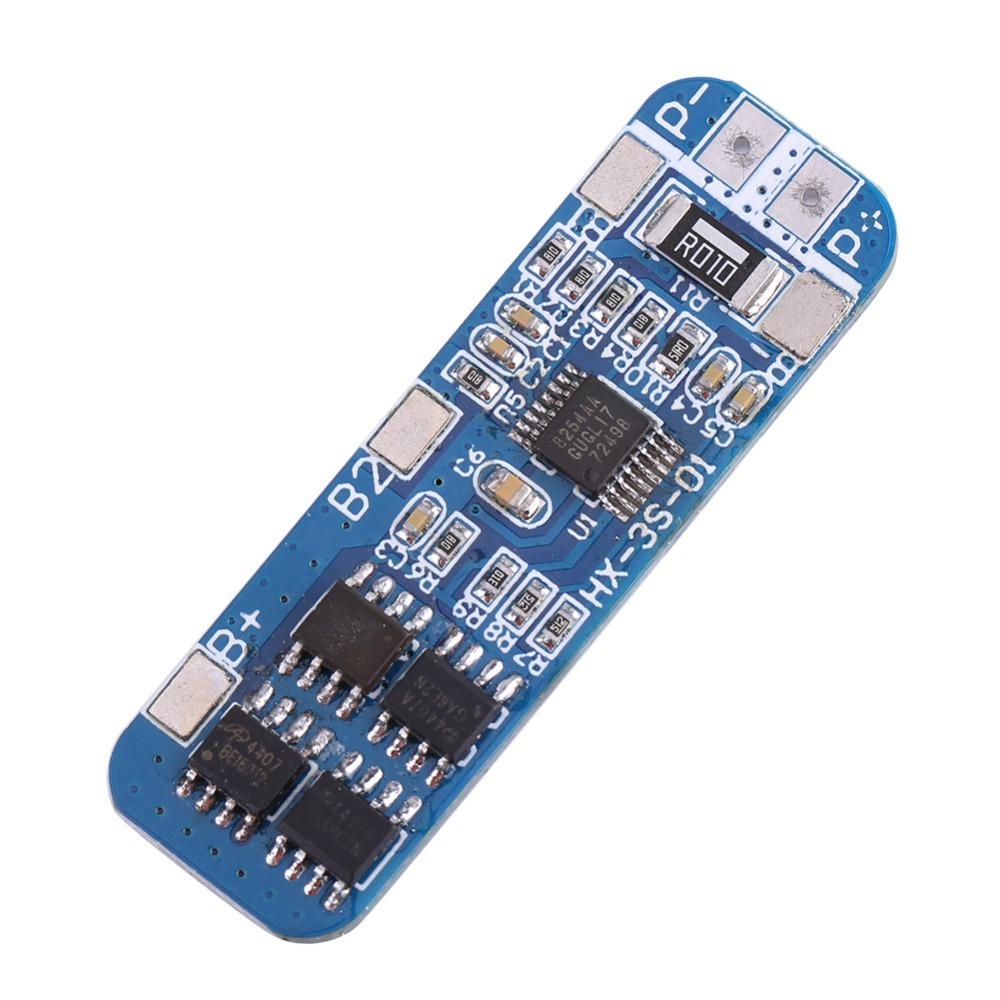

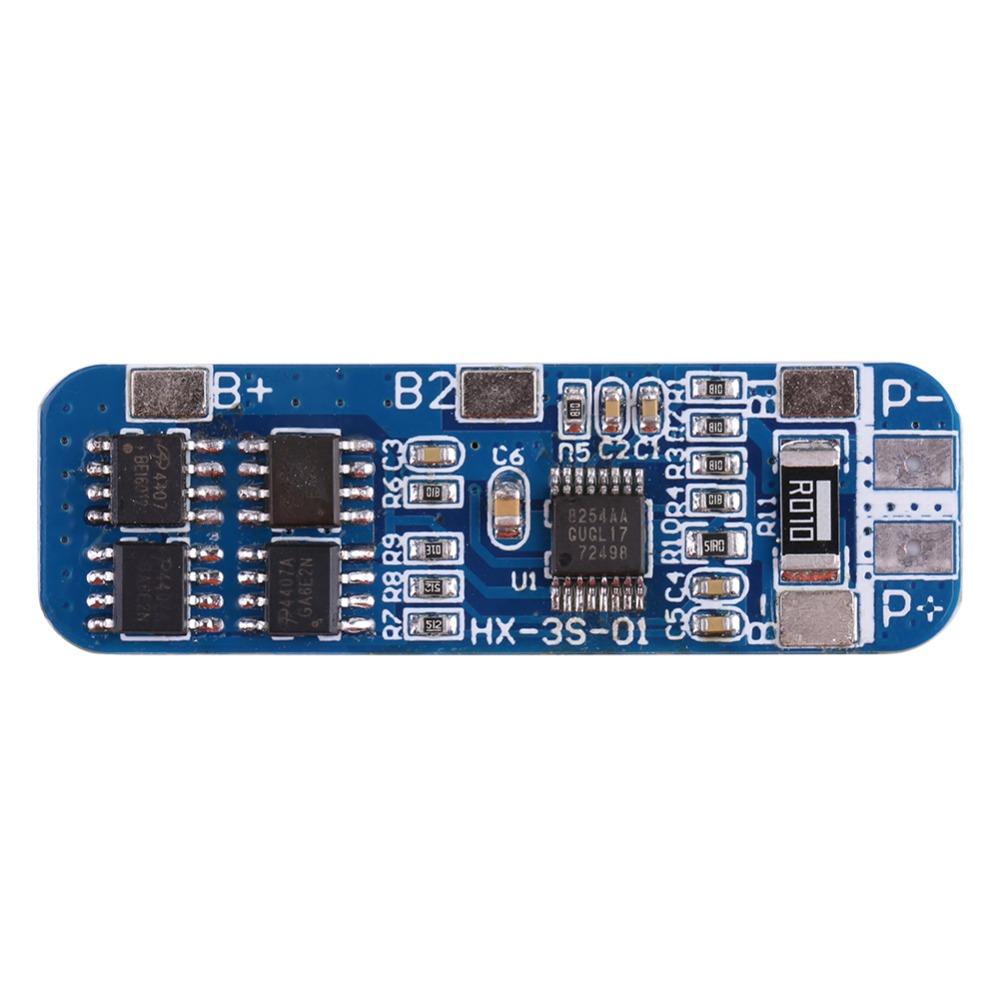

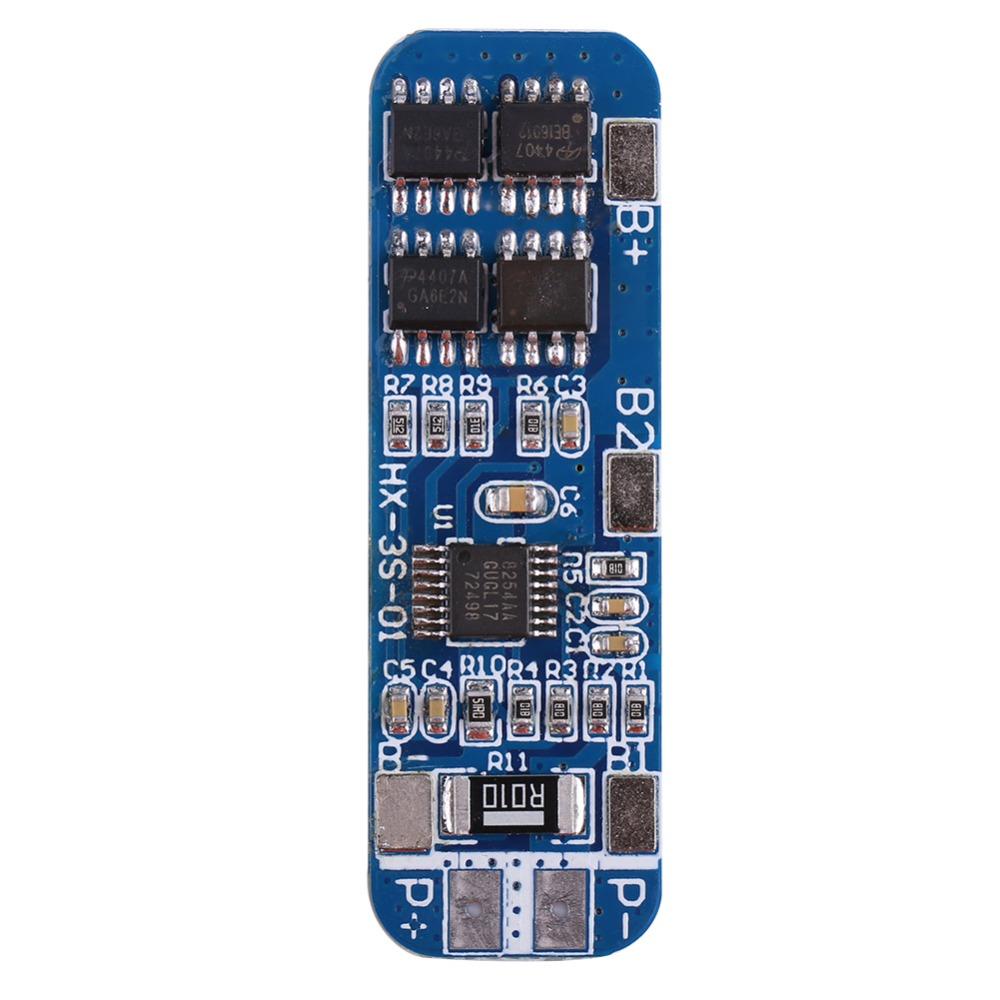

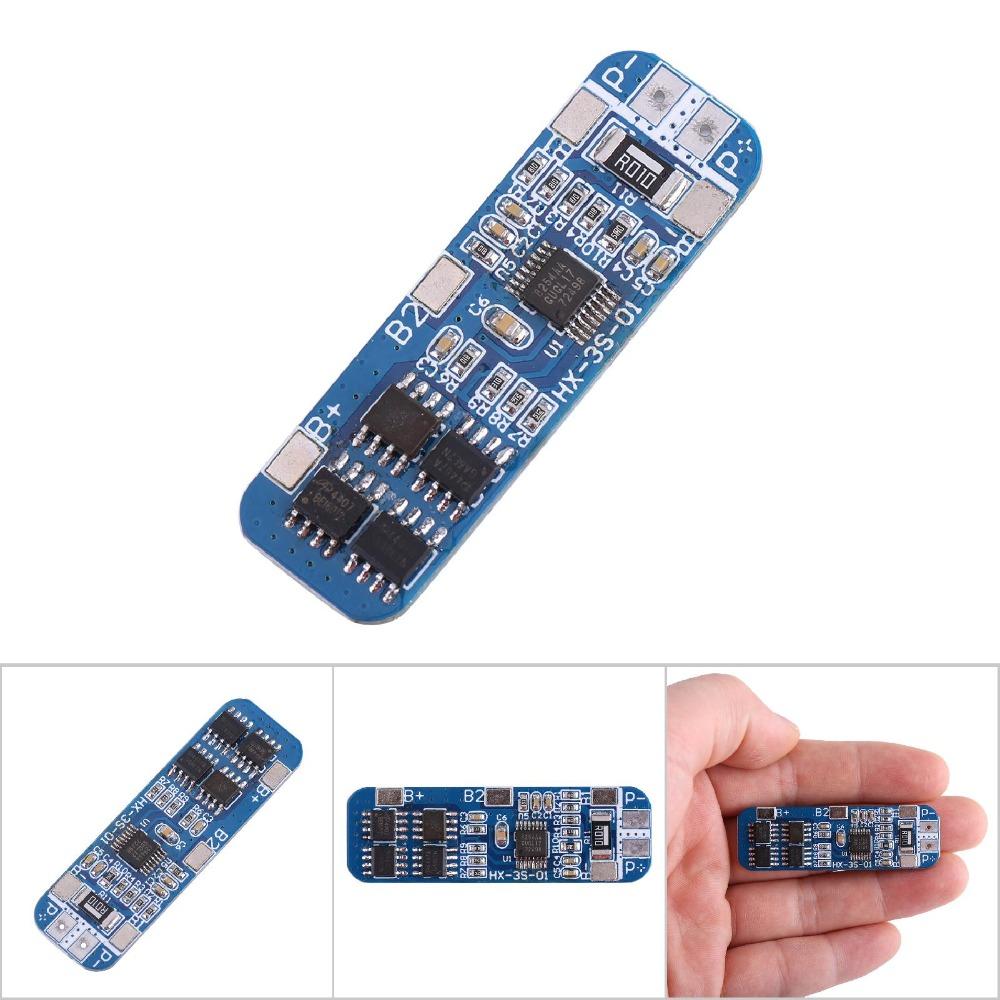

1. Product Overview:This board is three series of lithium battery board.The PCB board is suitable for lithium battery pack of 11.1V, 12V, 12.6V. Its quiescent current less 30uA, so the power consumption is small
2. Key Specifications:Size: 50 x 16 x 3.0mm; Internal Resistance: < 100 milliohm; Charging Voltage: 12.6V - 13V; Operating Temperature: -40°C to +50°C; Storage Temperature: -40°C to +80°C
5. Important Usage Notes:For optimal performance, please note: If the continuous discharge current exceeds 3A, the connected battery should support a 3C discharge rate. If the battery becomes hot during use, it indicates the application may not be suitable, and prolonged use under these conditions should be avoided to avoid battery damage.
Specifications:

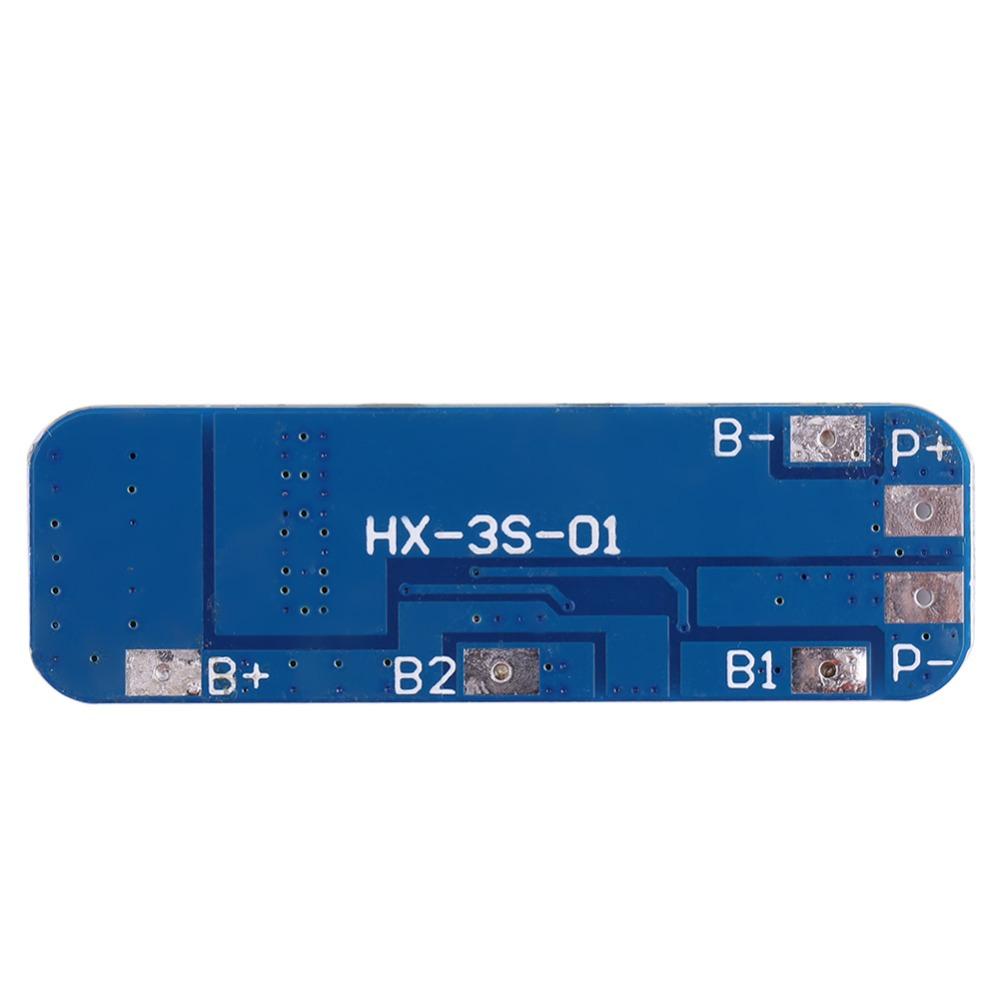

Model: HX-3S-01
Size: 50 * 16 * 3.0mm(1.97 * 0.63 * 0.12in)
Over voltage range: 4.25v±0.05v
Over discharge voltage range: 2.75v±0.05v
Maximum operating current: 6-8A
Maximum transient current: 12A
Quiescent current:less than 30uA
Internal resistance:less than 100 milliohm
Charging voltage: 12.6v - 13V
Working temperature: -40~+50℃
Storage condition: -40~ +80℃
Effective life: >30000h
Short circuit protection: Yes, delayed self recovery
Color:Blue
Notes:
1. Higher than 3A current discharge product, the discharge rate of battery discharge is above 3C.
2.Multiplier calculation formula: 1C battery, 2000 capacity is equal to 2AH * 1 = 2A maximum working current.
3C ratio battery, 2000 capacity is equal to 2AH * 3 = 6Amaximumworking current.
3.In the process of use, if the battery heat, the battery power is not applicable. This situation cannot be used for a long time.Otherwise, the battery will soon be damaged.
4.This protective board cannot be used for iron ion polymer batteries, hand drill battery packs, electric fishing machine battery packs, electric bike battery packs. Two pieces can be used in series with 24V, 775 (4A) or above motors, and 1W fisheye LED lights. Customers who purchase the above combinations are advised to pay attention!
Package Included:
1 x PCB Protection Board(have assembled)
