Description
Four-digit display 0.01 V/0.001 A

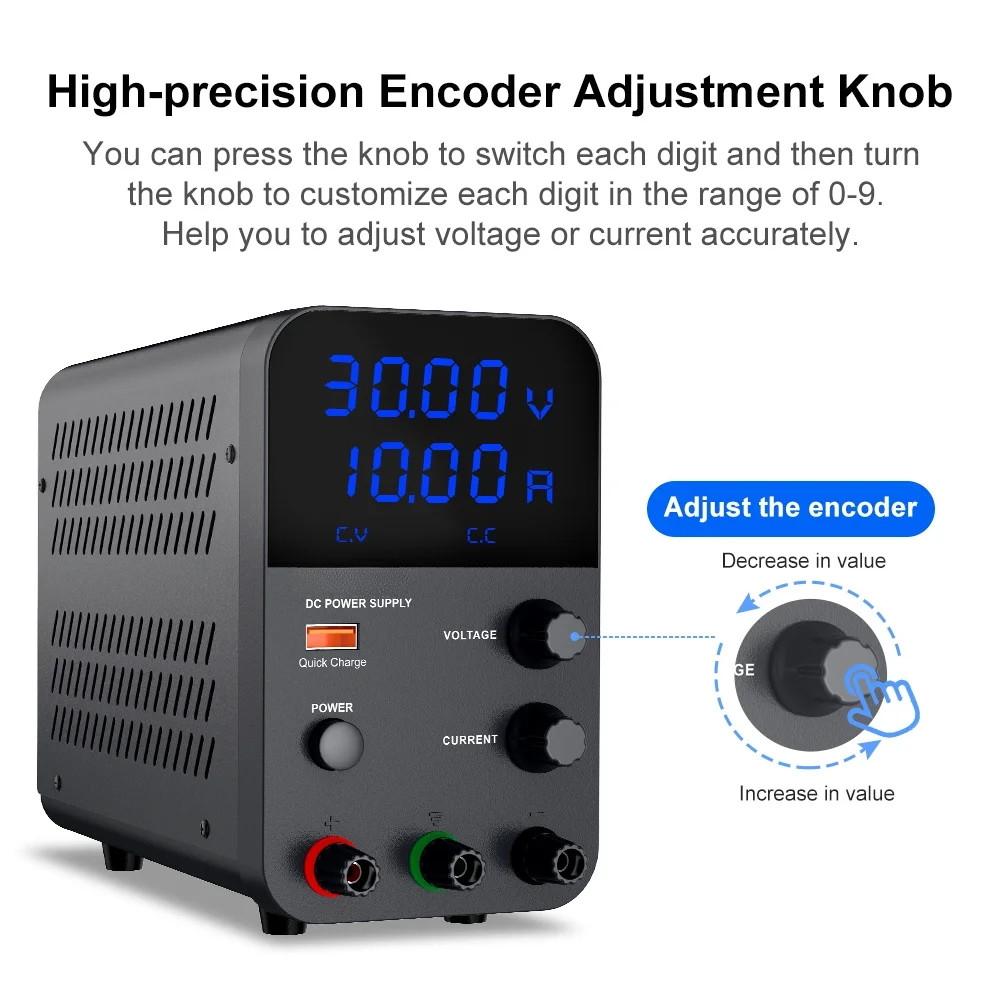

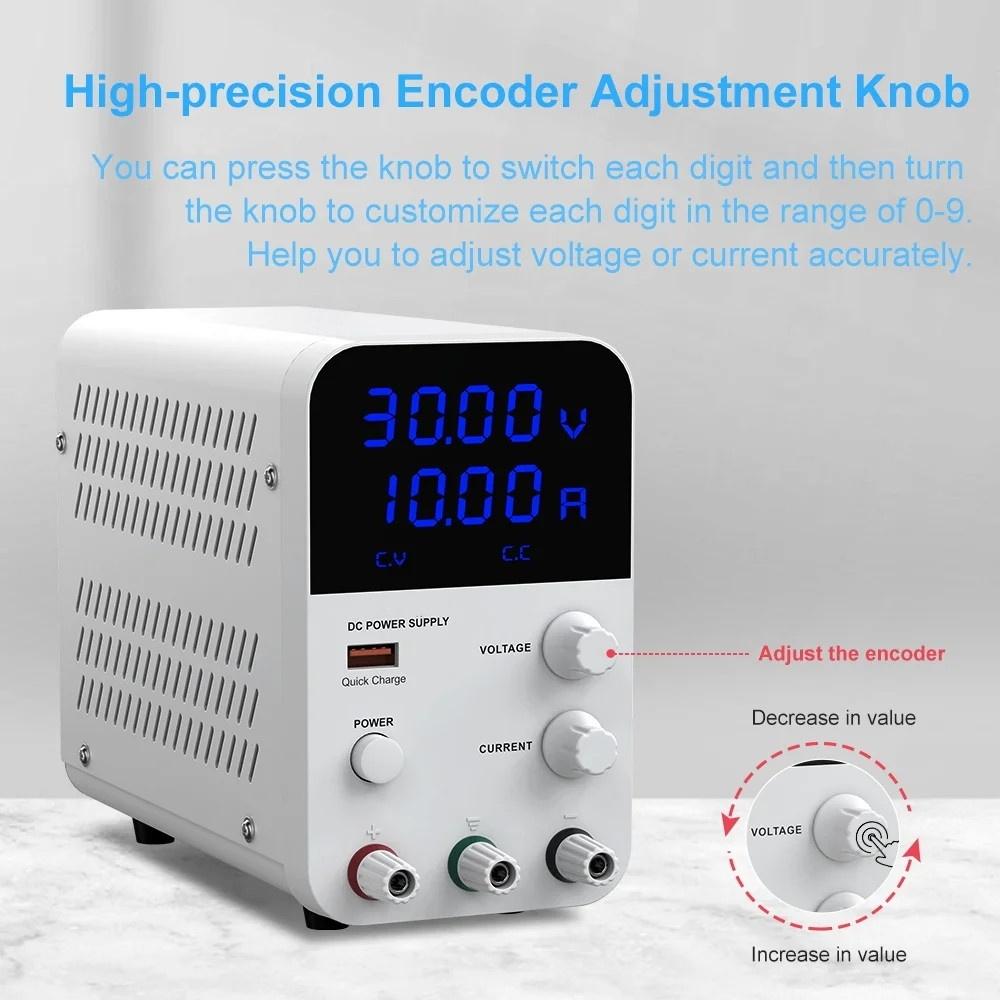

1.GPS305D W/B Encoder adjustment DC power supply with power display 30V 5A

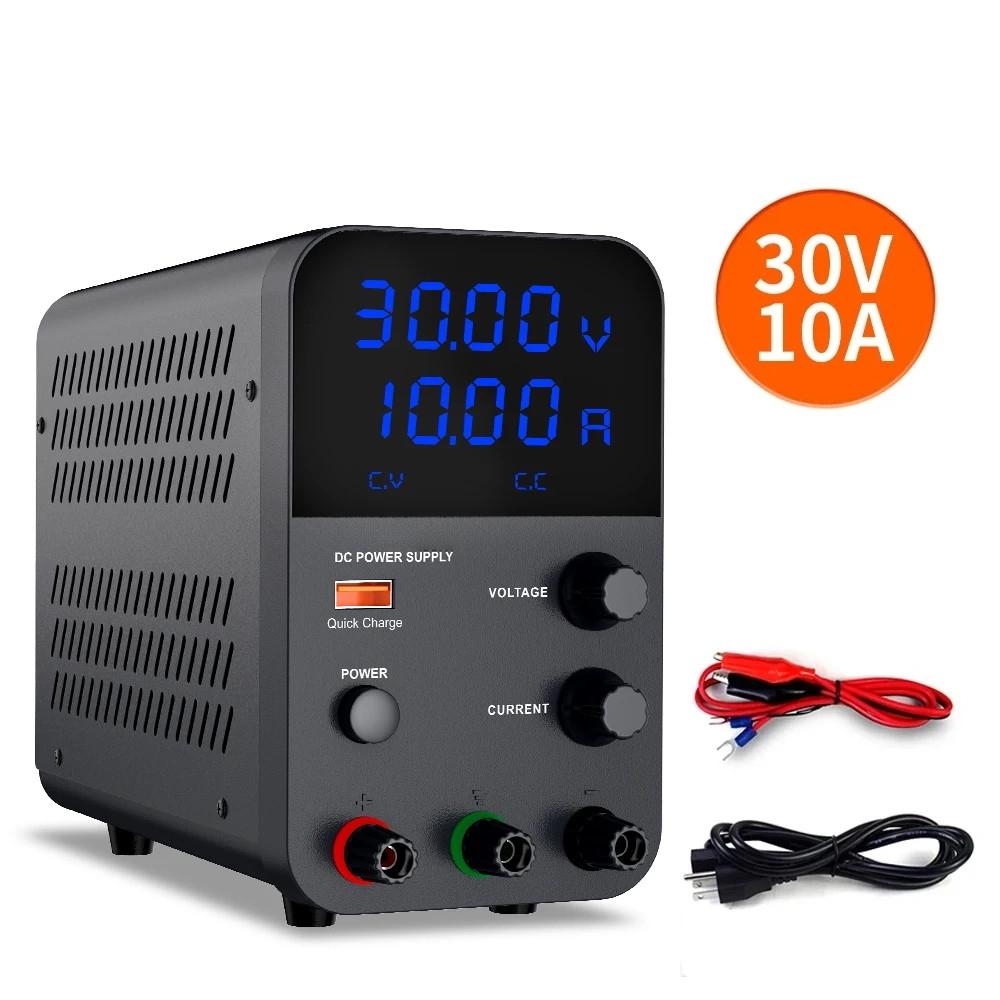

2.GPS3010D W/B Encoder adjustment DC power supply with power display 30V 10A
3.GPS605D W/B Encoder adjustment DC power supply with power display 60V 5A
4.GPS1203D W/B Encoder adjustment DC power supply with power display 120V 3A
5.GPS1602D W/B Encoder adjustment DC power supply with power display 160V 2A
Product Specifications
This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine

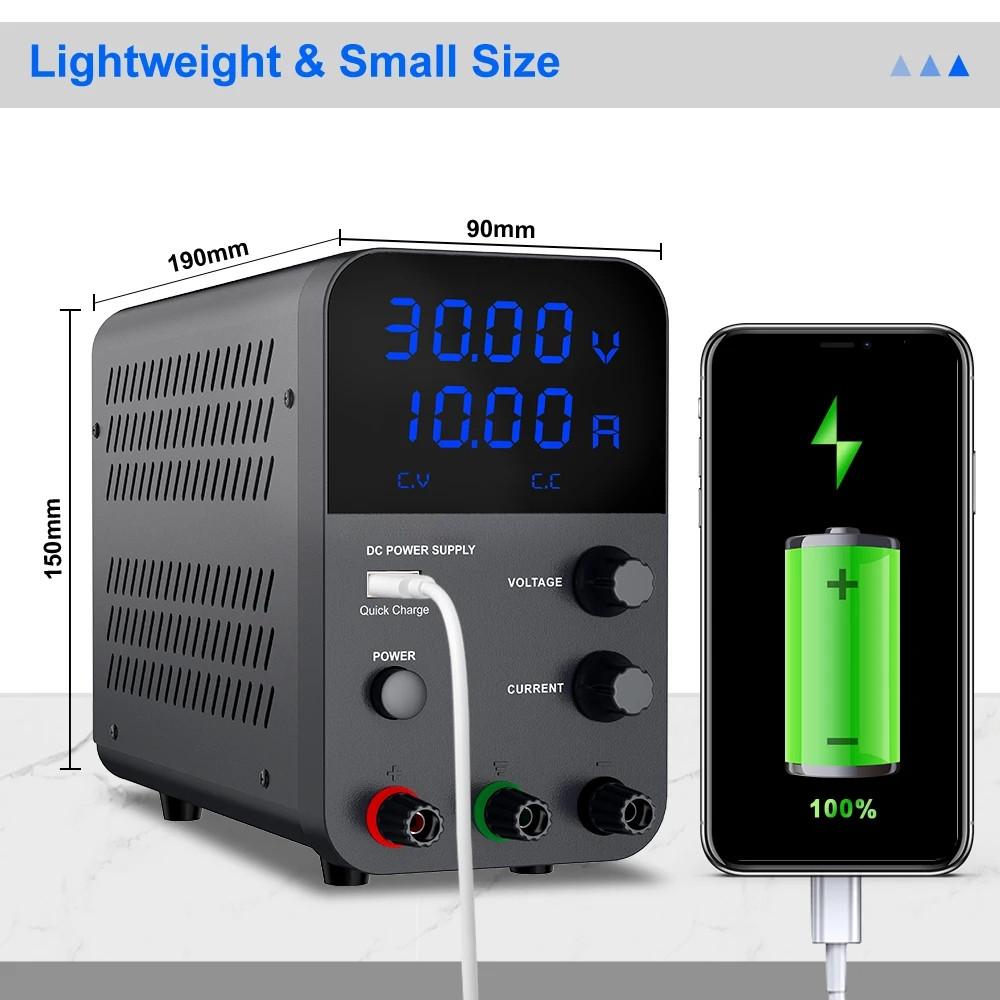

1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.

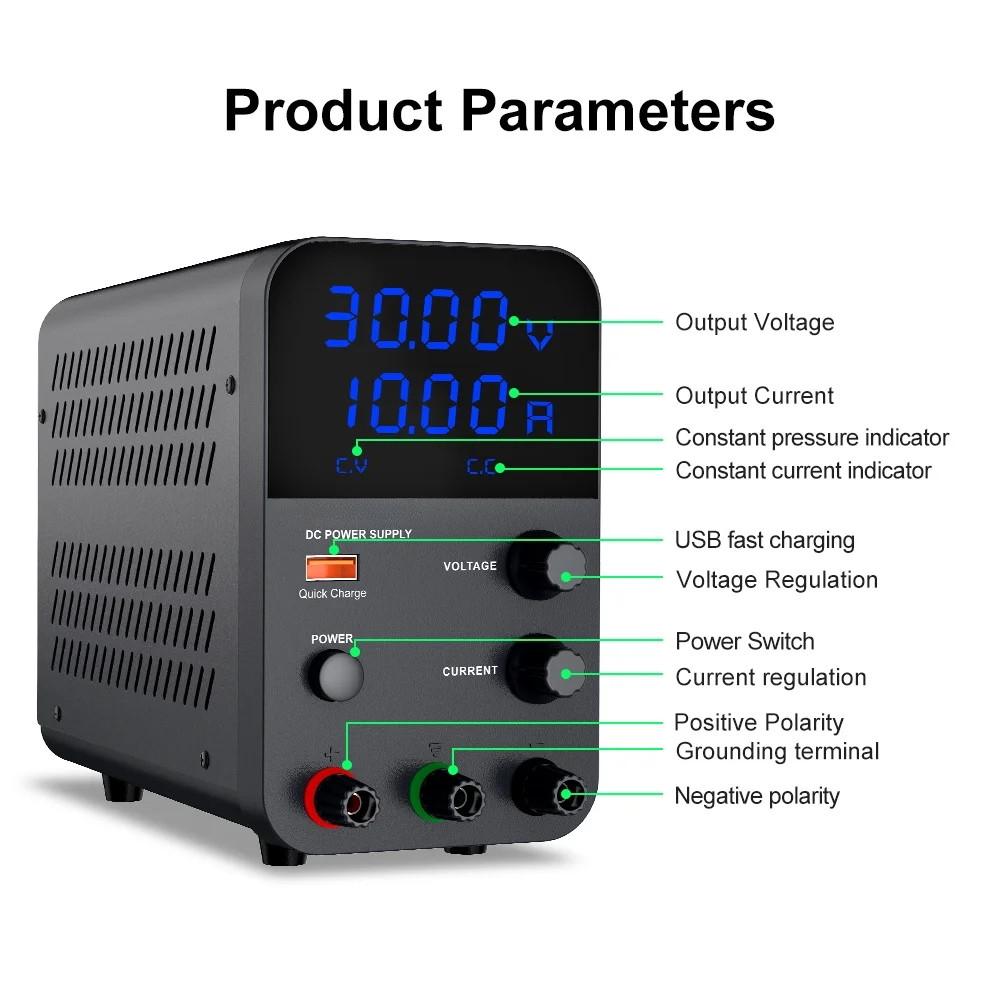

3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current: output voltage and output current can be continuously 5.adjusted between 0 and nominal value with fine regulating and coarse regulating
6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection

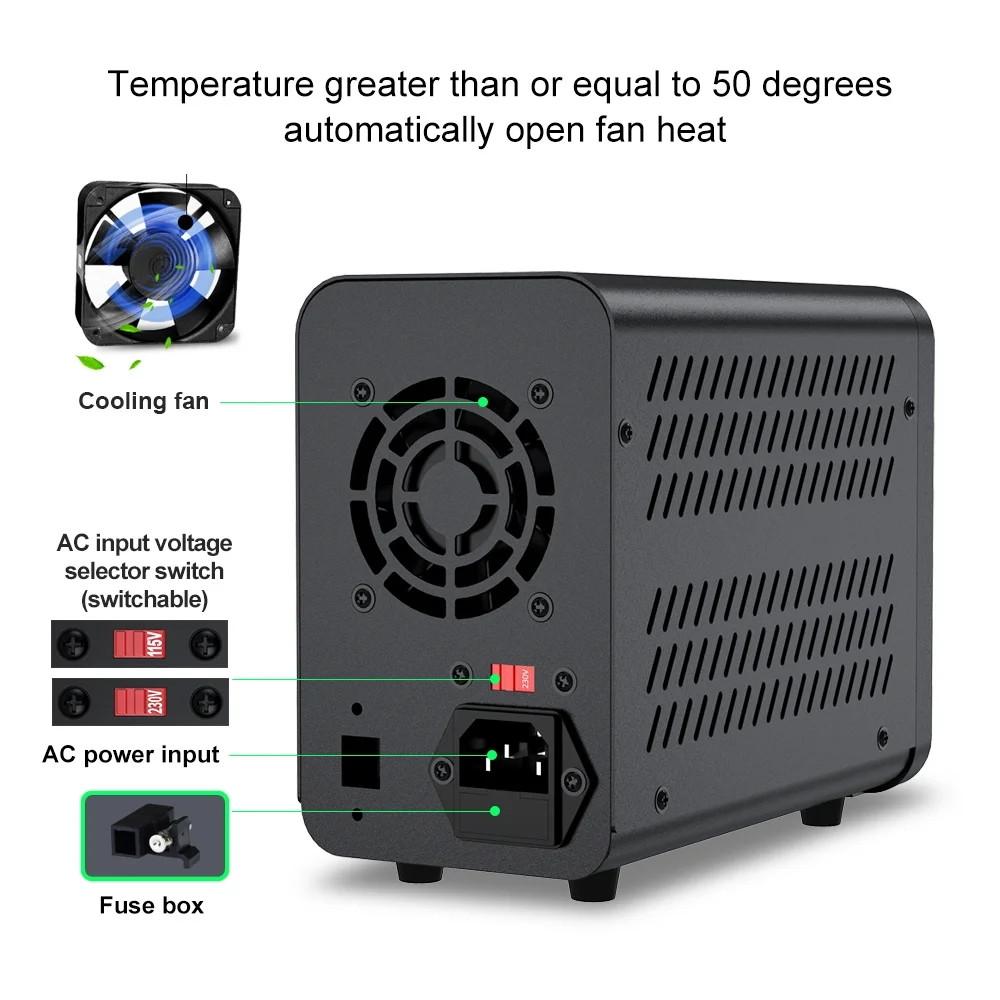

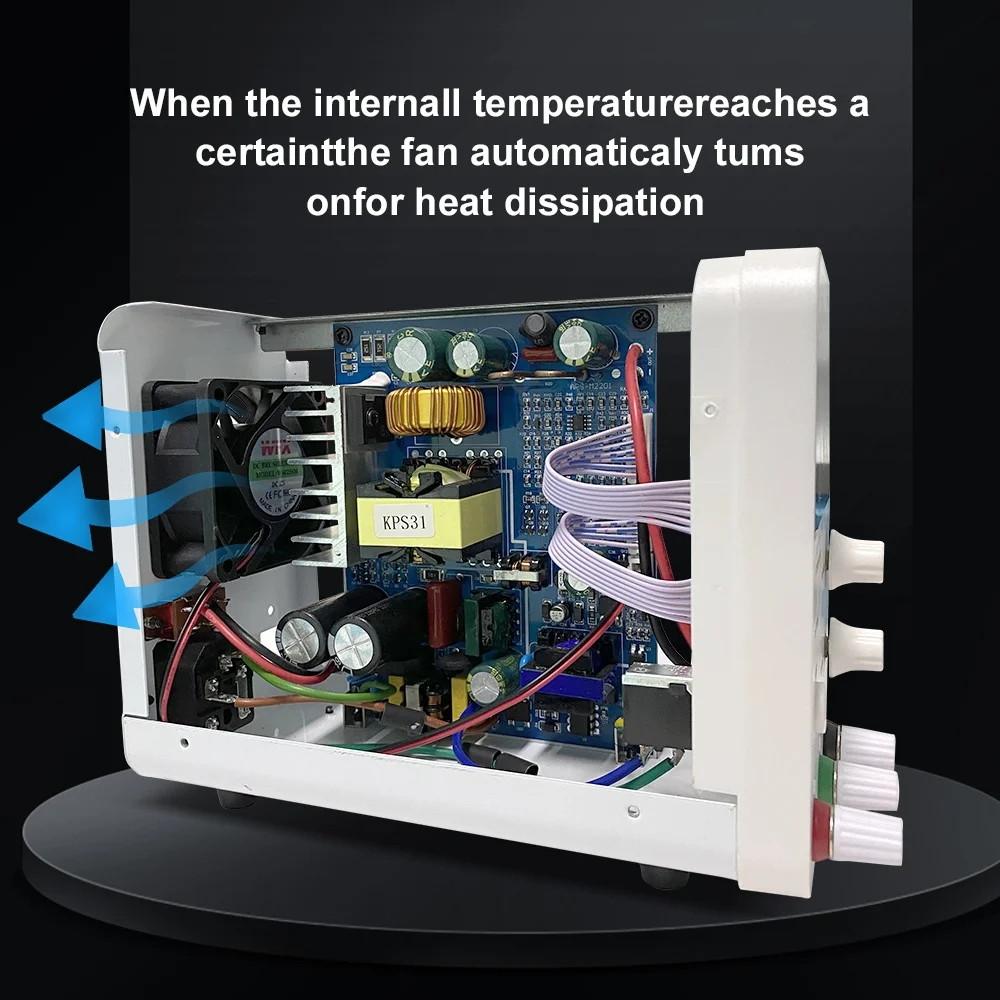

7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11.AC 110v and 220vcan work, rest assured to choose.
12.Programmable DC power supply
Output Power
150W/300W/320W/360W
Output voltage
0~30V/60V/120V/160V
Output current
0~2A/3A/5A/10A
working environment
input voltage：AC 230V/115V±10%；50Hz/60Hz
Working temperature：0℃～40℃;relative humidity:<80%RH
Storage temperature：-10℃～70℃;relative humidity:<70%RH
Constant voltage CV
Voltage stability：0.1%±3mV
Load stability： 0.2%±3mV
Ripple voltage：≤0.5% Vp-p
0 to rated voltage continuously adjustable
constant current CC
Current stability：0.1%±3mA
Load stability： 0.2%±3mA
Ripple current：≤0.5% Vp-p
Recovery time：≤500μS
Temperature coefficient：≤100ppm/℃
0 to rated current continuously adjustable

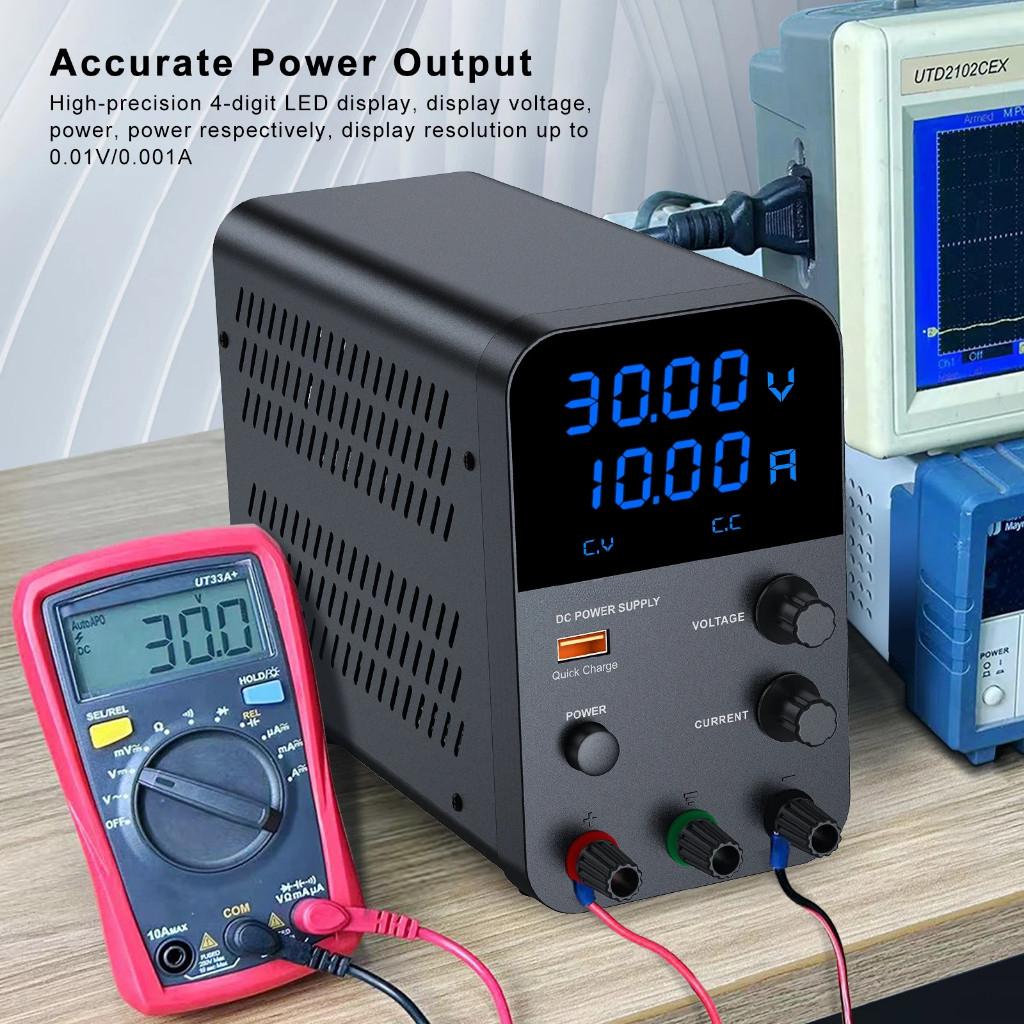

display
LED digit display
Display accuracy：0.5%±digits
Display resolution： voltage 0.01V， current 0.001A
Product Features
1. Production line test.
2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring DC power supply.

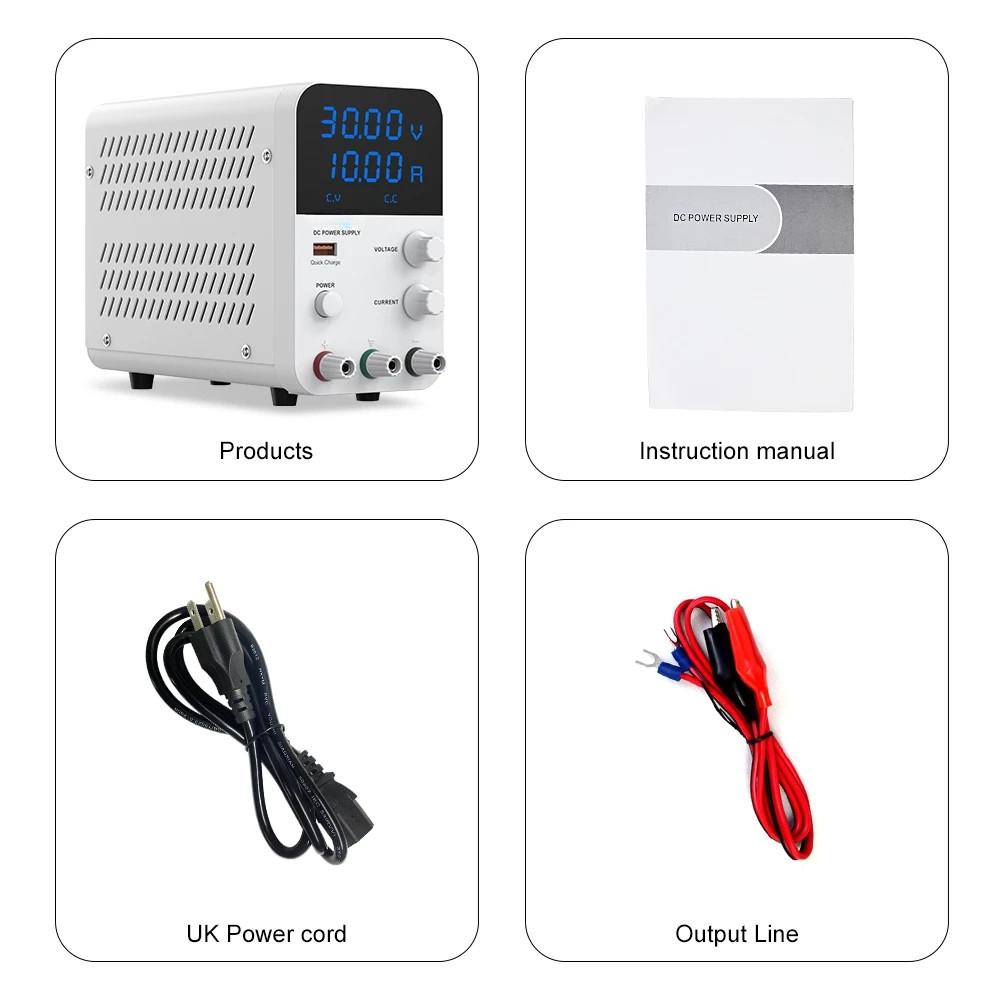

Package I
