Battery Included : Yes
High-concerned chemical : None
Origin : Mainland China
Model Number : KWS-2302C/KWS-2303C
DIY Supplies : Electrical
Dimensions : 53*20*9mm
Accuracy Class : ±(1% + 5)
Power Supply : DC
Display Type : Digital Only
Multi-function Type-C Voltage Tester Color Screen Digital Power Meter Voltage Current Monitor Charging Tester DC 4-30V 0-12A
KWS-2303C
Features:
1.Voltage, current, power, capacity, electrical energy, timing, CPU temperature and many other parameters real-time monitoring.
2. Click the button, change the page, 3 kinds of display page, make the function more strengthened.

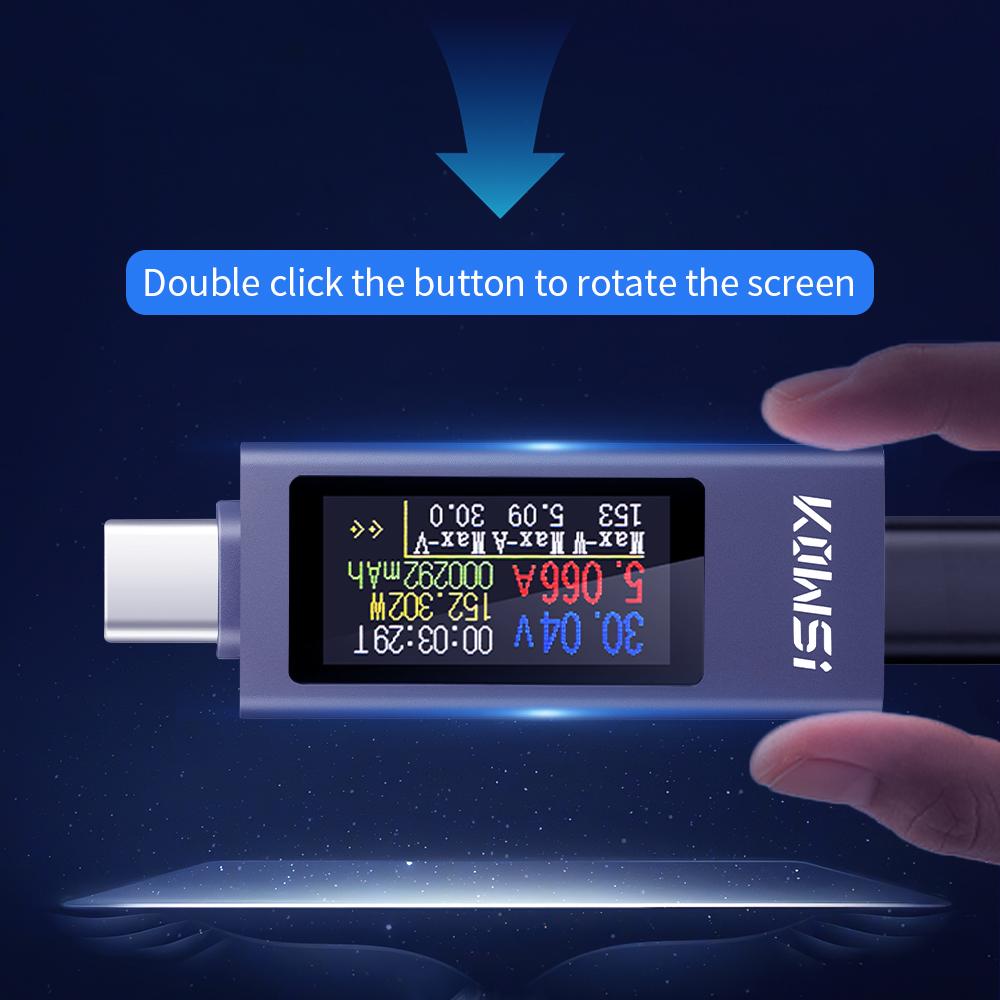

3. Double-click button, screen rotation direction, viewing more convenient, can meet the needs of different places.
4.1.06 inch TFT high-definition display, let you visual brighter at a glance, bidirectional voltage and current more accurate.
5. Can be for chargers, rechargeable batteries and other charging equipment testing a variety of data on one screen, to meet the needs of a variety of tests.
6. Full interface compatibility, support power-down save data, support fast charging test, bidirectional current test function, real-time charging power detection.
Specification:
Voltage: DC 4~30V
Current: 0~12A
Power: 0~360W
Capacity: 0~6666666mAh
Power: 0~999999Wh
Timing: 0~99 hours
Product size: 53*20*9mm
Package include:
1*Power meter
1*Instruction manual
KWS-2302C
Description:
0.96 inch TFT HD display, with 12A high current terminal, make the product more stable.
2. Voltage, current, power, capacity, power, timing, CPU temperature and other parameters of real-time monitoring.
3. Click the button, change the page, double-click the button, the screen rotation direction, can meet the needs of different places.
4. Intelligent identification, can record the highest single power, the highest voltage, the maximum current.
5. With two-way current test function, support fast charge test, support power down to save data.
Product parameters:
voltage: DC 4-30V
current: 0-12A
timing: 0-99 hours
power: 0-360W
capacity: 0-99999mAh
power: 0-99999Wh
product size: 50.6*18*9mm
Package include:
power meter * 1
manual * 1
