Feature:
1. Multifunction Multimeter: The multimeter can measure DCV, ACV, DCA, ACA, resistance, capacitance, inductance, temperature and frequency, diode, transistor and continuity test.
2. Metal Shielding Plate Functions: Metal shielding plate has the performance of good anti magnetic and anti interference. Full protection function, high voltage fireproof circuit design.
3. Battery Driven Multimeter: This instrument is a stable and good performance digital multimeter driven by a battery. This multimeter is an ideal tool for laboratories, factories and homes.
4. With Large LCD Screen: The instrument takes the double integral A D converter as the key point, which is a very good tool. Large LCD screen is clear to read, with backlight, easy to use.
5. Adopting Multifunctional Test: The high accuracy digital multimeter can display 1999 count and has multi function test. The temperature unit between celsius and Fahrenheit can be changed.
Specification:
Item Type: Digital Multimeter
Material: Plastic
Color: As Pictures Shown
Weight: Approx. 584g 20.6oz
Model
9808+
Specification
Basic Functions
Range
Accuracy
DC Voltage
200mV
+ (0.5percent +5)
2V 20V 200V
+ (0.5percent +3)
1000V
+ (1.0percent +10)
AC Voltage
200mV
+ (1.0percent +5)
2V 20V 200V
+ (0.8percent +5)
750V
+ (1.2percent +10)
DC Current
200uA 2mA 20mA 200mA
+ (1.2percent +8)
20A
+ (2.0percent +5)
AC Current
200uA 2mA 20mA 200mA
+ (1.5percent +15)
20A
+ (3.0percent +10)
Resistance
200 Ohm
+ (0.8percent +5)
2k Ohm 20k Ohm 200k Ohm 2M Ohm
+ (0.8percent +3)
20M Ohm
+ (1.0percent +25)
200M Ohm
+ (5.0percent +30)
Inductance
2mH 20mH 200mH
+ (2.5percent +30)
2H 20H
+ (5.0percent +20)
Capacitance
20nF 200nF 2uF 20uF
+ (3.5percent +20)
200uF 20mF
+ (5.0percent +10)
Frequency
10Hz 100Hz 1kHz 10kHz 100kHz 1MHz 20MHz
+ (1.0percent +10)
Temperature
( 20 1000) celsius
less than 400 celsius + (1.0percent +5)
more than 400 celsius + (1.5percent +15)
( 4 1832) Fahrenheit
less than 752 Fahrenheit + (1.0percent +5)
more than 752 Fahrenheit + (1.5percent +15)
Features
Diode and Transistor Test
√
Continuity Buzzer
√
Low Battery Indication
√
TRUE RMS
√
Data Holding
√
Auto Power off
√
Backlight
√
Maximum Minimum Value
√
Function Protection
√
200mA Protection
√
Input Impedance
10М Ohm
Sampling Rate
3 Times s
AC Frequency Response
(40 1000)Hz
Operation Way
Manual Range
Max. Display
1999
LCD Size
65 x 40mm 2.56 x 1.57in
Battery
4 x AAA Batteries (Delivered Without Batteries
.
Package List:

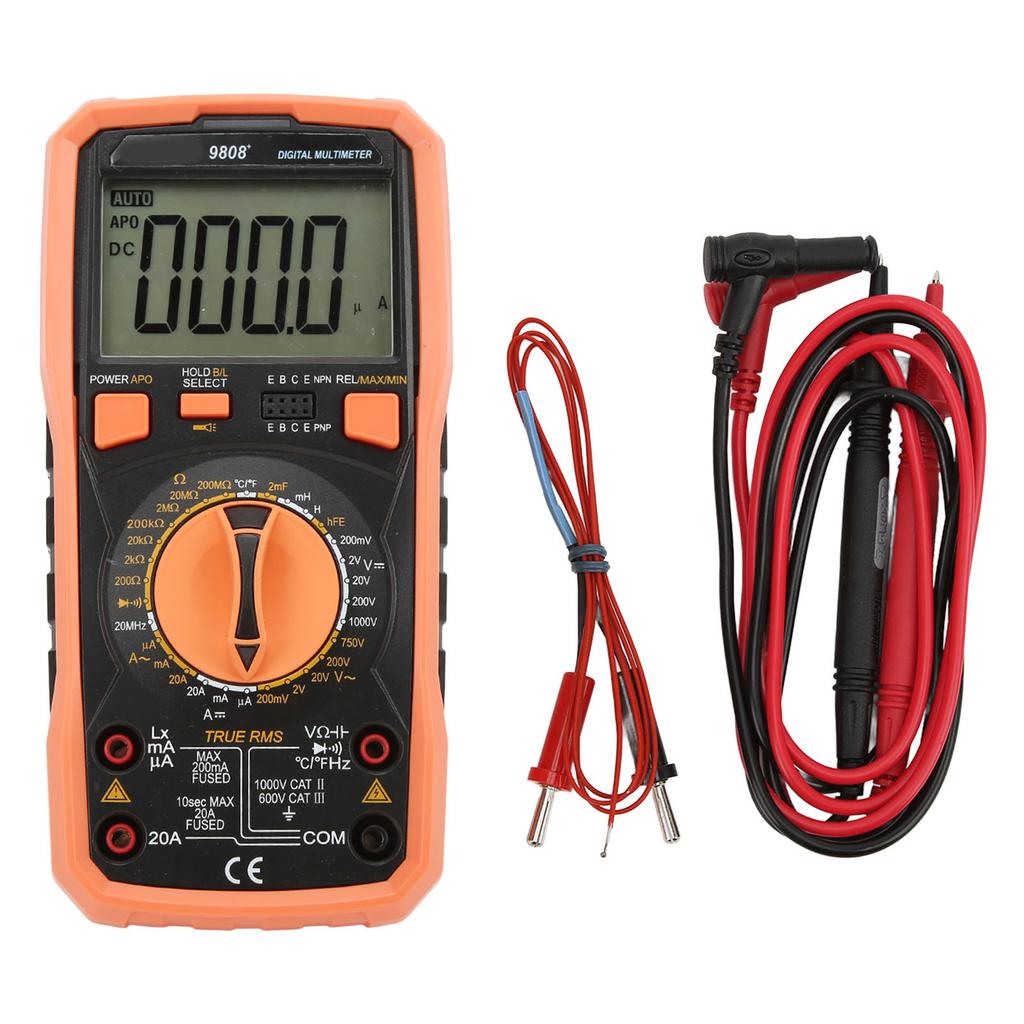

1 x Digital Multimeter (Battery Not Included)2 x Test Line1 x Temperature Probe1 x Manual
Note:
Please read the instructions carefully before use, and strictly abide by the safety rules, cautions and warnings listed in the instructions.
