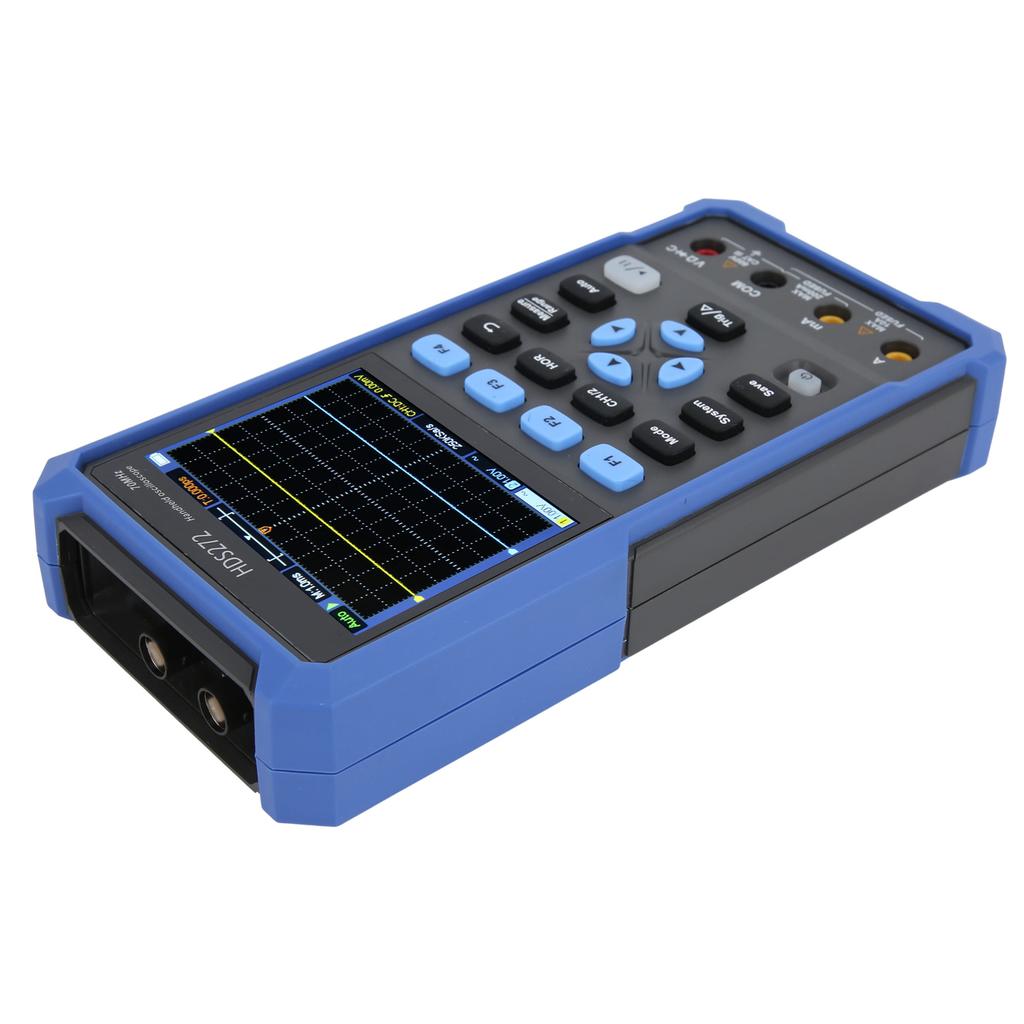

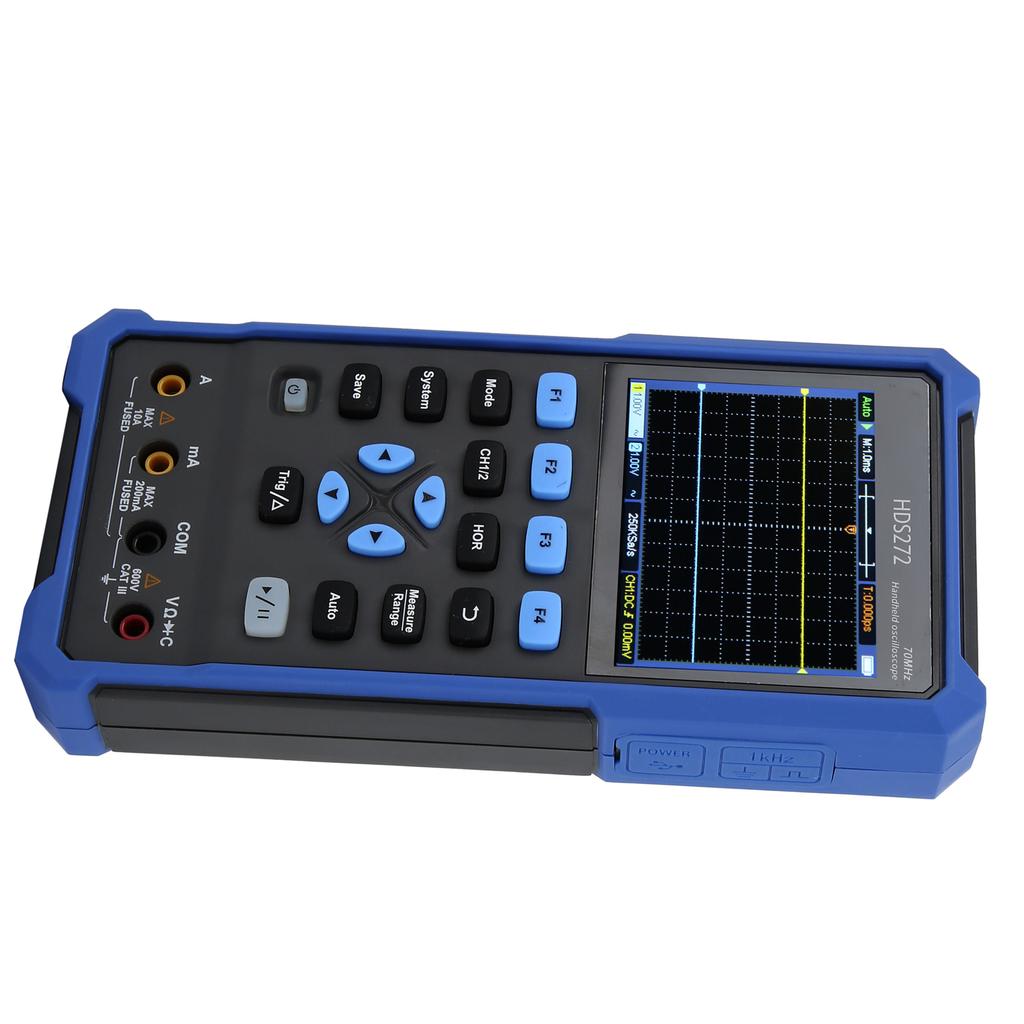

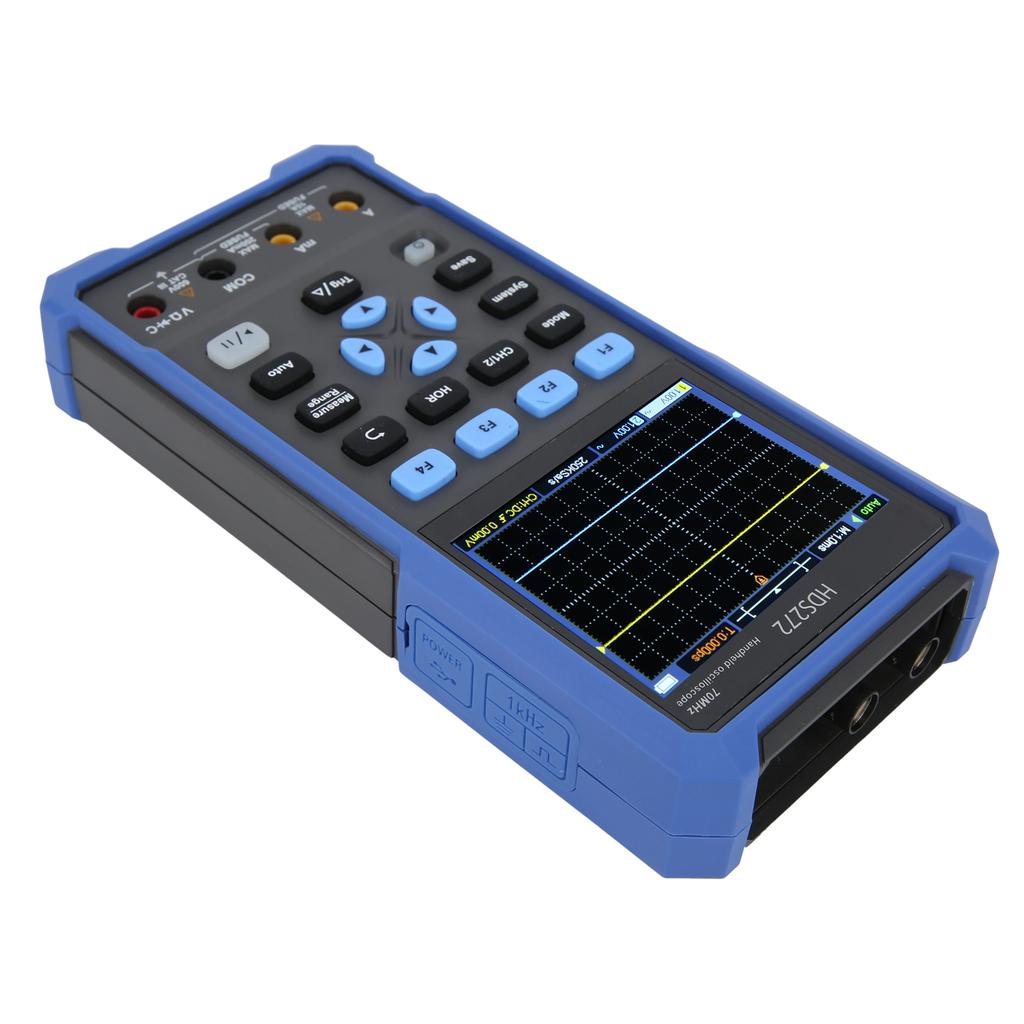

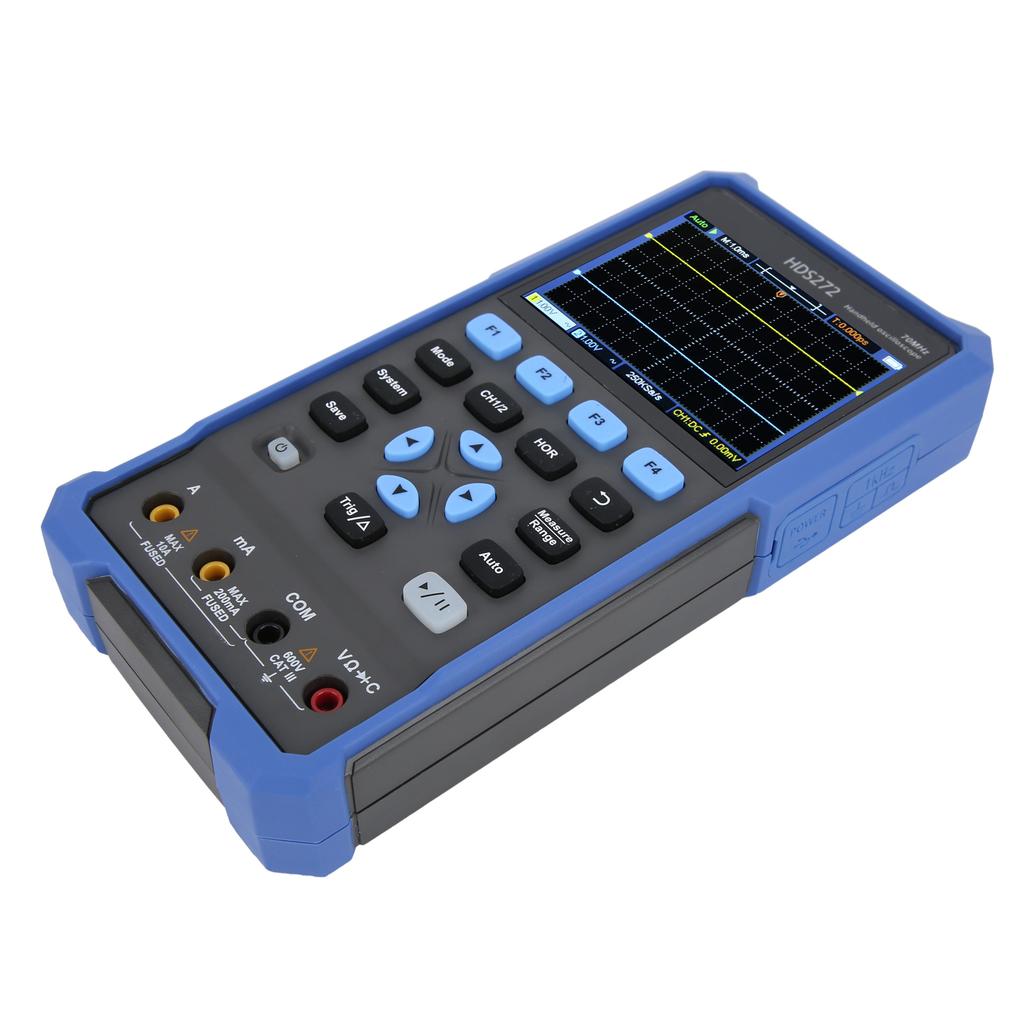

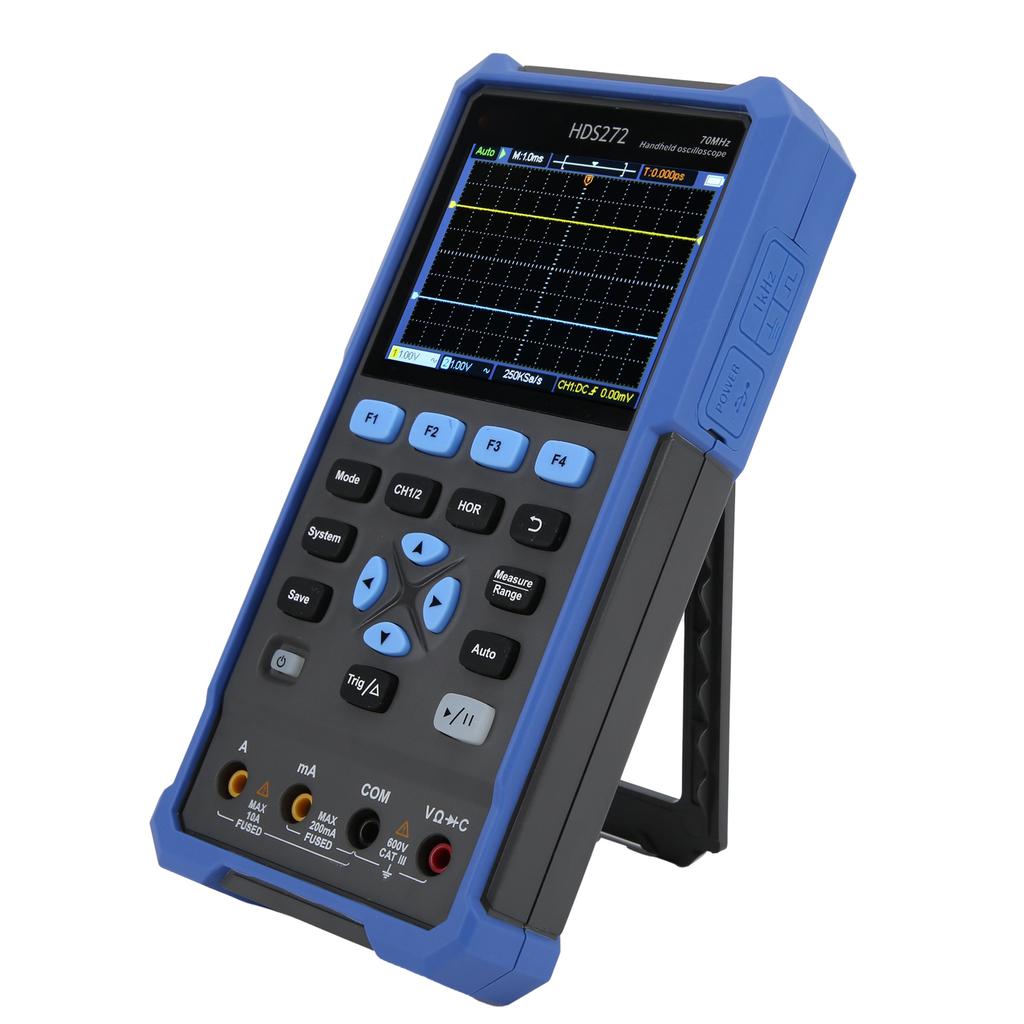

HDS272 HandHeld Oscilloscope Multimeter Tester with 3.5in LCD Display 70MHz Bandwidth

Feature: 1. Oscilloscope + multimeter 2 in 1 design, suitable for electrical signal parameter measurement. 2. Standard USB TYPE‑C interface, support power bank charging and host computer communication. 3. With 3.5‑inch LCD display, it is easy to display the measurement results, stable and reliable. 4. 70MHz bandwidth, 250MS s sampling rate, 8K storage depth, 10000wfrms s waveform refreshing rate. 5. Small in size, easy to carry, supports automatic measurement, and is widely used in circuit function testing. Specification: Item Type: Oscilloscope Multimeter Material: ABS Model: HDS272 Battery: Polymerizable Lithium Battery 18650S22x2 4400mAh (Built In Battery) Power Adapter: AC100 240V Purpose: Measurement of electrical signal parameters Model HDS272 Bandwidth 70MHz Aisle Dual channel Real Time Sampling Rate 250MSa s (single channel), 125MSa s (dual channel) Sampling Mode Normal, peak sampling Storage Depth 8K Show 3.5in LCD Waveform Freshen Rate 10000wfrms s Input Coupling DC, AC, ground Input Resistance 1M Ohm + 2percent , in parallel with 16pF+ 10pF Probe Attenuation Coefficient 1X, 10X, 100X, 1000X Maximum Input Voltage 400V (DC+AC peak value, 1M Ohm input impedance) (10:1 probe attenuation) Bandwidth Limit 20MHz Time Base Range 5ns div 500s div, step by 1 2 5 system Vertical Sensitivity 10mV div 10V div Vertical Resolution 8bit Low Frequency Response ( 3db)

less than 10Hz at BNC Rise Time (Typical On BNC)

less than 5ns Trigger Type Edge trigger Trigger Method Automatic, normal, single Trigger Level + 4 divisions from the center of the display Automatic Measurement Frequency, period, amplitude, maximum, minimum, average, peak to peak, Cursor Measurement Voltage difference between cursors (△V), time difference between cursors (△T) Communication Interface USB TYPE C Digital Display 4½ (Maximum display 20000) Measuring Voltage, current, resistance, capacitance, diode, on off Input Resistance 10M Ohm Diode 0 2V Function Name Range Accuracy DC Voltage 200.00mV + (0.5percent +5 dig) 2.0000V 20.000V 200.00V + (0.3percent +3 dig) 1000.0V + (0.5percent +2 dig) AC Voltage 200.00mV 2.0000V 20.000V 200.00V + (0.8percent +5dig) 750.00V + (1percent +5dig) DC Current 20.000mA 200.00mA + (1percent +5dig) 10.000A + (2.5percent +2dig) AC Current 20.000mA 200.00mA + (1percent +5dig) 10.000A + (2.8percent +5dig) Resistance ( Ohm ) 200.00 Ohm 2.0000k Ohm 20.000k Ohm 200.00k Ohm 2.0000M Ohm + (0.8percent +3dig) 20.000M Ohm + (1percent +3dig) 100.00M Ohm + (3percent +3dig) Capacitance (F) 20.000nF 200.00nF 2.0000microfarad 20.000microfarad 200.00microfarad 2.0000mF + (3.0percent +10dig) Frequency Response (Hz) (40 1000) Hz Waves Output Frequency Sine waves 0.1Hz 25MHz Square Waves 0.1Hz 5MHz Sawtooth Waves 0.1Hz 1MHz Arbitrary Waves 0.1Hz 5MHz Sampling Rate 125MS s Number of Channels2 Output Amplitude 20mVpp 5Vpp (high resistance), 10mVpp 2.5Vpp (50 Ohm ) Waves Length 8K Vertical Resolution 14bits Output Impedance 50 Ohm . Package List: 1 x Handheld Oscilloscope1 x BNC to Clip1 x USB TYPE C Data Cable1 x Adapter2 x Test 1 x Probe Pen1 x Carrying Case1 x Calibration Pen4 x Plastic Ring1 x Plastic Cover1 x Clip2 x Manual
