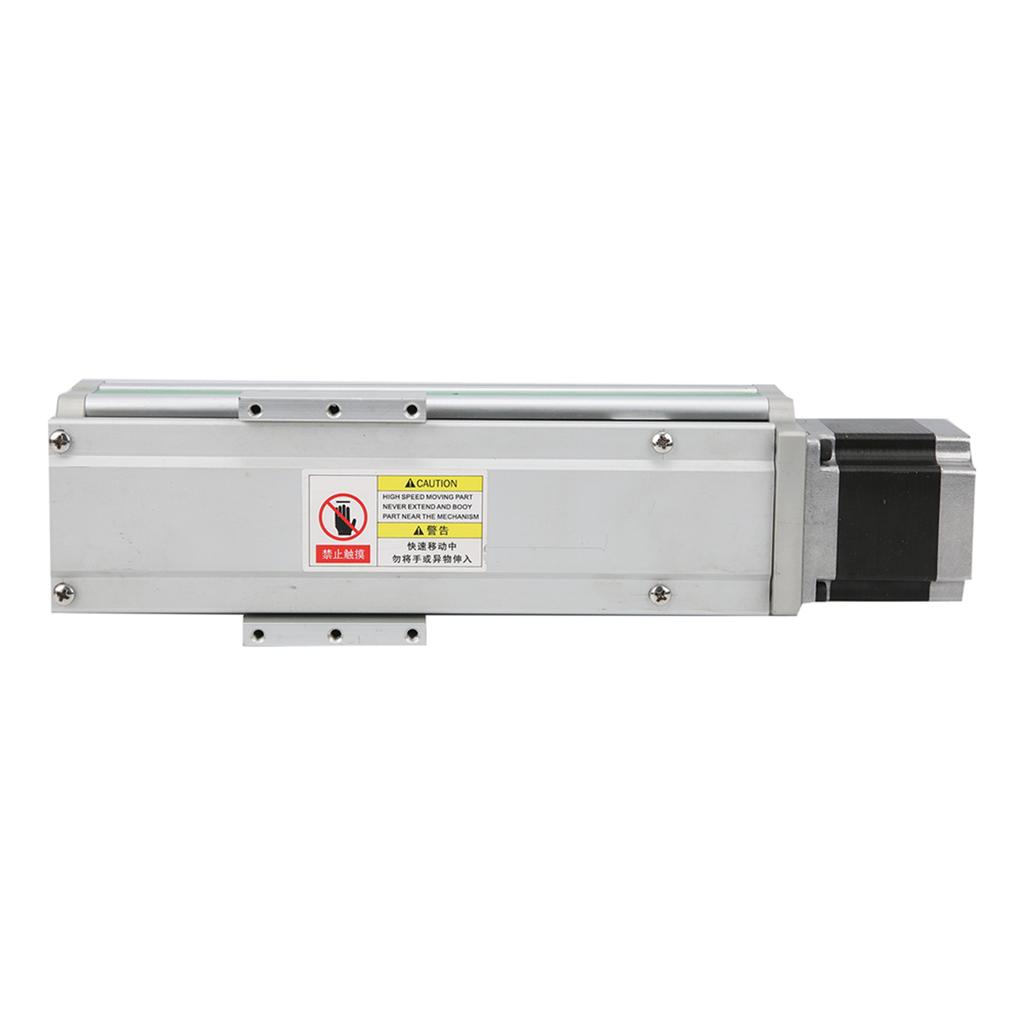

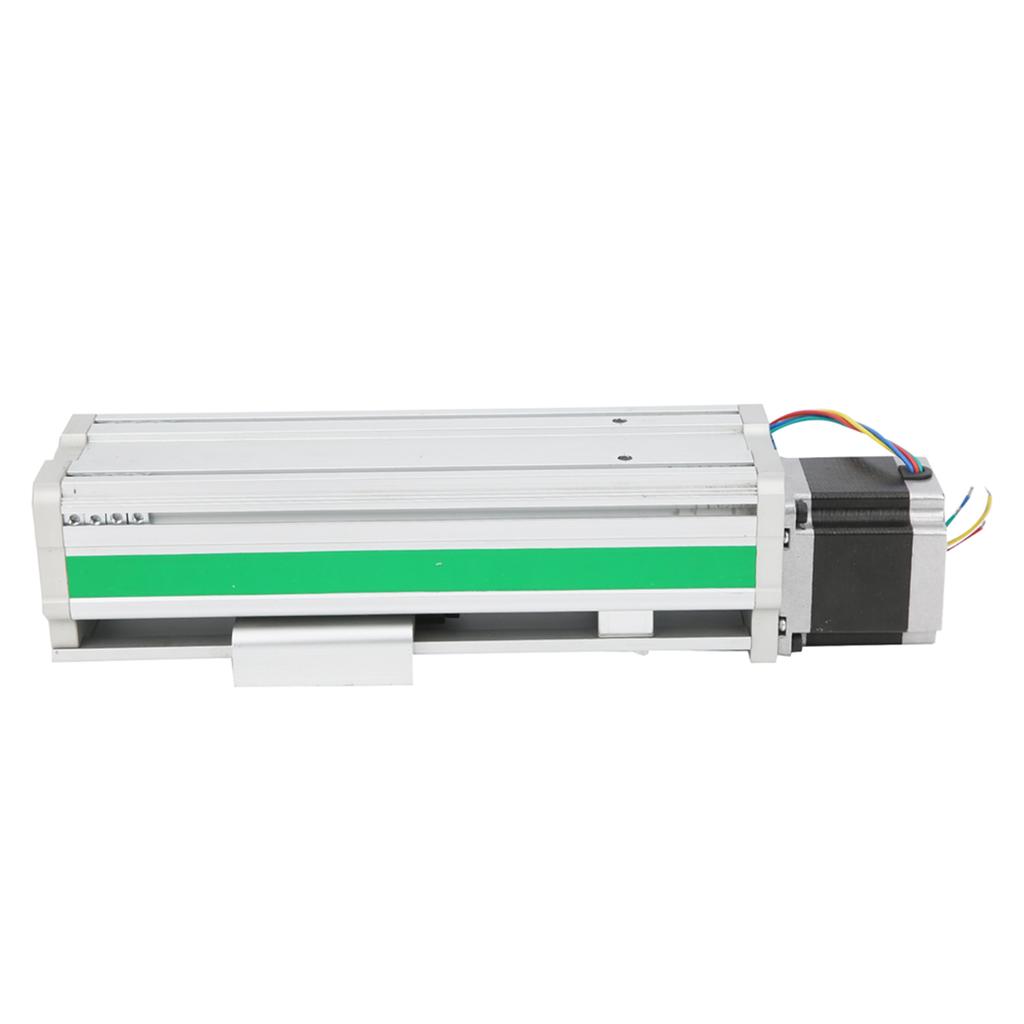

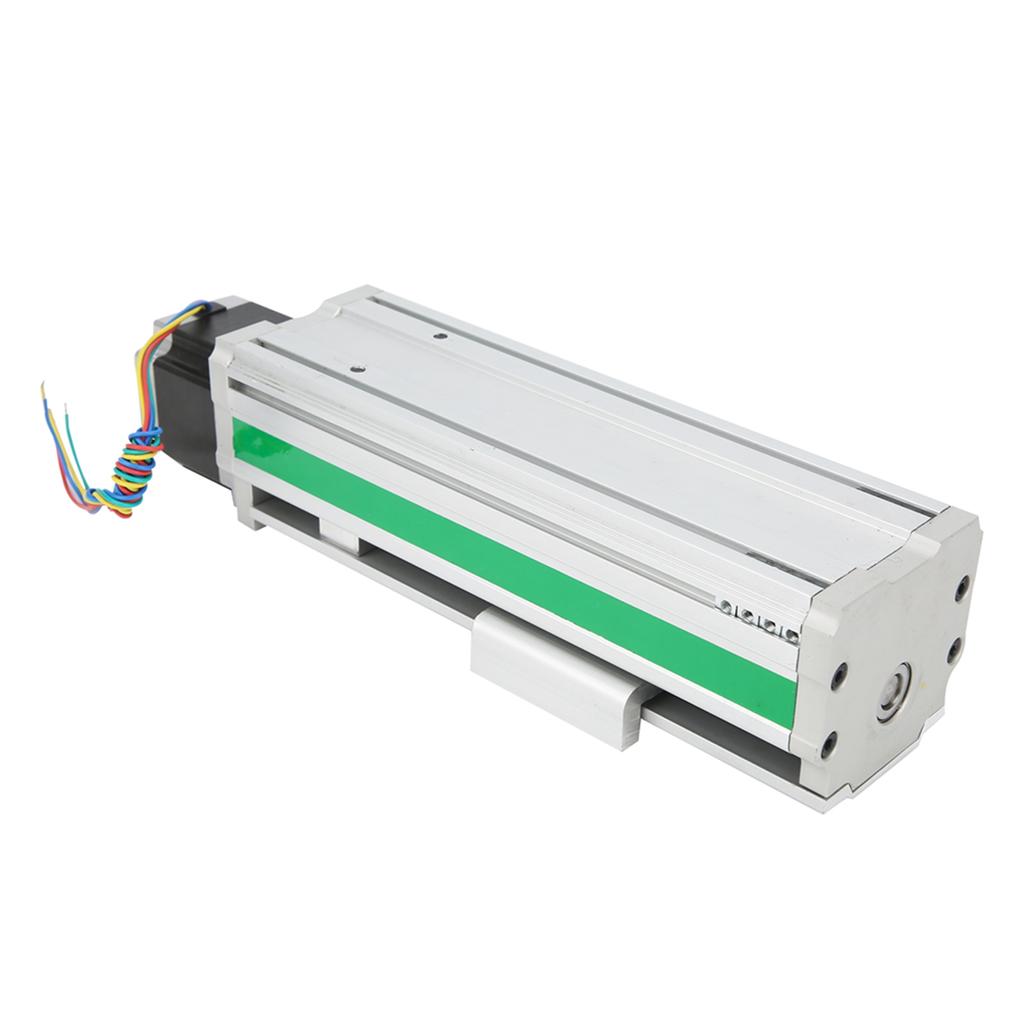

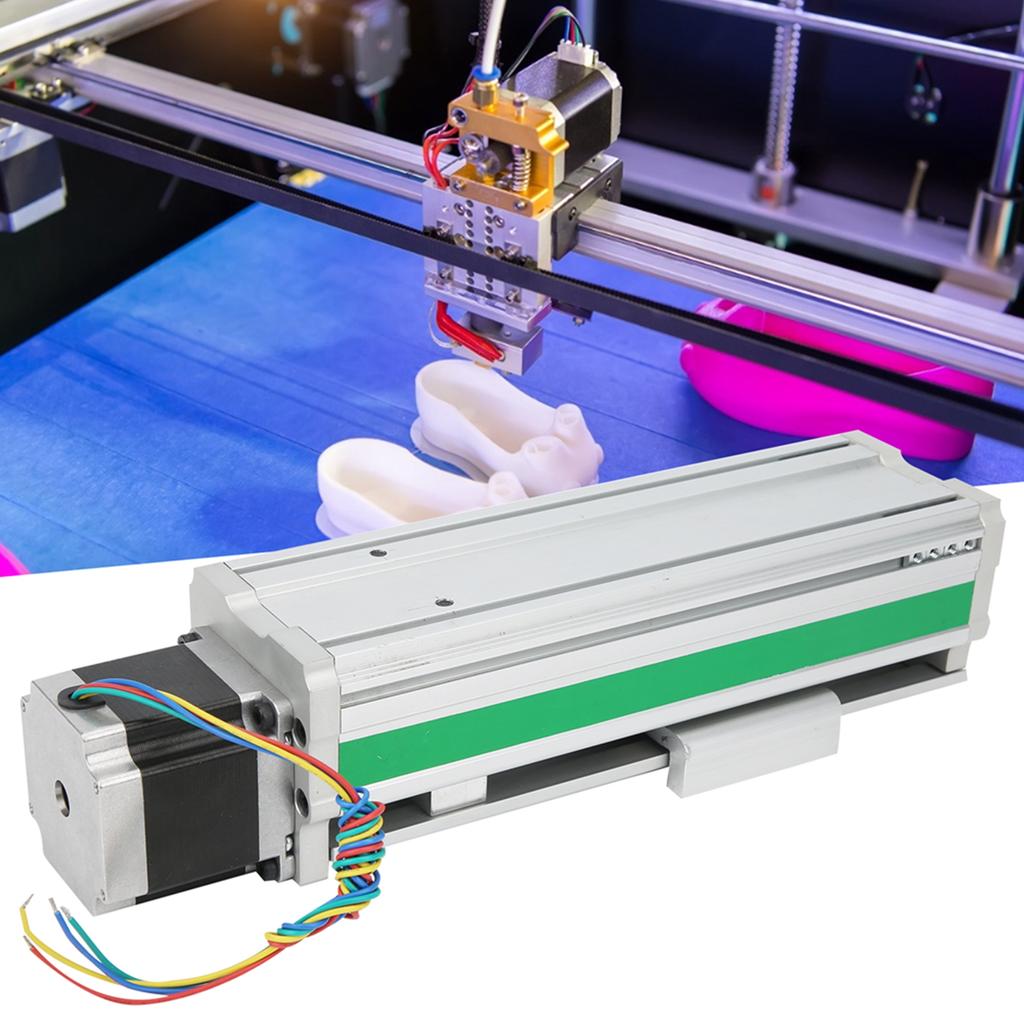

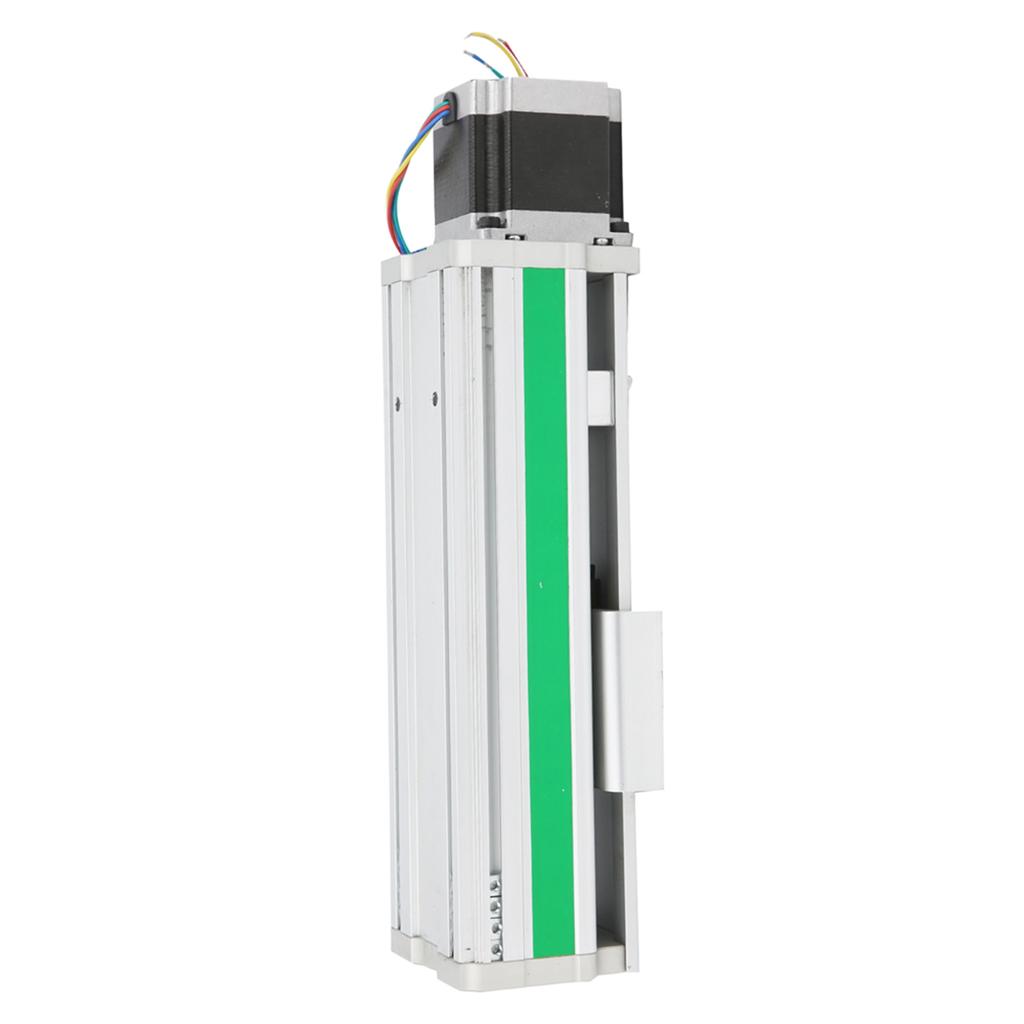

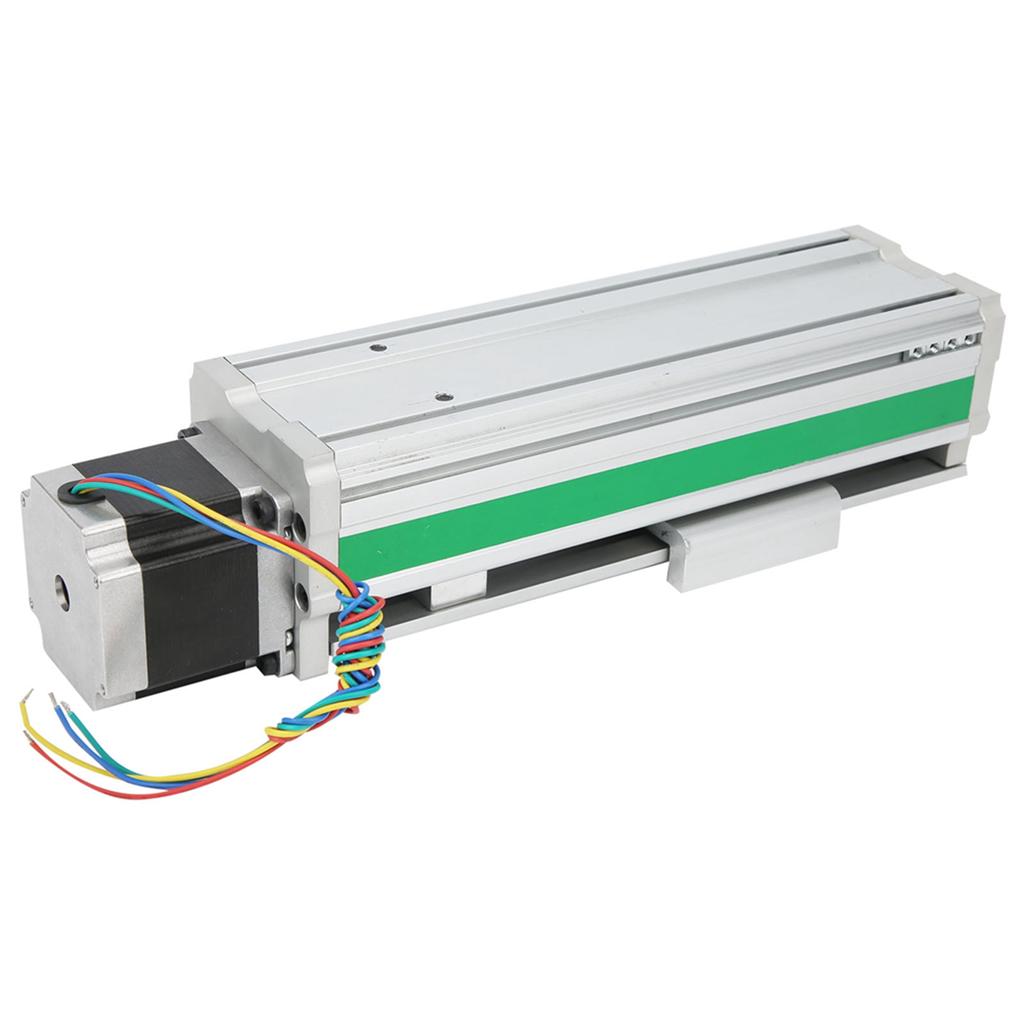

Slide Stage Actuator CNC Linear Guide Rail 75 Dustproof Module 100mm Stroke 57 56 Motor(FBX1610 )

Feature: 1. Adopt good quality aluminum alloy material, possess good strength and corrosion resistance 2. The ball screw consists of a screw, nut and ball. The rotation movement into a linear motion, possess a small frictional resistance 3. Well‑designed mounting holes, adjustable and easy to install on other devices 4. Slide linear rail stage come with high accuracy and heavy load resistance 5. The product have long life, low coefficient of friction, versatility Specification: Item Type: Slide Stage Actuator Product Description: Linear modules are often called accurate electric slides, servo slides, linear modules, single axis manipulators, XYZ robotic arms, single axis robots, XY tables, etc. in China. The single axis manipulator accurate electric sliding table is generally driven by a servo motor or a stepping motor to achieve accurate positioning, workpiece positioning, workpiece transfer and handling. Material: Aluminum alloy Effective Stroke: Approx. 100mm 3.9in Screw Diameter: Approx. 16mm 0.6in Horizontal Load: 30KG Vertical Load: 15KG Repeat Positioning Accuracy: 0.03 0.05mm Motor Model: 42 57 56 series stepping motor(this product come with 57 56 motor) How to Use: 1. Can be installed with the motor of the corresponding motor piece on the sliding table(this product come with motor) 2. Then use the driver and controller after connecting the power supply(if there is a PLC, no controller is needed)Size: Approx. 75cm 29.5in 60cm 23.6in 25cm 9.8in 82cm 32.3in 74cm 29.1in 6cm 2.4in 10cm 3.9in 52cm 20.5in Installation Size: Approx. 74mm 2.9in Total Height: Approx. 72mm 2.8in Size: Approx. 70.79mm 2.8in. Package List: 1 x Slide Stage Actuator1 x User Manual
