Product Description
JAN: 4573176135730 is a MALTA brand FBA registered product.
VAPON INDUSTRIAL

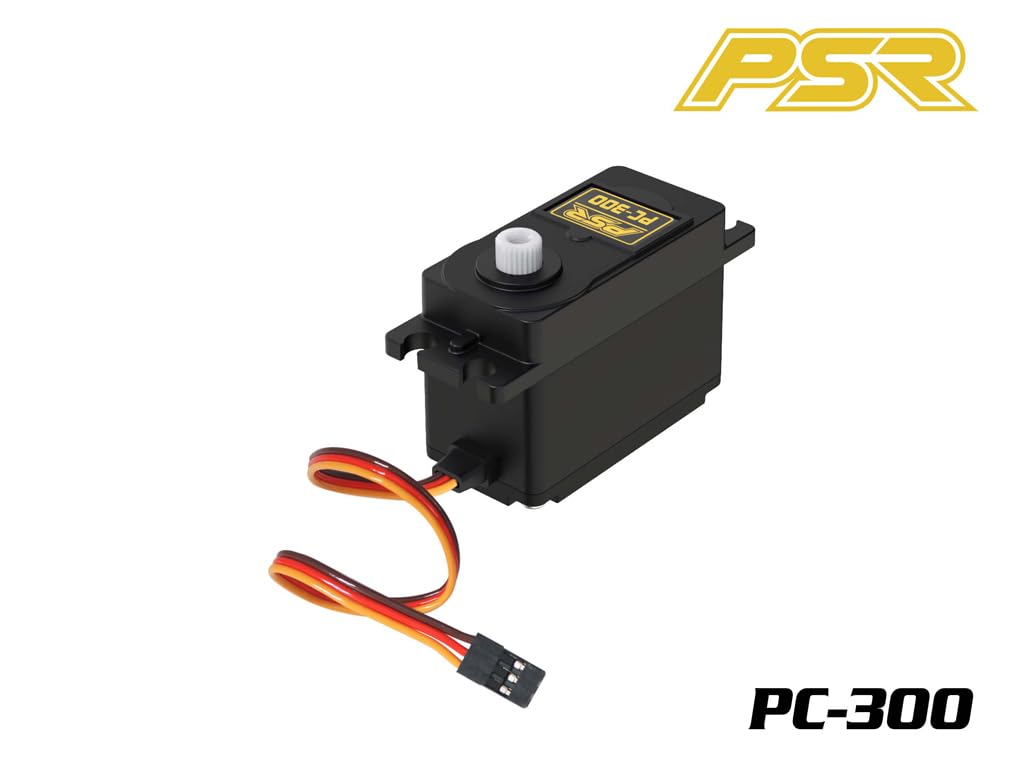

PowerStar PC-300 Thin Digital Servo for RC Cars (0.12 sec/5.0 kg) Low-Profile Size PC300
This low-power motor design allows for safe use even with entry-level ESCs and low-current BECs.
Specifications
Speed: 0.12 sec / Torque: 5.0 kg @ 6.0 V
Speed: 0.13 sec / Torque: 4.0 kg @ 4.8 V
Specifications
Servo Horn: FUTABA-compatible 25T spline
Gear: Plastic
Bearing: Metal
Case: Plastic
Motor: Brushed
Size: 40.8 x 20.2 x 30 mm (excluding cable)
Weight: 47 g (excluding cable)
Operating Voltage: 4.8 V - 6.0 V
Operating Temperature: -20 °C - 60 °C

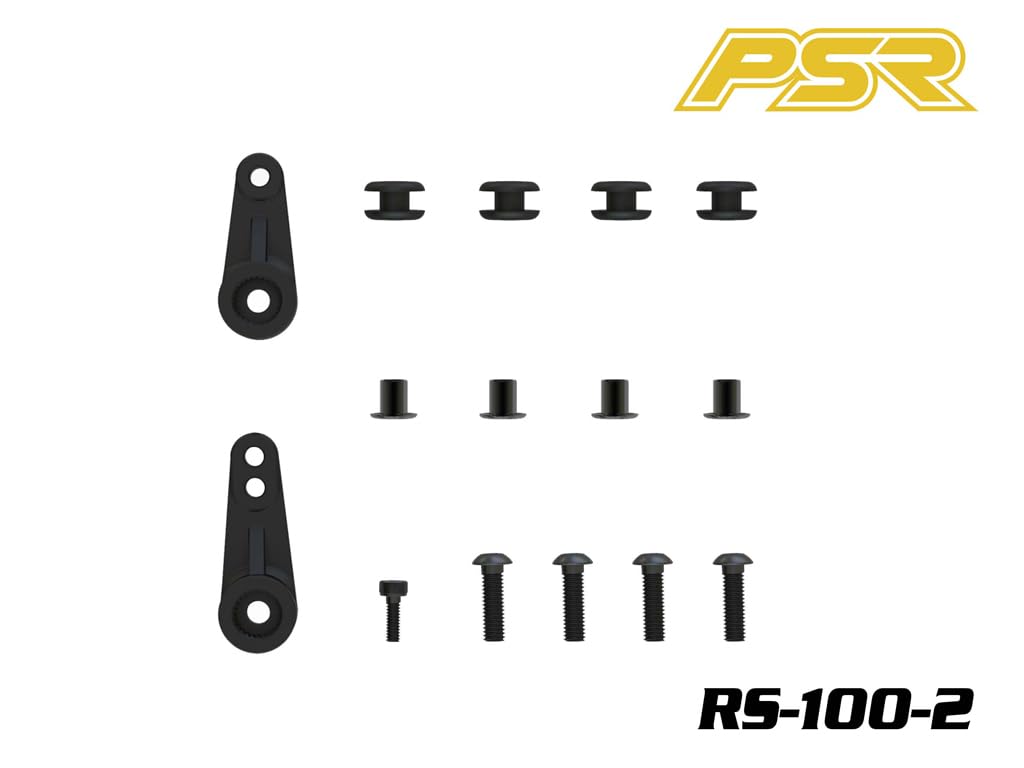

Accessories
- Anti-vibration rubber grommets, grommet collars, and mounting screws
- Four types of reinforced resin servo horns and horn screws
The following two replacement parts are available for purchase on Amazon.
・Spare Gear for PC300
・Spare Servo Case for PC300
Safety Warning
Servo connectors are arranged as follows: brown = signal, red = positive, black = negative. Connect them according to the receiver wiring. Connecting them the wrong way will prevent them from working.
MALTA - PowerStar PC-300 Slim Digital Servo (0.12 sec/5.0 kg) Low-Profile Size PC300
This servo features a low-power motor, so it can be safely used with entry-level ESCs' low-current BECs.
The servo horn is a FUTABA-compatible 25T spline.
