Feature:
1. Function: When the current exceeds the rated specification, the fuse will blow to protect the electronic equipment from overcurrent damage, and also avoid serious damage caused by internal faults in the electronic equipment.
2. Flame Retardant and Insulating Base: The PA66 base has good mechanical strength, insulation, heat resistance and flame retardancy, and will not break, deform, burn and short circuit during use.

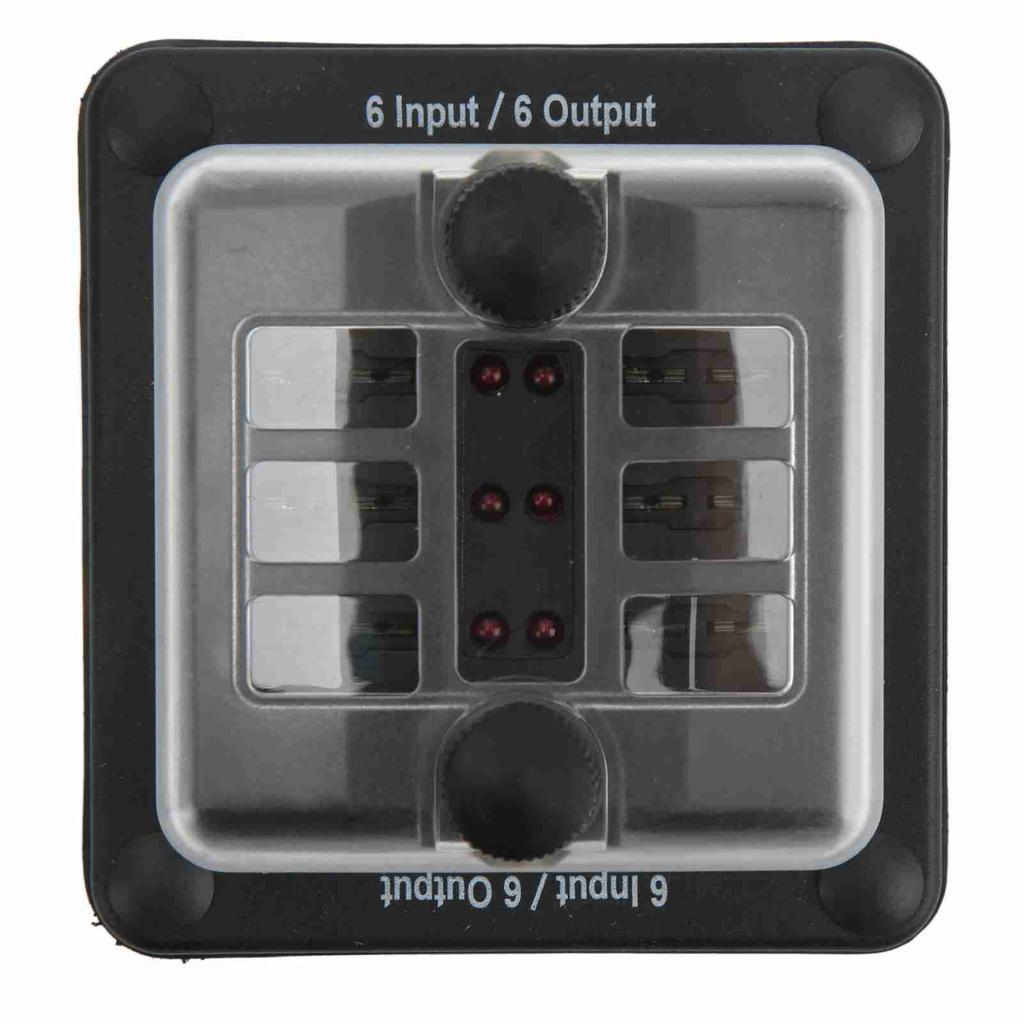

3. Red LED Indicator Design: The LED indicator corresponds to the electrical appliance connected to each fuse strip. When the fuse is disconnected, the red light will be on, which is convenient.
4. Waterproof: This fuse box has a waterproof rating of IP66 through the front waterproof cover, gasket and whole body sealing ring, and is suitable for large scale wading vehicles such as off road, RV, and boats.
5. Sticker Label: According to the name marked on the sticker, it can be attached to the electrical appliance we are connected to, and we can quickly identify which electrical appliance has a problem.
6. Easy Installation: All fastening accessories are made of stainless steel, the overall installation of the fuse box is relatively simple, and the fuse box is fixed with self tapping screws, which is safer.
Specification:
Item Type: 6 Way Fuse BlockInput Voltage: 12 32V
Input Rated Current: Main line 1 50A, main line 2 50A
Output Maximum Current: 20A per circuit
Material: PA66 base, PC dust cover, nickel plated copper terminals, stainless steel screws, rubber waterproof gasket, PP stickers
Mains Termination: 1015 12 (50A 32V DC maximum)
Single Wire Terminals: Copper Nickel Plated 1 4in (6.3mm) (20A 32V DC maximum)
Single Wire Diameter: 12 16AWG
Hole Size: Approx. 5.5x6.0cm 2.17x2.36inInstallation Range: Installed on cars, off road vehicles, RVs, buses, yachts, boats, etc.
Uses: Connect to the lines of any electrical appliances on the car ship, such as: dome lights, car headlights, width lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc..

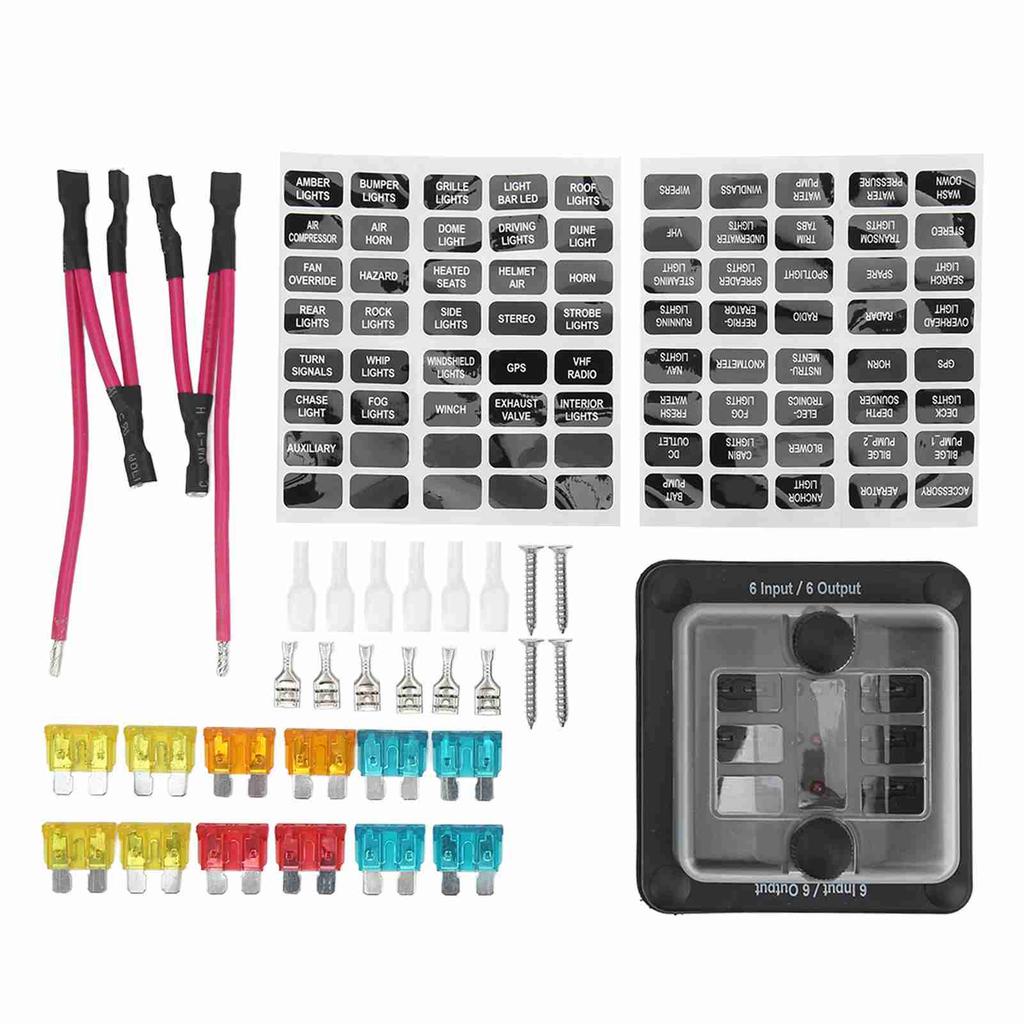

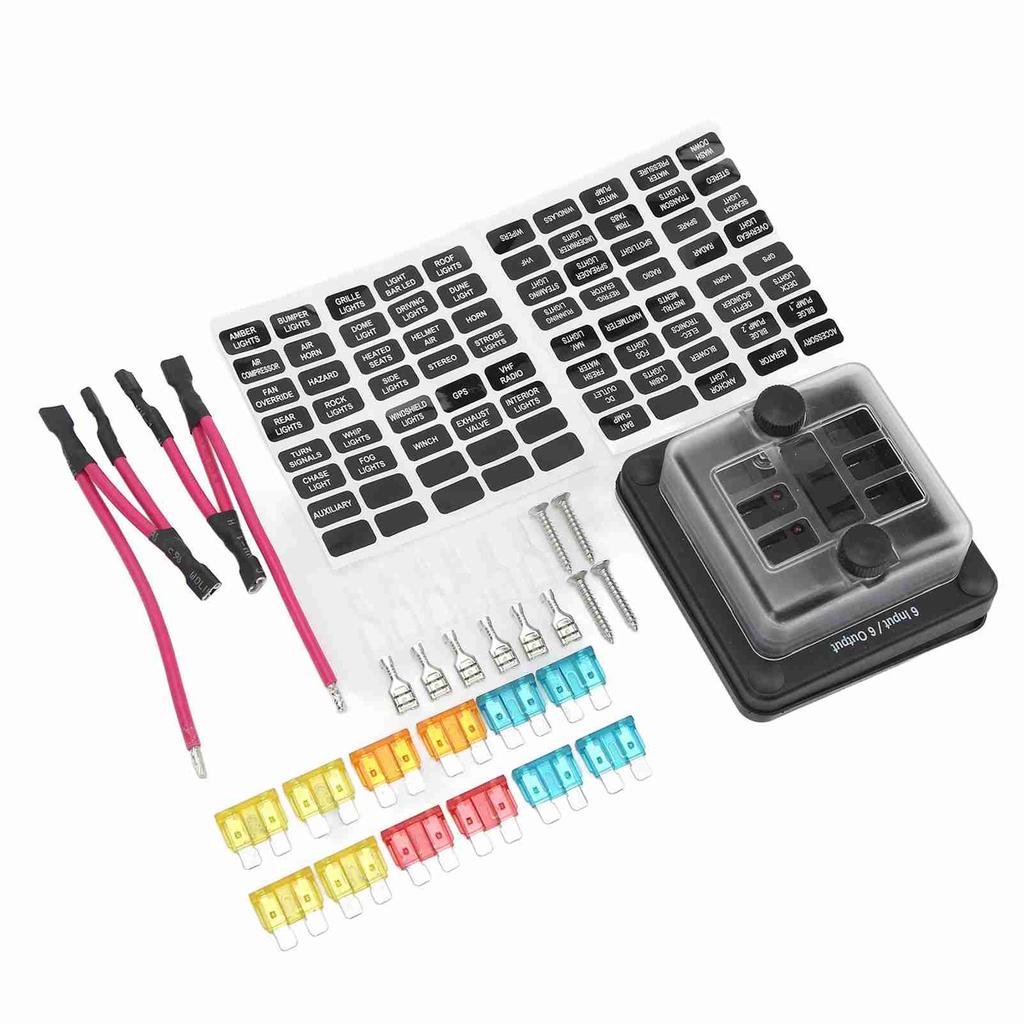

Package List:
1 x Fuse Box2 x Sticker4 x Self Tapping Screw1 x Black Sealing Ring4 x 20A Fuse Blade4 x 15A Fuse Blade2 x 10A Fuse Blade2 x 5A Fuse Blade2 x Series Long Terminal6 x Flat Terminal6 x Flat Terminal Protective Cover
