Feature:

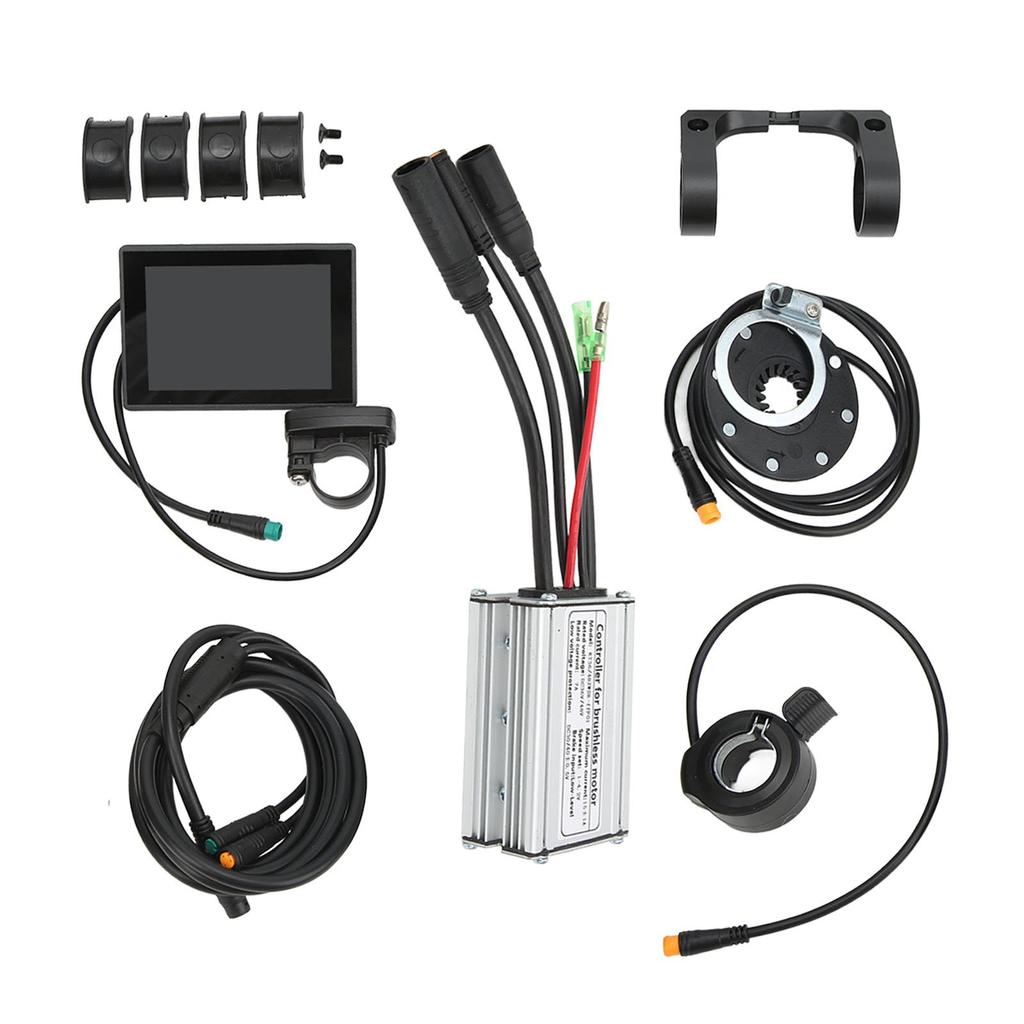

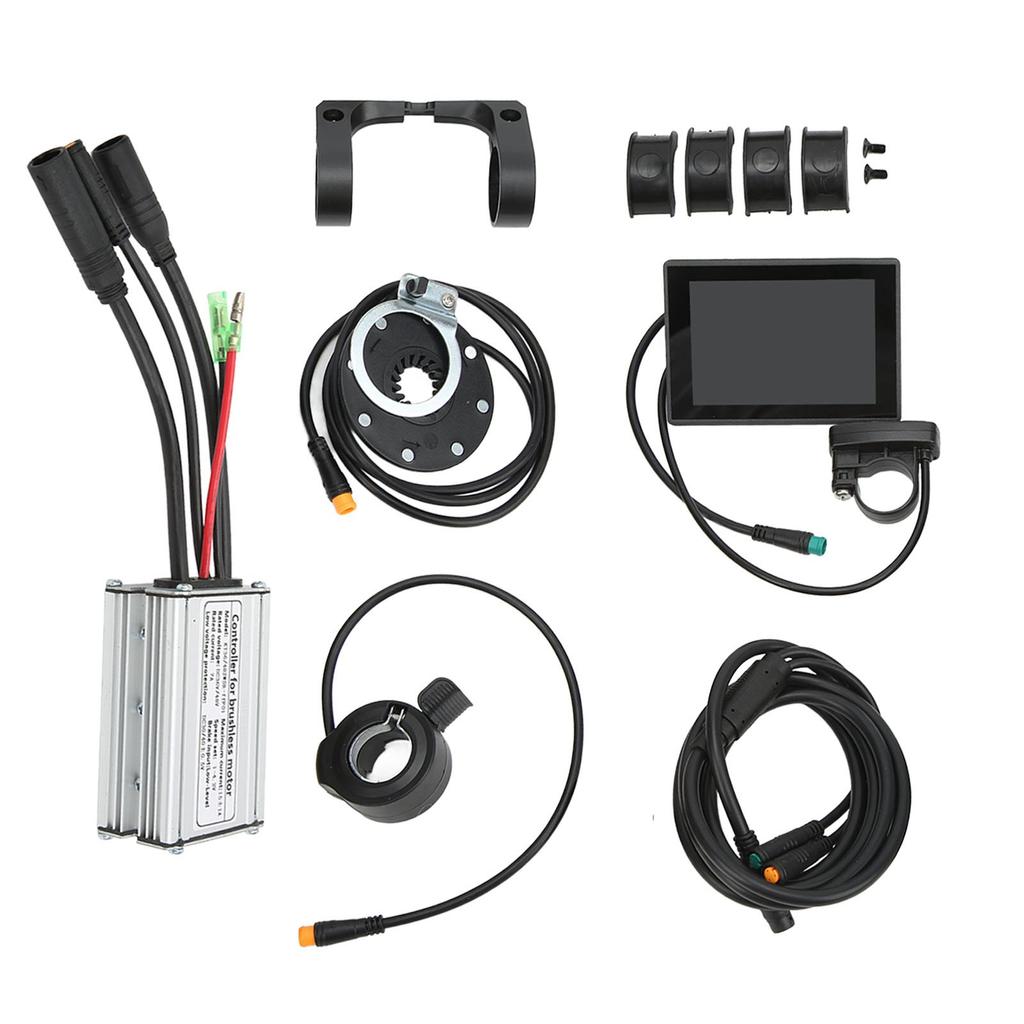

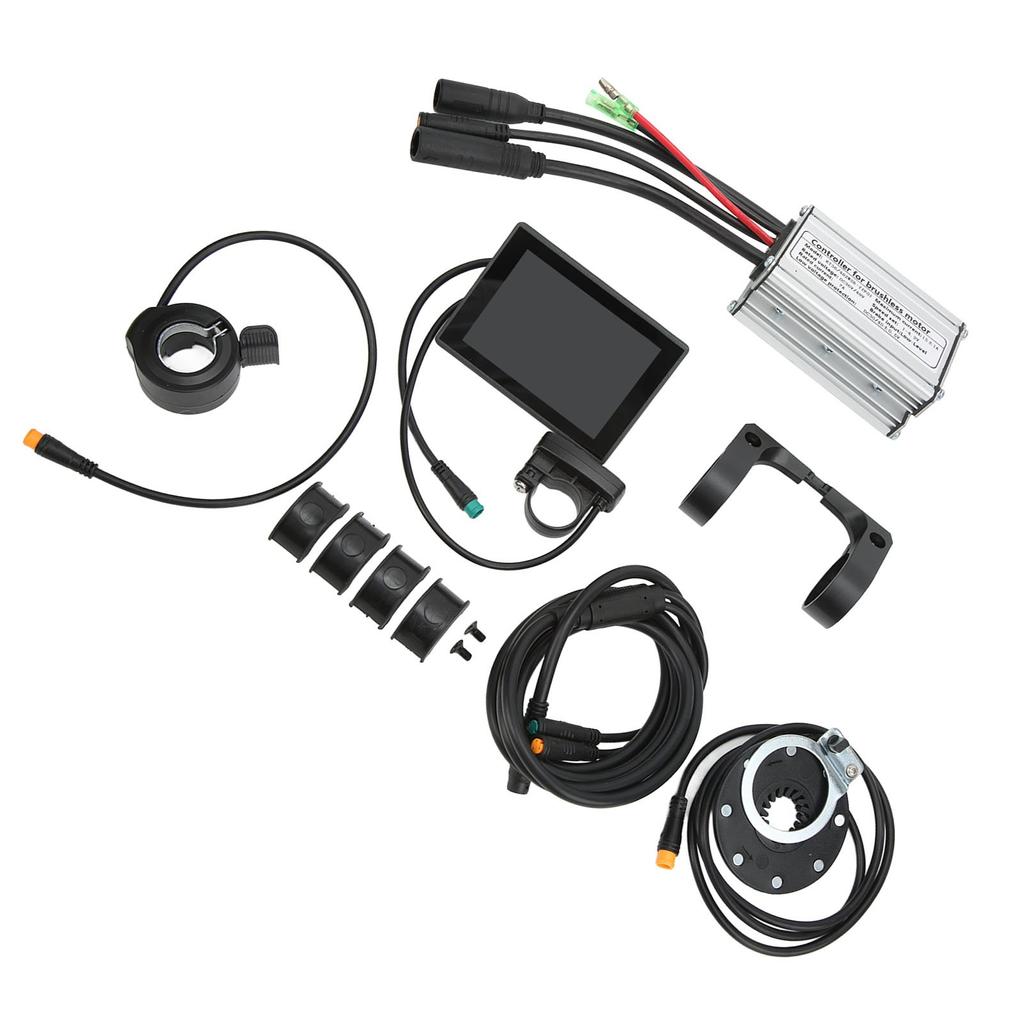

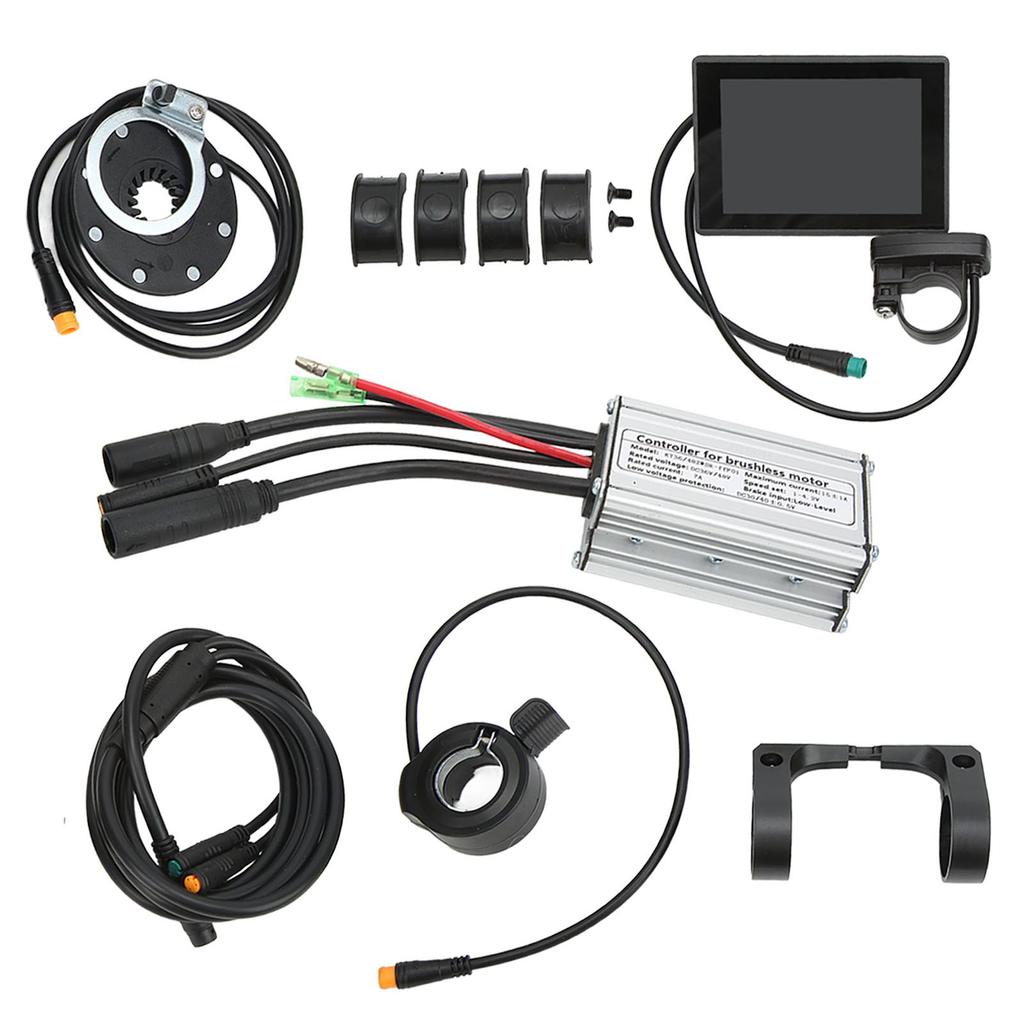

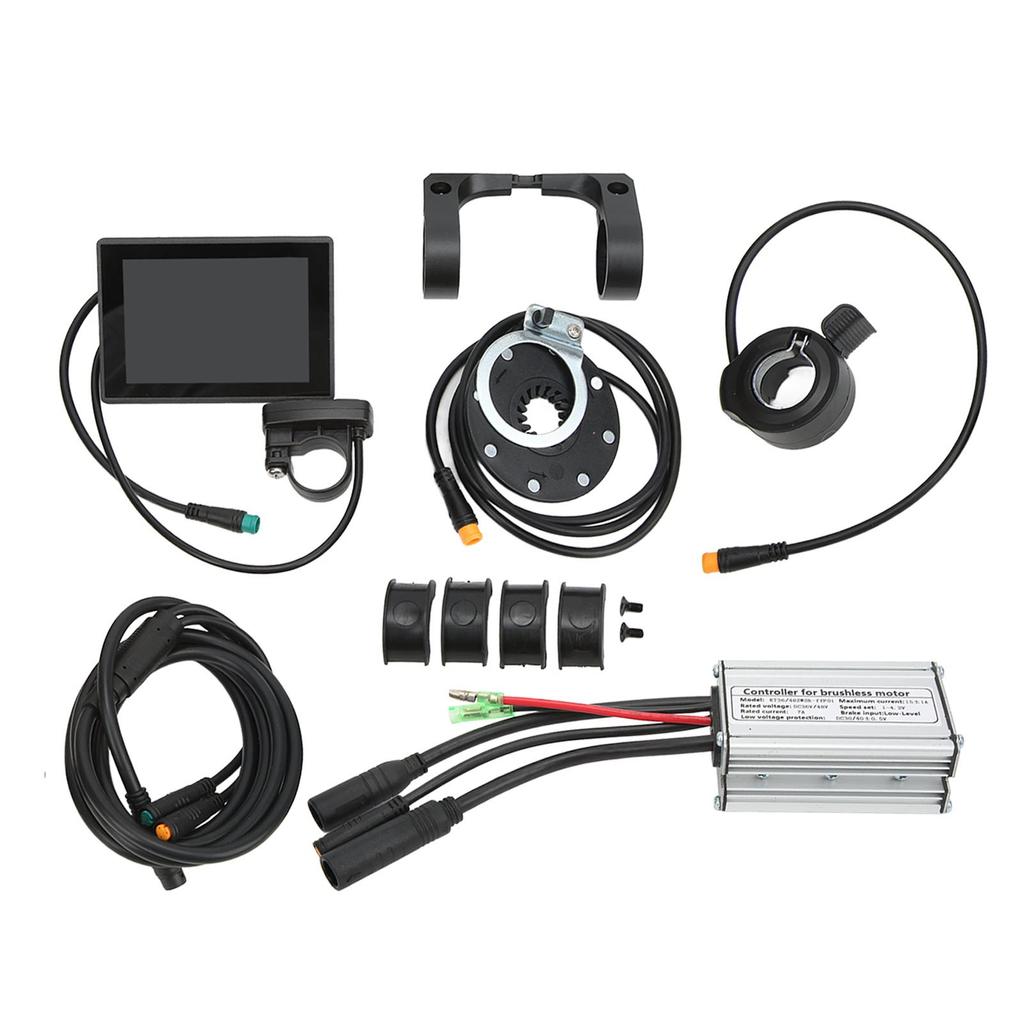

1. MODIFICATION KIT: Bicycle lithium battery modification controller kit, including 15A controller, LCD8S meter, 130X finger dial, 8C power assist sensor and 1 to 2 connecting wire, improve riding fun.
2. GOOD HEAT DISSIPATION: Electric bicycle conversion kit, metal controller shell, grooved design, good heat dissipation, provide internal circuit protection and avoid thermal overload.
3. WATERPROOF METER: Electric bike modified meter is made of high quality ABS material, with good toughness and waterproof performance, providing better protection, light and durable.
4. LCD DISPLAY: Electric bike controller kit with LCD8S meter, you can view the data on the panel more easily. Such as power, backlight, brake, temperature, travel time, speed, 6km h thrust assist, etc.
5. APPLICATION: 15A brushless motor controller kit for 250W, 350W brushless motors. Mainly used for DIY electric bicycles, electric scooters, folding bikes, etc, suitable for cyclists who like challenges.
Specification:
Item Type: Electric Bike Controller Kit
Material: Aluminum Alloy + ABS Plastic
Controller Box: Approx. 82 x 53 x 31mm 3.2 x 2.1 x 1.2in
Meter: Approx. 96 x 68mm 3.8 x 2.7in
Controller Rated Voltage: DC 36V 48V
Controller Rated Current: 7A
Controller Maximum Current: 15+ 1A
Controller Speed Setting: 1 4.2V
Controller Brake Input: Low Level
Controller Low Voltage Protection: DC 30 40+ 0.5V
Applicable Brushless Motor Power: 250W, 350W
Connector Type: Full Waterproof Connector
1 to 2 Wire Description: One end is connected to the controller, the other end is connected to the meter and finger dial
Controller Wire Definition:
1. Red, black single wire: Power wire
2. Black single large wire (9pin): Motor wire
3. Black single wire (9pin): 1 to 2 wires
4. Black single wire (3pin): PAS power assist sensor wire
LCD8H Meter Function Description: Up Button, Switch Button, Down Button, PAS Mark, Battery Capacity Indication, Power Display, Running Mark, One Way Time, Total Travel Time, Battery Voltage, Brake Display, 6km h Thrust Assist, Riding Speed (Metric), Maximum Speed, Average Speed, Distance Traveled, Total Distance, Backlight and Headlights, Ambient Celsius, Ambient Fahrenheit..
Package List:
1 x Controller1 x Meter1 x Meter Mounting Bracket4 x Meter Mounting Bracket Gasket2 x Meter Mounting Bracket Screws1 x Meter Manual1 x Throttle Finger Dial1 x Power Assist Sensor1 x Controller Wiring Manual1 x One to Two Connecting Wire
Note:
1. Retrofit kits must be fully waterproof kits.2. Manual measurement, please allow some errors.
