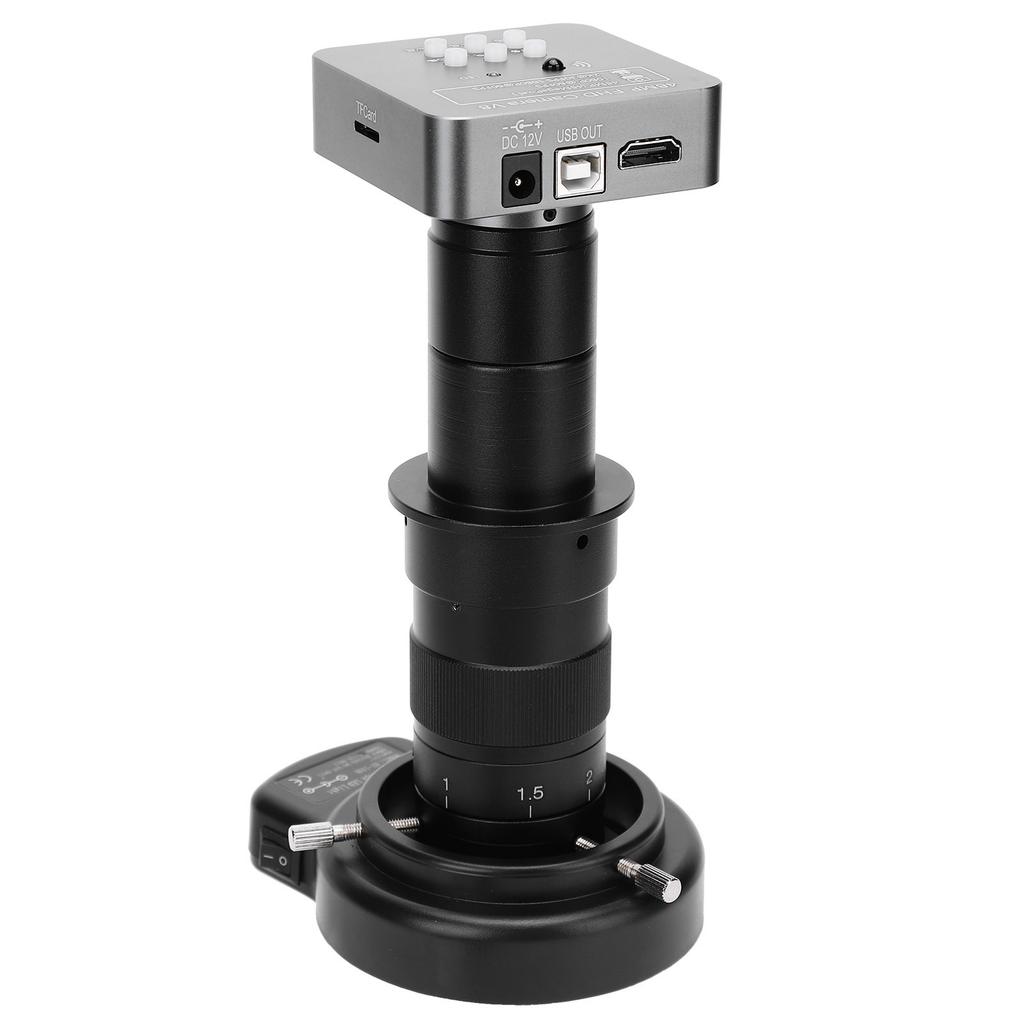

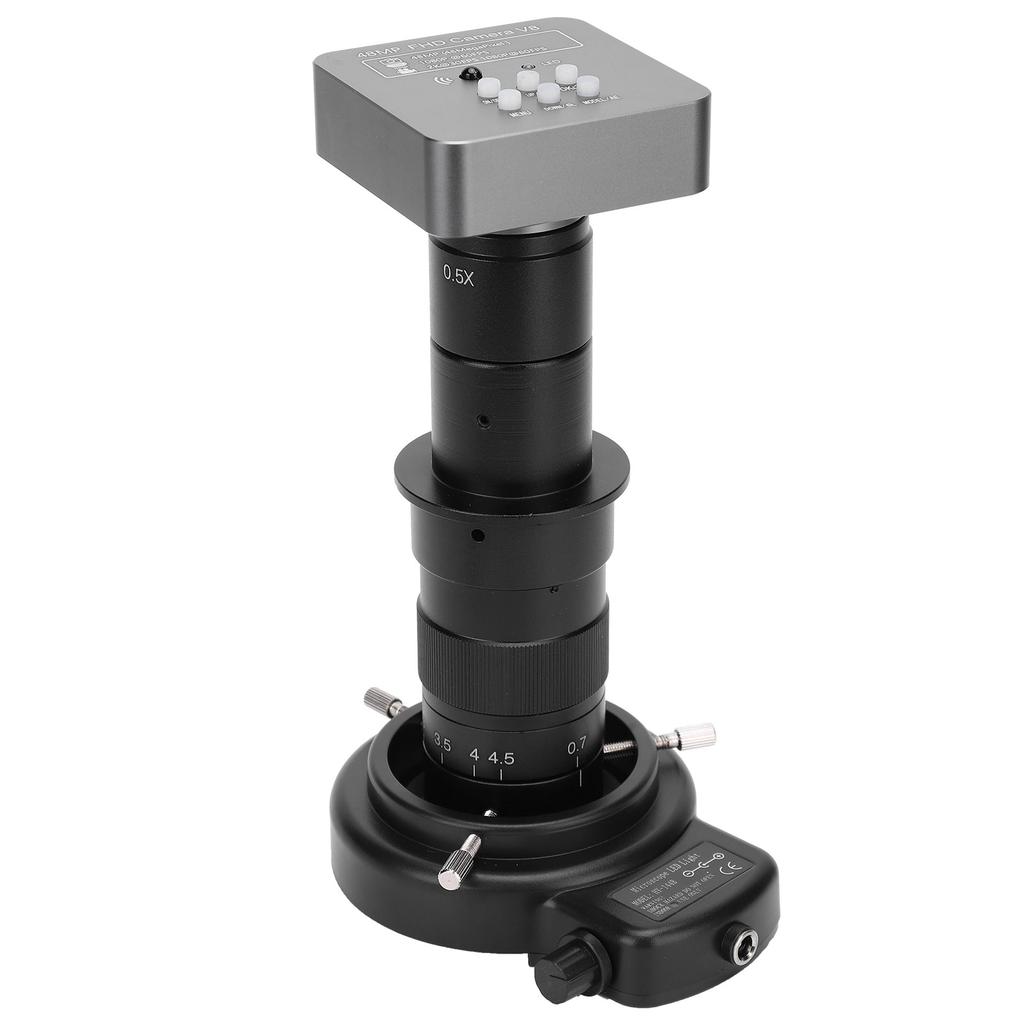

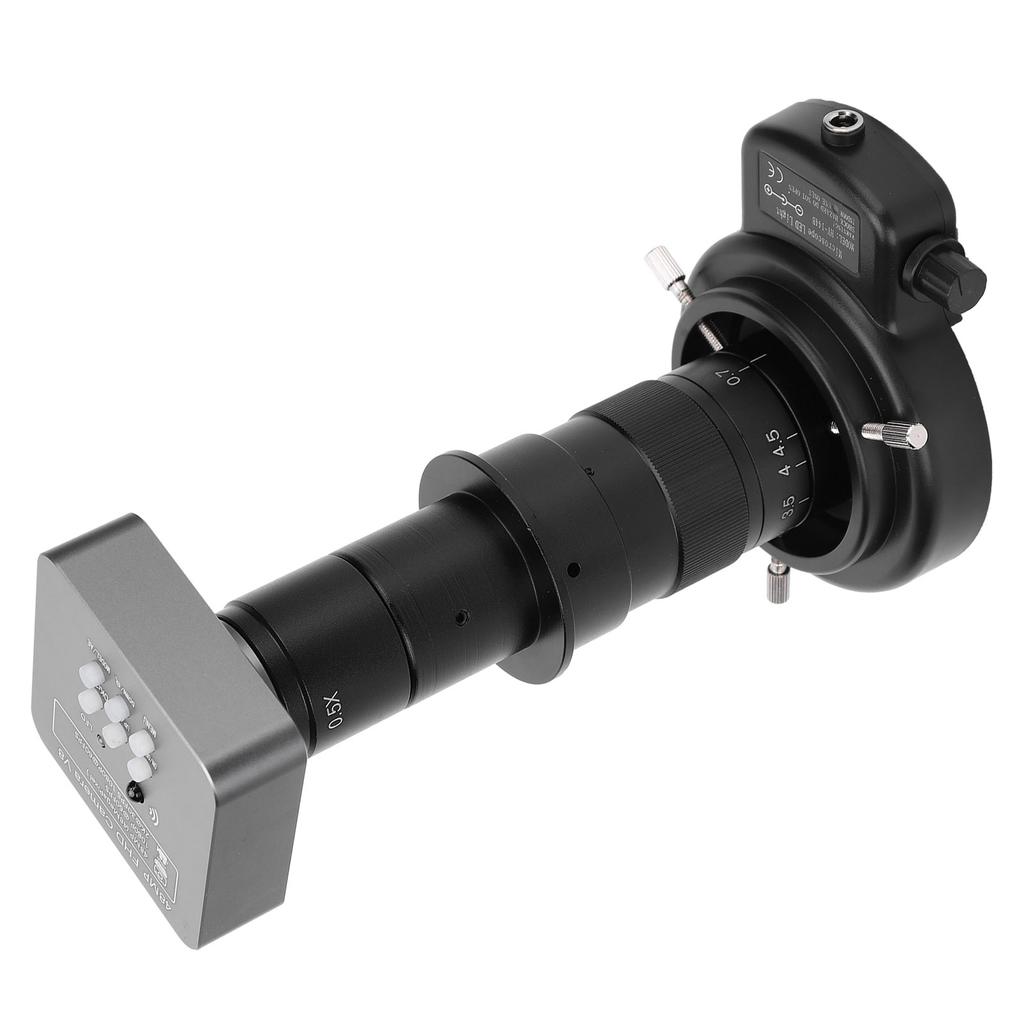

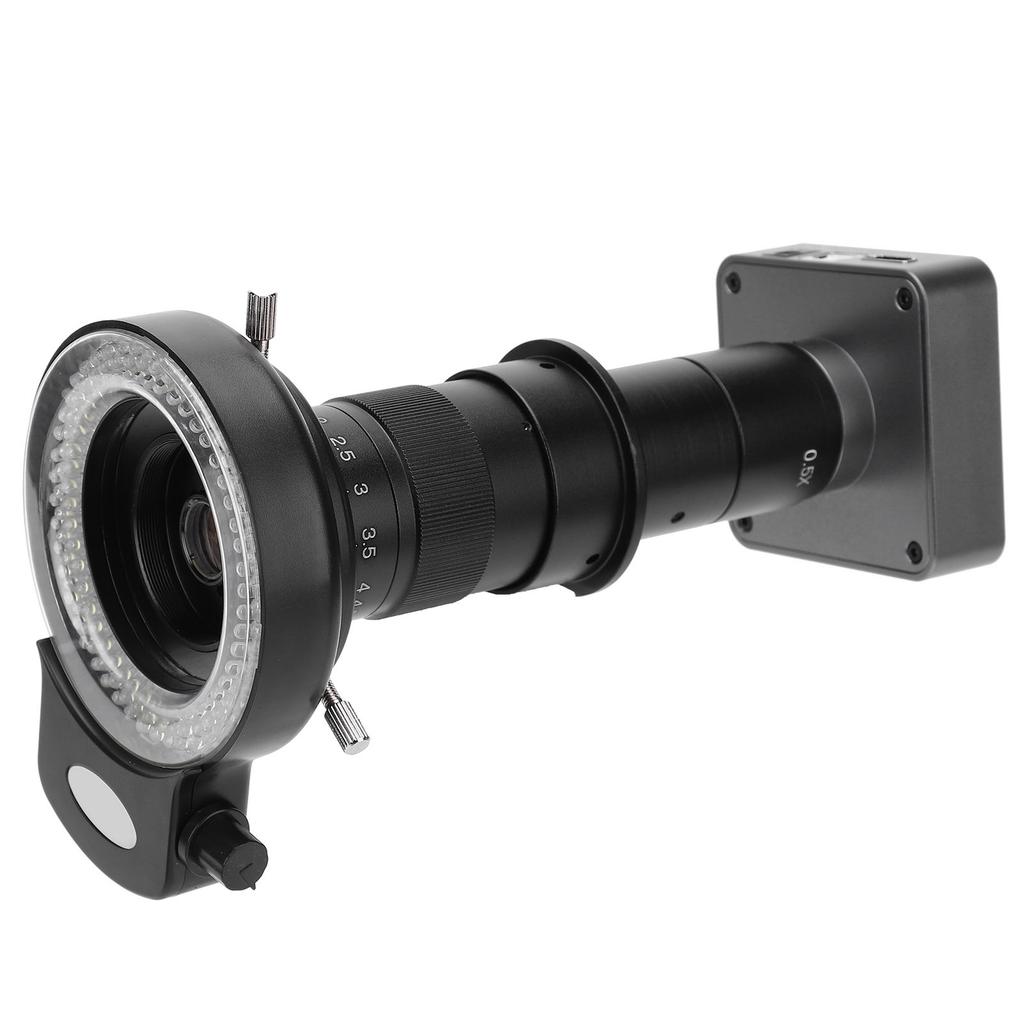

Microscope Camera 48Mp100X Lens56LED Light FHD HDMI USB for Phone PCB Welding

Feature: 1. Widely used in the fields of microelectronics, molds, jewelry, ticket verification, printing, mobile phone repair schools, etc. 2. Especially suitable for observing the surface microstructure of large objects. 3. Using high‑quality materials, strong and durable, has a long service life. 4. HD camera with 48 megapixel CMOS sensor 1 2.3 inch, with HDMI USB port. 5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind. Specification: Item Type: Microscope Camera Module: 1135 Sensor: 48MP CMOS Optical Format: 1 2.3 inch Pixel Size: 1.335micrometer‌x1.335micrometer‌ Interface: HDMI (Type A). USB (Type B). Small memory card HDMI Image Resolution: 48MP Video Resolution: 2K at 30FPS 1080p at 60FPS HDMI Resolution: 1920 x 1080p 60FPS Can output USB at the same time HDMI Scale: Support 4: 3,16: 9,16: 10 screen USB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 480 at 30FPS Small Memory Card: Up to 128GB (not included) AWB: WB color correction automatic manual R.G.B value setting independent Exposure: Automatic manual. AE value can be set Cross Line: 8 lines, color, width, position can be set Scale Line: 2 lines. Dotted Line: 2 lines, color, width, position can be set Sharpness Contrast Color Gain: Support Mono Negative Film: Support Mirror: Horizontal and vertical mirror Language: English Simplified Chinese Digital Zoom: Support Infrared Remote Control: Support Voltage Input: DC 12V Power Supply Voltage: Input: AC100 240V Output: DC12V Power Consumption: Maximum 0.15W 12V, 0.12A Lens Interface: C CS port Remote Control Battery: 1 x 2302 button battery (delivered without battery) 180X C lens Working Distance: Approx.95mm 3.7in Zoom C mount lens 0.5X Type C adapter Scaling Ratio: 6.5: 1 Objective lens magnification 0.7 4.5X (approximately 10 180X on the screen) Size: L X DIA: Approxc.180 x 50mm 7.1 x 2in (180x maximum working distance approx.11.5cm 4.5in) 56 LED adjustable compact microscope ring light Provides strong and concentrated shadow free lighting 56 bright LEDs Variable lighting direction Variable power control Strong and concentrated shadowless lighting 100,000 hours of life Power Input: 100 240V, 50 60HZ, automatic switching The Inner Diameter of The ring Light: Approx. 27mm 1.1in Overall Outer Diameter: Approx. 45mm 1.8in Working Distance: Approx.27 120mm 1.1 4.7in Problem Solution: LCD no video or flickering 1. Check the power supply. Check if the red LED lights up. Press PowerKey to move it up. 2. Check the lens cover. Increase lighting. LCD has black bars and image distortion 1. Change the resolution of LCD 2. Change the camera resolution Dirty spots 1. Check the camera and lens, find the dust, and then cleanly it with absolute ethanol or detergent. Package List: 1 x 48MP Microscope Camera1 x Power Adapter1 x Infrared Remote Control1 x USB Cable1 x Software Compact Disk1 x HDMI Cable1 x Ring Light1 x Ring Light Power Supply
