Product Description
[Product Description]
Elevate your RC experience with the DS3245SG 45kg Servo (180°), a powerhouse of performance and precision designed for 1/8, 1/10, and 1/12 scale RC cars and trucks.
Electrical Specifications:
Operating Voltage Range: 5-8.4 Volts
No-Load Speed (5V): 0.18 sec/60°
No-Load Speed (7.4V): 0.13 sec/60°
No-Load Speed (8.4V): 0.11 sec/60°
Locked Stall Torque (5V): 35 kg.cm (13277.9 g-in)
Locked Stall Torque (7.4V): 46 kg.cm (6009.7 g-in)
Locked Stall Torque (8.4V): 51 kg.cm (777 oz)
Locked Stall Current (5V): 3.5A
Locked Stall Current (7.4V): 5.2A
Locked Stall Current (8.4V): 5.8A
Stopped Idle Current (5/7.4/8.4V): 5mA
Control Specifications:
Control Method: PWM (Pulse Width Modulation)
Pulse Width Range: 500-2500μsec
Neutral Position: 1500μsec
Travel Degree: 270° (500-2500μsec)
Dead Band Width: 2μsec
Operating Frequency: 50-330Hz
Rotation Direction: Counterclockwise (1500-2500μsec)
Applicable Environmental Conditions:
1. Storage Temperature Range: -30°C to 80°C.
2. Operating Temperature Range: -25°C to 70°C.
Mechanical Specifications:
1. Size: 40.0*20.5*40.5mm (1.57*0.79*1.59in)
2. Weight: 58g±2g
3. Limit Angle: 360°
4. Bearings: 2BB
5. Horn Gear Spline: 25T Diameter: 5.9mm
6. Case: Engineering Plastic + Aluminum Alloy
7. Connector Wire: 320mm±5mm
8. Motor: Coreless Brush Motor
9. Waterproof: IP66
10. CE/RoHS: Yes
Electrical Specifications:
1. Operating Voltage Range: 5~8.4V
2. Command Signal: Pulse Width Modified
3. Amplifier Type: Digital Controller
4. Pulse Width Range: 500~2500usc
5. Neutral Position: 1500usc
6. Travel Speed: 180±3° (PWM 500~2500usec) or 270±3° (PWM 500~2500usec).
7. Deadband Width: 3 usec
8. Rotation Direction: Counterclockwise (1000~2000usec)
Packing List:
1 x DS3245SG 45kg Servo Motor 180°

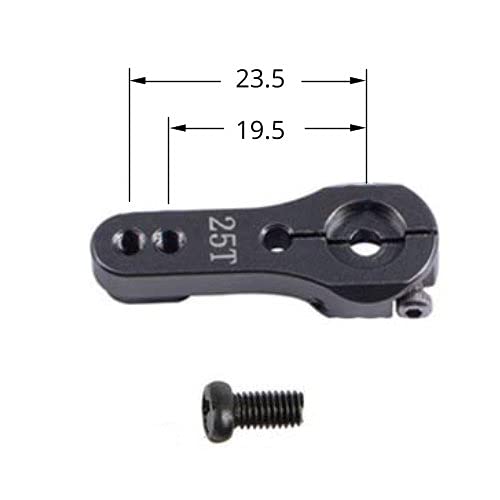

1 x 25T Adjustable Metal Servo Arm
1 Accessory Set (See Photo)
Safety Warning
Do not expose to sunlight.
The DS3245SG 45kg high-torque servo meets a variety of RC needs - highly compatible with off-road vehicles, crawlers, mechanical arms, robots, remote control boats, and 1/8, 1/10, and 1/12 scale cars.
No-load operating speed (8.4V): 0.11 sec/60°, boasting an impressive 51kg torque, making it ideal for heavy-duty RC enthusiasts.
Designed with high-precision steel gears and potentiometers, this servo features a high-resolution digital chip. Waterproof rubber seals and screws enhance durability. The servo is constructed with premium materials and a CNC aluminum middle shell, ensuring stable performance and a long lifespan.
This servo's durability, responsiveness, strong anti-interference capabilities, low noise, and efficient heat dissipation enhance your RC experience. Precision control allows for an angle range of 0 to 270 degrees, making it ideal for robot joint activities. When powered off, the servo can rotate within 360 degrees. Additionally, it comes with a generous 45mm long wire and a free 25T servo horn and accessories.
This user-friendly design and compatible with 1/8, 1/10, and 1/12 scale RC cars make it ideal for DIY enthusiasts. The package includes everything needed for hassle-free installation, making it the perfect upgrade for your RC rig.
