Precisions Milling Machine Worktable Multifunction Drill Vise Fixture Working Table Benches Drill Crossed Table Support

Name: Precisions Milling Machine Worktable Multifunction Drill Vise Fixture Working Table Benches Drill Crossed Table Support
SKU: 694bb53758be4e01b7cc98ee
Price: 278.3 RON
Availability: InStock

Prețul curent

Preț 278,30 RON

inclusiv TVA

Culoare şi mărime1

Livrare 6‑15 zile lucrătoare

Livrare 35 RON

Condiții de retur

Plăți sigure

Serviciul de asistență vorbește limba română

Safety & compliance

Producător

Descriere

Features: This workbench is suitable for benches drills and electric drill brackets series. It can also apply to other suitable machines.

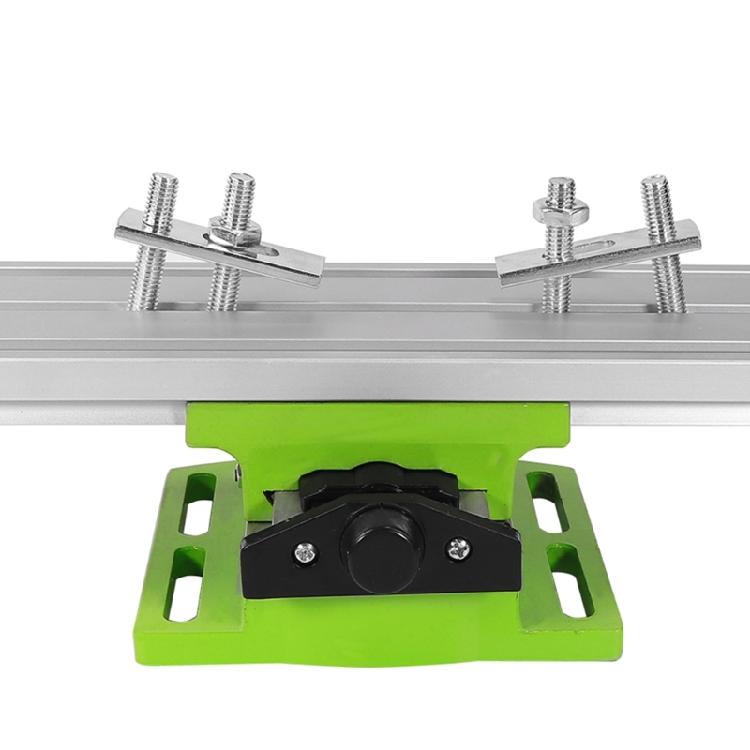

This workbench with several adjustable grooved aluminum, which can ensures minimal movement space and precisions.

The worktable of this workbench have three slots, and the standard size of the slots is 15X8X6mm.

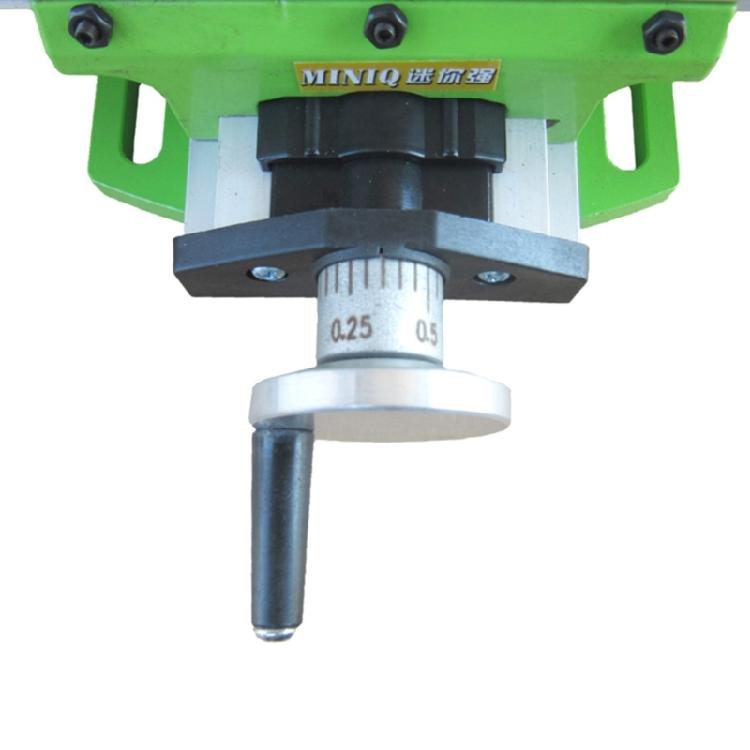

The measuring in front can be moved for positioning. The adjustment handwheel rotates once to 1.25mm. One small gridings is equal to 0.05mm.

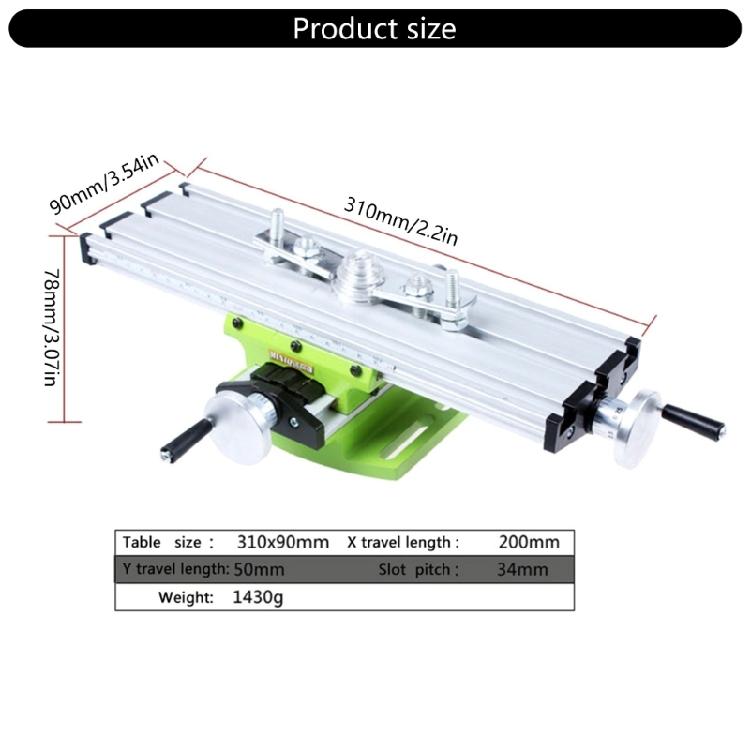

The travel length of the horizontal Axises is 200mm, and the travel length of the vertical Axises is 50mm. The size of the workbench is 310x90mm and the overall height is 80mm, including two work fixing clip.

Specifications: Material:ABS

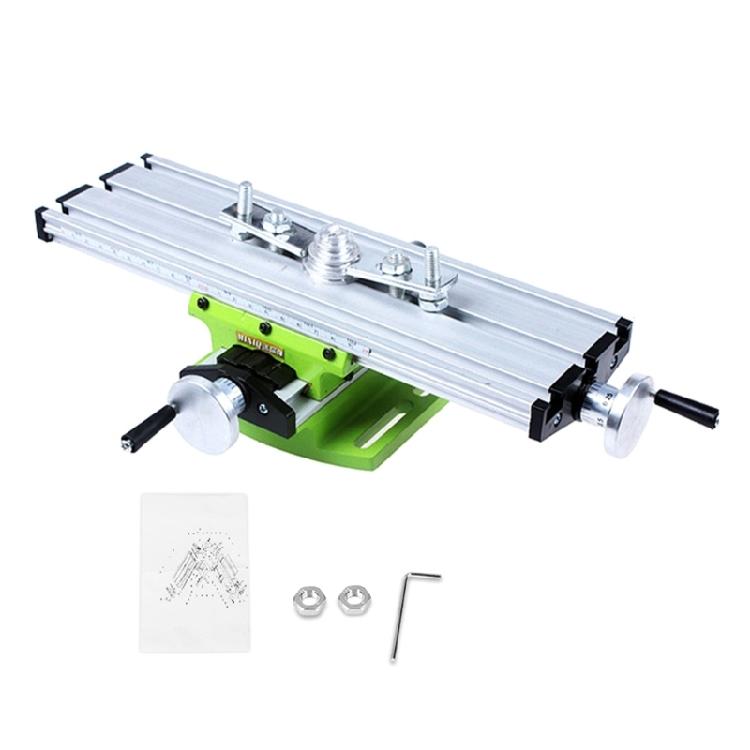

Package Includes: 1Set Milling Machine Worktable

note: Please allow 1mm errors due to manual measurement. Due to the differences between different monitors, the picture may not reflect the actual color.
