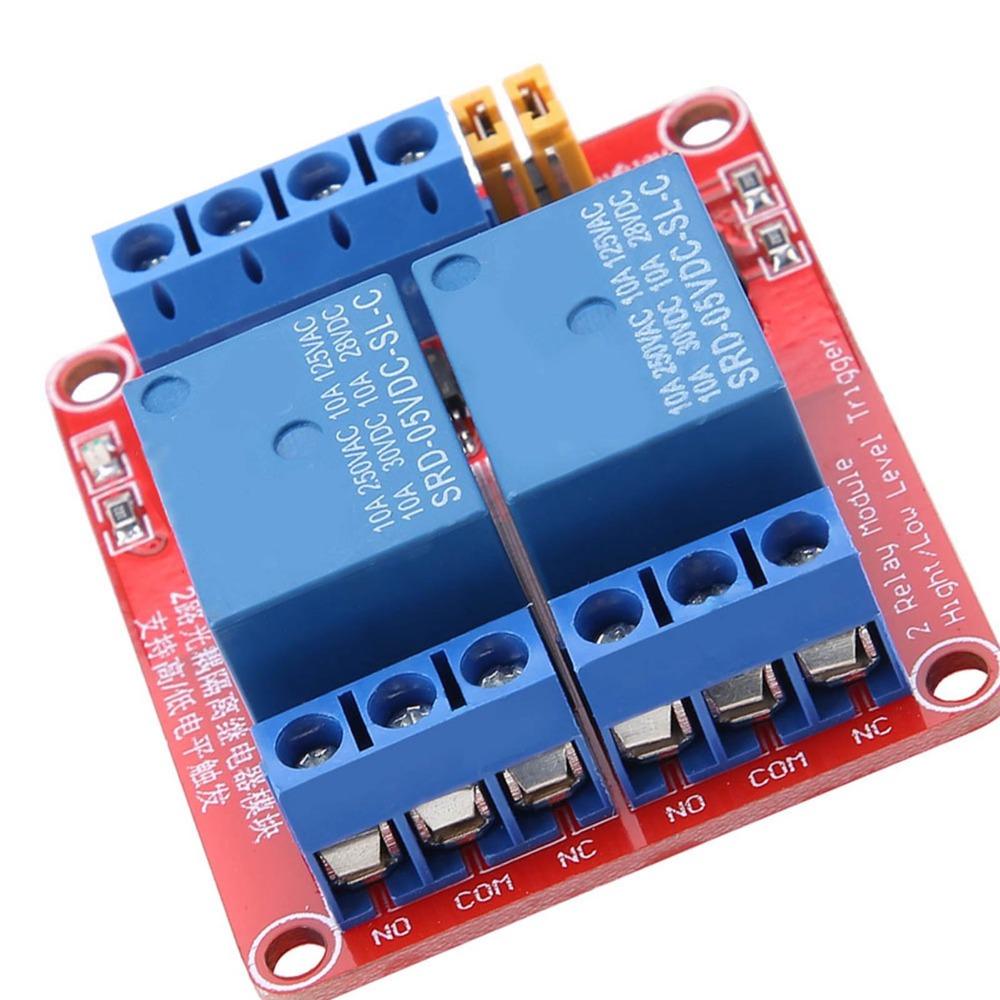

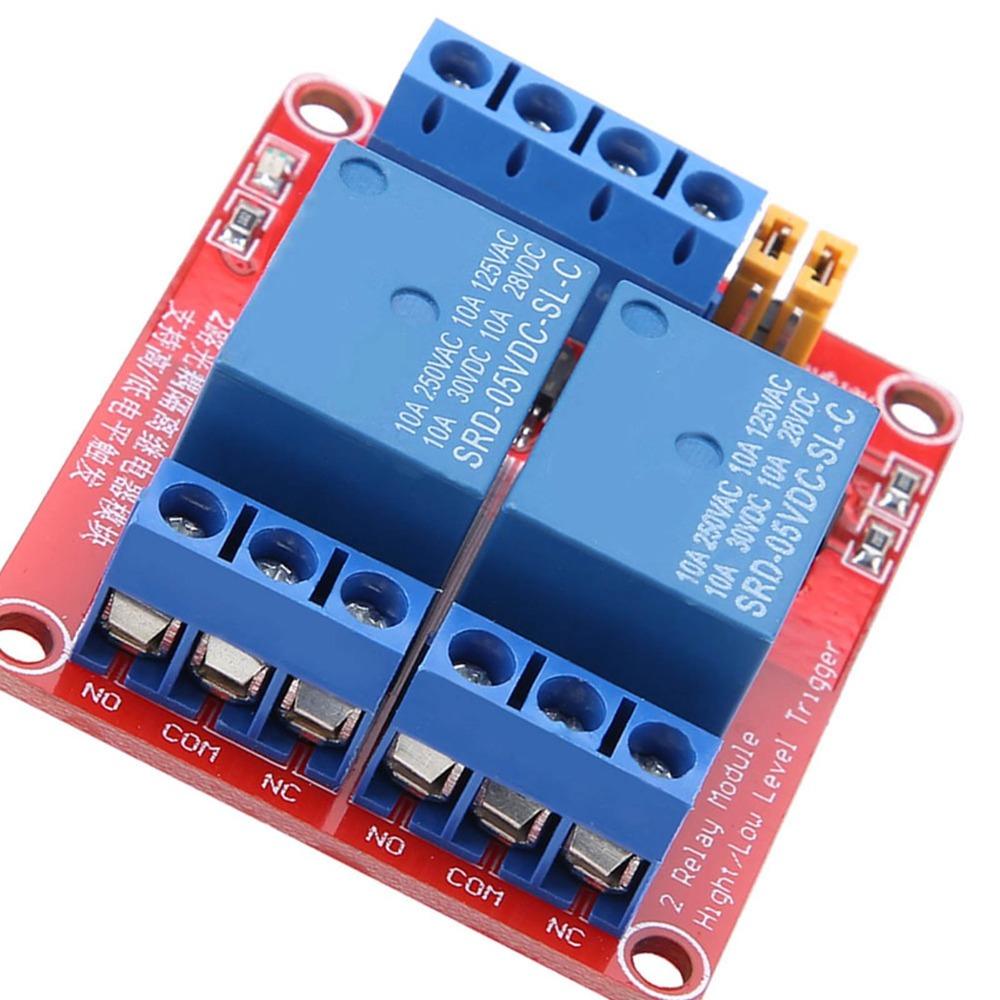

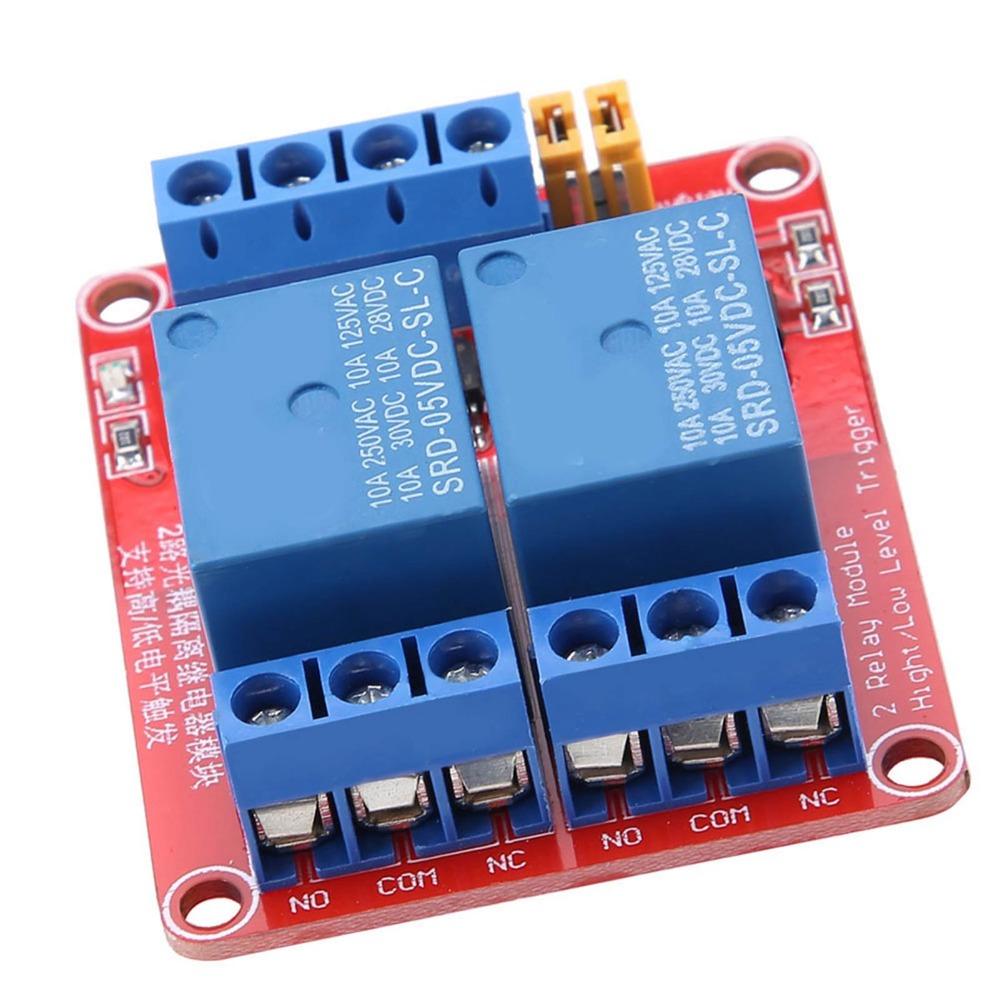

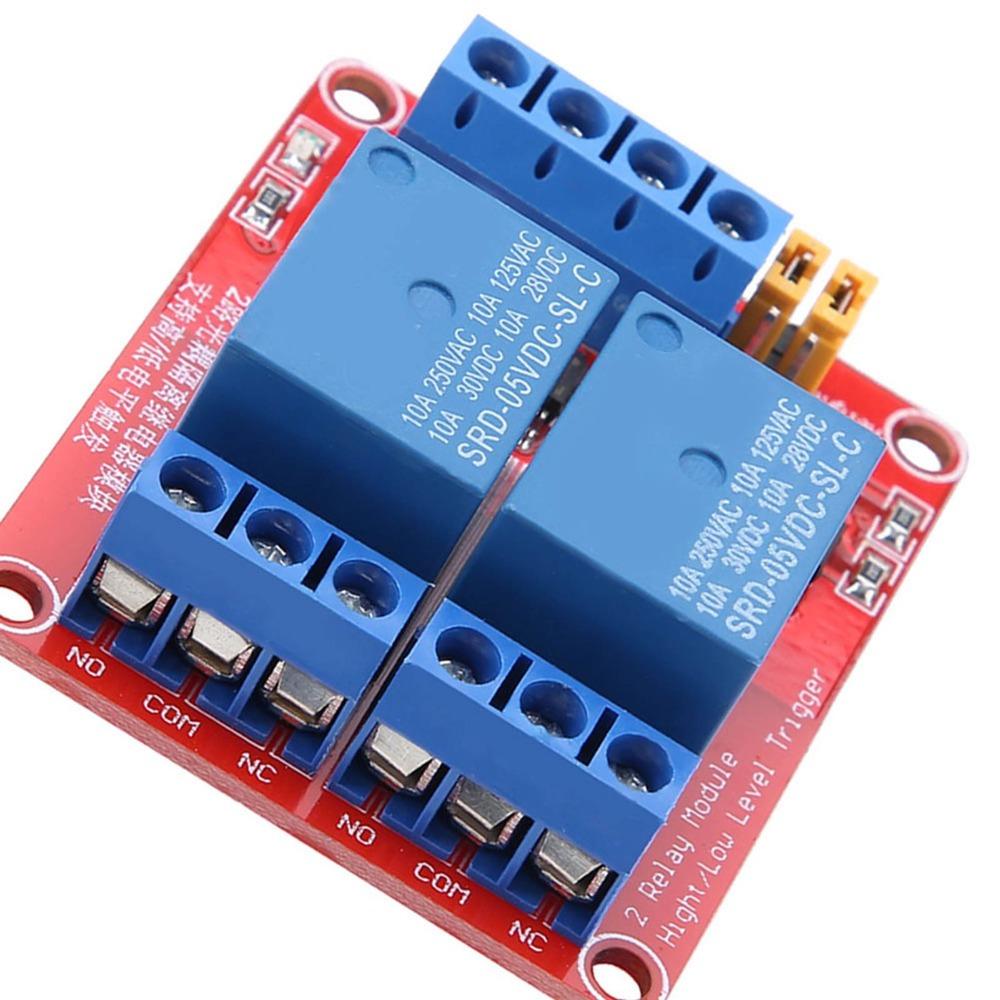

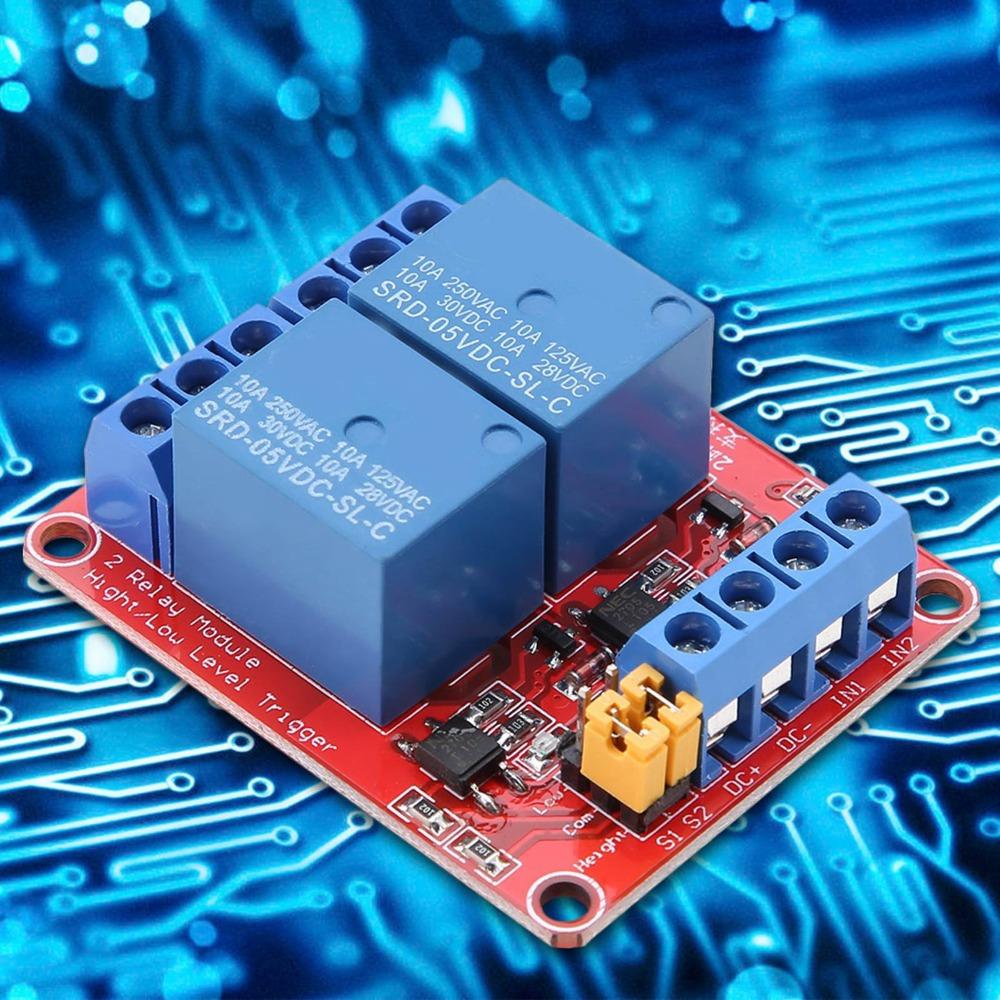

The module adopts premium relays with normal interface and maximum load: AC 250V/10A, DC 30V/10A.
The interface design is humanized. All interfaces can be directly connected through the terminal, which is very convenient.
Modules can be triggered by setting high or low levels through wire jumper.Equipped with 4 fixed screw holes, easy to install.
Fault-tolerant design, even if the control line is broken, the relay will not move.
Using SMT optocoupler isolation, it has strong driving ability and stable performance; trigger current is 5mA.
Specification:
Working voltage: 5V, 12V, 24V(Optional)
Max load: AC 250V/10A; DC 30V/10A
Channel: 2

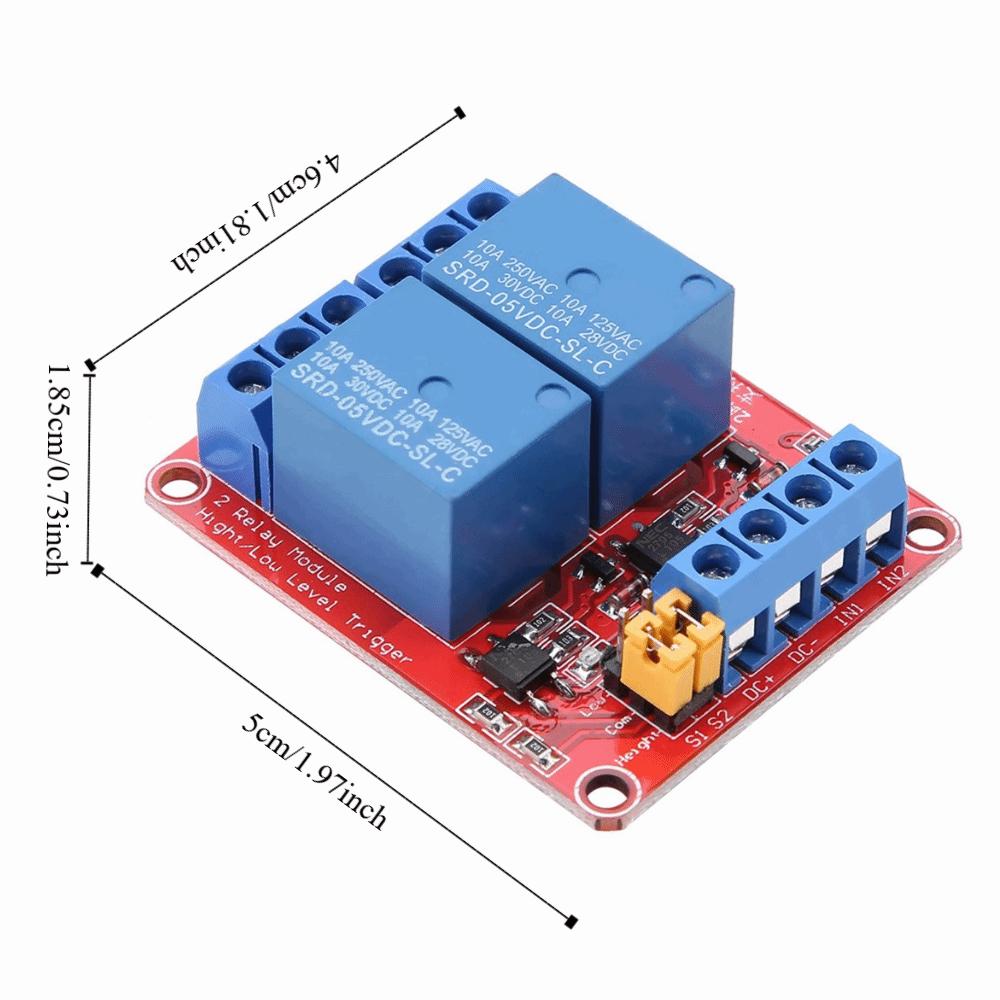

Product dimension: 50*46*18.5mm(1.97*1.81*0.73in)
Hole Diameter: 3.1mm(0.12in)
Hole Spacing: 44.5*35.5mm(1.75*1.40in)
Power light: Green
Relay light: Red
Board color: Red
Technical Specifications

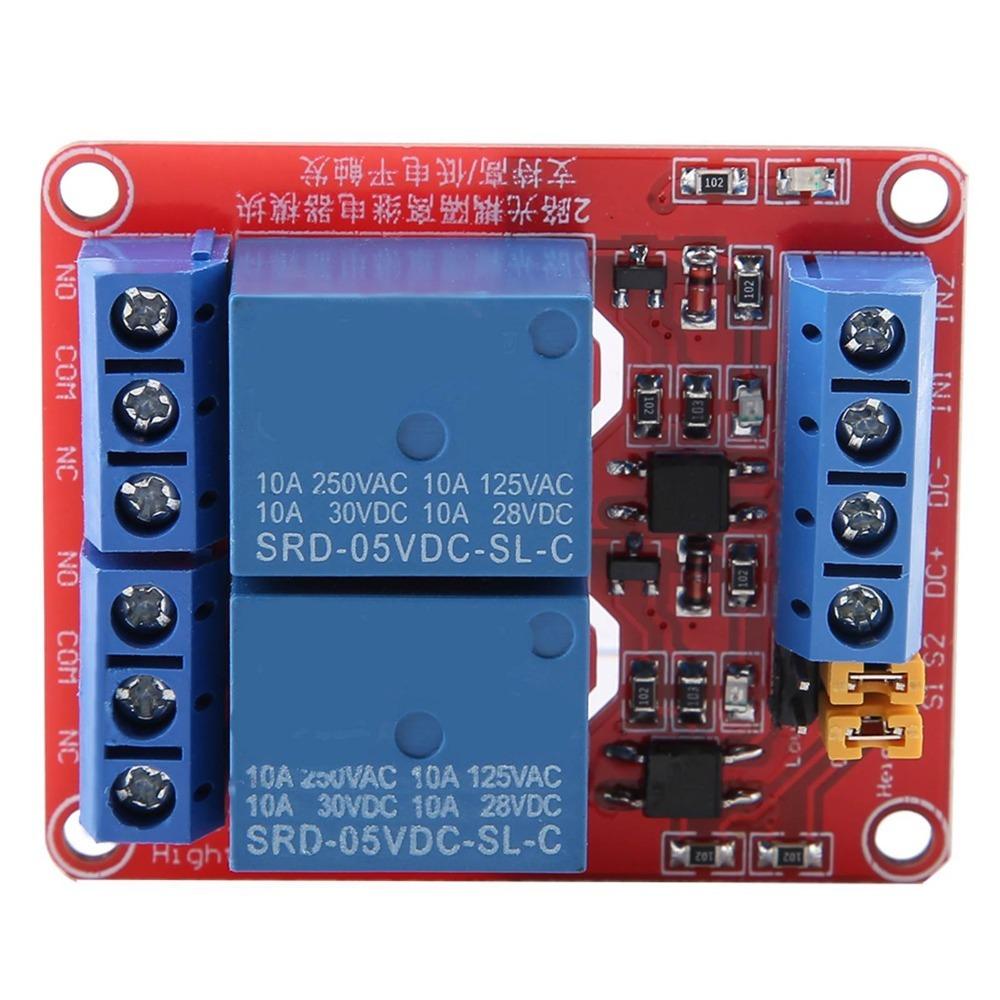

Relay Version: 5V
Quiescent Current: 5mA
Current: 190mA
Trigger Current: 2-4mA
Trigger Voltage (Low): 0-1.5V
High: 2.5-5V

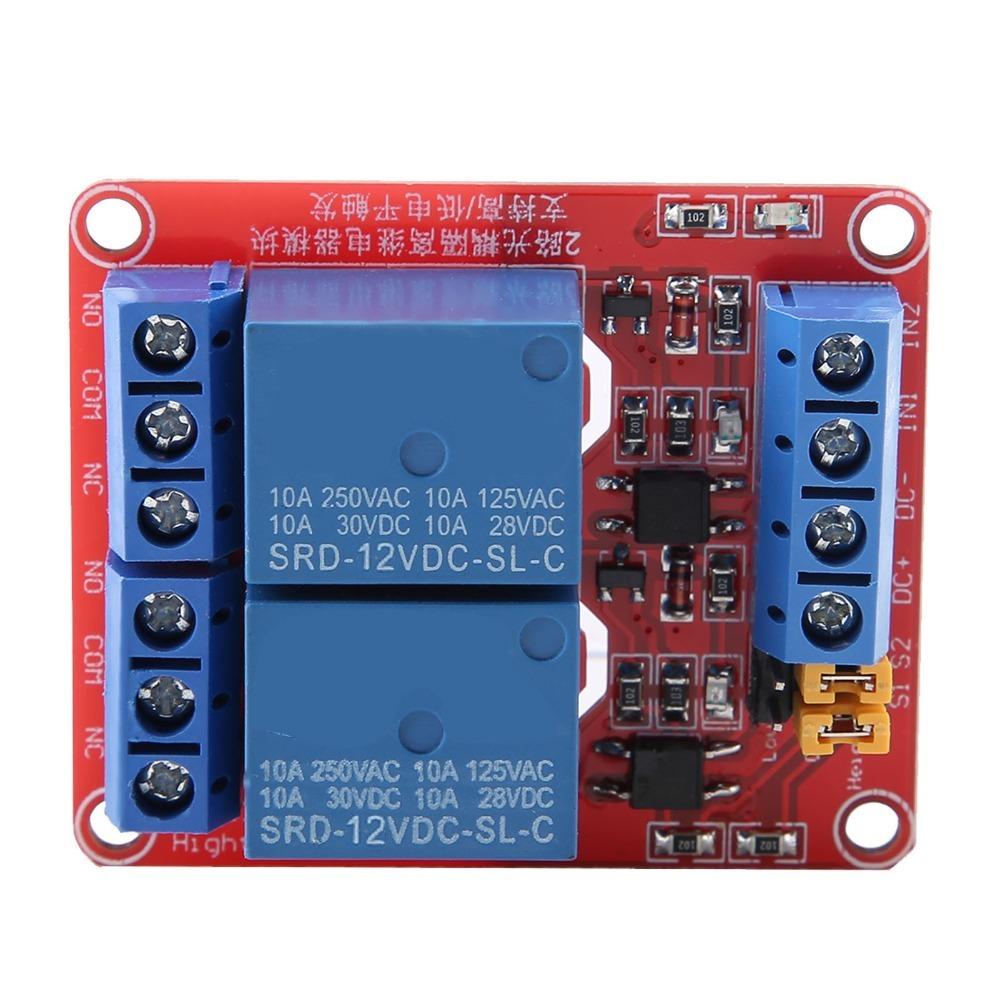

Relay Version: 12V
Quiescent Current: 5mA
Current: 80mA
Trigger Current: 2-4mA
Trigger Voltage (Low): 0-4V
High: 4.5-12V

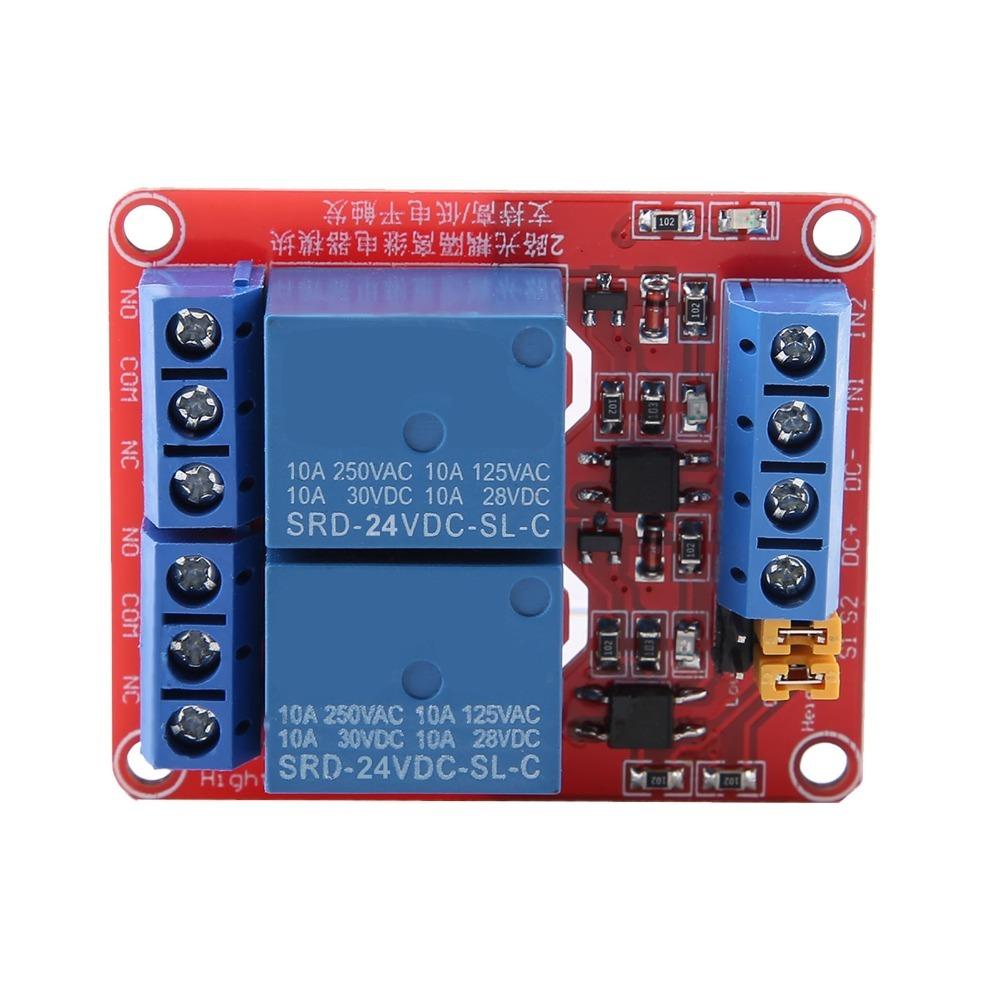

Relay Version: 24V
Quiescent Current: 5mA
Current: 50mA
Trigger Current: 2-4mA
Trigger Voltage (Low): 0-8V
High: 8.5-24V
Package list:
1 * Relay Module
Note:

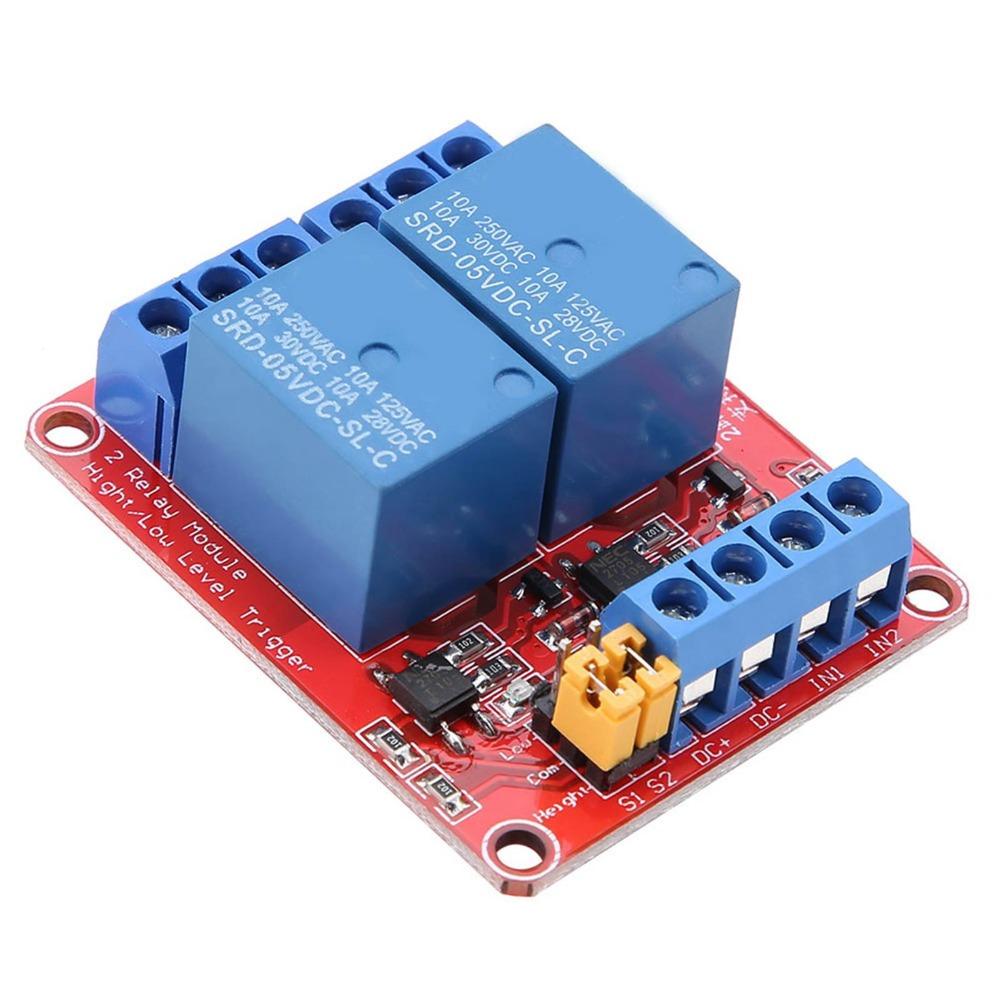

Module interface:
1. DC+: Connect the positive pole of the power supply
2. DC-: Connect power supply negative pole
3. IN1:1 signal trigger terminal, can set high or low level control relay suction
4. IN2:2 signal trigger terminal, can set high or low level control relay suction

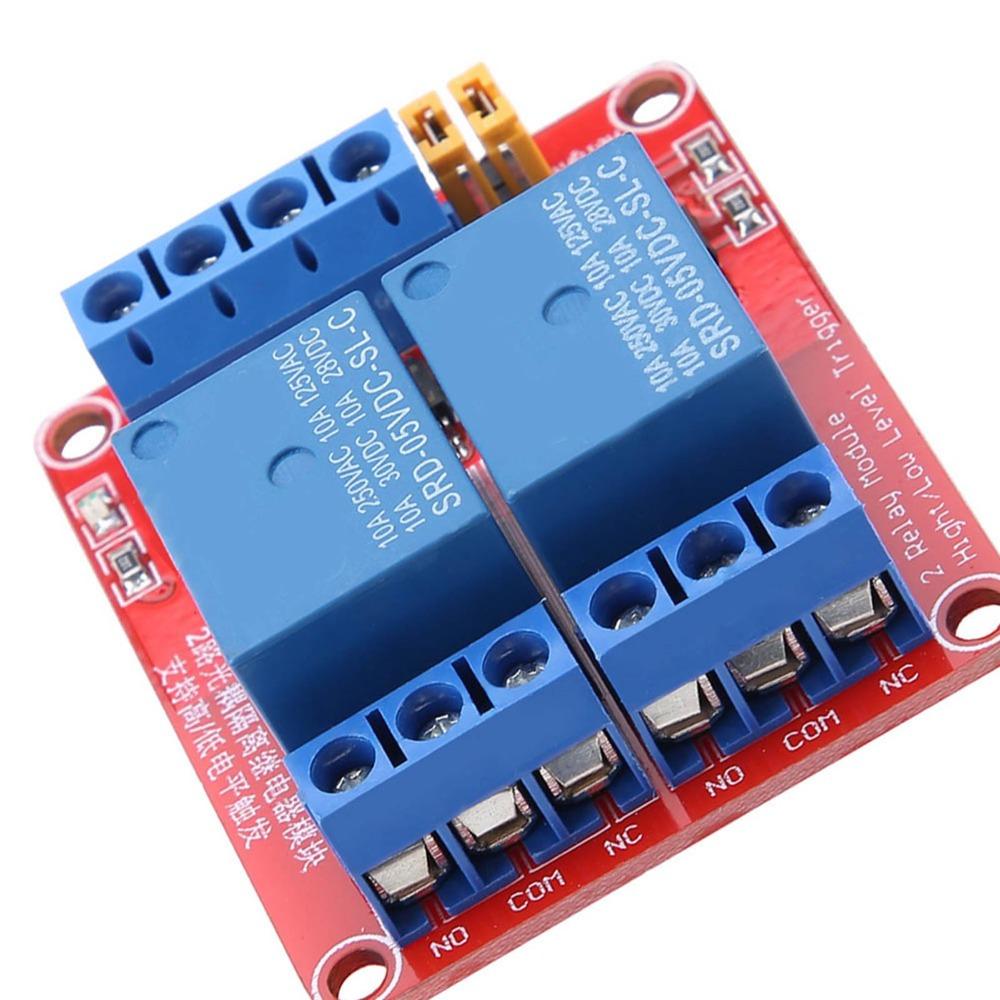

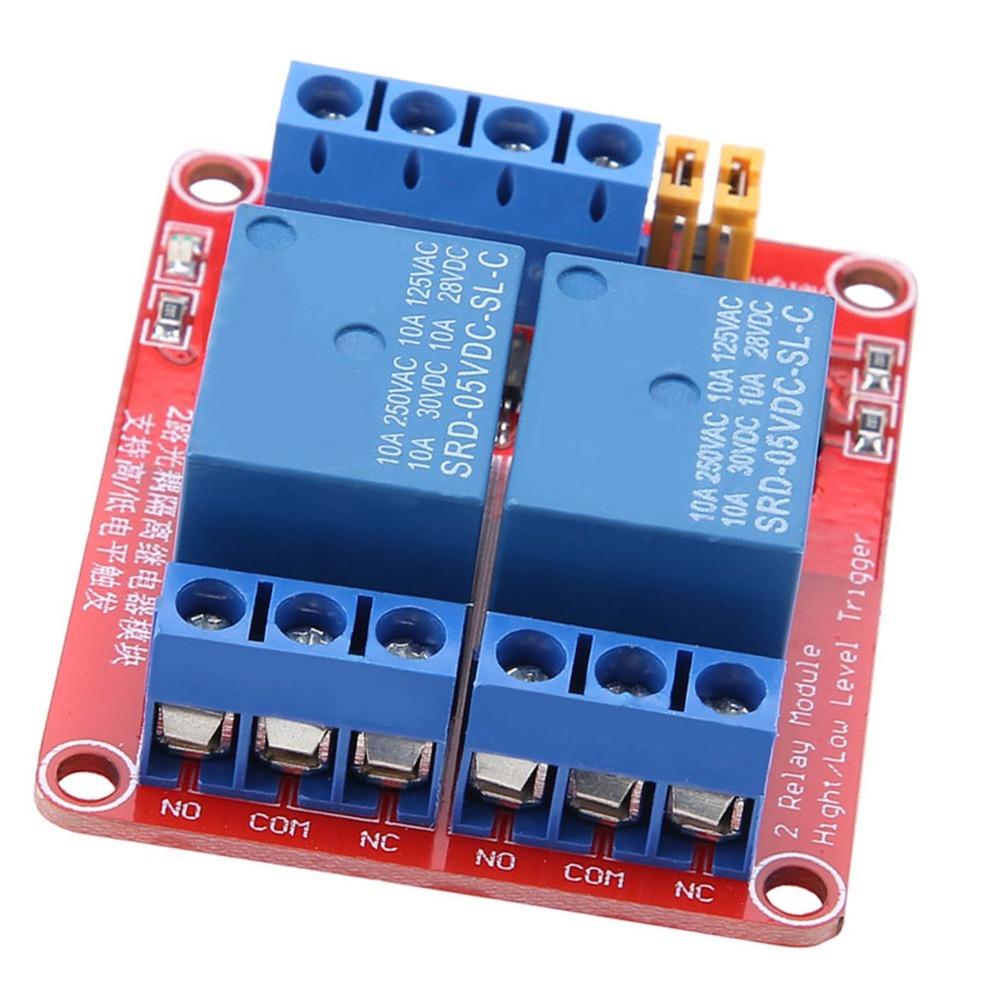

Relay output:
1. NO1: 1 channel relay usually opens the interface. The relay is suspended before suction and short-connected with COM1 after suction.
2. COM1: 1 channel relay common Interface
3. NC1: 1 channel relay normally closed interface, short connection with COM1 before relay suction, suspension after suction
4. NO2: 2 channel relay often opens interface. The relay is suspended before suction, and is short-connected with COM2 after suction.
5. COM2: 2 channel relay common interface
6. NC2: 2 channel relay normally closed interface, short Connection with COM2 before relay suction, suspension after suction.

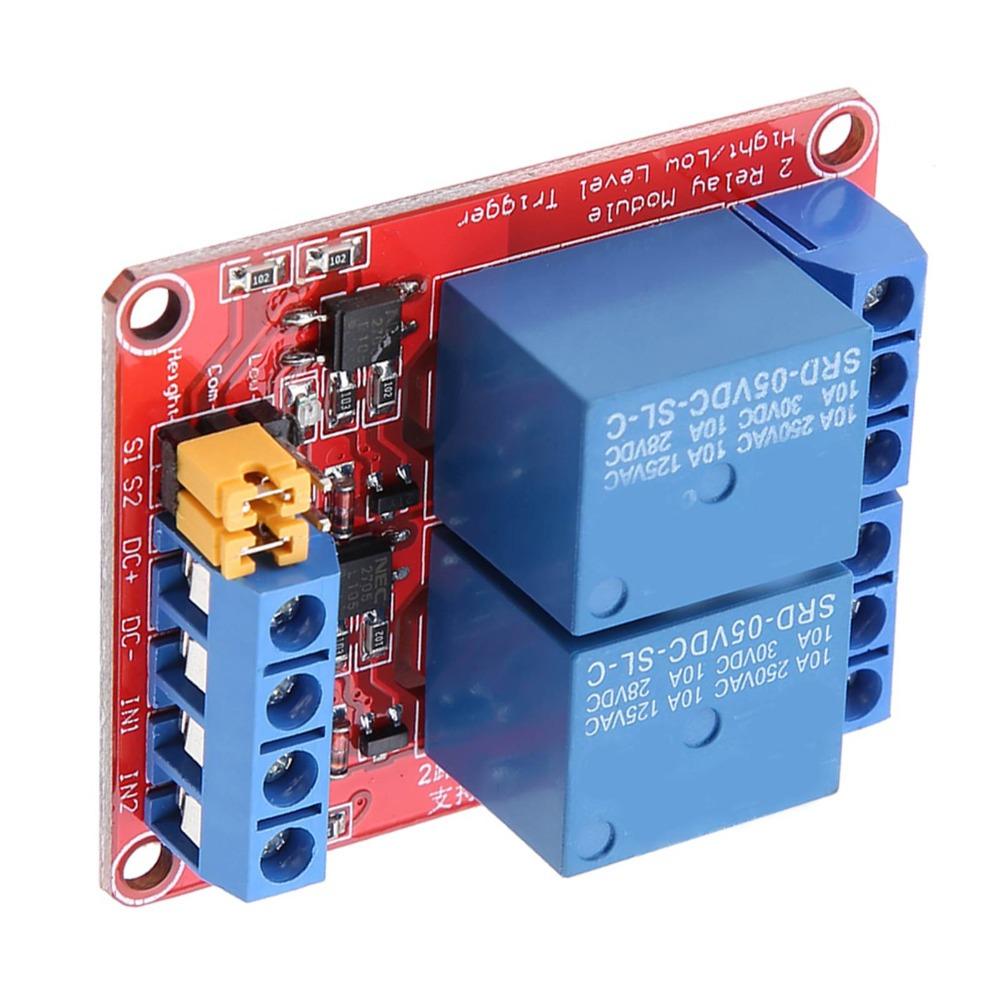

High and low level trigger selector:
1. S1 is the trigger selection of high and low level1 channel relay.
2. S2 is the trigger selection of high and low level 2 channel relay.
3.com and low short connection, the corresponding relay is low-level trigger, com and high short connection is high-level trigger.
