Label:Yes
-With Stickers: Comes with stickers, which can be attached to the electrical appliances connected according to the name on the sticker. When the fuseing is broken and the red light is on, we can quickly identify which electrical appliance has a problem, saving time and effort.
-Doubled Fuseings: When in working, the fuseing is burned out and can be replaced from the spare fuseing immediately, and the fuseing is sent with multiple amps. The fuseing for amps can be selected according to the current electrical appliance.

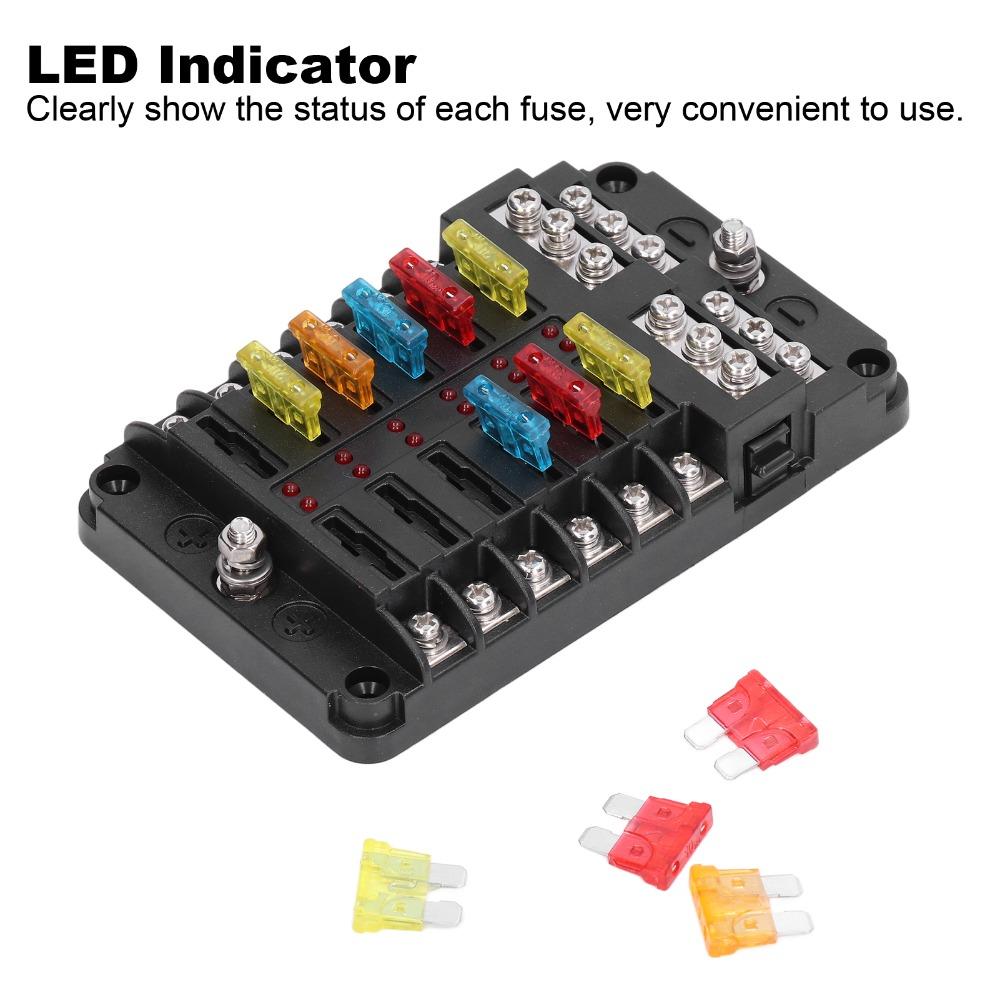

-LED Indicator: The red LED indicator can correspond to the electrical appliances connected to each strip. When the fuseing is disconnected, the red light will be on, and you can immediately know which fuseing is broken.

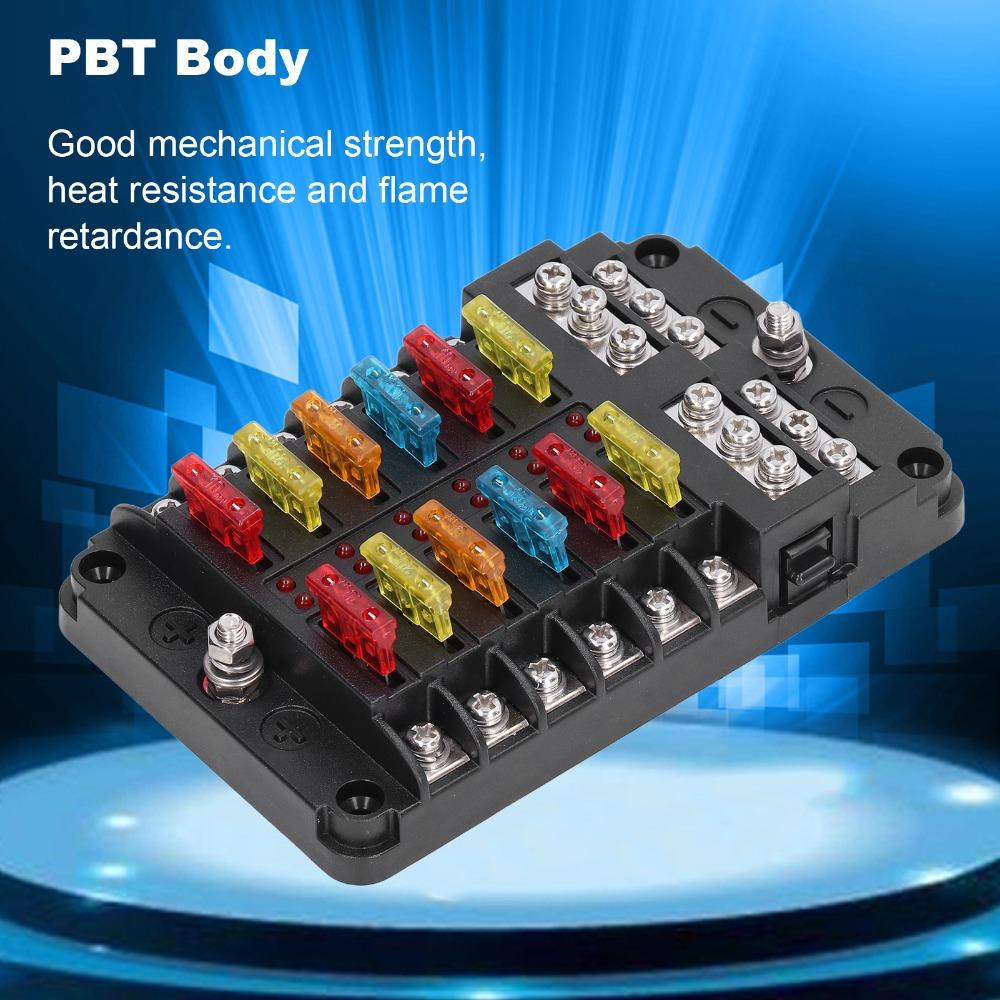

-Safer Working: Made of PBT material that is sturdy with high and low temperature, which also has good mechanical strength and good insulation and will not break, deform, burn or short circuit during use.
-Easy to Install: All fasteners are made of stainless steel, the input and output ends of the box are fixed with tightening screws, which can be installed more quickly, and the fuseing box is fixed with self tapping screws, which is easier and safer to install.
Specification:
Item Type: Box Holder
Color:As shown in the figure
Product Size: Approx. 138 x 85 x 37mm(5.43 x 3.35 x 1.46in)
Product Material: PBT Body + PC Waterproof and Cover + Connection Terminal + PPX40 sticker
Input Rated Voltage: 32V
Input Rated Current: 100A
Output Maximum Current: 30A Per Circuit
Indicator Colour: Red
Main Wire Terminal: M5 Threaded Stud
Main Wire: 4-6
Single Wire Terminal: M4 Threaded Stud
Single Wire: 12-16
Indicator Function: When the red LED light is on, it means that the fuseing has been disconnected, and the fuseing needs to be replaced in time to continue running.
Product Installation Range: It can be installed on cars, villas, RVs, buses, yachts, boats, etc.
Scope of Product Use: It can be directly connected to the line of any electrical appliance on the car and ship, such as dome light, car headlight, width light, fog light, warning light, car refrigerator, car charger, car fan, car TV, etc.
Function of Fuseing: When the circuit fails or is abnormal, the current continues to increase, and the increased current may damage some important components or valuable components in the circuit, and may also burn the circuit or even cause a fire. Fuseing secure electronic equipment from over current and also secure electronic equipment from serious damage caused by internal faults. Therefore, there is a rating on each fuseing, and when the current exceeds the rating, the fuseing will blow. If the fuseing is correctly placed in the circuit, the fuseing will cut off the current by itself when the current abnormally rises to the upper limit height and upper limit temperature, thereby protecting the circuit working.
Note:
When the circuit fails or is abnormal, the current is continuously increased, and the increased current may damage some important or valuable components in the circuit, and may also burn the circuit or even cause a fire. Fuseing secure electronic equipment from over current and also secure electronic equipment from serious injury caused by internal faults. Therefore, there is a rating on each fuseing, and when the current exceeds the rating, the fuseing will blow. If the fuseing is correctly placed in the circuit, the fuseing will cut off the current when the current abnormally rises to the upper limit height and upper limit temperature, thereby protecting the circuit working.
Package List:
1 x Box Holder
2 x Sticker
4 x Self Tapping Screw
6 x 20A
6 x 15A
6 x 10A
6 x 5A
