33 x 34mm Analog Signal Converter Board Signal Conversion Module Industrial Automation

Label:Yes 0-10V TO 0-10KHZ: Frequency analog voltage signal module can convert 0-10V voltage into 0-10KHz frequency pulse signal. COMPACT SIZE: The conversion board has a compact size, with mounting holes, easy to install and does not take up space. MAIN PURPOSE: Voltage to frequency module, the voltage frequency pulse signal can generate different frequency according to the input level. EASY USE: Wide range of input controllable voltage and frequency, can be input directly without series resistance. SIMPLE WIRING: The signal conversion module has clear wiring terminals, has stable connection and less interference.

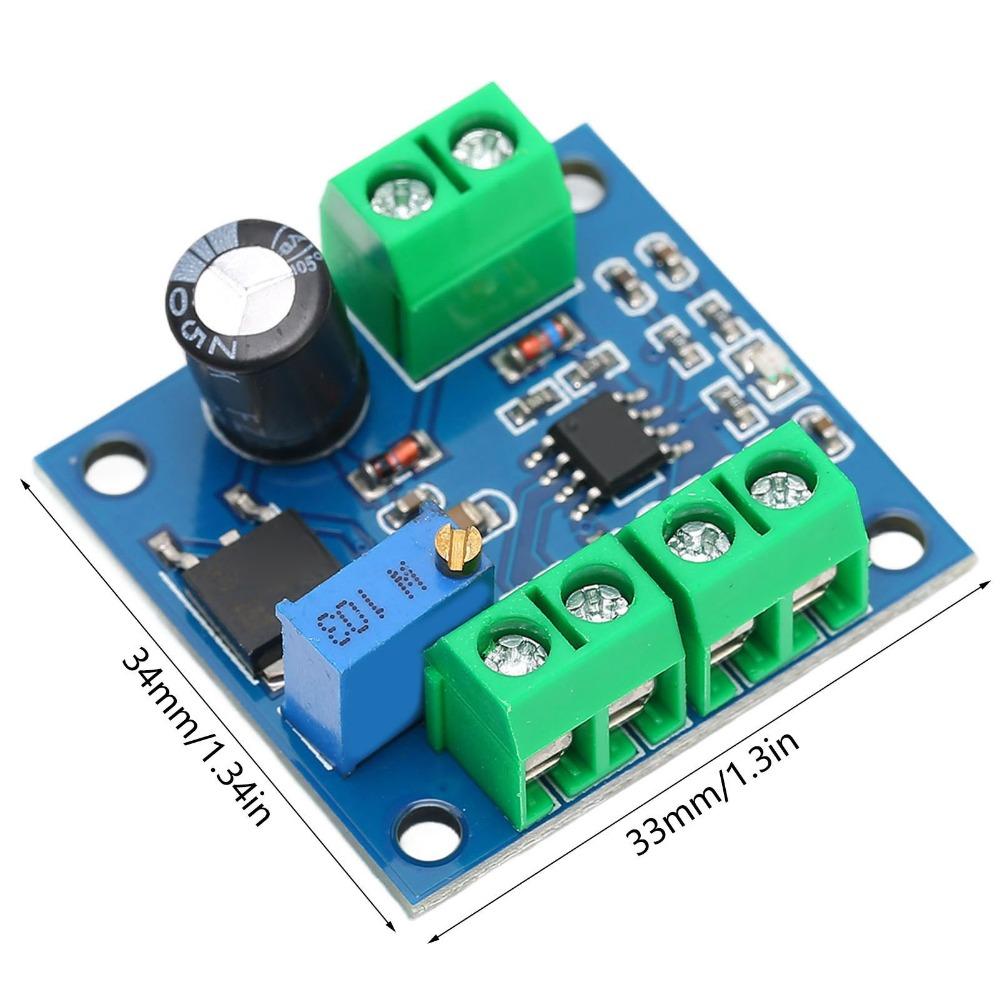

Specification Item Type: Voltage to Frequency Module Working Voltage: 13.5V-30V Input Controllable Voltage Range: 0-10V Output Frequency Range: 0-10KHz Size: Approx. 33 x 34mm / 1.3 x 1.34in Color: As picture shown

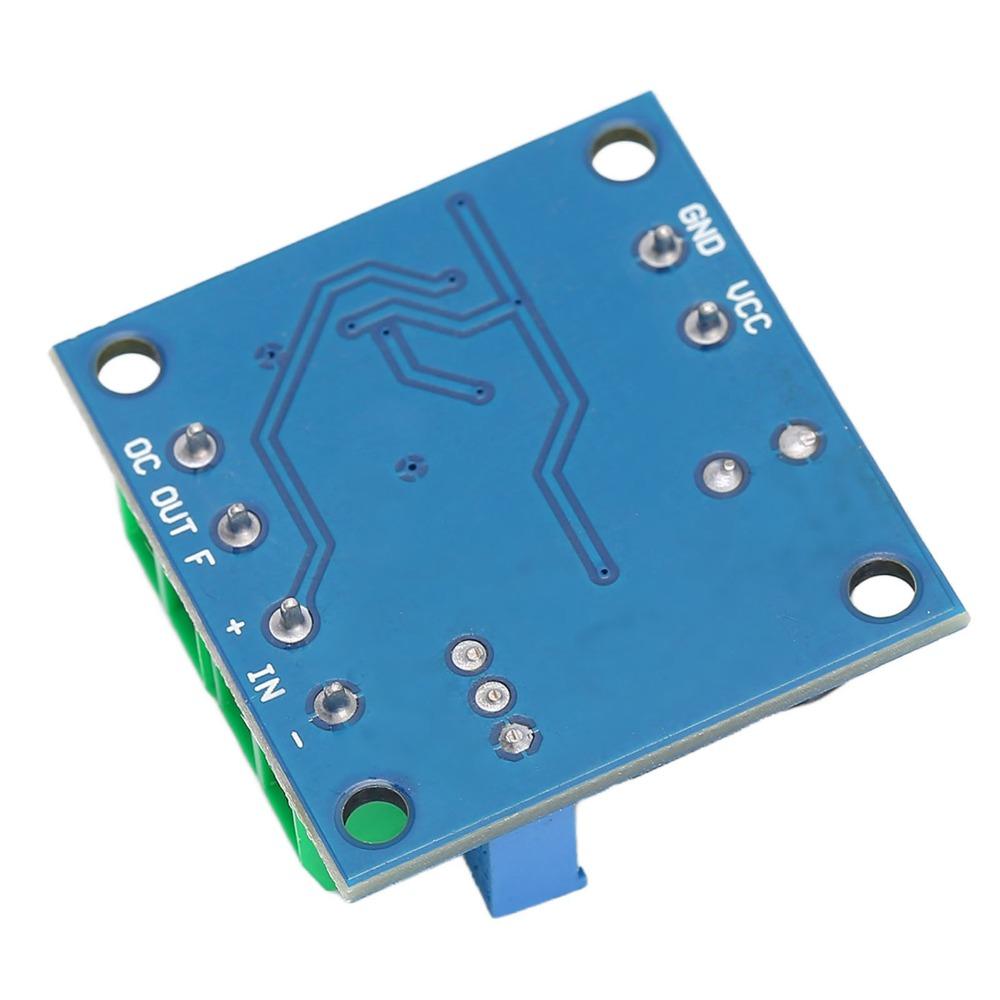

Wiring Instructions: VCC: Working power GND: Power ground F: Input frequency pulse signal VOUT: Output corresponding voltage GND: Output ground Indication: The frequency pulse signal is connected to F, and there is a corresponding voltage output at the VOUT end. Input and Output Correspond: 1KHz=1V 10KHz=10V

Package List 1 x Voltage to Frequency Module

Note If there is correspondence deviation in the during use, you can adjust the potentiometer on the board for calibration.
