OWON ADS912A Digital Oscilloscope, 2-channel, 125MHz, 12-bit, 2GSa/s, 100MB Memory, 700,000wfms/s Maximum Waveform Update Rate, FFT, SCPI, 6-digit Fre

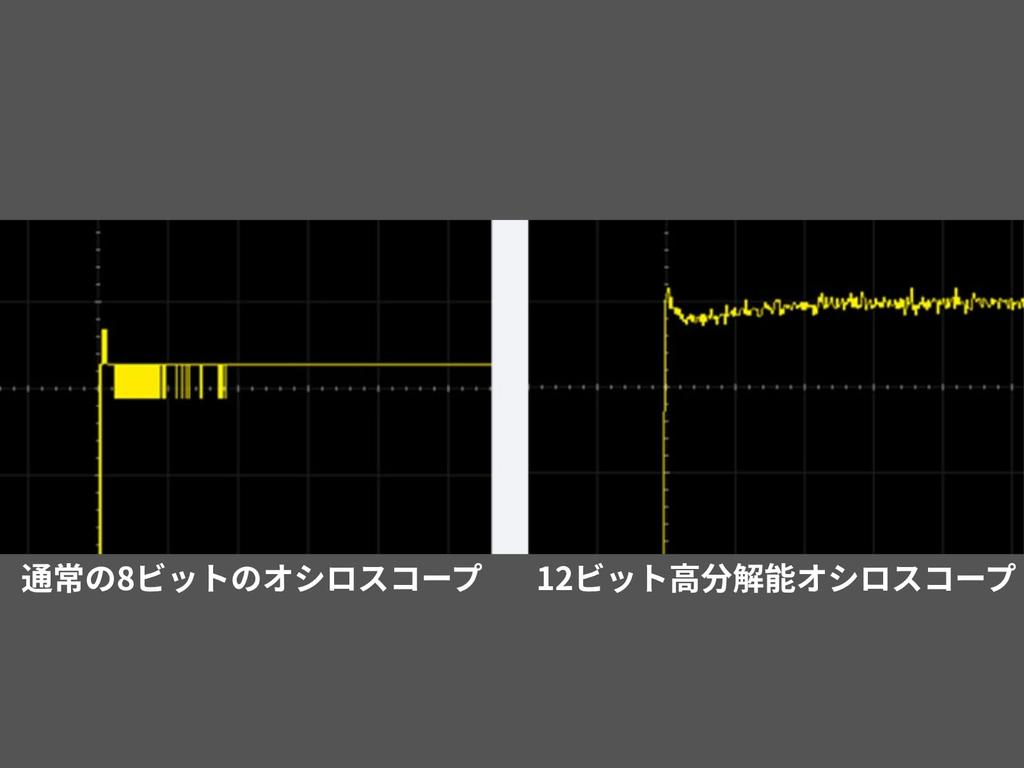

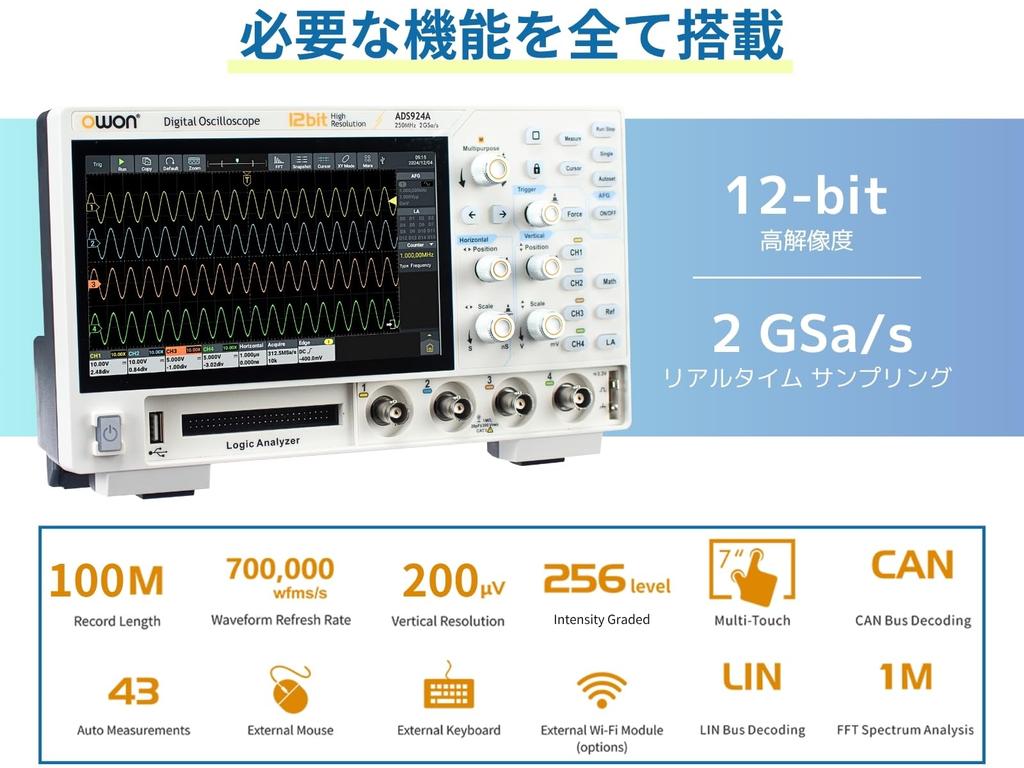

[High-Resolution Waveform Observation with 12-Bit ADC] The ADS900A series employs a 12-bit A/D converter, exceeding the conventional 8-bit standard, enabling high-precision observation of even delicate waveforms with a vertical axis resolution of 200μV/div to 10V/div. FFT analysis (1M points), extensive waveform calculations, and a DC gain accuracy of within ±3% ensure low-noise waveform acquisition.

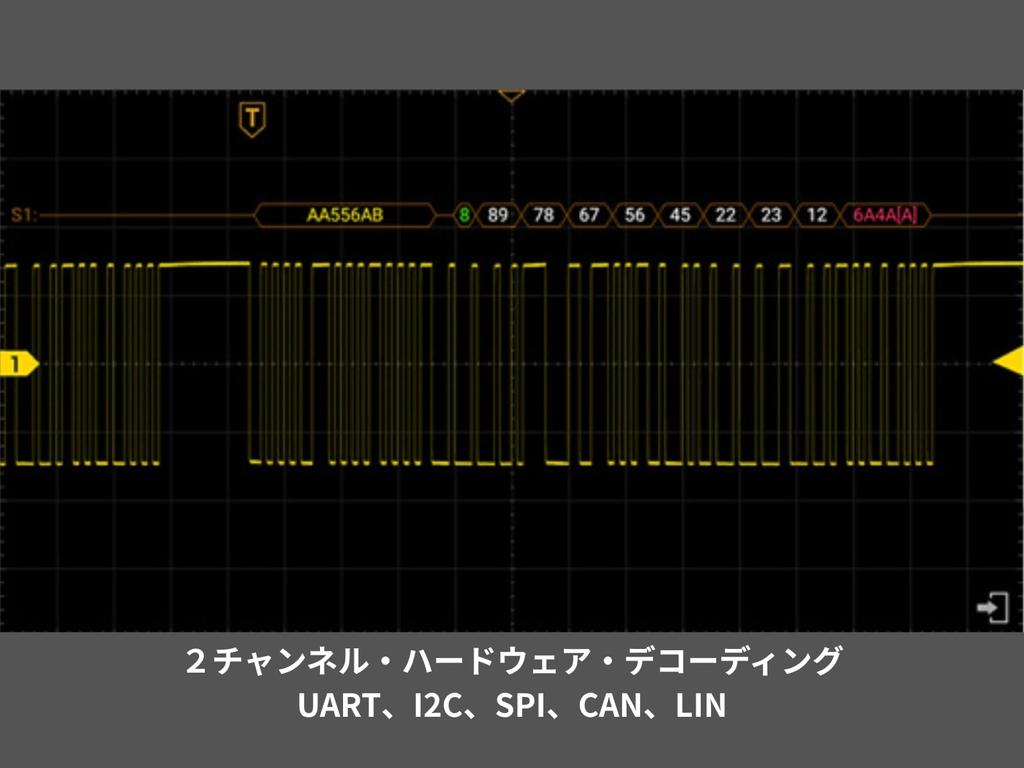

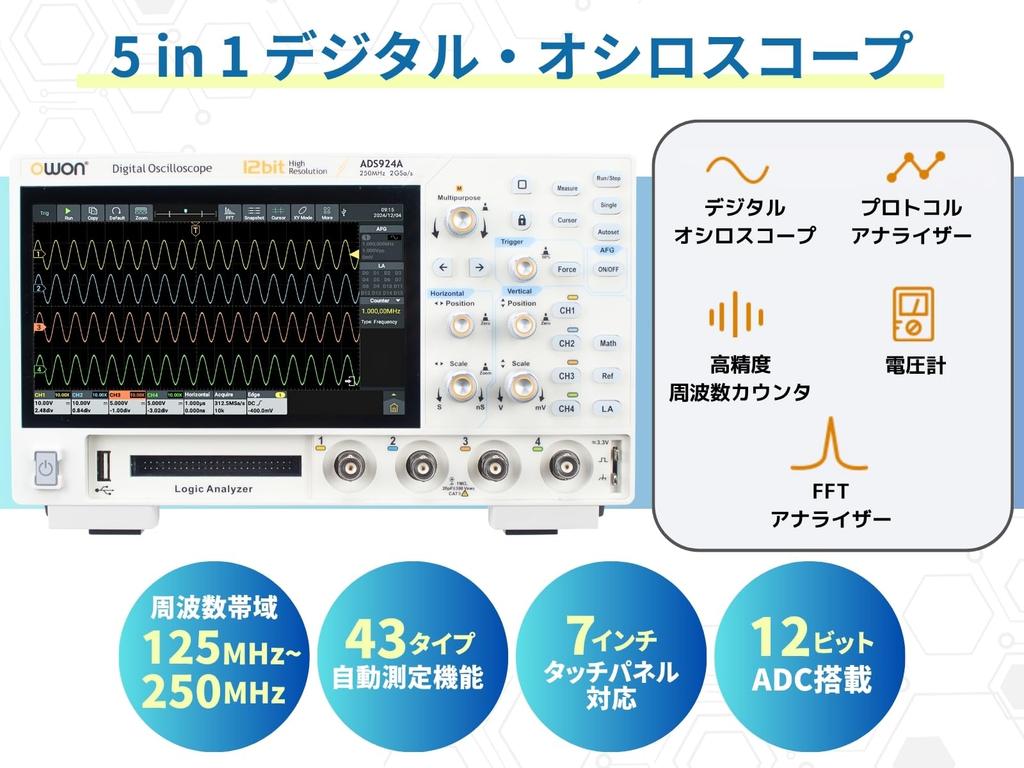

[Multifunctional Integrated: Oscilloscope + Generator + Logic Analyzer + Protocol Analysis] The unit integrates oscilloscope functionality, a 30MHz waveform generator (optional), a 16-channel logic analyzer (optional), and frequency counter, voltmeter, FFT, and protocol analysis functions (UART/I2C/SPI/CAN/LIN). It also supports Bode plotting and arbitrary waveform generation in 1μHz steps, expanding the scope of development and evaluation work.

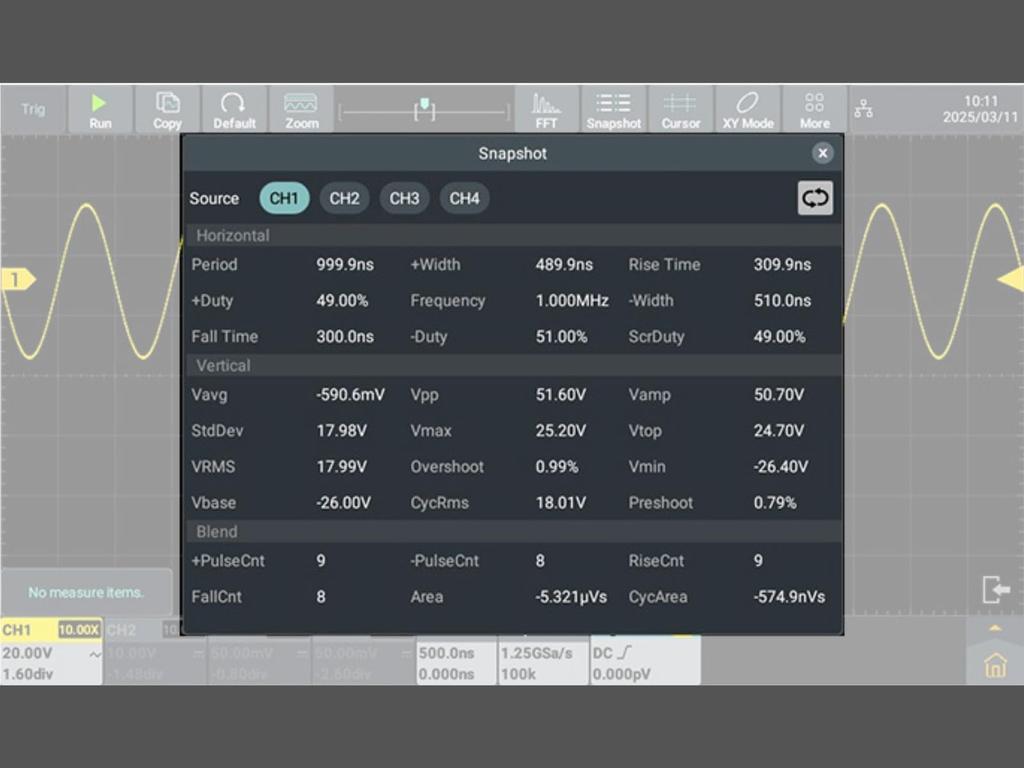

[Deep Memory and High-Speed ​​Acquisition for Reliable Signal Capture] With a large 100M-point memory and a maximum waveform update rate of 700,000 wfms/s, it can detect transients and minute noise with high precision. The trigger types, calculations, and measurement items are extremely abundant, providing all the necessary functions for complex signal analysis and debugging in one unit.

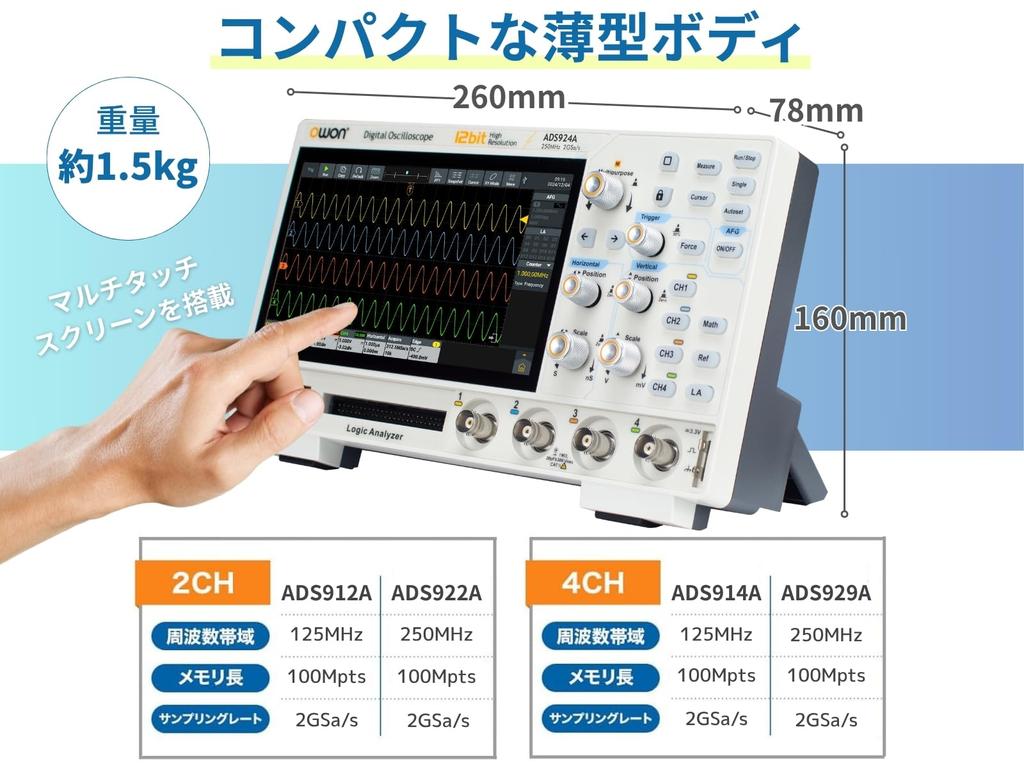

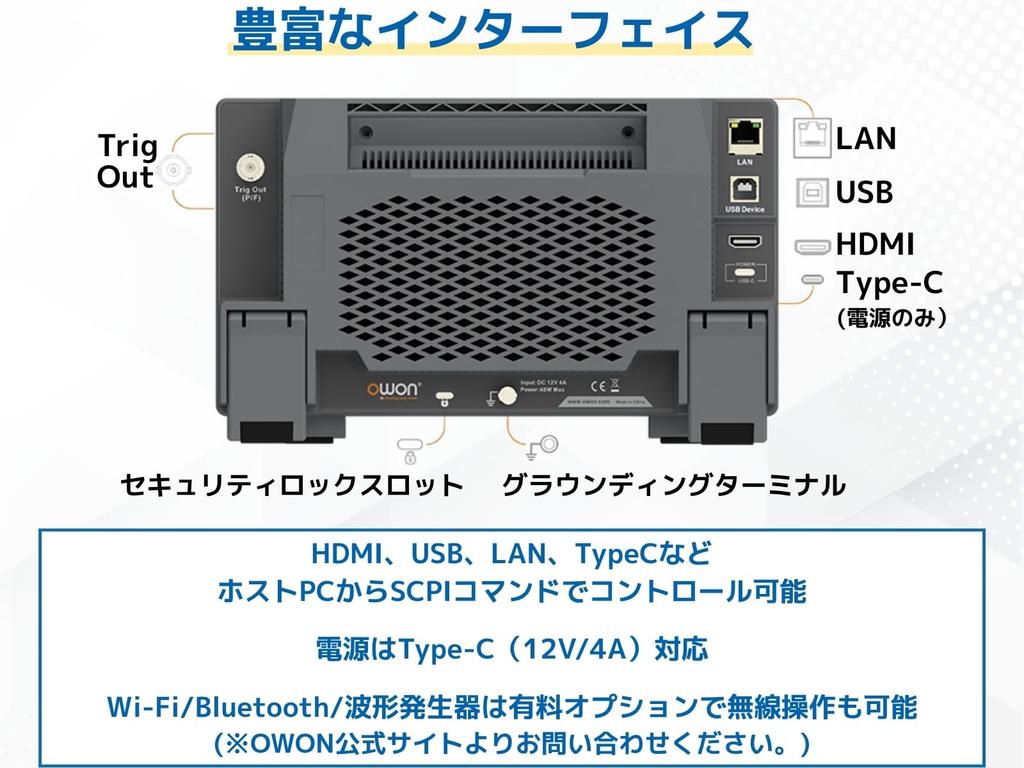

[Compact Chassis Combining Operability and Expandability] Equipped with a 7-inch capacitive multi-touch display. It supports mouse/keyboard and has USB host/device, LAN, HDMI, and trigger output terminals, enabling external connectivity and automated measurement systems. Wi-Fi/Bluetooth options allow for FTP/printer connectivity, supporting flexible operation.

[Instruction Manual and Warranty] As a genuine domestic product, it comes with a 3-year manufacturer's warranty for the main unit and a 1-year manufacturer's warranty for accessories. You can introduce and use it with peace of mind. The Japanese instruction manual can be downloaded from the OWON official website (owon.co.jp) or from the Amazon product page "User Manual (PDF)".
