Feature:
1. Adopt pure copper core motor, possess high‑speed and strong power, energy‑saving and power‑saving
2. 2000‑12000r/min, the governor can realize 7‑speed speed regulation, CW and CCW can be adjusted
3. Supports angular cutting to meet the needs of daily use. The maximum cutting depth is up to 40mm
4. Can install drill chuck, sandpaper, polishing wheel, rounding device for different operations, one machine support many‑purpose
5. The product can hold 16/20MM inner hole saw blades, very useful and practical
6. Suitable for manual DIY, wood, metal, plastic, acrylic, etc. cutting, the upper drill chuck and corresponding accessories can be used for grinding, carving, drilling, etc.
Specification:
Item Type: Mini Table Saw
Material: Aluminum alloy, cold rolled steel, copper
Scope of Application: Can be used for manual DIY, wood, metal, plastic, acrylic, etc. cutting, and the upper drill chuck and corresponding accessories can be used for grinding, carving, drilling, etc.
Motor Speed: 2000-12000r/min (seven speed regulation)
Maximum Cutting Depth: Approx. 40mm / 1.6in
Maximum Saw Blade Diameter: Approx. 110mm / 4.3in
Suitable for Inner Hole of Saw Blade: Approx. 16mm / 0.6in, 20mm / 0.8in
Drill Chuck Shaft Diameter: Approx. 10mm / 0.4in
Motor and Spindle Speed Ratio: 1: 3
Power Supply Voltage: DC12-24V
Motor Power: 180W (product use power, not product use idling power)
CW and CCW: Adjustable
Angle Cutting: Support
Table Saw Size(LxWxH): Approx. 280 x 200 x 150mm / 11 x 7.9 x 5.9in(after adding dust-proof board and bracket)

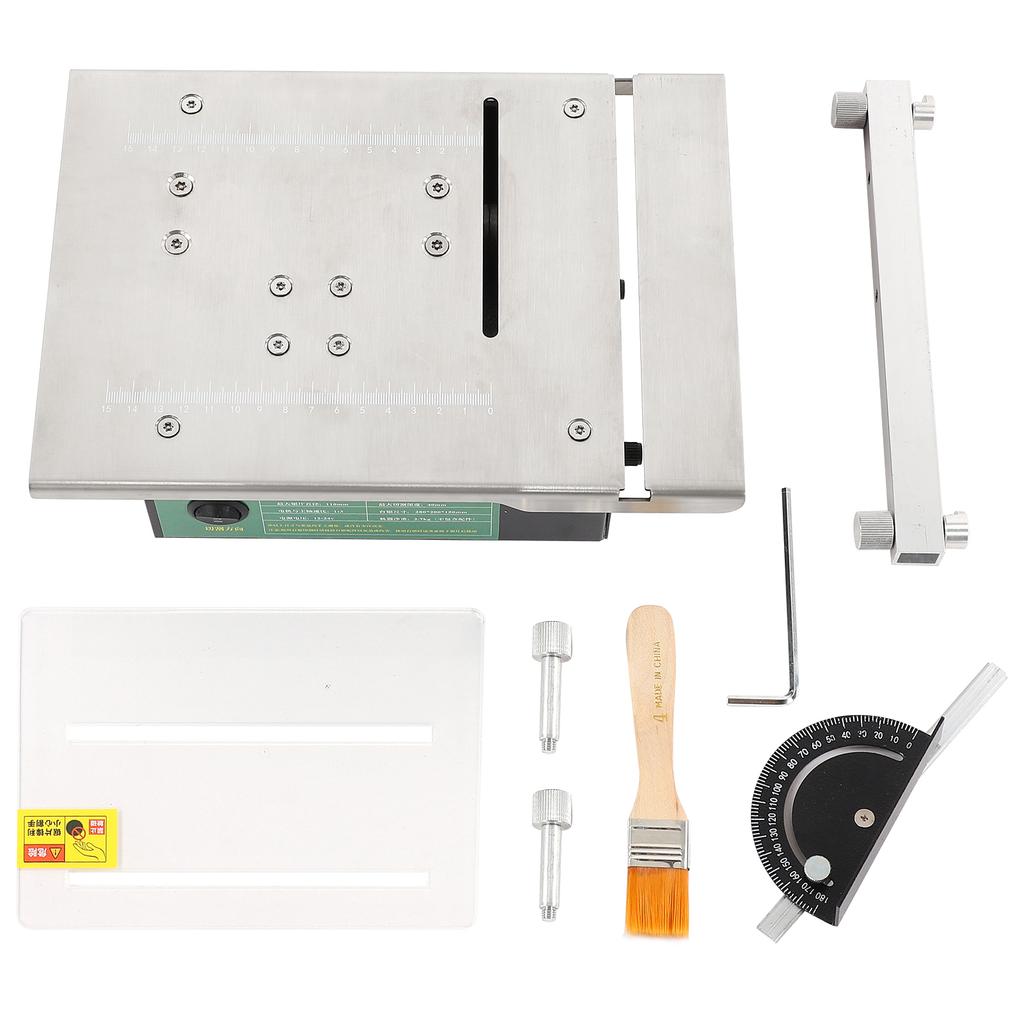

Package List:
1 x Table Saw
1 x Aluminum Alloy Support (including 2 adjusting screws)
1 x Acrylic Dustproof Board
2 x Aluminum Alloy Support Screw

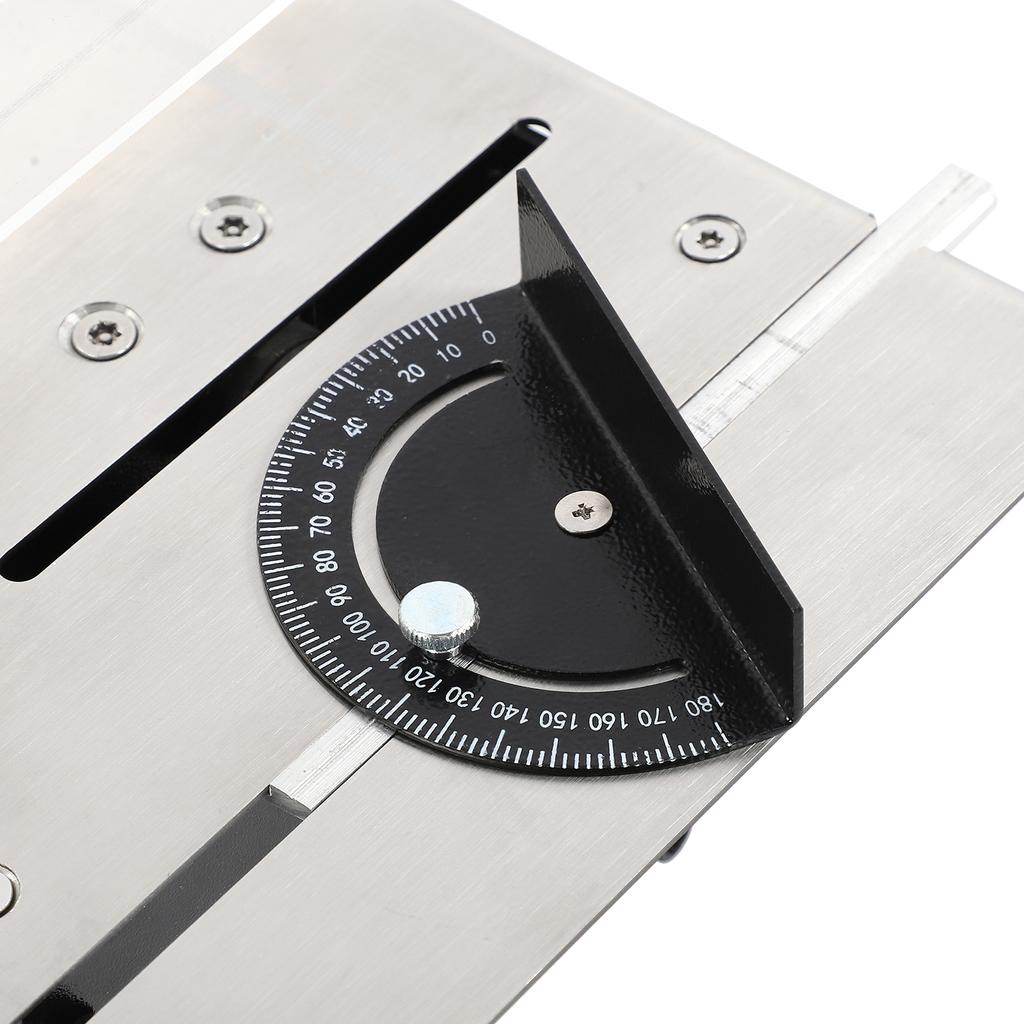

1 x Angle Square
1 x Hex Wrench
1 x Brush
1 x User Manual
Note:
1. The power supply must be cut off to install the saw blade
2. The cutting direction and table grinding direction must be operated in accordance with the indicated direction
3. To switch the direction, turn off the power first and then reverse the operation
4. When using a table saw to cut, remove the accessories of the table grinder. When using a table grinder, be sure to remove the saw blade for use.
5.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
