Feature:
1. Good Compatibility: This 3D printer LED light board replacement is specifically designed to directly replace the original light strip in the for Flashforg Adventurer 5M, for 5M Pro 3D printer. If your original lighting is damaged, this kit provides an easy solution without the need for modifications.

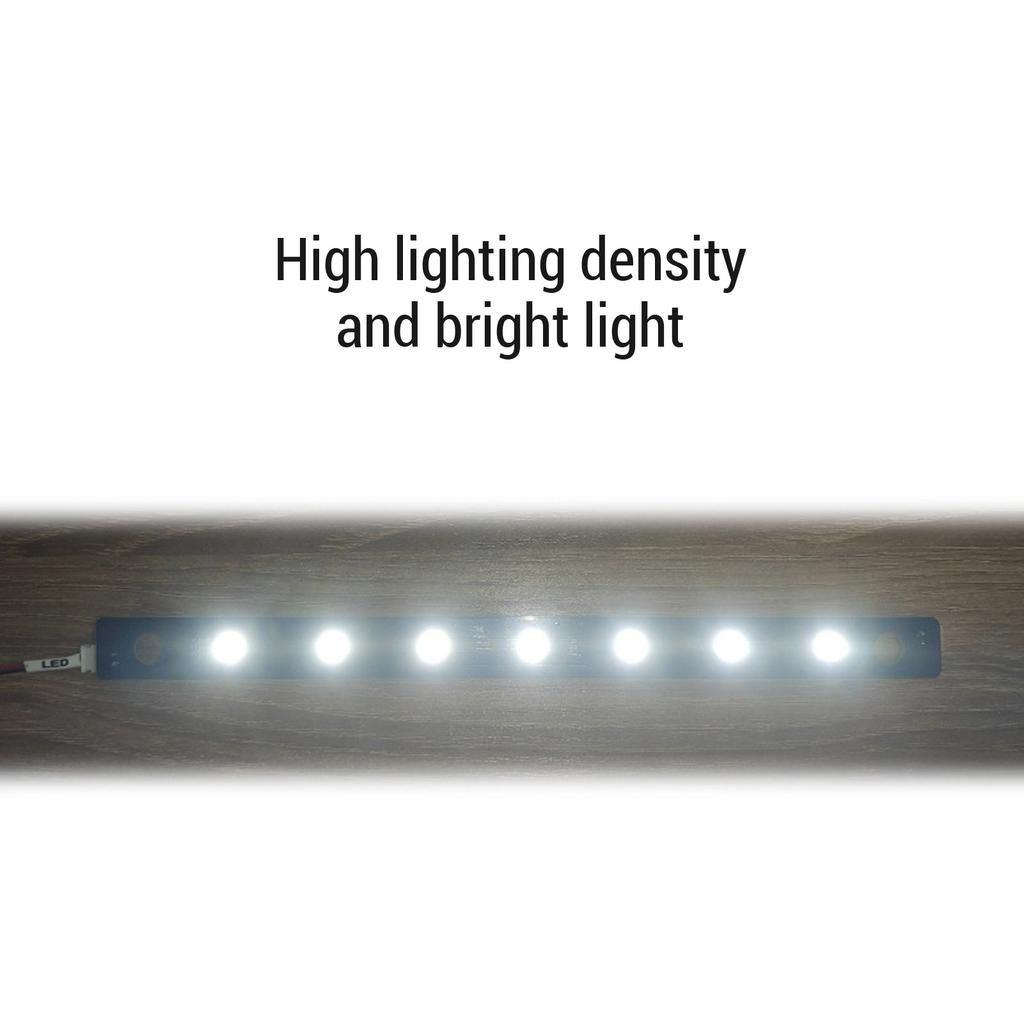

2. Enhanced Visibility For Improved Printing: The 3D printer LED light strip kit provides excellent illumination, allowing for better visibility of the hot end, extrusion head, and 3D printing components during operating. Whether you're monitoring printing progress or changing filaments (such as 1.75mm), this upgrade ensures you can see exactly what’s happening inside the printer, which is important for producing good prints.
3. Low Power Consumption With High Brightness: Operating at 24V with a current of 0.2A and about 4.8W of power, this 3D printer LED light strip is designed for low energy consumption while delivering bright, stable lighting. This combination not only enhances your printing environment but also helps maintain a cool temperature within the printer, reducing energy costs.

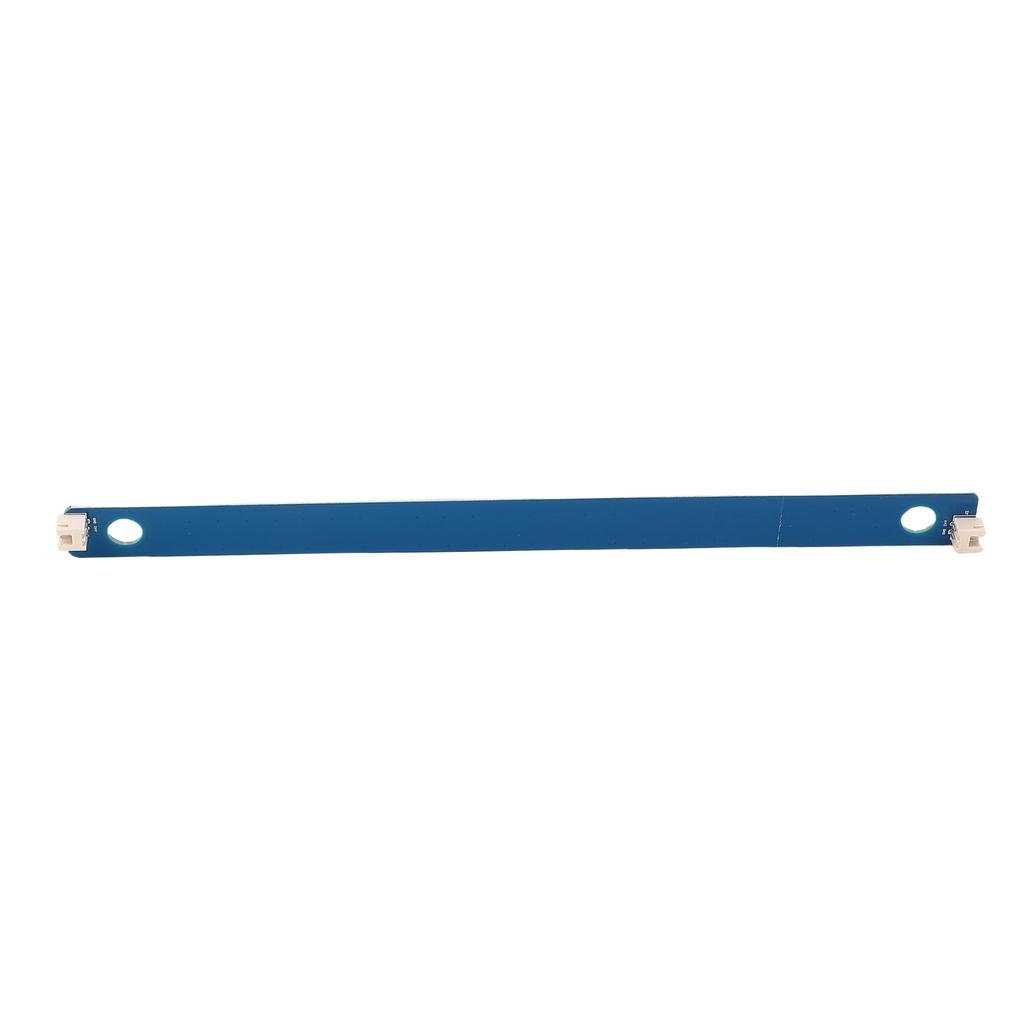

4. Easy Installation: Measuring 23 cm (9.06 inches) in length and featuring two 8.5 mm mounting holes, the light bar can be securely attached to the front panel of the for AD5M 3D printer using screws. The kit includes a 71.5 cm (28.15 inches) connecting cable for power supply connection, making installation a plug and play experience.
5. Expandable Brightness Options: For those looking to enhance the lighting even further, the 3D printer LED light bar kit comes equipped with terminal connectors on both ends. You can easily add a second light bar and connect them in series for increased brightness.
Specification:
Item Type: 3D Printer LED Light Board
Material: PCB
Application: for AD 5M, for 5M Pro 3D Printer LED Lighting Strip
Cable Length: Approx. 71.5cm/28.15in
Light Board Length: Approx. 23cm / 9.06in
How to Use:
Match the appropriate size type before use.
Package List:
1 x Light Board
1 x Connecting Cable
Note:
The standard for 5M model lacks a lighting control port, you'll need to use a separate switch outside the touchscreen to control the power or turn off the printer completely.
